IMPORT

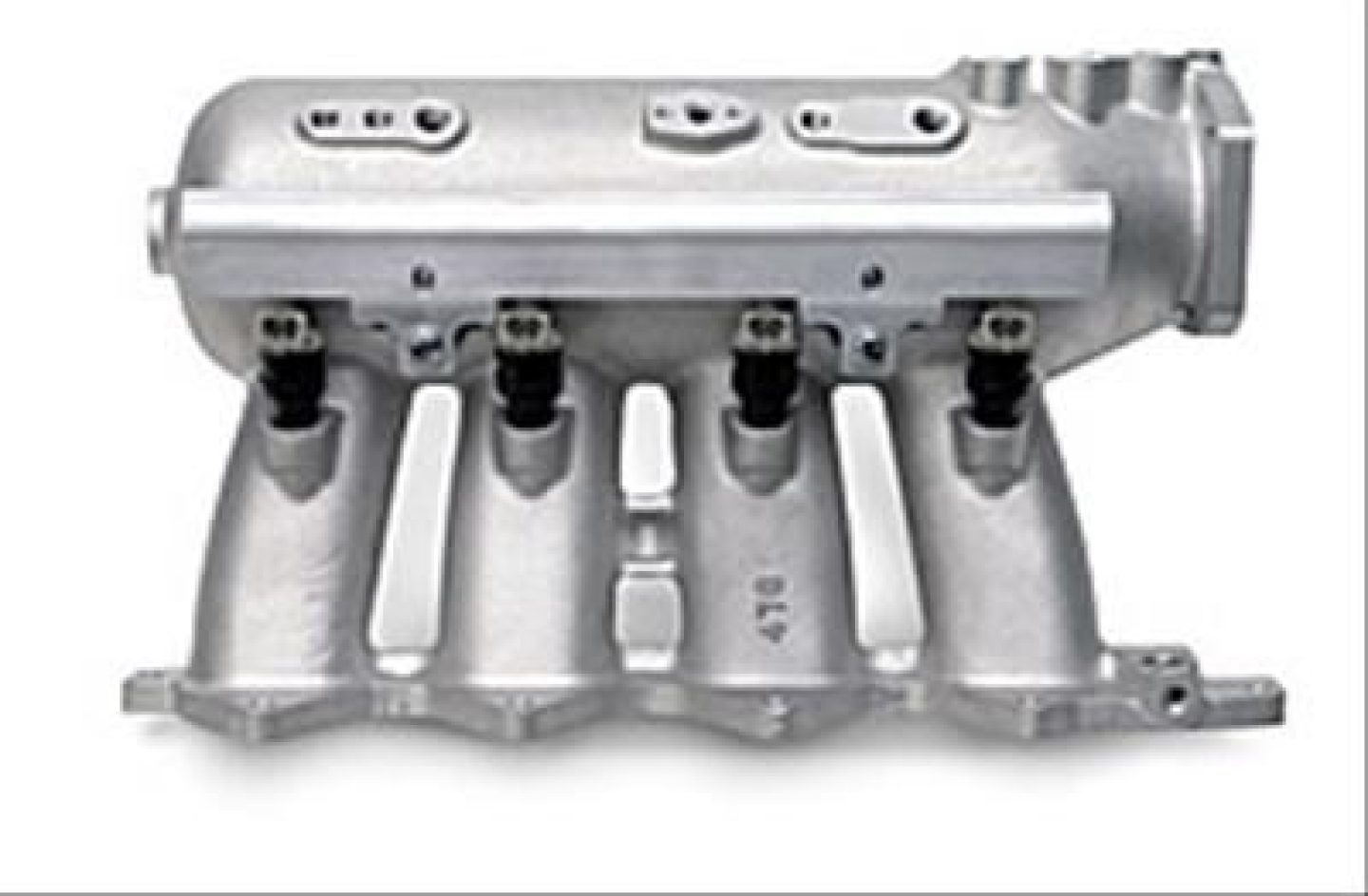

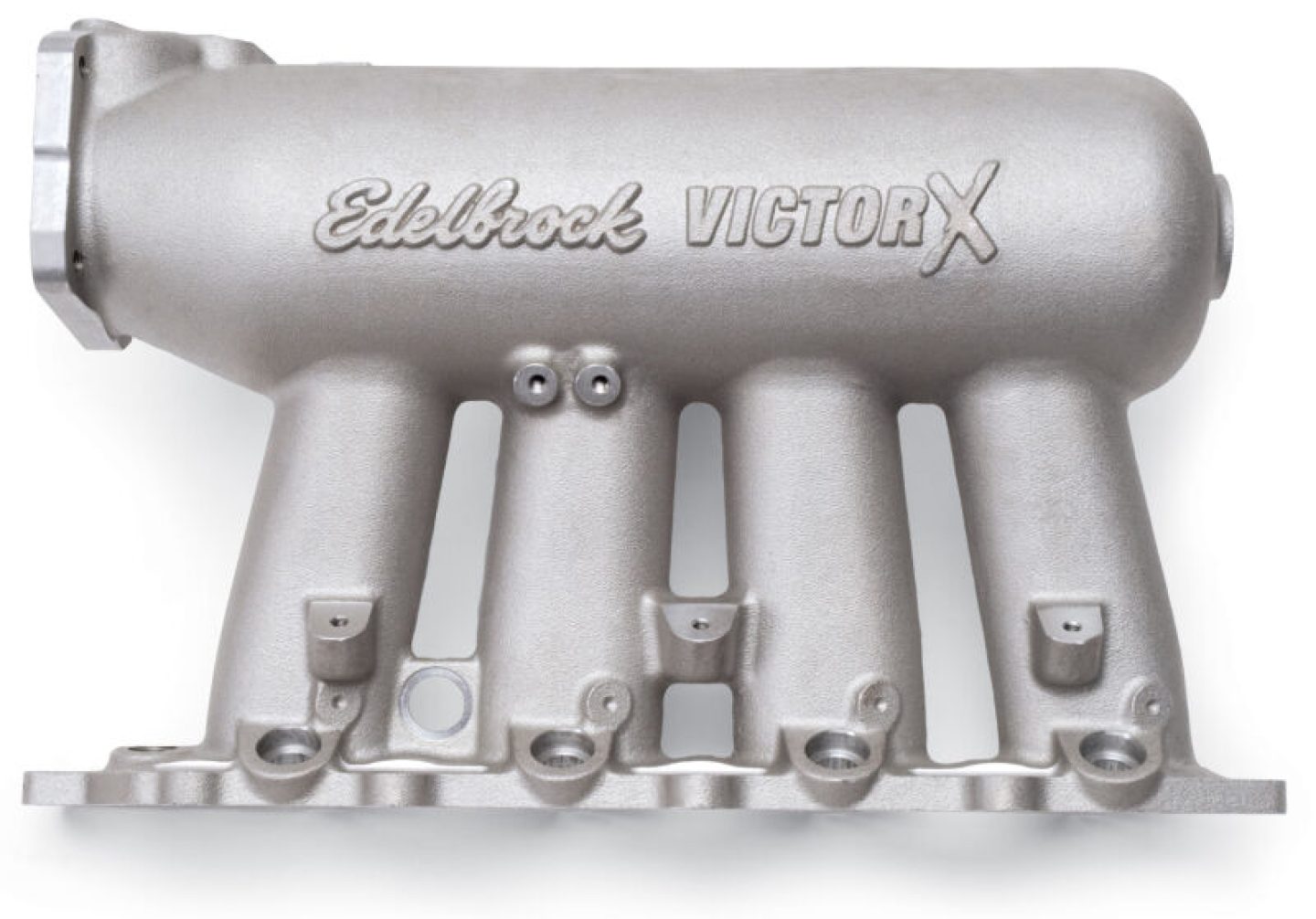

Edelbrock part #4764 Victor X intake manifold is designed for B16A & Type R B18C5 engines. This intake manifold is optimized for maximum power from 7,000 to 10,000 RPM, the Victor X manifold is designed for turbo and all-motor applications. Engineered for high performance, this manifold has four additional bosses for nitrous or added fuel injectors.
HONDA B16A; TYPE R VICTOR X RACING INTAKE MANIFOLD
Honda:B-Series DOHC
Engine Intake Manifold
Unless otherwise stated, this product may be engineered for use in Left-Hand Drive vehicles. Steering components, pedals, shifters, instrument clusters, and adjacent parts can vary between LHD and RHD configurations, but in many cases they are identical depending on the design of the vehicle and part. Carefully review the product images and details to ensure suitability for your vehicle, or contact StreetFX support if you are unsure. Returns are not accepted for special order products.
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Intake Manifold, Victor X, Aluminum, Natural, Multi-Port, for use on Acura®, L4, 1.8L, Each
Drag racing legends have relied on Edelbrock intakes for years, and now you Honda®/Acura® guys can, too. These JG/Edelbrock Victor X intake manifolds will build horsepower in the 7,000 to 10,000 rpm range--perfect for naturally aspirated turbocharged or nitrous B-Series engines. Plus, they're 7 1/2 lbs. lighter than your stock manifold, accept oversized throttle bodies, and come with four extra bosses to handle nitrous or fuel injectors.
Brand | Edelbrock |
Manufacturer's Part Number | 4764 |
Part Type | Intake Manifolds, Fuel Injected |
Product Line | Edelbrock Victor X Intake Manifolds |
UPC | 085347047642 |
Cylinder Head Configuration | Stock |
Fuel Injection Style | Multi-port |
Basic Operating RPM Range | 7,000-10,000 |
Intake Section Included | Complete |
Throttle Body Bore Size | 66mm |
Engine Block Deck Height | Standard deck |
Injectors Included | No |
Multi-Port Fuel Rails Included | No |
EGR | No |
Aftermarket Fuel Rail Required | No |
Throttle Body Included | No |
Supplemental Bosses Cast-In | Yes |
Supplemental Bosses Machined | No |
Supplemental Boss Quantity | Four |
Runners Included | Yes |
Runners Removable | No |
Plenum Material | Aluminum |
Plenum Finish | Natural |
Base Material | Aluminum |
Base Color | Natural |
Remanufactured | No |
Quantity | Sold individually. |
Edelbrock Honda B16A Type R Race Manifold | ||||
---|---|---|---|---|
Year Range | Make | Model | Submodels | Region |
1997-1998 | Acura | Integra | Type R | US |
2000-2001 | Acura | Integra | Type R | US |
1999-2000 | Honda | Civic | Si | US |
1994-1997 | Honda | Civic del Sol | VTEC | US |
Please note that this information serves as a fitment guide only. For specific fitment questions or clarifications, please contact us, as manufacturers may introduce variations and modifications during model year or regional revisions. While we strive to provide accurate data, fitment details may vary by region; therefore, compatibility outside the listed region and submodel variant cannot be guaranteed.
Application Data | |
---|---|
Make | ACURA |
Beginning Year | 1997 |
Ending Year | 2001 |
Engine Type | L4 |
Engine Family | Honda/Acura 4-cylinder |
Engine Size | 1.8L/1797cc |
Make | HONDA |
Beginning Year | 1994 |
Ending Year | 1995 |
Engine Type | L4 |
Engine Family | Honda/Acura 4-cylinder |
Engine Size | 1.6L/1588cc |
Make | HONDA |
Beginning Year | 1996 |
Ending Year | 1997 |
Engine Type | L4 |
Engine Family | Honda/Acura 4-cylinder |
Engine Size | 1.6L/1595cc |
