LSXHR LS3
FAST has developed the industry’s first polymer tunnel ram-style intake manifold, ideal for generating maximum power in boosted and naturally aspirated engines. Available for rectangular port LS3 and raised rectangular port LS7 engines, the FAST LSXHR FAST-RAM Intake Manifold features removable stacks of various lengths, so racers can experiment with finding which combination makes the most power in their application. Its polymer construction is not only lightweight and high strength, but also virtually eliminates power-robbing heat soak that occurs with commonly available aluminum intake manifolds. Testing has shown an average 30-horsepower gain between 5,000 and 7,500 RPM over competitor tunnel ram intake manifolds. The FAST LSXHR FAST-RAM Intake Manifold is designed specifically with boosted applications in mind and is rated for up to 45psi of continuous pressure. Compound fuel injector angle aims the spray pattern for ideal atomization, resulting in maximum power production and superior drivability. A reversible top allows for forward- or firewall-facing throttle body installations. The intake manifold also features two nitrous nozzle bosses per runner for clean and easy direct port system installations. Its 103mm throttle body opening can be port matched to 105mm.
Designed for boosted and N/A LS3 engines, the LSXHR 103mm intake is not only rated for 45 PSI of pressure, but also eliminates heat soak thanks to its advanced polymer construction. Gains 30 HP on average over competitors' aluminum intakes.
Engine Intake Manifold
Unless otherwise stated, this product may be engineered for use in Left-Hand Drive vehicles. Steering components, pedals, shifters, instrument clusters, and adjacent parts can vary between LHD and RHD configurations, but in many cases they are identical depending on the design of the vehicle and part. Carefully review the product images and details to ensure suitability for your vehicle, or contact StreetFX support if you are unsure. Returns are not accepted for special order products.
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

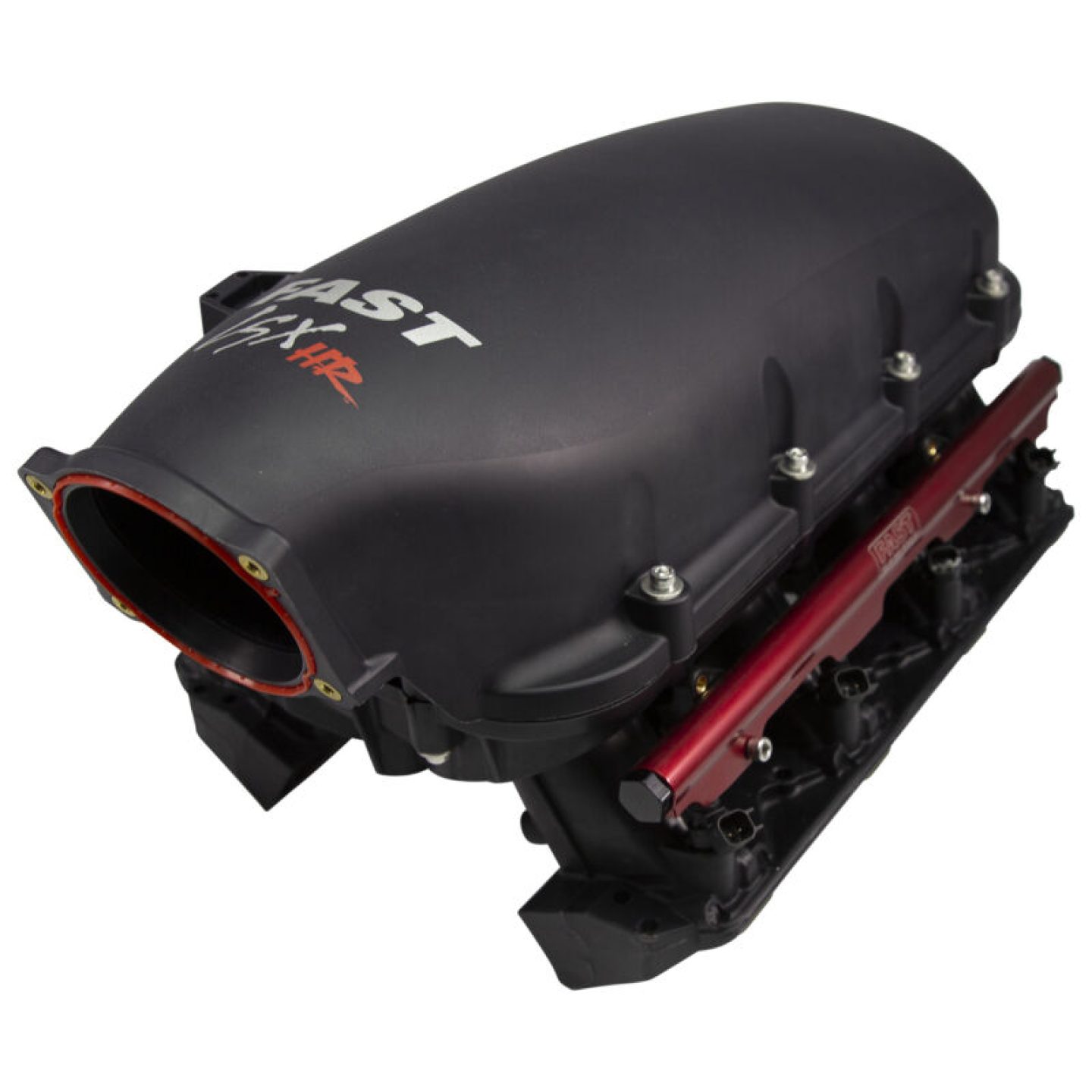

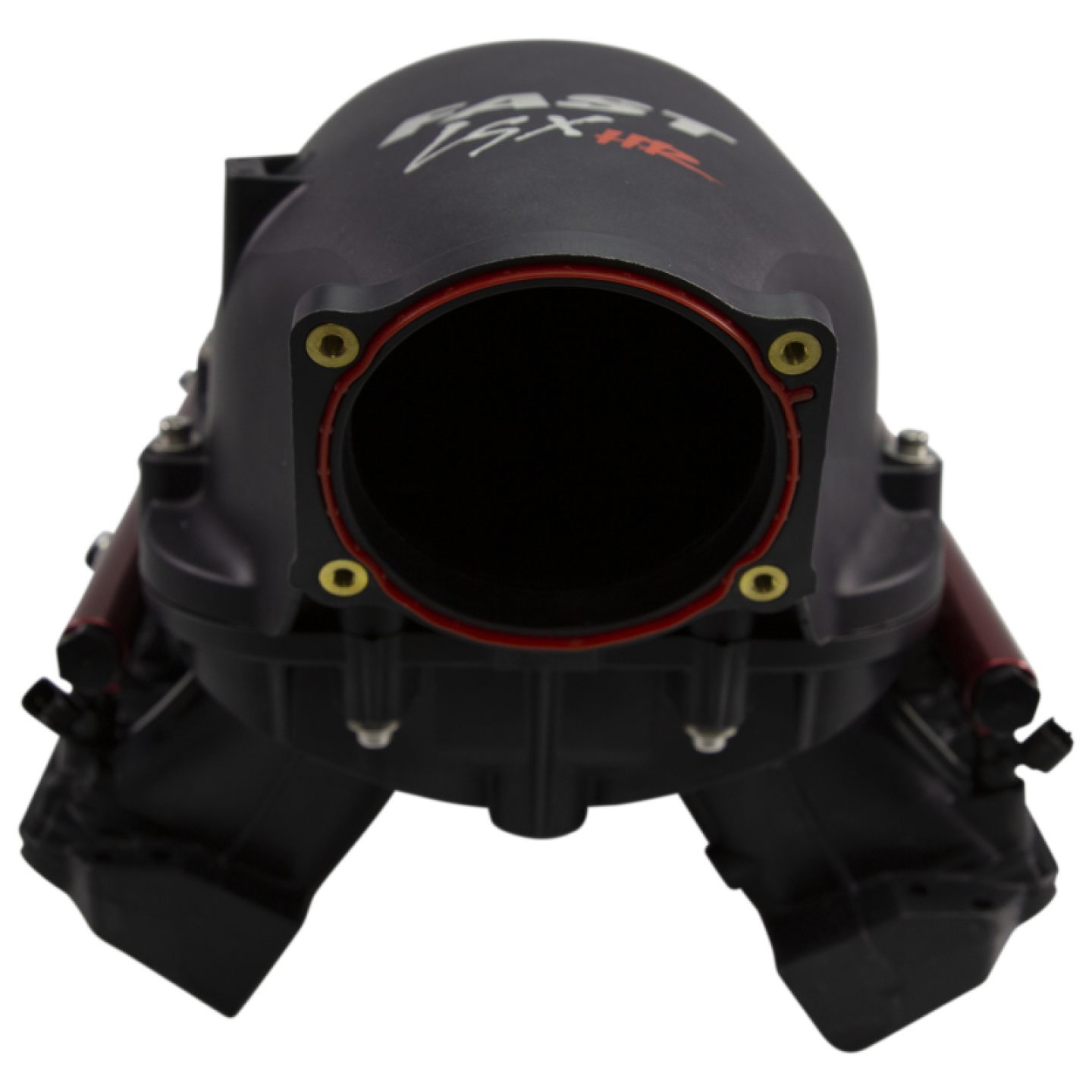

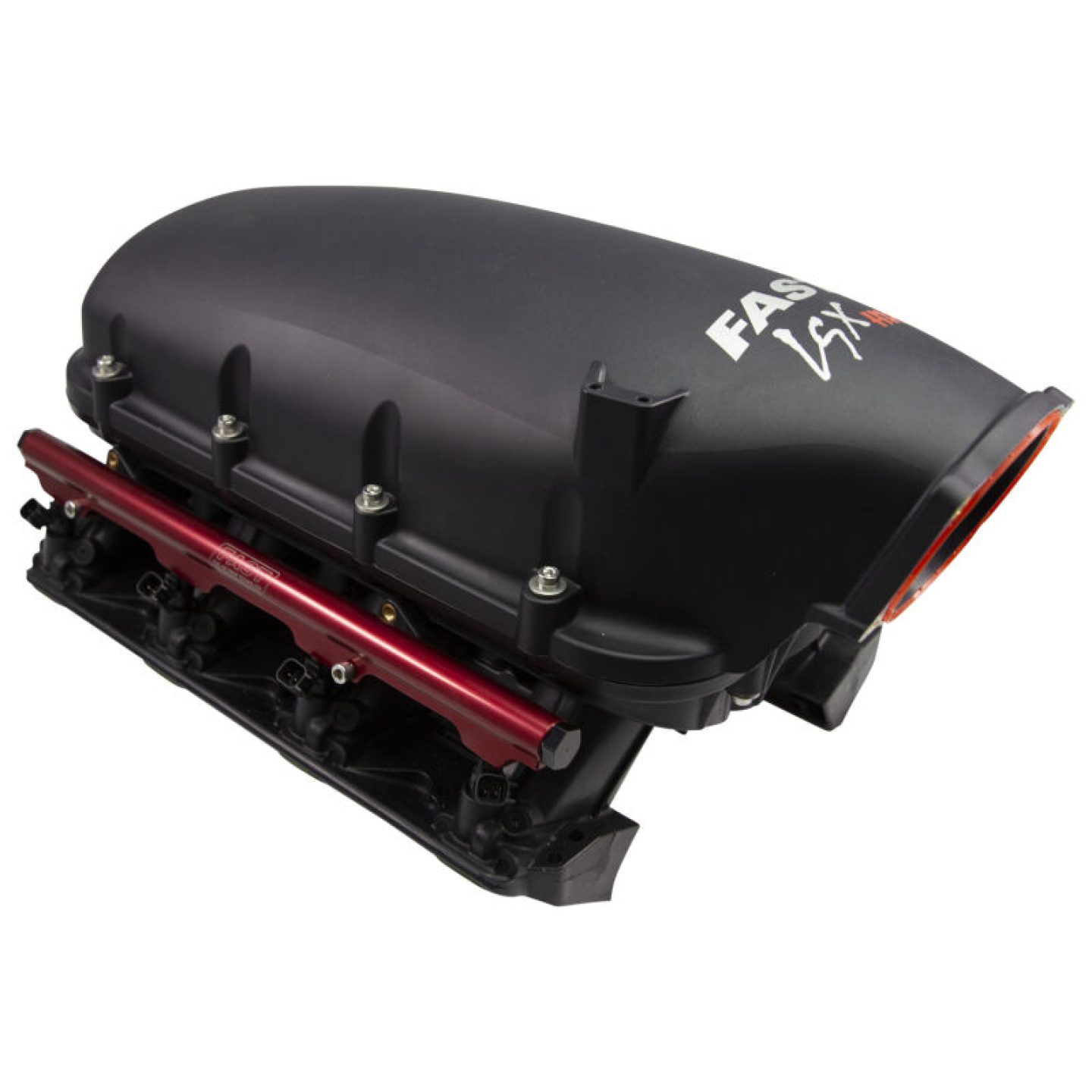

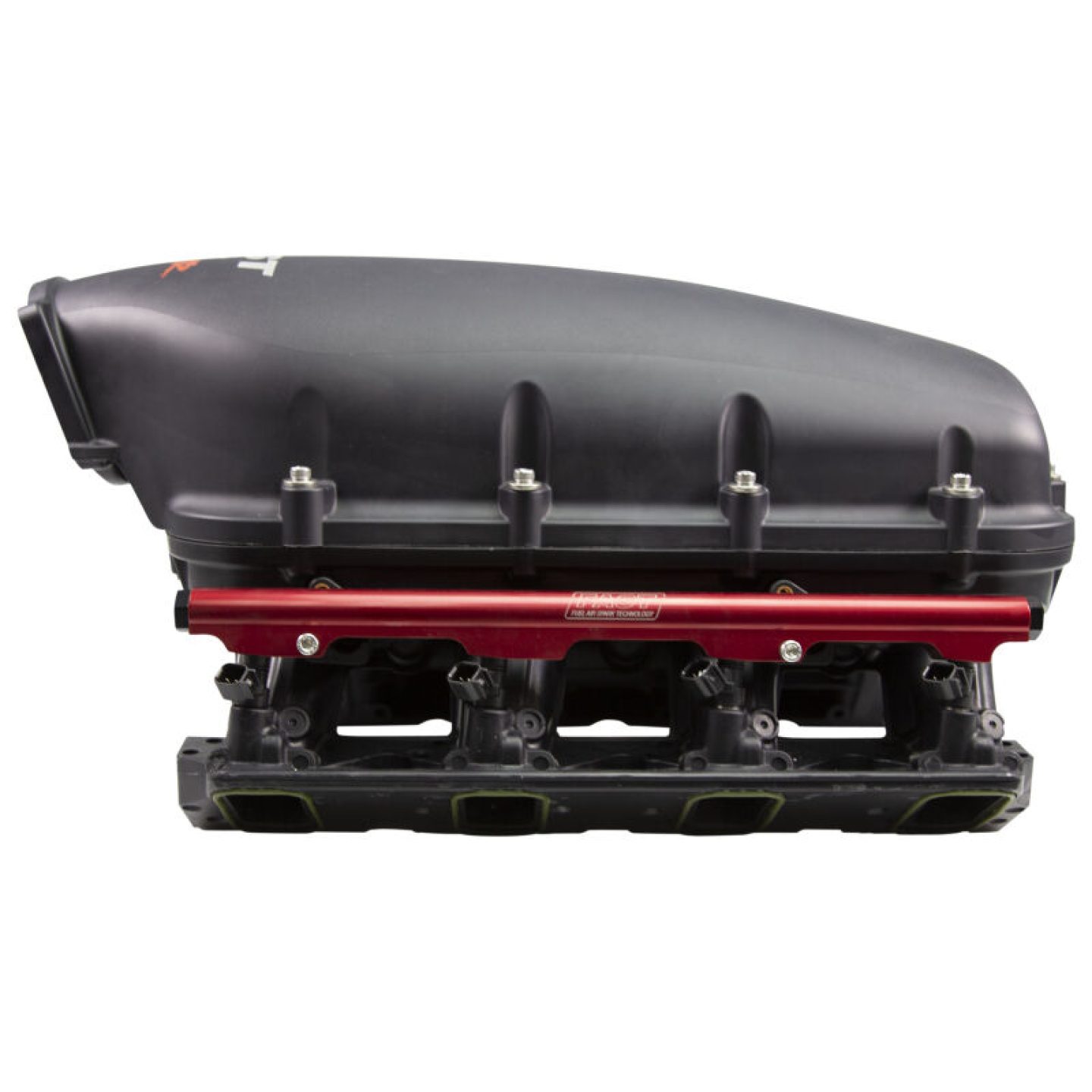

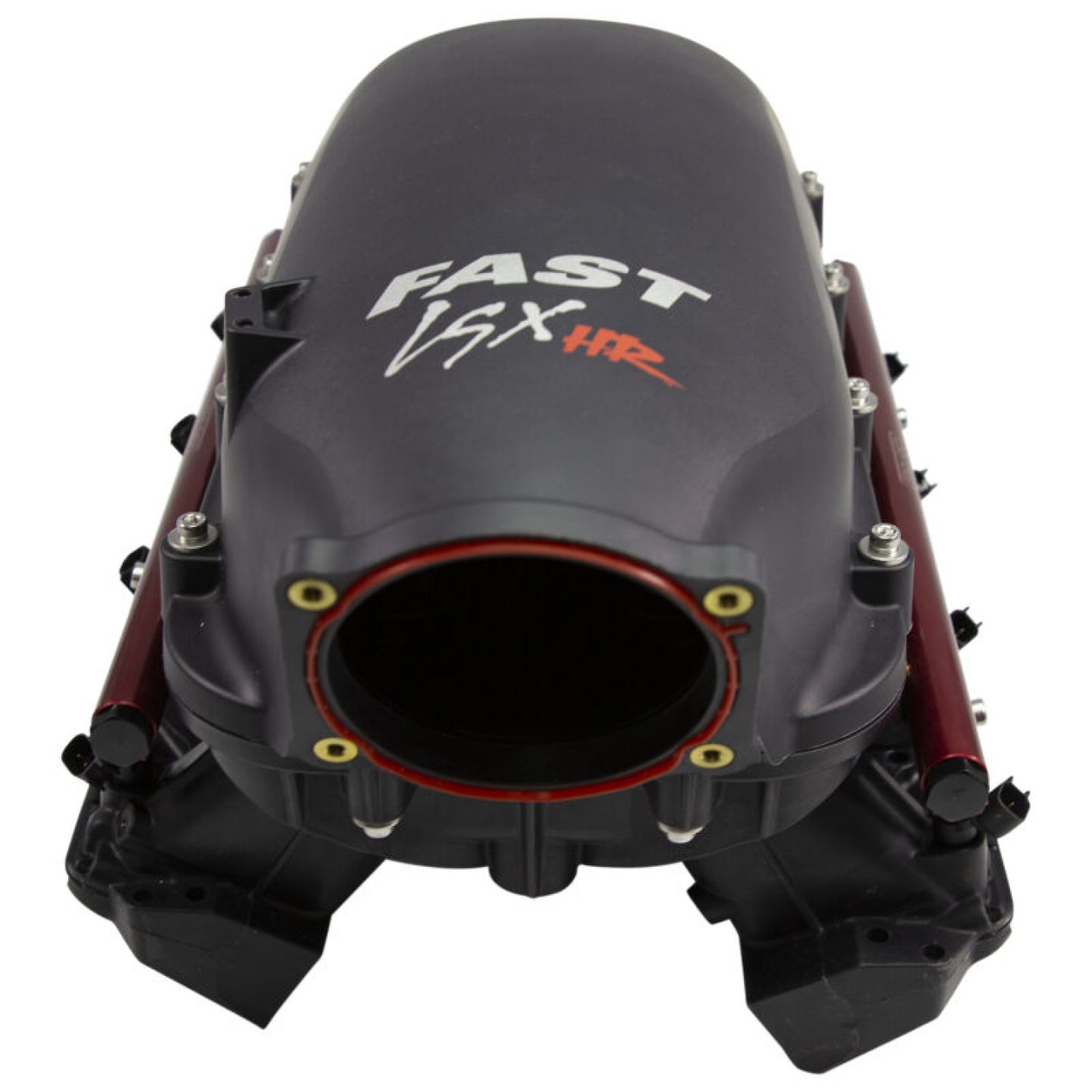

Intake Manifold, LSXHR, Polymer, 103mm Throttle Body, L92/LS3, Kit
The FAST LSXHR intake manifolds are available for LS3 rectangular port applications, as well as LS7 raised rectangular port applications. These units are the industry's first polymer tunnel ram-style intake manifolds—and are ideal for generating maximum power in boosted and naturally aspirated engines. Order the model designed for your application. Features include: * Standard "tall" stacks are interchangeable with separately purchased "medium" and "short" stacks to find the most powerful combination * Polymer construction is lightweight and high strength to eliminate power-robbing heat soak commonly found in aluminum intake manifolds * Average 30 hp gain between 5,000 and 7,500 rpm over competitors' high-ram intake manifolds * Rated for up to 45 psi of continuous pressure * Compound fuel injector angle aims spray pattern for ideal atomization, resulting in maximum power production and superior drivability * Reversible top allows for forward- or firewall-facing throttle body installations * Two nitrous nozzle bosses per runner for clean and easy direct port system installations * 103mm throttle body opening can be ported to 105mm
EGR | No |
UPC | 00036584395638 |
Brand | FAST |
Quantity | Sold as a kit. |
Part Type | Intake Manifolds, Fuel Injected |
Base Color | Black |
Product Line | FAST LSXHR Intake Manifolds |
Base Material | Polymer |
Plenum Finish | Black |
Plenum Material | Polymer |
Runners Included | Yes |
Runners Removable | Yes |
Injectors Included | No |
Fuel Injection Style | Multi-port |
Throttle Body Included | No |
Intake Section Included | Complete |
Throttle Body Bore Size | 103mm |
Engine Block Deck Height | Standard deck |
Basic Operating RPM Range | 5,000-7,500 |
Manufacturer's Part Number | 146106 |
Supplemental Boss Quantity | Sixteen |
Cylinder Head Configuration | Rectangular Port LS3/L76/L92/L99 |
Supplemental Bosses Cast-In | No |
Supplemental Bosses Machined | Yes |
Aftermarket Fuel Rail Required | No |
Multi-Port Fuel Rails Included | Yes |
FAST LSX Manifold 103MM GenIII LS Rect Port - Black | ||||
---|---|---|---|---|
Year Range | Make | Model | Submodels | Region |
2007-2014 | Cadillac | Escalade | Base, Platinum, Luxury, Premium | US |
2007-2014 | Cadillac | Escalade ESV | Base, Platinum, Luxury, Premium | US |
2007-2013 | Cadillac | Escalade EXT | Base, Luxury, Premium | US |
2007-2009 | Chevrolet | Avalanche | LT, LTZ | US |
2010-2015 | Chevrolet | Camaro | SS | US |
2008-2013 | Chevrolet | Corvette | Base, Grand Sport | US |
2014-2017 | Chevrolet | SS | Base | US |
2007-2013 | Chevrolet | Silverado 1500 | LT, LTZ | US |
2007-2009 | Chevrolet | Suburban 1500 | LT, LTZ | US |
2008-2009 | Chevrolet | Tahoe | LTZ | US |
2007-2013 | GMC | Sierra 1500 | SLE, SLT, Denali | US |
2007-2014 | GMC | Yukon | Denali | US |
2007-2014 | GMC | Yukon XL 1500 | SLE, SLT, Denali | US |
2008-2009 | Hummer | H2 | Base | US |
2008-2009 | Pontiac | G8 | GT, GXP | US |
Please note that this information serves as a fitment guide only. For specific fitment questions or clarifications, please contact us, as manufacturers may introduce variations and modifications during model year or regional revisions. While we strive to provide accurate data, fitment details may vary by region; therefore, compatibility outside the listed region and submodel variant cannot be guaranteed.
Application Data | |
---|---|
Make | CADILLAC |
Model | ESCALADE |
Submodel | BASE |
Beginning Year | 2007 |
Ending Year | 2008 |
Engine Type | V8 |
Liter | 6.2 |
CID | 376 |
CC | 6162 |
Engine Family | Chevy small block Gen III/IV (LS-based engines) |
Engine Size | 6.2L/376 |
Application Notes | Engine Manufacturer: General Motors |
Engine VIN Code | 8 |
Make | CADILLAC |
Model | ESCALADE |
Submodel | BASE |
Beginning Year | 2009 |
Ending Year | 2009 |
Engine Type | V8 |
Liter | 6.2 |
CID | 376 |
CC | 6162 |
Engine Family | Chevy small block Gen III/IV (LS-based engines) |
Engine Size | 6.2L/376 |
Application Notes | Engine Manufacturer: General Motors |
Engine VIN Code | 2 |
Make | CADILLAC |
Model | ESCALADE |
Submodel | BASE |
Beginning Year | 2010 |
Ending Year | 2014 |
Engine Type | V8 |
Liter | 6.2 |
CID | 376 |
CC | 6162 |
Engine Family | Chevy small block Gen III/IV (LS-based engines) |
Engine Size | 6.2L/376 |
Application Notes | Engine Manufacturer: General Motors |
Engine VIN Code | F |
