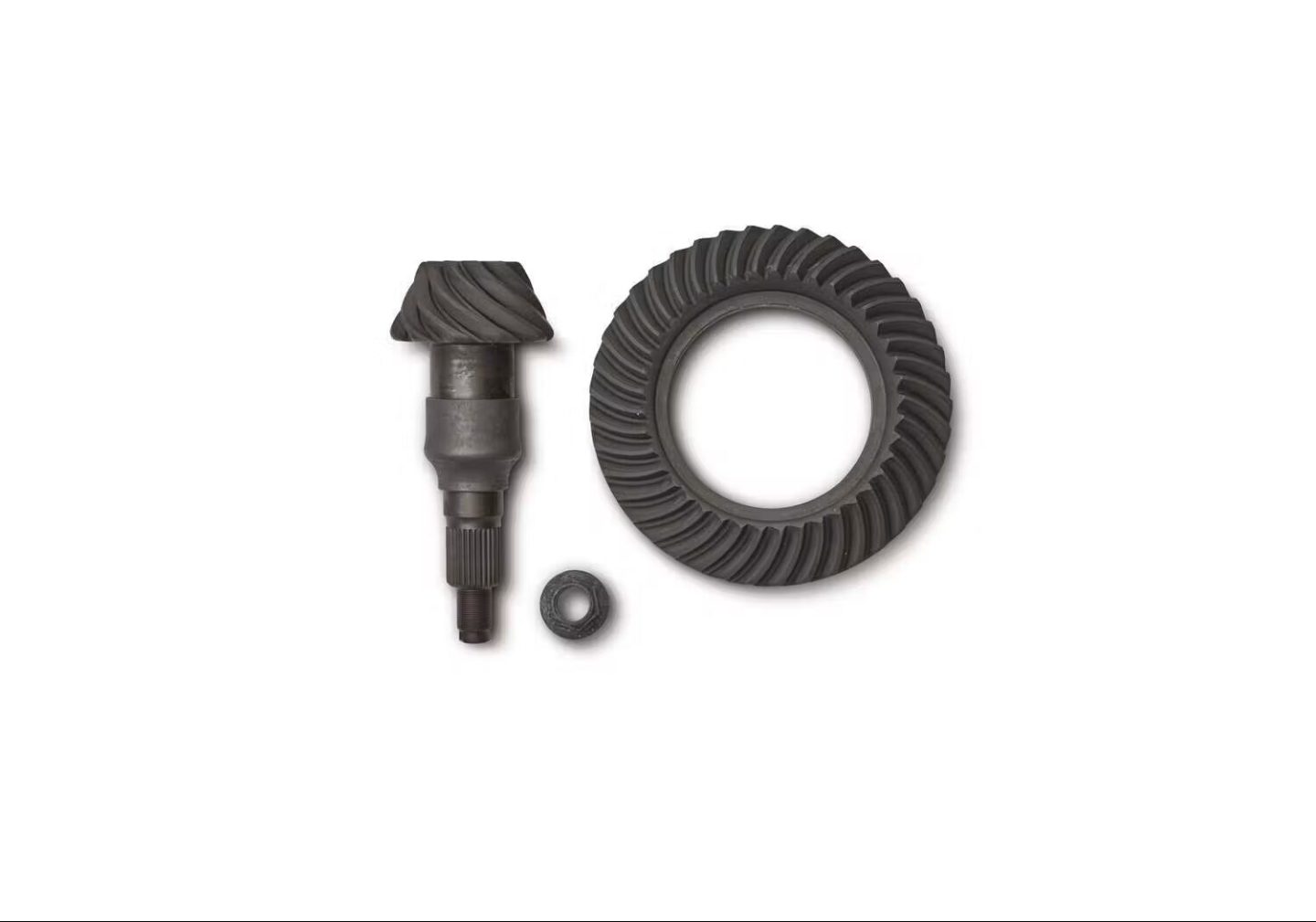

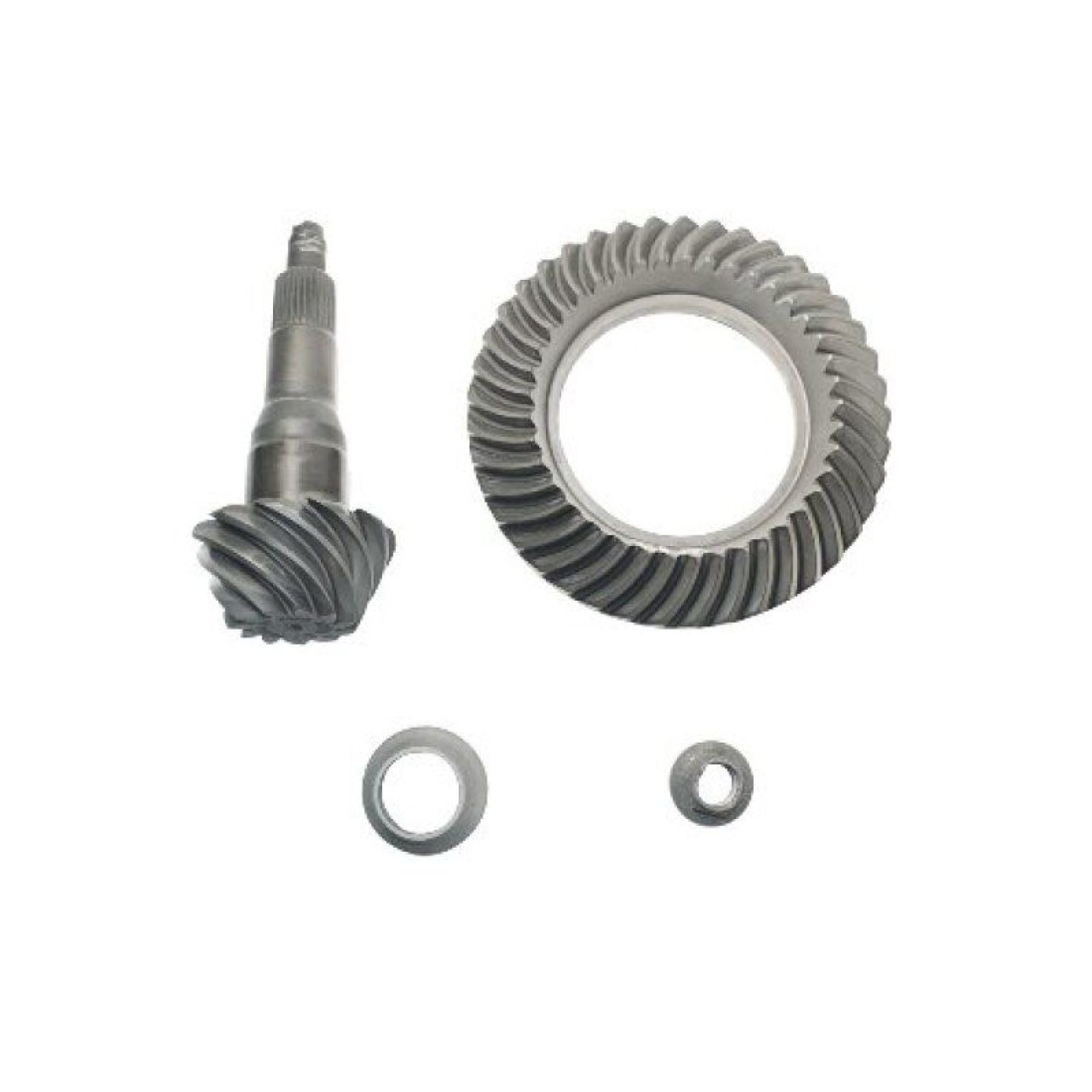

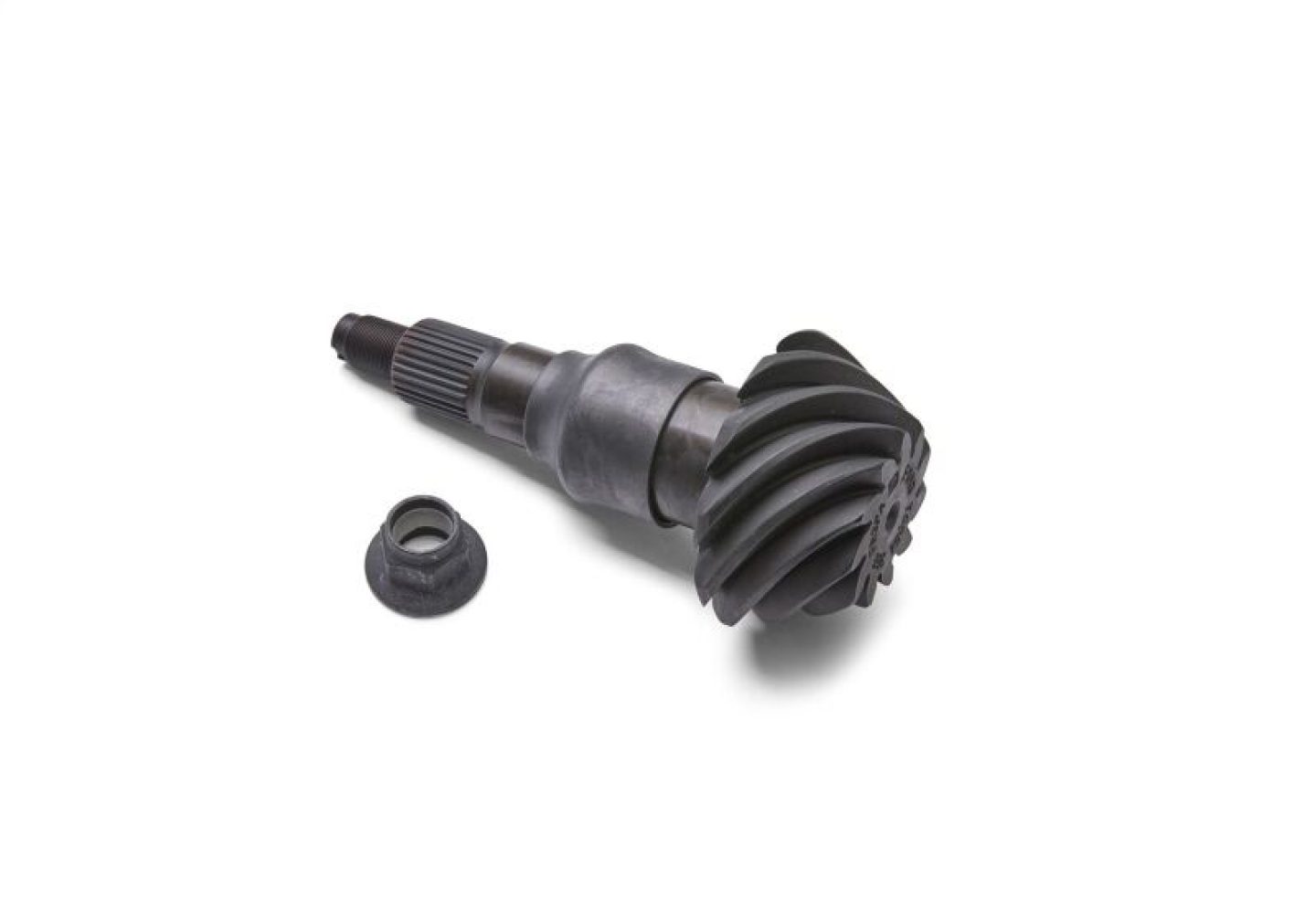

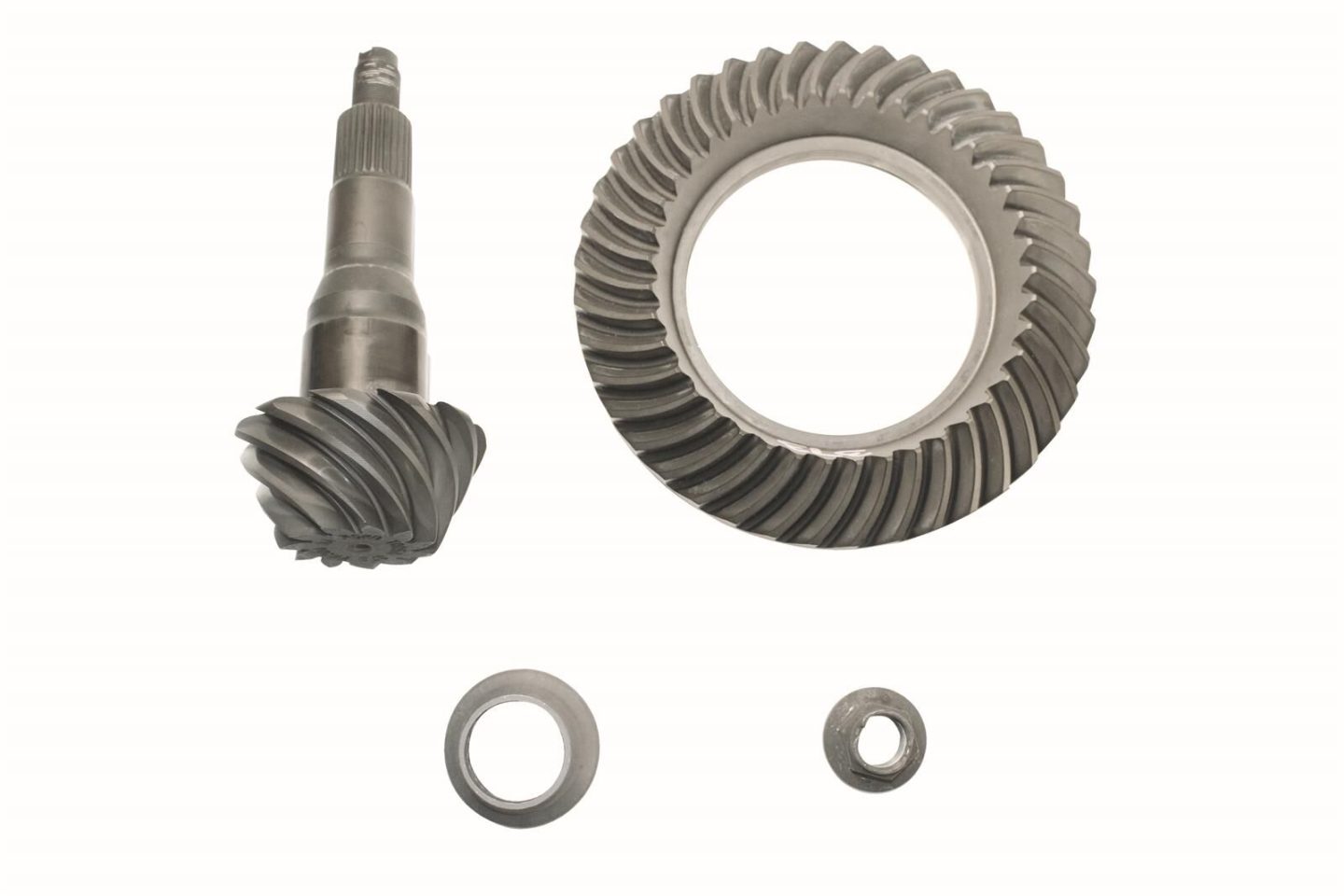

Ring and Pinion Kit
Ford Racing ring and pinion sets are engineered, manufactured, and tested for maximum performance. These ring and pinion sets are finished in a black oxide coating for corrosion resistance, and are available in many different ratios to fit a variety of Ford differentials. ** Note: 3.15 Ratio Differential not compatible with 3/31, 3.55, 3.73 and 4.09 ratio gears. Use differential M-4204-MT or M-4204-M. * This part is designed and intended for competition use only. It should not be installed on a vehicle that is driven on public roads and highways. Installation of this art on a vehicle driven on public roads and highways is likely to violate U.S. and Canadian laws and regulations relating to motor vehicle emissions.
Ring Gear And Pinion Set; 3.55 Gear Ratio; 8.8 in. Ring Gear Dia.; Incl. Ring And Pinion/OEM Crush Sleeve/Pinion Nut; For Use w/Super Independent Rear Suspension Center Section;
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Gear, Ring and Pinion, 3.55:1 Ratio, Ford, Super 8.8 in. IRS, Set
Ford Performance Parts ring and pinion sets are engineered, manufactured, and tested for maximum performance. These ring and pinion sets are finished in a black oxide coating for corrosion resistance, and are available in many different ratios to fit a variety of Ford differentials.
UPC | 756122000663 |
Brand | Ford Performance Parts |
Notes | Will not fit models with factory 3.15:1 gears without changing the differential. Requires aftermarket calibration if vehicle is not original equipped with this gear ratio. Requires Ford Racing Performance ring gear and pinion install kit, see required parts tab. |
Quantity | Sold as a set. |
Part Type | Ring and Pinion Gears |
Cover Bolts | 12 |
Product Line | Ford Performance Parts Ring and Pinion Sets |
Ring Gear Bolts | 10 |
Ring Gear Teeth | 39 |
Pinion Gear Teeth | 11 |
Ring Gear Rotation | Standard |
Axle Seals Included | No |
Pinion Nut Included | No |
Pinion Spline Count | 30 |
Pinion Seal Included | No |
Cover Gasket Included | No |
Crush Sleeve Included | No |
Head Bearing Included | No |
Pinion Shims Included | No |
Ring and Pinion Ratio | 3.55:1 |
Tail Bearing Included | No |
Axle Bearings Included | No |
Carrier Shims Included | No |
Ring Gear Bolts Included | No |
Ring Gear Diameter (in.) | 8.800 in. |
Carrier Bearings Included | No |
Differential Oil Included | No |
Installation DVD Included | No |
Installation Kit Included | No |
Friction Modifier Included | No |
Manufacturer's Part Number | M-4209-88355A |
Differential Cover Included | No |
Pinion Shaft Diameter (in.) | 2.010 in. |
Differential Case Design Type | Ford Super 8.8 in., IRS |
Ford Racing 2015 Mustang GT 8.8-inch Ring and Pinion Set - 3.55 Ratio | ||||
---|---|---|---|---|
Year Range | Make | Model | Submodels | Region |
2015-2018 | Ford | Mustang | GT, V6, EcoBoost, GT Premium, GT 50 Years Limited Edition, EcoBoost Premium, Shelby GT350, Shelby GT350R | US |
Please note that this information serves as a fitment guide only. For specific fitment questions or clarifications, please contact us, as manufacturers may introduce variations and modifications during model year or regional revisions. While we strive to provide accurate data, fitment details may vary by region; therefore, compatibility outside the listed region and submodel variant cannot be guaranteed.
Application Data | |
---|---|
Make | FORD |
Model | MUSTANG |
Submodel | GT |
Beginning Year | 2015 |
Ending Year | 2022 |
Axle Location | Rear |
Make | FORD |
Model | MUSTANG |
Submodel | GT 50 YEARS LIMITED EDITION |
Beginning Year | 2015 |
Ending Year | 2015 |
Axle Location | Rear |
Make | FORD |
Model | MUSTANG |
Submodel | GT PREMIUM |
Beginning Year | 2015 |
Ending Year | 2022 |
Axle Location | Rear |
