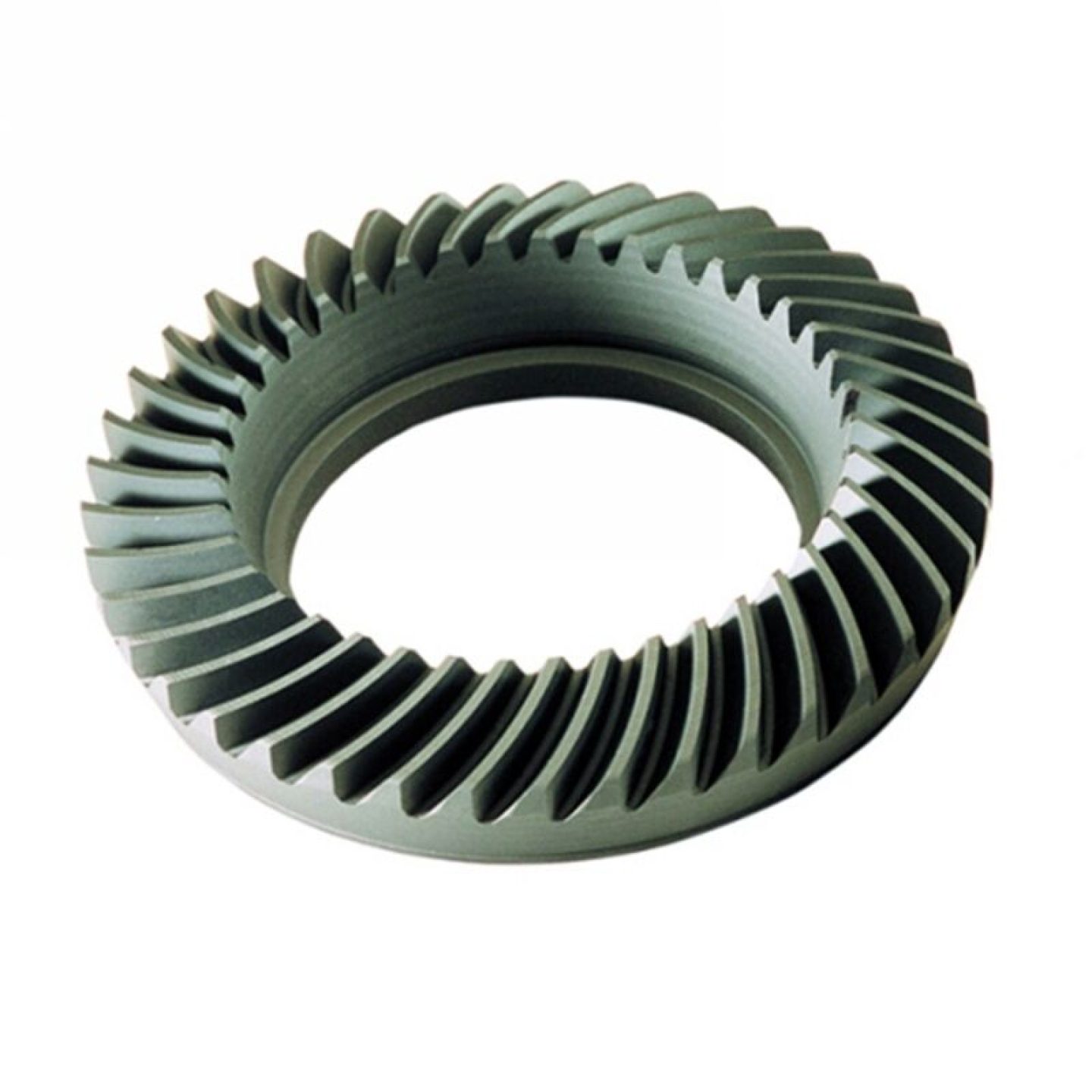

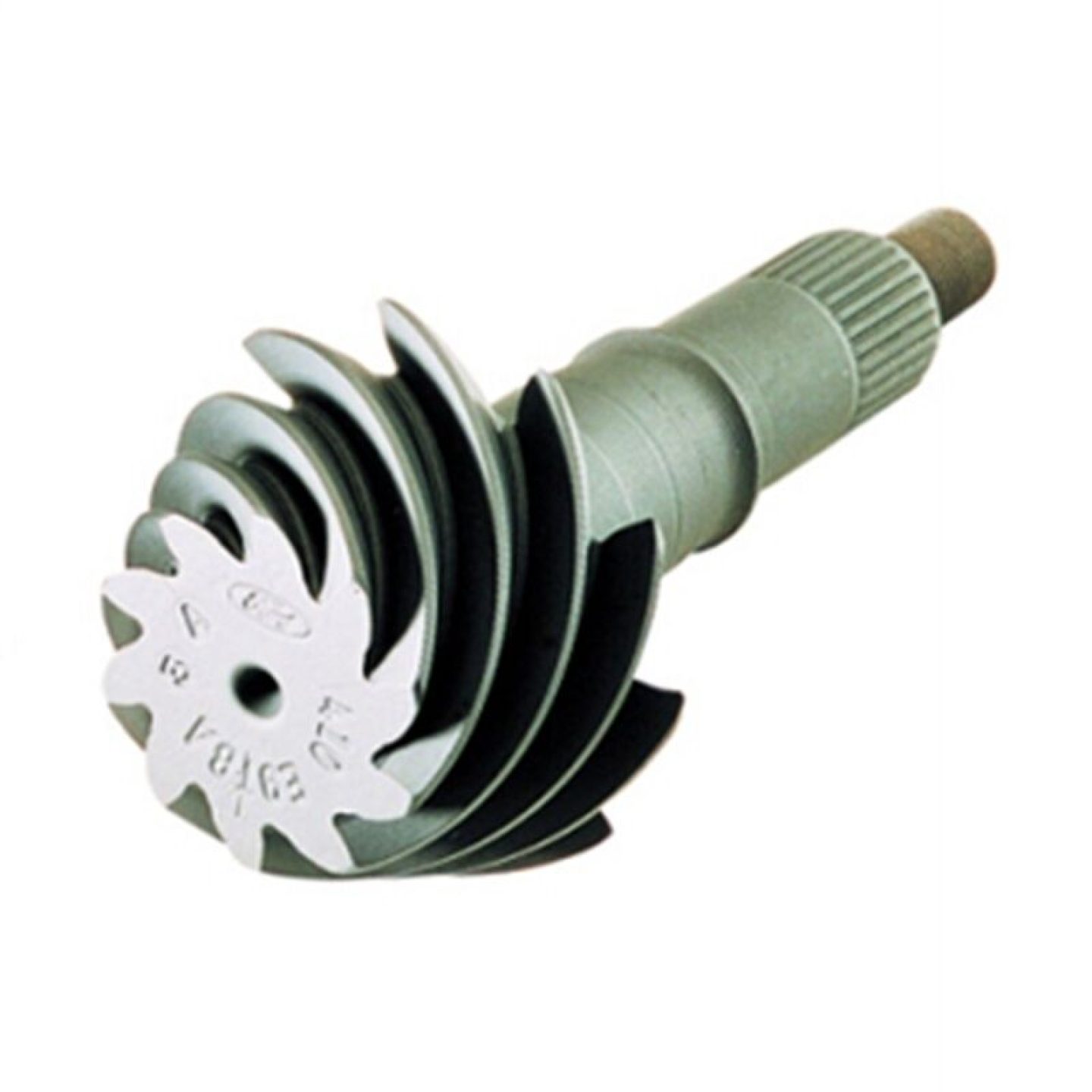

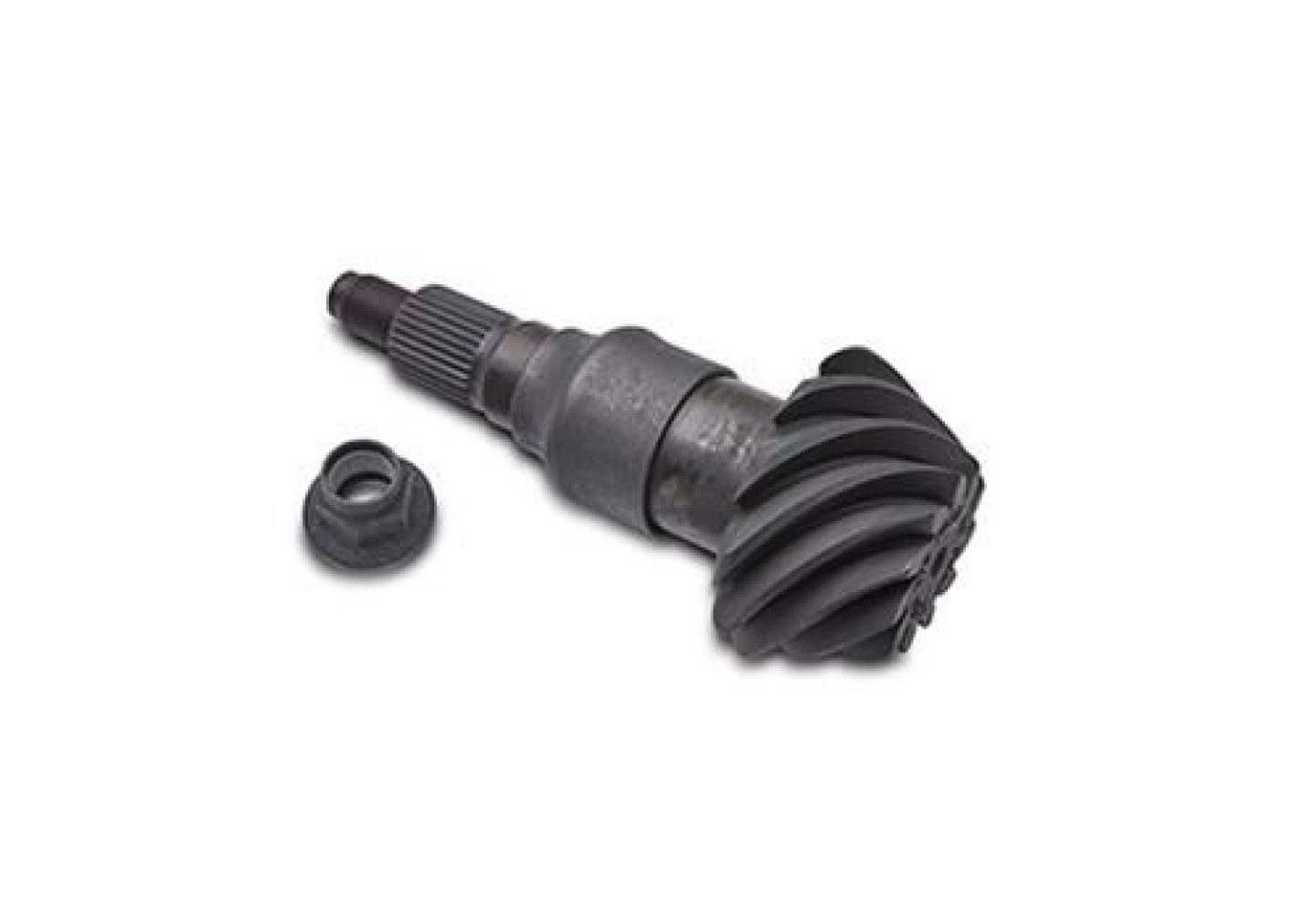

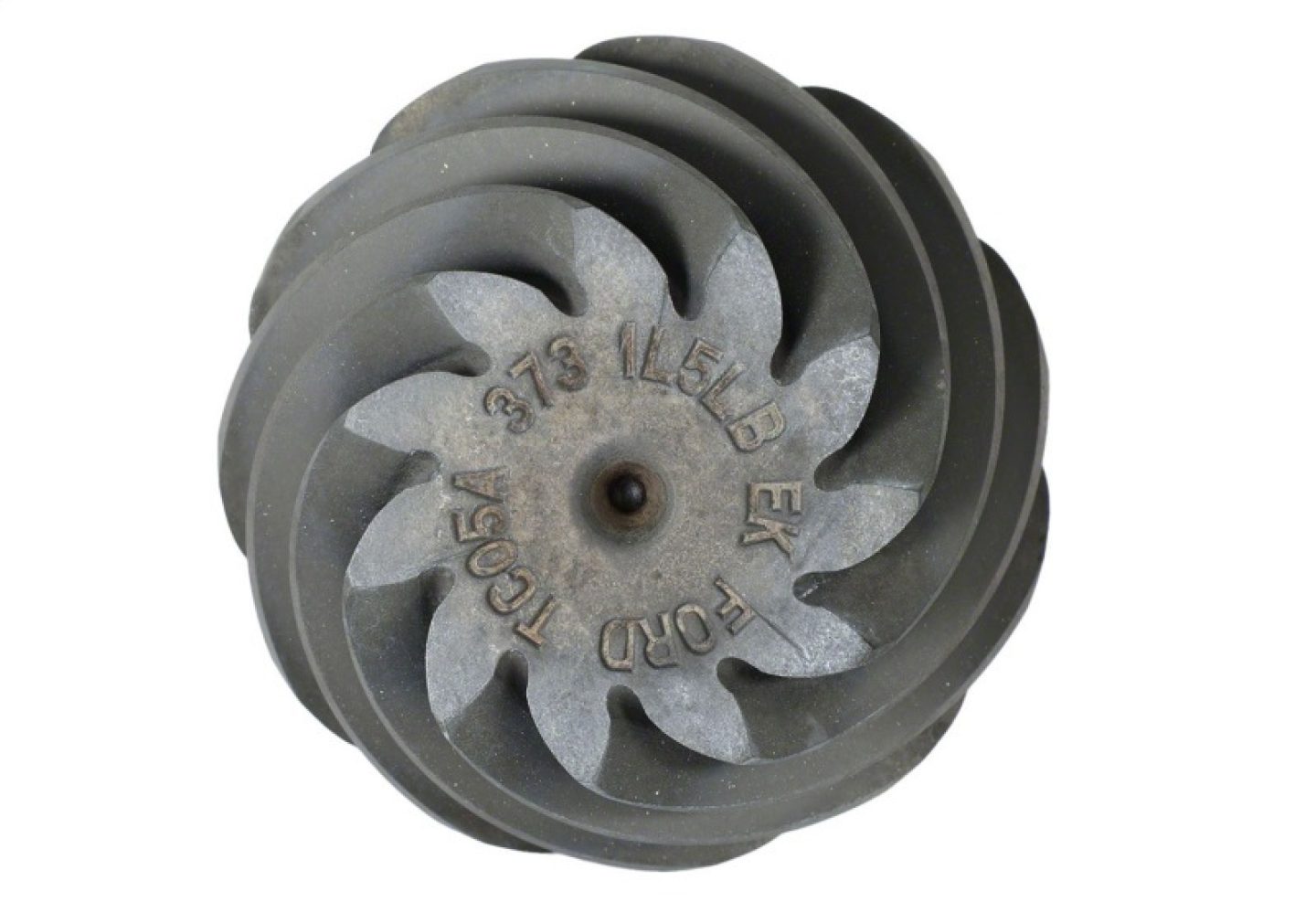

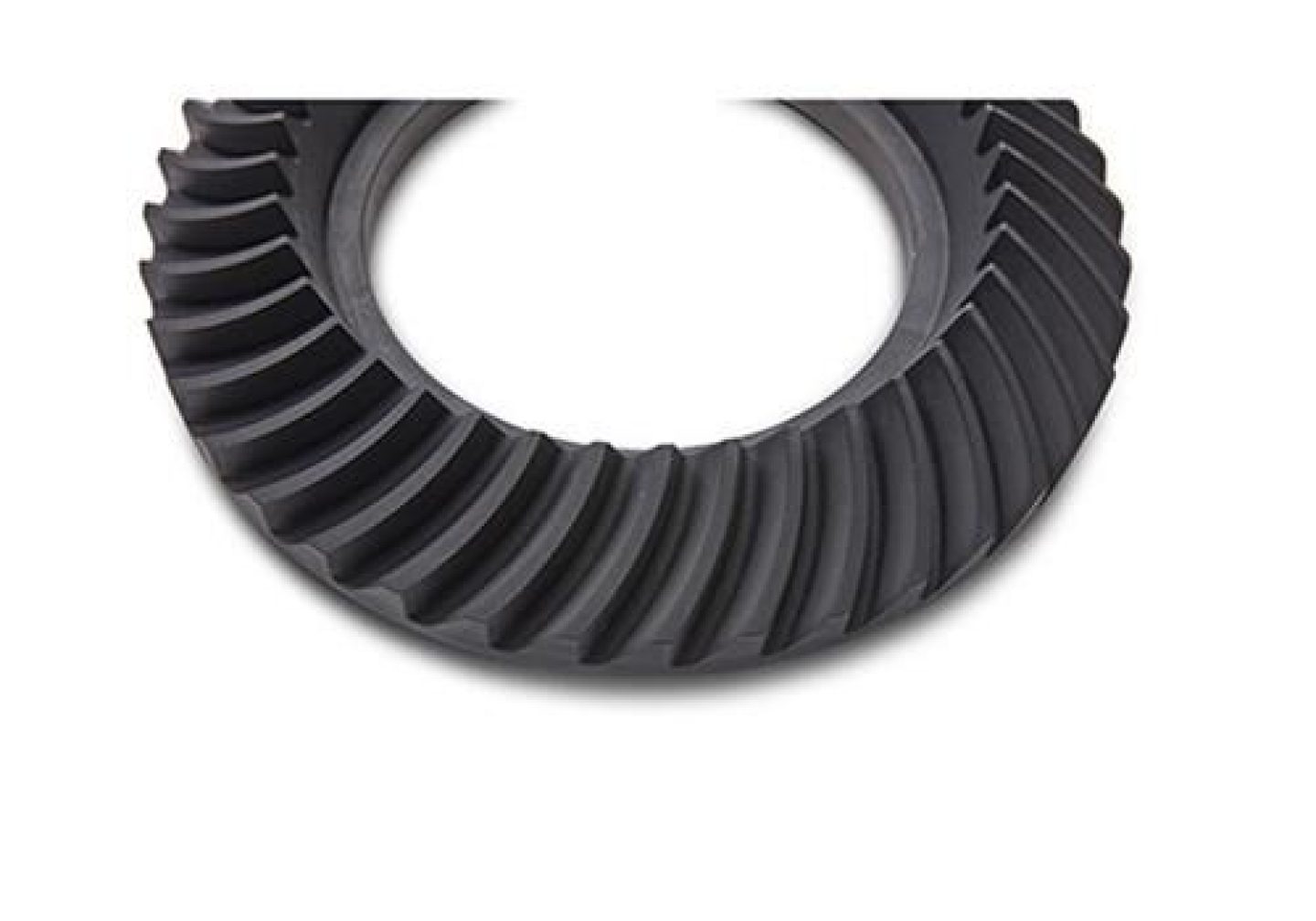

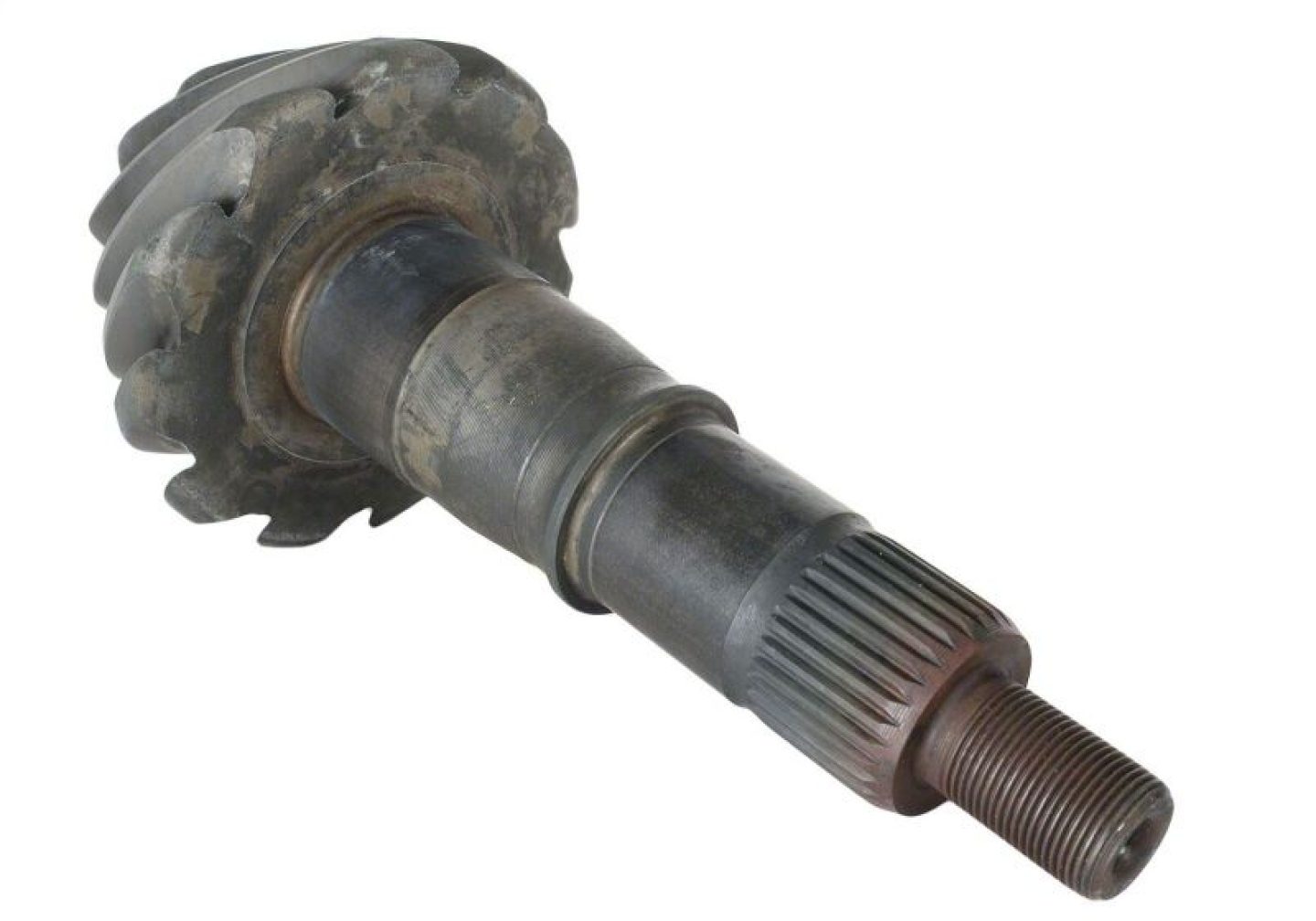

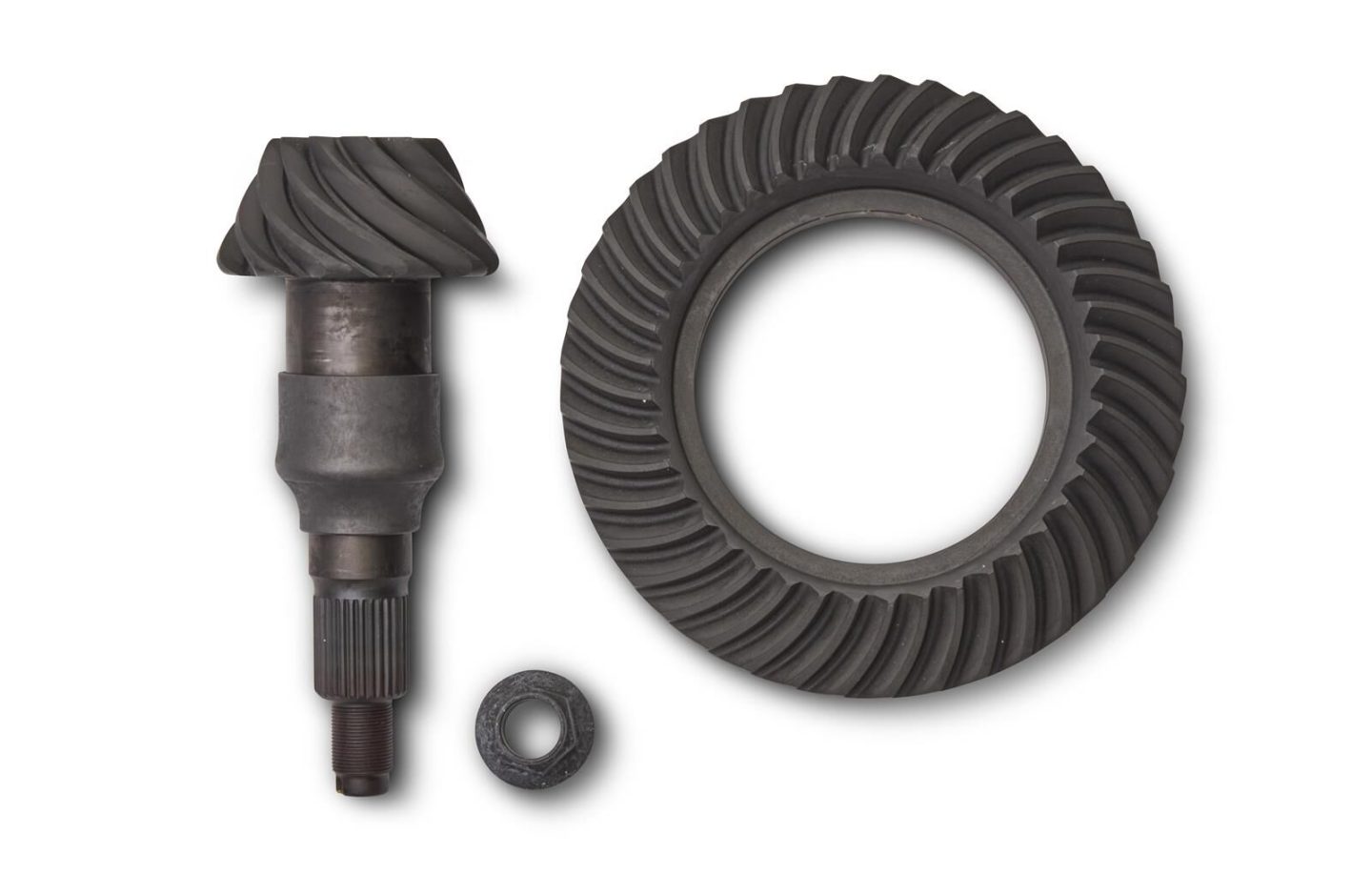

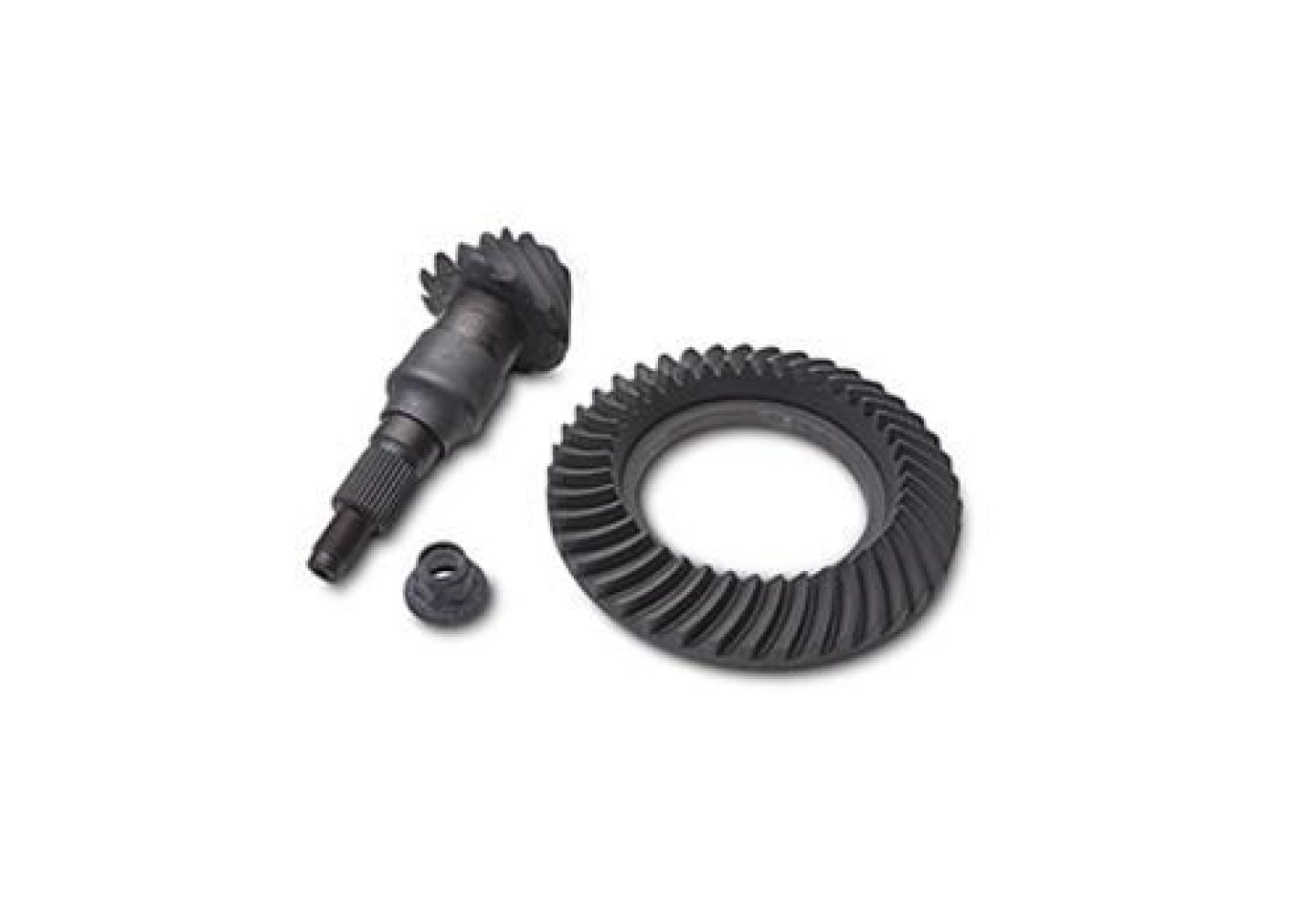

Ring and Pinion Kit
Ford Racing ring and pinion sets are engineered, manufactured, and tested for maximum performance. These ring and pinion sets are finished in a black oxide coating for corrosion resistance, and are available in many different ratios to fit a variety of Ford differentials. ** Note: 3.15 Ratio Differential not compatible with 3/31, 3.55, 3.73 and 4.09 ratio gears. Use differential M-4204-MT or M-4204-M. * This part is designed and intended for competition use only. It should not be installed on a vehicle that is driven on public roads and highways. Installation of this art on a vehicle driven on public roads and highways is likely to violate U.S. and Canadian laws and regulations relating to motor vehicle emissions.
Ring Gear And Pinion Set; Fits 8.8 in. 10 Bolt; Rear; 3.73 Gear Ratio; 8.8 in. Ring Gear Dia.;
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Gear, Ring and Pinion, 3.73:1 Ratio, Ford, 8.8 in., Set
Ford Performance Parts ring and pinion sets are engineered, manufactured, and tested for maximum performance. These ring and pinion sets are finished in a black oxide coating for corrosion resistance, and are available in many different ratios to fit a variety of Ford differentials.
UPC | 756122132302 |
Brand | Ford Performance Parts |
Quantity | Sold as a set. |
Part Type | Ring and Pinion Gears |
Cover Bolts | 10 |
Product Line | Ford Performance Parts Ring and Pinion Sets |
Ring Gear Bolts | 10 |
Ring Gear Teeth | 41 |
Pinion Gear Teeth | 11 |
Ring Gear Rotation | Standard |
Axle Seals Included | No |
Pinion Nut Included | No |
Pinion Spline Count | 30 |
Pinion Seal Included | No |
Cover Gasket Included | No |
Crush Sleeve Included | No |
Head Bearing Included | No |
Pinion Shims Included | No |
Ring and Pinion Ratio | 3.73:1 |
Tail Bearing Included | No |
Axle Bearings Included | No |
Carrier Shims Included | No |
Ring Gear Bolts Included | No |
Ring Gear Diameter (in.) | 8.800 in. |
Carrier Bearings Included | No |
Differential Oil Included | No |
Installation DVD Included | No |
Installation Kit Included | No |
Friction Modifier Included | No |
Manufacturer's Part Number | M-4209-88373 |
Differential Cover Included | No |
Pinion Shaft Diameter (in.) | 1.626 in. |
Differential Case Design Type | Ford 8.8 in. |
Ford Racing 8.8 Inch 3.73 Ring Gear and Pinion | ||||
---|---|---|---|---|
Year Range | Make | Model | Submodels | Region |
1990-1997 | Ford | Aerostar | Base, Eddie Bauer, XL, XL Plus, XLT, XLT Plus, XL Sport, XLT Sport | US |
1983-1996 | Ford | Bronco | Custom, XLS, XLT Lariat, XLT, Eddie Bauer, XL, XLT Nite, XLT Sport | US |
1992-2011 | Ford | Crown Victoria | Base, LX, S, Touring Sedan, Police Interceptor, LWB, LX Sport, Special Edition, Fleet | US |
2003-2010 | Ford | E-150 | Base, Chateau, XL, XLT | US |
2003-2005 | Ford | E-150 Club Wagon | Chateau, XL, XLT | US |
1983-2002 | Ford | E-150 Econoline | Custom, XL, Base | US |
1983-2002 | Ford | E-150 Econoline Club Wagon | Custom, XL, Base, XLT, Chateau | US |
1985 | Ford | E-250 Econoline | Base, XL | US |
1989 | Ford | E-250 Econoline | Custom, XL | US |
1997-2004 | Ford | Expedition | Eddie Bauer, XLT, XLS, NBX, XLT Sport | US |
1991-2001 | Ford | Explorer | Eddie Bauer, Sport, XL, XLT, Limited, Expedition, XLS, Postal, XL Fleet | US |
2001 | Ford | Explorer Sport | Base | US |
2001-2005 | Ford | Explorer Sport Trac | Base, XL, XLS, XLT, Adrenalin | US |
2007-2010 | Ford | Explorer Sport Trac | XLT, Limited | US |
1983-2011 | Ford | F-150 | Base, XL, XLS, XLT, XLT Lariat, Custom, Lightning, Eddie Bauer, Special, Lariat, King Ranch, STX, FX2, THE 60TH ANNIVERSARY EDITION | US |
2005-2014 | Ford | Mustang | GT, Shelby GT500, Shelby GT, Bullitt, Shelby GT500KR, Base, Boss 302 | US |
1990-2011 | Ford | Ranger | Custom, S, S Plus, STX, XLT, Sport, Splash, XL, XL Sport, Edge, Tremor, FX4 | US |
1987-1988 | Ford | Thunderbird | Turbo | US |
1983-2011 | Lincoln | Town Car | Base, Cartier, Signature, Signature SE, Executive, Cypress, Touring Edition, Jack Nicklaus, Tournament Edition, Anniversary, Cartier L, Executive L, Executive Protection Series, Ultimate, Ultimate L, Protection Series, Signature L, Signature Limited, Designer Series | US |
1986 | Mercury | Capri | 5.0 | US |
1983-1988 | Mercury | Cougar | Base, LS, XR-7 | US |
1991-1997 | Mercury | Cougar | LS, XR-7 | US |
1983-2011 | Mercury | Grand Marquis | Base, LS, Colony Park, GS, LSE, Limited Edition, Ultimate Edition, GSL | US |
1998-2010 | Mercury | Mountaineer | Base, Premier, Luxury, Convenience | US |
Please note that this information serves as a fitment guide only. For specific fitment questions or clarifications, please contact us, as manufacturers may introduce variations and modifications during model year or regional revisions. While we strive to provide accurate data, fitment details may vary by region; therefore, compatibility outside the listed region and submodel variant cannot be guaranteed.
Application Data | |
---|---|
Axle Location | Rear |
