2.5 Coil-Over Shocks
Developed from our off-road race shocks, FOX Factory Race Series combines race-proven technology with new, cutting-edge features to provide enhanced ride-quality and winning damping performance you can bolt onto your truck or SUV.
Application specific valving to maximize performance.
2014-2020 Ford F-150
Suspension Shock Absorber Kit
Shocks, Fox Racing Shocks, 2.5 Factory Race Series, Coilover, Remote Reservoir, Front, Ford, Pair

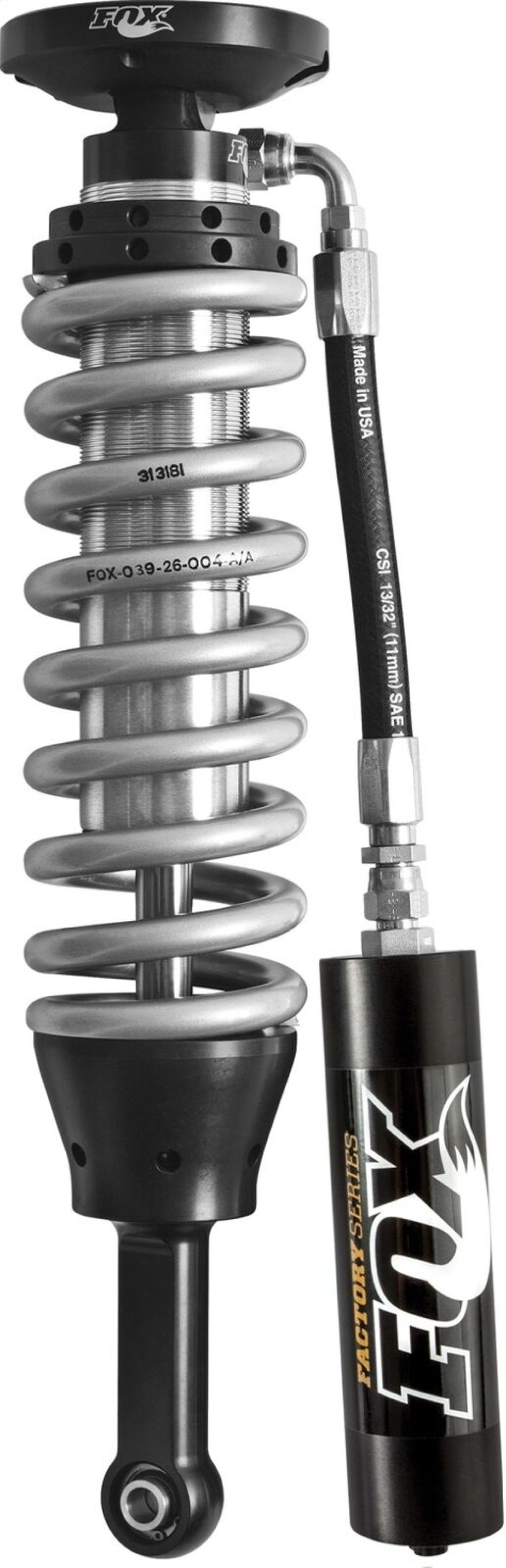

Fox Racing Shox 2.5 Factory Race Series coilover remote reservoir shocks are the foundation of a race-winning suspension. They epitomize efficiency by combining Fox race-proven damping technology with a means to suspend the vehicle in one easy-to-mount assembly. Regardless of whether you're flying high over the desert or struggling to stick to a rock face on an off-camber climb, Fox coilovers will give you the damping performance, suspension control, and proper spring rate to get the job done. Fox 2.0 Factory Race coilover air shocks may feature: * Smooth bore and honed seamless steel bodies * Zinc plated for a long-lasting finish * Black anodized, CNC-machined 6061-T6 billet aluminum components * 7075 hard anodized high-flow aluminum piston * Tunable, velocity sensitive deburred valve shims * Reusable ORB O-ring port hose fittings for superior seal with remote reservoirs * High-temperature Viton® redundant sealing pack system with main, wiper, and scraper seals * JM92 Advanced Suspension Fluid for improved performance at variable temperatures * 7/8 in. 17-4 H9000 hard chrome plated stainless steel shaft * Spherical, PTFE-lined, heat-treated alloy steel bearing
UPC | 00714686861175 |
Brand | Fox Shox |
Notes | Designed for models with 4 in. to 6 in. of lift. |
Quantity | Sold as a pair. |
Part Type | Coilover Shocks and Struts |
Gas Charged | Yes |
Lower Mount | Bar pin |
Upper Mount | Stock |
Product Line | Fox Racing Shox 2.5 Factory Race Series Coilover Remote Reservoir Shocks |
Spring Finish | Gray/Silver |
Internal Design | Monotube |
Bushing Material | Spherical bearing/PTFE |
Hardware Included | Yes |
Shock Body Finish | Zinc plated |
Adjustable Valving | No |
Body Diameter (in.) | 2.000 |
Coilover Shock Type | Non-adjustable |
Shock Body Material | Steel |
Extended Length (in.) | 27.41 |
Collapsed Length (in.) | 22.05 |
Coilover Springs Included | Yes |
Threaded Adjustment Range | 6.000 in. |
Manufacturer's Part Number | 883-02-114 |
Suspension Height Adjustment | 4.0-6.0 in. raised |
Adjustable Mounting Bracket Included | No |
Fox 2014+ Ford F-150 4WD Front Coilover 2.5 Factory Series 5.3in. R/R Coilover Set / 4-6in. Lift | ||||
---|---|---|---|---|
Year Range | Make | Model | Submodels | Region |
2014-2020 | Ford | F-150 | FX4, King Ranch, Lariat, Limited, Platinum, STX, SVT Raptor, XL, XLT, SSV, Raptor, Police Responder | US |
Please note that this information serves as a fitment guide only. For specific fitment questions or clarifications, please contact us, as manufacturers may introduce variations and modifications during model year revisions, along with regional variations. While we strive to provide accurate data, fitment details may vary by region; therefore, compatibility outside the listed region and submodel variant cannot be guaranteed.
Application Data | |
---|---|
Universal | No |
Make | FORD |
Model | F-150 |
Submodel | FX4 |
Beginning Year | 2014 |
Ending Year | 2014 |
Drivetrain | 4WD |
Application Notes | Lift: 4-6 |
Universal | No |
Make | FORD |
Model | F-150 |
Submodel | FX4 |
Beginning Year | 2014 |
Ending Year | 2014 |
Engine Type | V6 |
Drivetrain | 4WD |
Shock Position | Front Left |
Usage | Off-road truck |
Application Notes | Designed for models with 4 in. to 6 in. of lift. |
Universal | No |
Make | FORD |
Model | F-150 |
Submodel | FX4 |
Beginning Year | 2014 |
Ending Year | 2014 |
Engine Type | V6 |
Drivetrain | 4WD |
Shock Position | Front Right |
Usage | Off-road truck |
Application Notes | Designed for models with 4 in. to 6 in. of lift. |
