2.0 Bump Stop
Developed in racing and refined for everyday use, FOX Factory Race Series bumpstops are the perfect addition to any aggressive Jeep build, working together with your FOX shocks to create the feel of near bottomless travel.
Application specific valving to maximize performance.
Jeep Wrangler JK: 2007-2018
Jounce Bumper

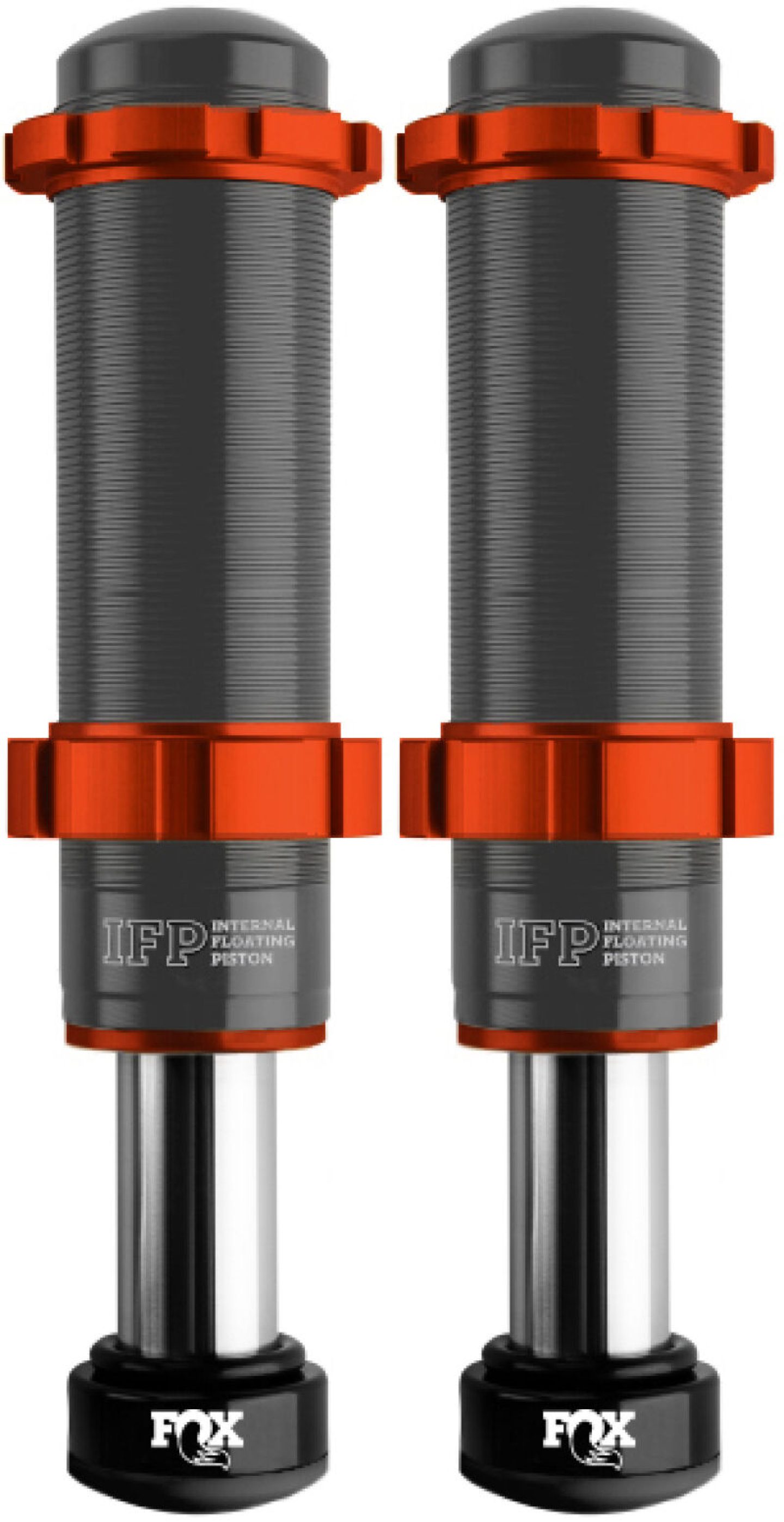

Bump Stop, 2.0 Factory Series, Front, 12.288 in. Extended Length, 10.433 in. Collapsed Length, 1.855 Travel, Aluminum, Black, Jeep, JK Wrangler, Pair
Fox Racing Shox 2.0 Factory Race Series IFP bump stops provide precise control of the last few inches of suspension travel. Inspired by their off-road racing predecessors, the Factory IFP bump stops employ Fox's race-proven technology and cutting-edge features to deliver increased damping performance and bottom-out control. Use every inch of suspension travel without harsh bottoming out with Fox Factory Race Series 2.0 IFP bump stops, available in a variety of options. Product features include: * Threaded, impact-extruded, black anodized, CNC-machined 6061-T6 billet aluminum bodies * Black anodized, CNC-machined 6061-T6 billet aluminum components * Hard chromed 4130 steel shaft with Internal Floating Piston (IFP) for increased damping performance * Heavy-duty powdered steel piston * Replaceable Delrin strike pad * Tunable, velocity sensitive deburred valve shims * Redundant sealing pack system, main seal, wiper seal, scraper seal * JM92 Advanced Suspension Fluid for improved performance at variable temperatures * Integrated Fox Air Valve (FAV) allows precise nitrogen pressure adjustments to provide a wide range of bottoming control
UPC | 00711745590632 |
Brand | Fox Shox |
Notes | Removal of original frame bump stop is required. Cutting and welding is required. |
Quantity | Sold as a pair. |
Part Type | Hydraulic Bump Stops |
Product Line | Fox Racing Shox 2.0 Factory Race Series IFP Bump Stops |
Hydraulic Bump Stop Color | Black |
Manufacturer's Part Number | 883-02-154 |
Hydraulic Bump Stop Diameter | 2.000 in. |
Hydraulic Bump Stop Material | Aluminum |
Hydraulic Bump Stop Shaft Diameter | 1.250 in. |
Hydraulic Bump Stop Extended Length | 12.288 in. |
Hydraulic Bump Stop Collapsed Length | 10.433 in. |
Hydraulic Bump Stop Brackets Included | Yes |
Fox 07+ Jeep JK 2.0 Factory Series 2.55in. Front Bump Stop IFP (Pair) | ||||
---|---|---|---|---|
Year Range | Make | Model | Submodels | Region |
2007-2018 | Jeep | Wrangler | Rubicon, Sahara, Unlimited Rubicon, Unlimited Sahara, Unlimited X, X, Sport, Unlimited Sport, 70th Anniversary, Unlimited 70th Anniversary, Unlimited Sport S, Sport S, 75th Anniversary, Unlimited 75th Anniversary, Unlimited Moab | US |
2018 | Jeep | Wrangler JK | Rubicon, Sahara, Sport, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Sport S, Unlimited Sport S | US |
Please note that this information serves as a fitment guide only. For specific fitment questions or clarifications, please contact us, as manufacturers may introduce variations and modifications during model year revisions, along with regional variations. While we strive to provide accurate data, fitment details may vary by region; therefore, compatibility outside the listed region and submodel variant cannot be guaranteed.
Application Data | |
---|---|
Universal | No |
Make | JEEP |
Model | WRANGLER |
Submodel | 70TH ANNIVERSARY |
Beginning Year | 2011 |
Ending Year | 2011 |
Drivetrain | 4WD |
Application Notes | Front |
Universal | No |
Make | JEEP |
Model | WRANGLER |
Submodel | 75TH ANNIVERSARY |
Beginning Year | 2016 |
Ending Year | 2016 |
Drivetrain | 4WD |
Application Notes | Front |
Universal | No |
Make | JEEP |
Model | WRANGLER JK |
Submodel | RUBICON |
Beginning Year | 2018 |
Ending Year | 2018 |
Drivetrain | 4WD |
Application Notes | Front |
