2.5 Coil-Over Shocks
Developed from our off-road race shocks, FOX Factory Race Series combines race-proven technology with new, cutting-edge features to provide enhanced ride-quality and winning damping performance you can bolt onto your truck or SUV.
Application specific valving to maximize performance.
Toyota FJ Cruiser: 2007-2014; Toyota 4Runner: 2003-2023; Toyota Land Cruiser Prado 120: 2003-2009; Toyota Land Cruiser Prado 150: 2010-2014

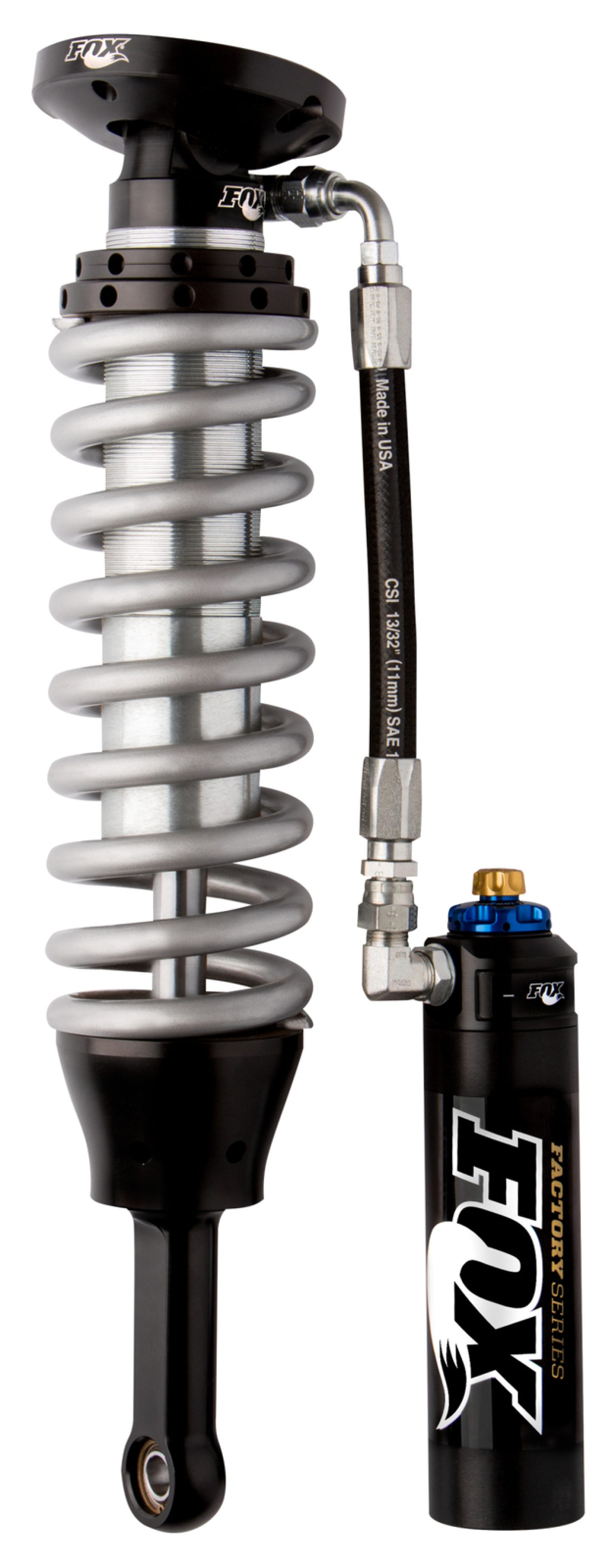

Suspension Shock Absorber Kit
Coilover Kit, 2.5 Factory Race Series with DSC Adjuster, Front, Monotube, Bracket Upper Mount, Eyelet Lower Mount, Toyota, Pair
Fox Racing Shox 2.5 Factory Race Series coilover reservoir with DSC adjuster kits provide race-proven performance with versatile and precise tuning. These kits feature smooth bore and honed seamless alloy bodies and reservoirs. The bodies are zinc plated and double clearcoated, while the external reservoirs are black anodized. The Dual Speed Compression (DSC) adjuster enhances performance further with 10 separate low-speed and 12 high-speed compression levels. Models are available for countless applications from 1995 and up. Additional product details: * Components are black anodized, CNC-machined 6061-T6 billet aluminum * Springs are application-specific, adjustable 3.0 Eibach racing springs * Shafts are 7/8 in. hard chrome plated steel shafts * Pistons are high-flow, hard-anodized 6061-T6 aluminum * Valving is application specific to maximize performance * Redundant sealing pack system—main seal, wiper seal, scraper seal * JM92 Advanced Suspension Fluid for improved performance at variable temperatures * Bearings are PTFE-lined, heat-treated, alloy steel spherical * Direct replacement for stock and aftermarket lifts kits
UPC | 714686852173 |
Brand | Fox Shox |
Notes | Requires upper control arm. |
Quantity | Sold as a pair. |
Part Type | Coilover Kits |
Gas Charged | Yes |
Lower Mount | Eyelet |
Upper Mount | Bracket |
Product Line | Fox Racing Shox 2.5 Factory Race Series Coilover Reservoir with DSC Adjuster Kits |
Bushing Color | Natural |
Spring Finish | Gray/Silver |
Internal Design | Monotube |
Shocks Included | Yes |
Bushing Material | Spherical bearing |
Welding Required | No |
Hardware Included | Yes |
Shock Body Finish | Zinc plated |
Adjustable Valving | Yes |
Body Diameter (in.) | 2.500 |
Shock Body Material | Aluminum |
Crossmember Included | No |
Coilover Kit Position | Front |
Extended Length (in.) | 22.38 |
Collapsed Length (in.) | 17.09 |
Coilover Springs Included | Yes |
Manufacturer's Part Number | 883-06-130 |
Suspension Height Adjustment | 0.0-3.0 in. raised |
Adjustable Mounting Bracket Included | No |
Fox 03+ 4Runner Toyota 2.5 Factory Series 4.8in. R/R Coilover Shock Set w/DSC Adjuster / 0-3in. Lift | ||||
---|---|---|---|---|
Year Range | Make | Model | Submodels | Region |
2003-2023 | Toyota | 4Runner | Limited, SR5, Sport, Trail, TRD Pro, TRD Off-Road, SR5 Premium, TRD Off-Road Premium, Nightshade, Venture, TRD Sport, 40th Anniversary Edition | US |
2007-2014 | Toyota | FJ Cruiser | Base, TRD Special Edition, Trail Teams Special Edition | US |
Please note that this information serves as a fitment guide only. For specific fitment questions or clarifications, please contact us, as manufacturers may introduce variations and modifications during model year revisions, along with regional variations. While we strive to provide accurate data, fitment details may vary by region; therefore, compatibility outside the listed region and submodel variant cannot be guaranteed.
Application Data | |
---|---|
Universal | No |
Make | TOYOTA |
Model | 4RUNNER |
Submodel | 40TH ANNIVERSARY EDITION |
Beginning Year | 2023 |
Ending Year | 2023 |
Engine Type | V6 |
CC | 3956 |
CID | 241 |
Liter | 4.0 |
Engine Size | 4.0L/3956cc |
Engine Family | Toyota V6 |
Drivetrain | 4WD |
Application Notes | Requires Upper Control Arm Lift: 0-3 |
Universal | No |
Make | TOYOTA |
Model | 4RUNNER |
Submodel | 40TH ANNIVERSARY EDITION |
Beginning Year | 2023 |
Ending Year | 2023 |
Engine Type | V6 |
CC | 3956 |
CID | 241 |
Liter | 4.0 |
Engine Size | 4.0L/3956cc |
Engine Family | Toyota V6 |
Drivetrain | RWD |
Application Notes | Requires Upper Control Arm Lift: 0-3 |
Universal | No |
Make | TOYOTA |
Model | 4RUNNER |
Submodel | LIMITED |
Beginning Year | 2003 |
Ending Year | 2009 |
Engine Type | V8 |
CC | 4663 |
CID | 285 |
Liter | 4.7 |
Engine Size | 4.7L/4663cc |
Engine Family | Toyota V8 |
Drivetrain | 4WD |
Application Notes | Requires Upper Control Arm Lift: 0-3 |
