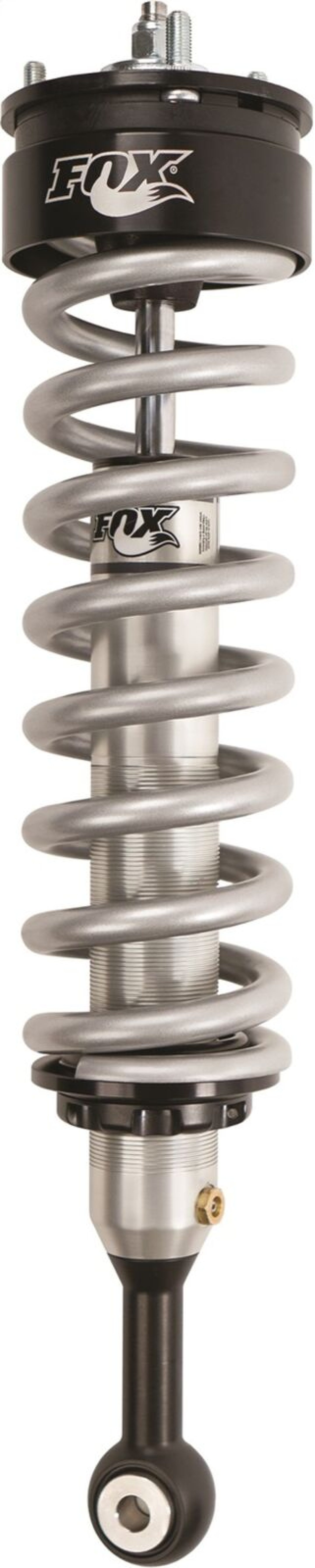

2.0 Coil-Over Shock
FOX Performance Series shocks contain the latest in shock technology to transform the performance of your Truck or SUV. They use our race-proven damping control to provide a comfortable on-road ride and predictable off-road handling in even the toughest conditions.
Application specific valving to maximize performance.
Chevrolet Colorado: 2015-2022; GMC Canyon: 2015-2022
Suspension Shock Absorber
Shock, 2.0 Performance Series Coil-Over IFP, Front, 0-2 in. Lift, Chevy, GMC, Each
Fox Racing Shox 2.0 Performance Series coilover IFP shocks were developed through advanced technology—and with a long list of features that set them apart from other coilovers. The precision metal impact-extruded aluminum body increases cooling capacity and is rust-resistant; and the vehicle-specific upper mount includes a composite bushing that isolates noise and vibration. Locking spring preload rings (that allow easy ride height and preload adjustment) retain a top-quality racing coil, selected to deliver the optimal spring rate. Easy to install, IFP shocks provide a comfortable on-road ride and predictable off-road handling in even the toughest conditions. The shocks are available in dozens of models and options for applications from 1995 and up. Additional features include: * Body: 2.0 in. impact-extruded and CNC-machined 6061-T6 aluminum one-piece body resists rust over time * Body plating: Clear-anodized for a durable finish * Reservoir: Internal IFP monotube reservoir design separates shock oil from the high-pressure, nitrogen-charged gas chamber * Components: Black-anodized, CNC-machined 6061-T6 billet aluminum * Shaft: Hard-chrome plated heat-treated alloy steel * Piston: race-developed high-flow piston design * Valving: Application-specific valving to maximize performance * Seals: Redundant sealing pack system main seal, wiper seal, scraper seal * Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures * Bearing: Large diameter, heavy-duty spherical * Bolt-on installation
UPC | 714686858823 |
Brand | Fox Shox |
Quantity | Sold individually. |
Part Type | Coilover Shocks and Struts |
Gas Charged | Yes |
Lower Mount | Eyelet |
Upper Mount | Stock |
Product Line | Fox Racing Shox 2.0 Performance Series Coilover IFP Shocks |
Bushing Color | Natural |
Spring Finish | Gray/Silver |
Internal Design | Monotube |
Bushing Material | Spherical bearing |
Hardware Included | No |
Shock Body Finish | Clear anodized |
Adjustable Valving | No |
Body Diameter (in.) | 2.000 |
Coilover Shock Type | Non-adjustable |
Shock Body Material | Aluminum |
Extended Length (in.) | 20.66 |
Collapsed Length (in.) | 16.04 |
Coilover Springs Included | Yes |
Threaded Adjustment Range | 2.000 in. |
Manufacturer's Part Number | 985-02-103 |
Suspension Height Adjustment | 0.0-2.0 in. raised |
Adjustable Mounting Bracket Included | No |
Fox 15+ Chevy Colorado 4WD 2.0 Performance Series 4.6in. IFP Coilover Shock (Aluminum) / 0-2in. Lift | ||||
---|---|---|---|---|
Year Range | Make | Model | Submodels | Region |
2015-2022 | Chevrolet | Colorado | WT, LT, Z71, Base, ZR2 | US |
2015-2022 | GMC | Canyon | Base, SLT, SLE, SL, Denali, All Terrain, Elevation Standard, Elevation, AT4 | US |
Please note that this information serves as a fitment guide only. For specific fitment questions or clarifications, please contact us, as manufacturers may introduce variations and modifications during model year revisions, along with regional variations. While we strive to provide accurate data, fitment details may vary by region; therefore, compatibility outside the listed region and submodel variant cannot be guaranteed.
Application Data | |
---|---|
Universal | No |
Make | CHEVROLET |
Model | COLORADO |
Submodel | BASE |
Beginning Year | 2015 |
Ending Year | 2016 |
Drivetrain | 4WD |
Shock Position | Front Left |
Usage | Off-road truck |
Application Notes | BOTTOM MOUNT: EYELET COLOR: ALUMINUM COMPRESSED: 16.040 EXTENDED: 20.660 RESERVOIR: INTERNAL FLOATING PISTON (IFP) TITLE: 985-02-103 - 15-ON Chevy Colorado 4wd Front Coilover, PS, 2.0, IFP, 4.6", 0-2" Lift TM P/N: TOP TOP MOUNT: TM TRAVEL: 4.620 |
Universal | No |
Make | CHEVROLET |
Model | COLORADO |
Submodel | BASE |
Beginning Year | 2015 |
Ending Year | 2016 |
Drivetrain | 4WD |
Shock Position | Front Right |
Usage | Off-road truck |
Application Notes | BOTTOM MOUNT: EYELET COLOR: ALUMINUM COMPRESSED: 16.040 EXTENDED: 20.660 RESERVOIR: INTERNAL FLOATING PISTON (IFP) TITLE: 985-02-103 - 15-ON Chevy Colorado 4wd Front Coilover, PS, 2.0, IFP, 4.6", 0-2" Lift TM P/N: TOP TOP MOUNT: TM TRAVEL: 4.620 |
Universal | No |
Make | CHEVROLET |
Model | COLORADO |
Submodel | BASE |
Beginning Year | 2015 |
Ending Year | 2016 |
Drivetrain | RWD |
Shock Position | Front Left |
Usage | Off-road truck |
Application Notes | BOTTOM MOUNT: EYELET COLOR: ALUMINUM COMPRESSED: 16.040 EXTENDED: 20.660 RESERVOIR: INTERNAL FLOATING PISTON (IFP) TITLE: 985-02-103 - 15-ON Chevy Colorado 4wd Front Coilover, PS, 2.0, IFP, 4.6", 0-2" Lift TM P/N: TOP TOP MOUNT: TM TRAVEL: 4.620 |
