INCLUDES ALUMINUM RESERVOIR CLAMP; PERFORMANCE TUNED FOR VEHICLE SPECIFIC APPLICATION; ALUMINUM BODY DISSIPATES HEAT FASTER THAN STEEL; EXTERNAL RESERVOIR SYSTEM DISSIPATES HEAT FAST; BLACK ANODIZED CNC MACHINED ALUMINUM COMPONENTS
Application specific valving to maximize performance.
Ford F-250 Super Duty: 1999-2004; Ford F-450 Super Duty: 1999-2004; Ford F-550 Super Duty: 1999-2004; Ford F-350 Super Duty: 1999-2004

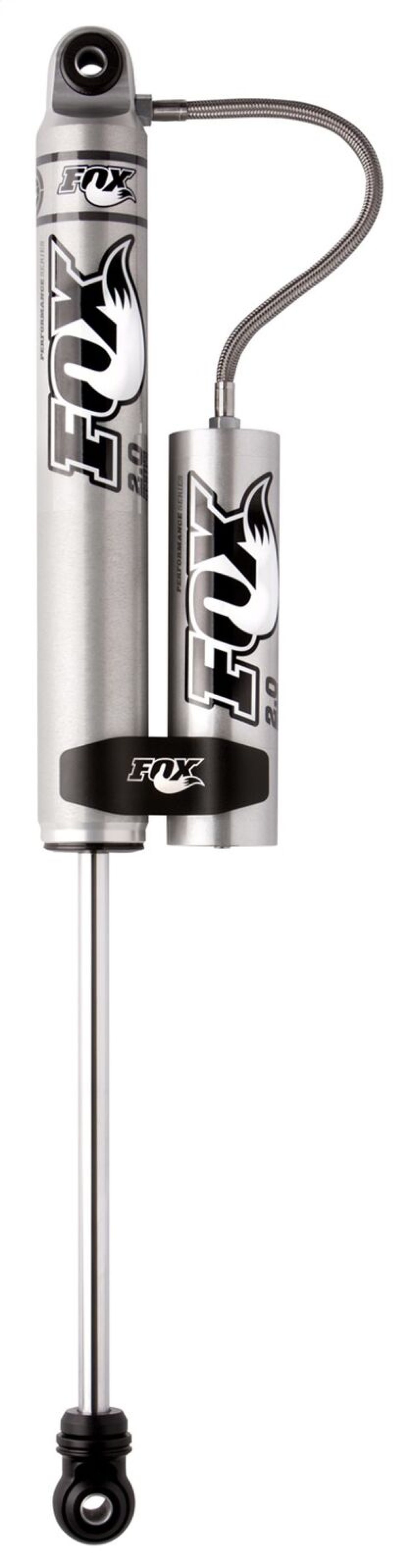

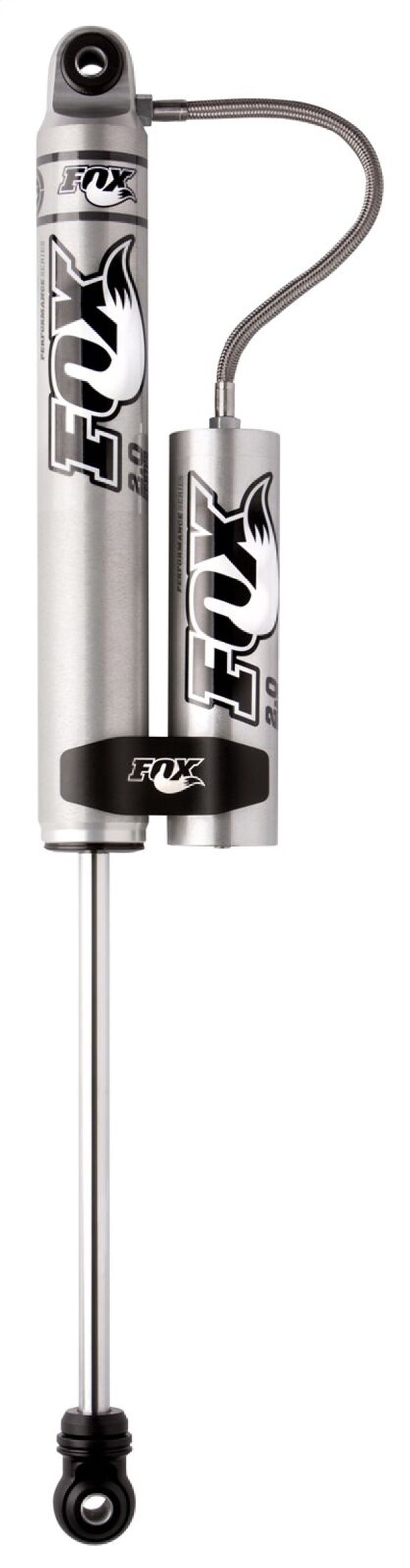

Shock Absorber
Fox Racing Shox 2.0 Performance Series reservoir smooth body shocks deliver race-dominating performance in hassle-free, bolt-on packages. Their heat-reducing design includes metal-impacted aluminum shock bodies that dissipate heat faster than conventional steel. The external reservoirs allow for increased oil and nitrogen capacity, while delivering a striking race look. And the shock's race-developed, high-flow damping piston is matched with application-specific valving to provide a predicable ride quality capable of handling the roughest road conditions. Performance Series shocks are available for front and/or rear applications from 1984 and up.
Additional product features:
UPC | 714686859691 |
Brand | Fox Shox |
Notes | Fits models up to a 1.0 in. lift. Top mount ID is 0.750 inches. Bottom mount hole size is 0.478 inches. |
Quantity | Sold individually. |
Part Type | Shocks and Struts |
Gas Charged | Yes |
Lower Mount | Eyelet |
Ride Height | Stock/Lifted |
Upper Mount | Eyelet |
Product Line | Fox Racing Shox 2.0 Performance Series Reservoir Smooth Body Shocks |
Boot Included | No |
Bushing Color | Black |
Internal Design | Monotube |
Bushing Material | Nitrile rubber |
Ride Height Note | For specific ride height information please refer to your make and model under the application tab. |
Adjustable Valving | No |
Body Diameter (in.) | 2.000 |
Extended Length (in.) | 22.45 |
Collapsed Length (in.) | 13.85 |
Lifted Amount Range (in.) | 0.00-2.00 in. |
Summit Racing Part Number | FRS-985-24-102 |
Manufacturer's Part Number | 985-24-102 |
Compatibility & Application Information | |
---|---|
Universal | No |
Make | FORD |
Model | F-250 SUPER DUTY |
Submodel | HARLEY-DAVIDSON EDITION |
Beginning Year | 2004 |
Ending Year | 2004 |
Engine Type | V10 |
Liter | 6.8 |
CID | 415 |
Engine Size | 6.8L/415 |
Engine Family | Ford modular V10 |
Drivetrain | 4WD |
Shock Position | Front Left |
Body Style | Crew Cab Pickup |
Application Notes | Includes Billet Reservoir Clamp Lift: 0-1 |
Engine VIN Code | S |
Universal | No |
Make | FORD |
Model | F-250 SUPER DUTY |
Submodel | HARLEY-DAVIDSON EDITION |
Beginning Year | 2004 |
Ending Year | 2004 |
Engine Type | V10 |
Liter | 6.8 |
CID | 415 |
Engine Size | 6.8L/415 |
Engine Family | Ford modular V10 |
Drivetrain | 4WD |
Shock Position | Front Left |
Body Style | Extended Cab Pickup |
Application Notes | Includes Billet Reservoir Clamp Lift: 0-1 |
Engine VIN Code | S |
Universal | No |
Make | FORD |
Model | F-250 SUPER DUTY |
Submodel | HARLEY-DAVIDSON EDITION |
Beginning Year | 2004 |
Ending Year | 2004 |
Engine Type | V10 |
Liter | 6.8 |
CID | 415 |
Engine Size | 6.8L/415 |
Engine Family | Ford modular V10 |
Drivetrain | 4WD |
Shock Position | Front Right |
Body Style | Crew Cab Pickup |
Application Notes | Includes Billet Reservoir Clamp Lift: 0-1 |
Engine VIN Code | S |
Universal | No |
Make | FORD |
Fox 99-04 Ford SD 2.0 Performance Series 8.6in. Smooth Body Remote Res. Front Shock / 0-1in. Lift | ||||
---|---|---|---|---|
Year | Make | Model | Submodel | Region |
1999 | Ford | F-350 Super Duty | XL | US |
1999 | Ford | F-250 Super Duty | Lariat | US |
1999 | Ford | F-250 Super Duty | XL | US |
1999 | Ford | F-350 Super Duty | Lariat | US |
1999 | Ford | F-350 Super Duty | XLT | US |
1999 | Ford | F-250 Super Duty | XLT | US |
2000 | Ford | F-250 Super Duty | Lariat | US |
2000 | Ford | F-350 Super Duty | XLT | US |
2000 | Ford | F-350 Super Duty | Lariat | US |
2000 | Ford | F-350 Super Duty | XL | US |
2000 | Ford | F-250 Super Duty | XLT | US |
2000 | Ford | F-250 Super Duty | XL | US |
2001 | Ford | F-350 Super Duty | XL | US |
2001 | Ford | F-250 Super Duty | XLT | US |
2001 | Ford | F-250 Super Duty | XL | US |
2001 | Ford | F-250 Super Duty | Lariat | US |
2001 | Ford | F-350 Super Duty | XLT | US |
2001 | Ford | F-350 Super Duty | Lariat | US |
2002 | Ford | F-350 Super Duty | XL | US |
2002 | Ford | F-250 Super Duty | XLT | US |
2002 | Ford | F-250 Super Duty | XL | US |
2002 | Ford | F-350 Super Duty | Lariat | US |
2002 | Ford | F-350 Super Duty | XLT | US |
2002 | Ford | F-250 Super Duty | Lariat | US |
2003 | Ford | F-350 Super Duty | XLT | US |
2003 | Ford | F-350 Super Duty | XL | US |
2003 | Ford | F-350 Super Duty | King Ranch | US |
2003 | Ford | F-250 Super Duty | XLT | US |
2003 | Ford | F-350 Super Duty | Lariat | US |
2003 | Ford | F-250 Super Duty | XL | US |
2003 | Ford | F-250 Super Duty | Lariat | US |
2004 | Ford | F-250 Super Duty | Harley-Davidson Edition | US |
2004 | Ford | F-350 Super Duty | King Ranch | US |
2004 | Ford | F-250 Super Duty | XL | US |
2004 | Ford | F-250 Super Duty | XLT | US |
2004 | Ford | F-250 Super Duty | Lariat | US |
2004 | Ford | F-350 Super Duty | XL | US |
2004 | Ford | F-350 Super Duty | Harley-Davidson Edition | US |
2004 | Ford | F-350 Super Duty | Lariat | US |
2004 | Ford | F-250 Super Duty | King Ranch | US |
2004 | Ford | F-350 Super Duty | XLT | US |
