Fuel Pressure Reg

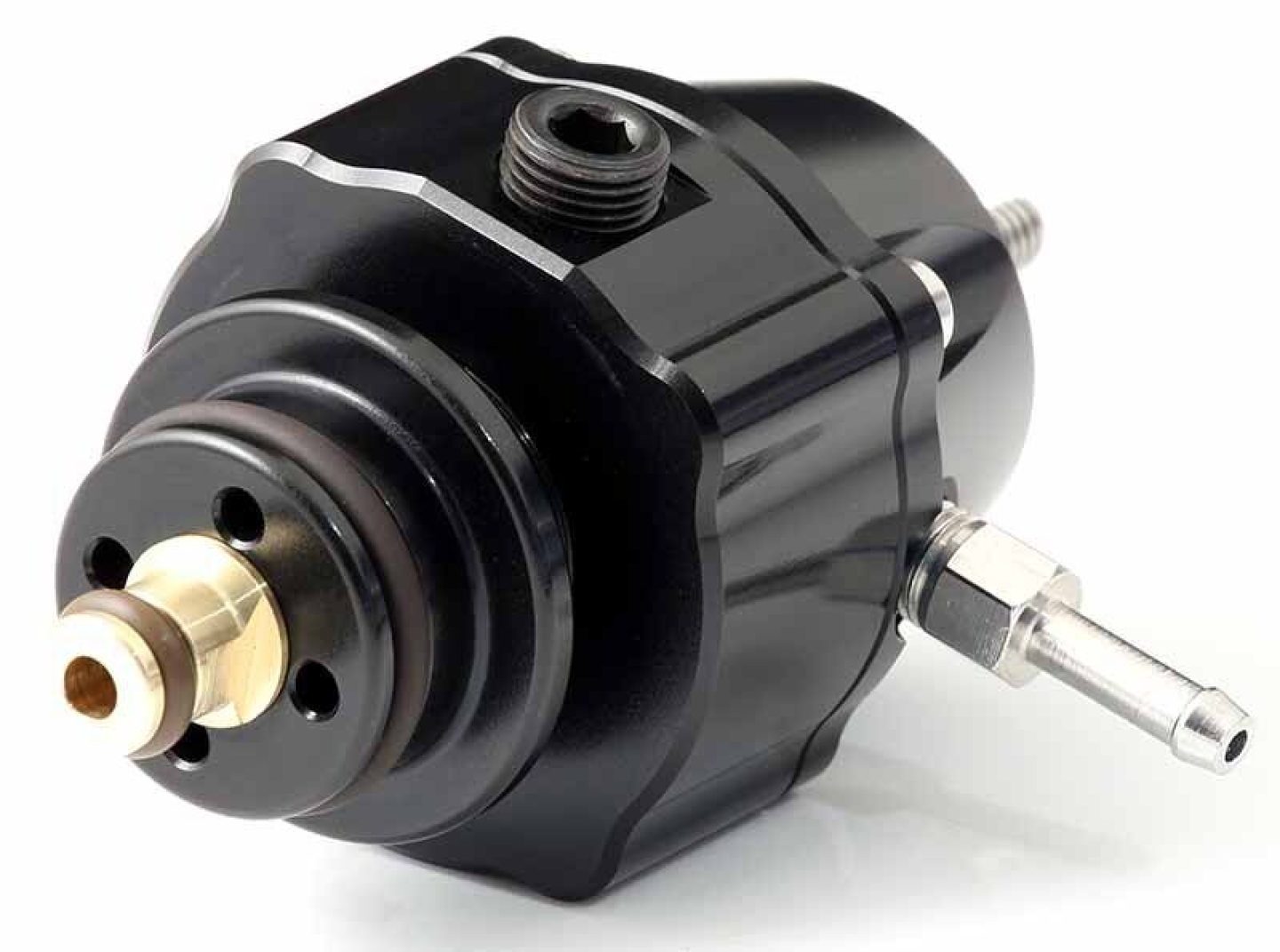

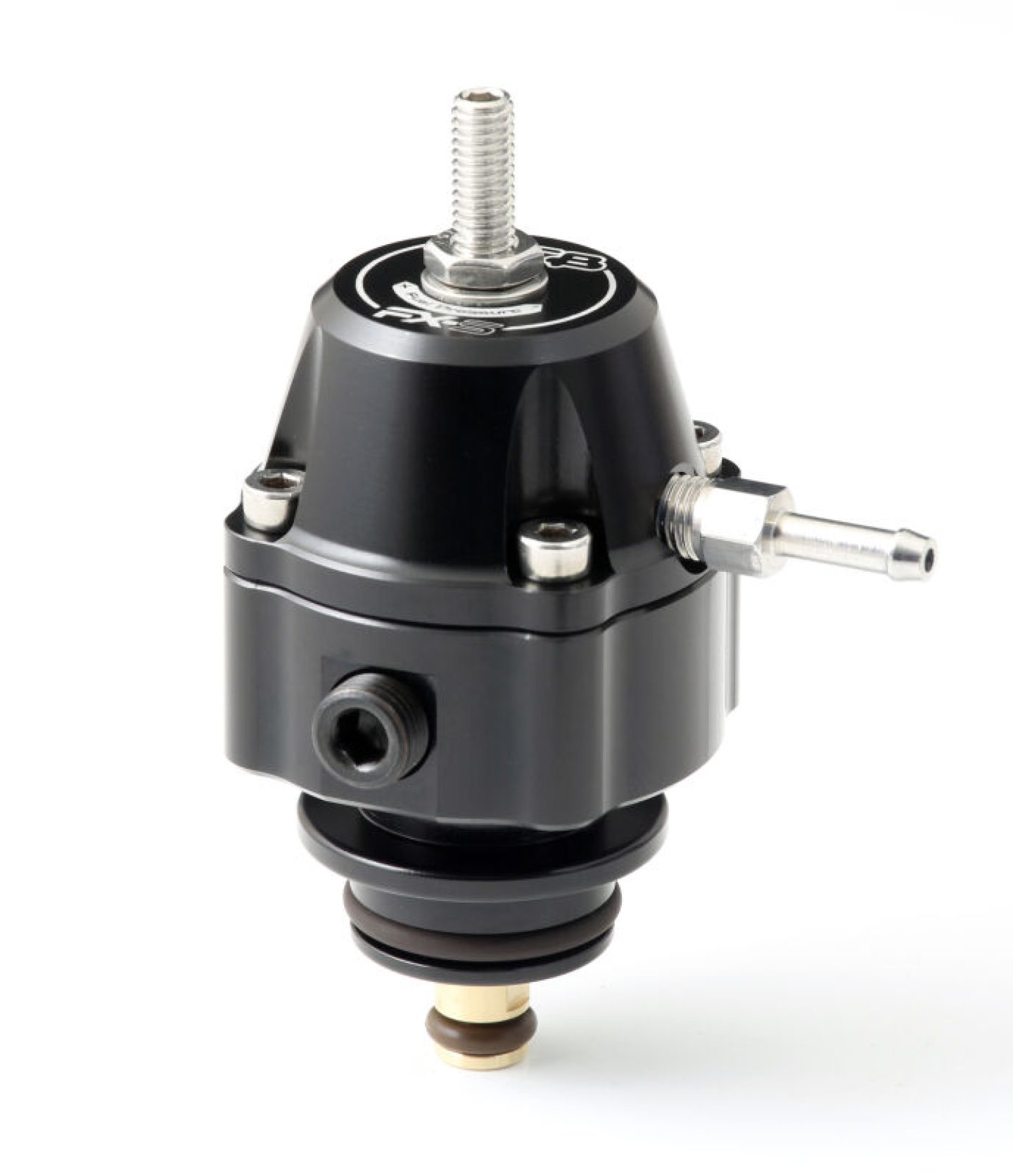

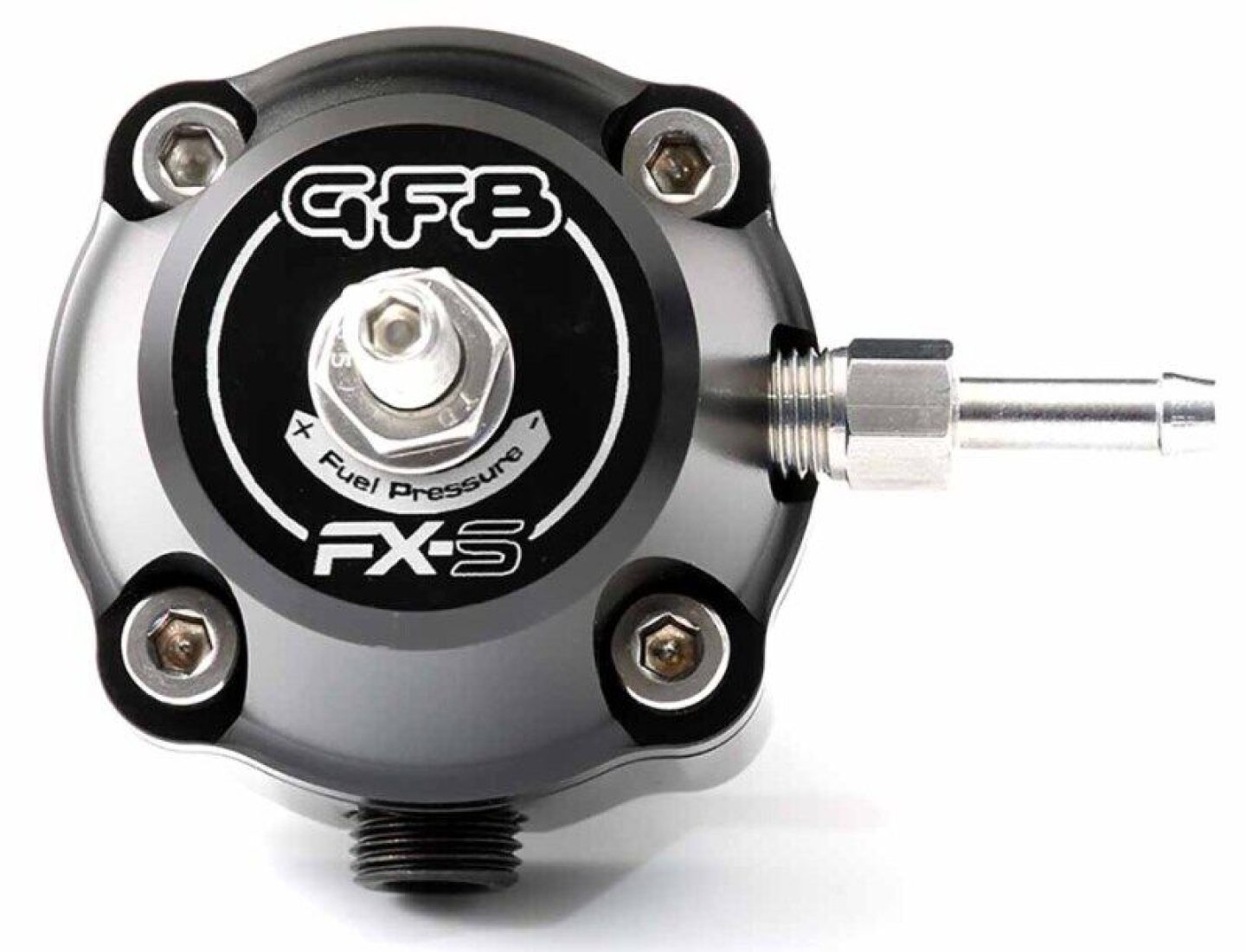

If you increase the performance of your engine, you need to ensure your fuel system can deliver the goods or you're going to have a bad day! Upgrading the fuel pump is the first step, but doing this alone will usually result in excessive fuel pressure, especially at idle. This is because the factory Bosch regulators typically don't flow enough to support larger fuel pumps, especially with turbo E85 setups that demand high fuel flow rates.?, Rather than replacing the entire fuel rail, or using an adaptor with a separate fuel pressure regulator, simply clipping in the FX-S 8051 will allow you to run a much larger pump setup even with the factory rail. And if you need to adjust the fuel pressure, that's no problem - unlike the fixed-pressure Bosch regulators, the FX-S can be adjusted from 1.4bar to 5bar. Like all GFB FX regulators, the FX-S 8051 is compatible with pump gas, Ethanol, or Methanol, and also incorporates a soft Teflon valve seat (rather than metal on metal) that will always positively seal and hold fuel pressure on shut down for reliable engine startups. The double layer diaphragm has twice the reinforcing material of the single layer type used in most regulators, and as a result the burst strength exceeds 1000psi!, The 1/8" NPT port can be used for a fuel pressure gauge or electronic pressure sensor, or it can simply be plugged using the port plug provided.
Takes over where the factory regulator stops, GFB's Fuel Pressure Regulator is a direct drop-in replacement for the common Bosch regulators that clip into the fuel rail.
Universal
Fuel Pressure Regulator
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Fuel Pressure Regulator, Push-On Rail Mount, One 1/8 in. NPT Port, 20-72 psi, Billet Aluminum, Black Anodized, Each
The FX-S Series fuel pressure regulators from Go Fast Bits join their existing line of successful fuel delivery products—built with the same precision, machining quality, and reliability that is the foundation of GFB's reputation. Go Fast Bits FX-S fuel pressure regulators are available in different model configurations to meet the needs of your specific setup. The 8050 models have multiple inlet/gauge ports that allow for a wide range of fuel system setups beyond the usual inlet/outlet, including parallel fuel rail or returnless "deadhead" systems. The two gauge ports allow you to run a mechanical fuel pressure gauge and an ECU fuel pressure sensor if you want. GFB also offers the 8051 model—a direct drop-in Bosch replacement for common Bosch regulators that clip into the fuel rail, rather than replacing the entire fuel rail or using an adaptor with a separate fuel pressure regulator. By simply clipping in the FX-S 8051 fuel pressure regulator will allow you to run a much larger pump setup even with the factory rail. Whether you run pump petrol/gasoline, Ethanol, Methanol or Diesel—Go Fast Bits has you covered—no matter what your fuel pressure regulatory requirements are! Features of FX-S Series fuel pressure regulators: * Billet aluminum construction with black anodized finish * Features double-layer diaphragm that has twice the reinforcing material of the single layer type used in most regulators * Valve seat has a soft, more compliant yet resilient material that positively seals and holds fuel pressure for easier startup vs. conventional aftermarket fuel pressure regulators that utilize metal-to-metal valve and seat * PTFE co-polymer seat with spherical stainless valve retains fuel pressure longer after shutdown * Spring pre-load adjustment screw is O-ring sealed and does not leak vacuum/boost * Completely serviceable
UPC | 9328022002201 |
Brand | Go Fast Bits |
Notes | Bosch rail mount replacement regulator. |
Quantity | Sold individually. |
Part Type | Fuel Pressure Regulators |
Gauge Port | Yes |
Rebuildable | Yes |
Product Line | Go Fast Bits FX-S Fuel Pressure Regulators |
Inlet Quantity | 1 |
Outlet Quantity | 1 |
Regulator Style | Return |
Inlet Attachment | Female threads |
Regulator Finish | Black anodized |
Fittings Included | Yes |
Outlet Attachment | Push-on |
Return Attachment | Female threads |
Regulator Location | Fuel rail mount |
Regulator Material | Billet aluminum |
Return Fitting Size | 1/8 in. NPT |
Regulator Inlet Size | 1/8 in. NPT |
Regulator Outlet Size | 1/8 in. NPT |
Regulator Pressure (psi) | 20-72 |
Mounting Bracket Included | No |
Manufacturer's Part Number | 8051 |
Boost/Vacuum Reference Port | No |
No specific fitment data available for this part. For clarification, please contact us.
Application Data | |
---|---|
Universal | Yes |
Fuel Type | FLEX |
Regulator Usage | Multi-port injection |
Universal | Yes |
Fuel Type | GAS |
Regulator Usage | Multi-port injection |
Universal | Yes |
Fuel Type | METHANOL |
Regulator Usage | Multi-port injection |
