Fuel Pressure Reg
Unlike others that use a metal-to-metal valve seat, the FX regulators feature a replaceable soft Teflon valve seat that helps retain fuel pressure longer after the car is shut down for easier re-starting. We even went to the trouble of adding an o-ring sealed spring hat to ensure no boost/vacuum leakage through the spring adjusting screw
The compact size of the GFB FX regulators conceals a large flow capacity.
Universal

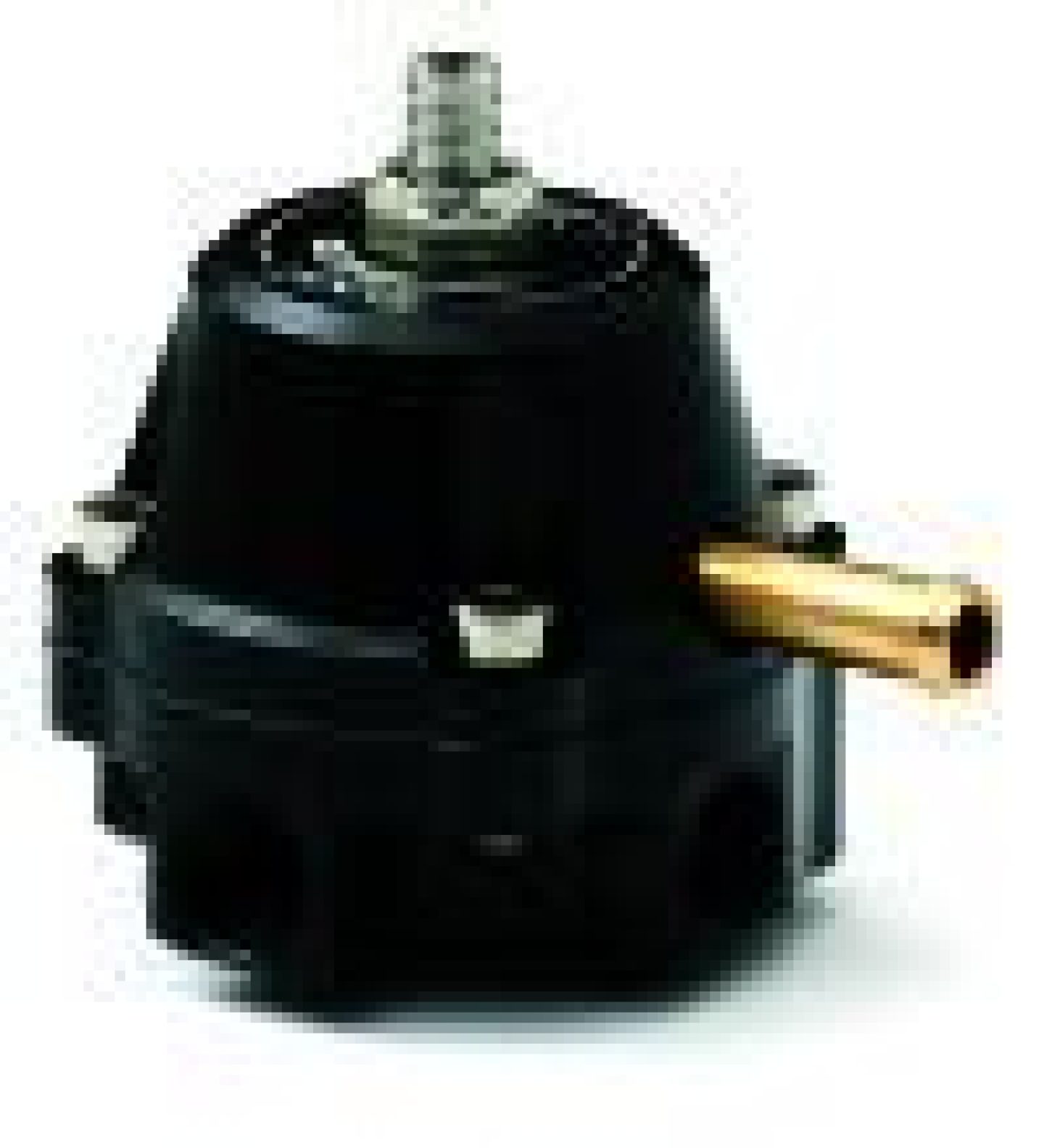

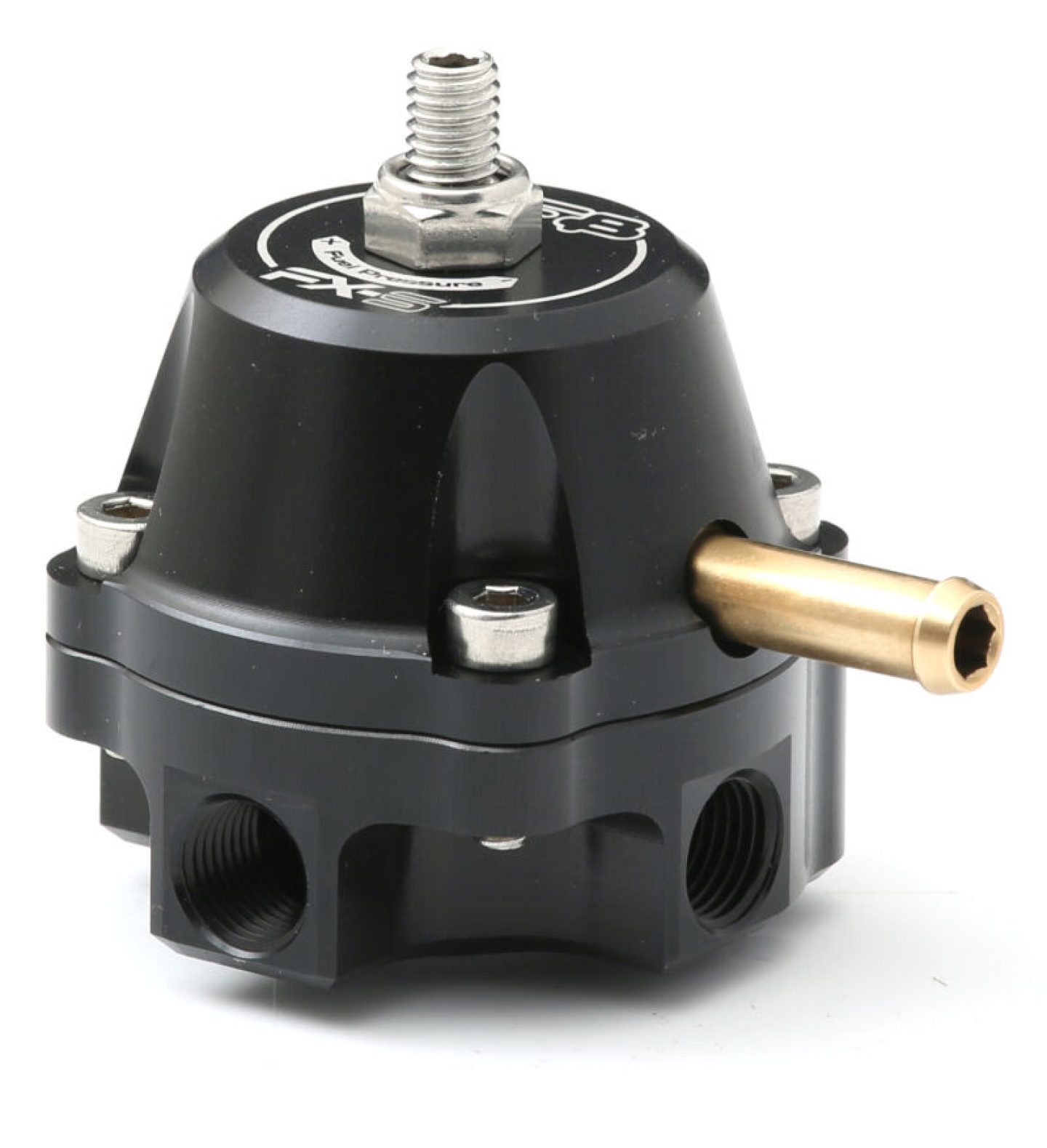

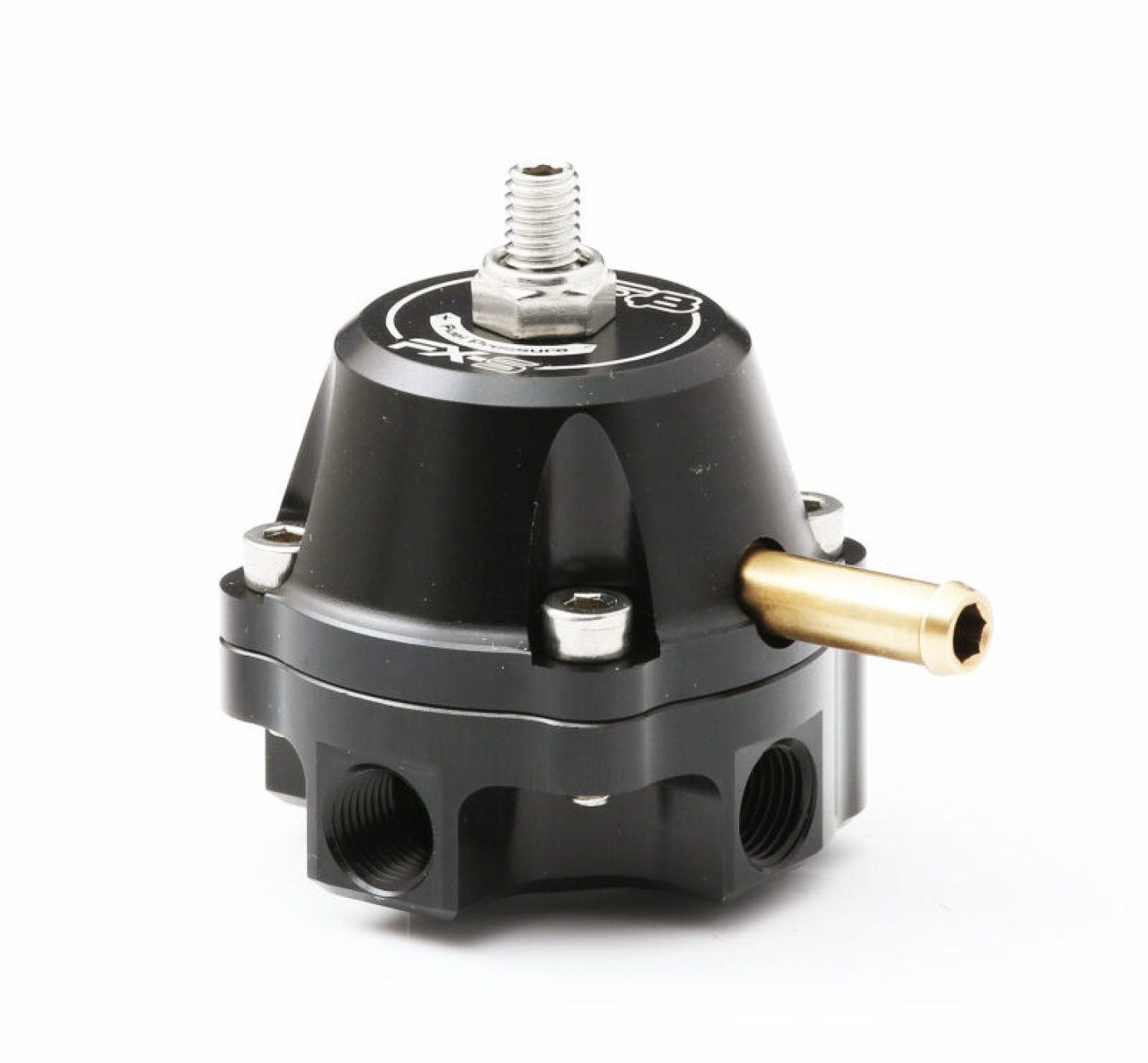

Fuel Pressure Regulator
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Fuel Pressure Regulator, Four 1/8 in. NPT Ports, One 1/8 in. NPT Return Port, 25-80 psi, Billet Aluminum, Black Anodized, Each
The FX-S Series fuel pressure regulators from Go Fast Bits join their existing line of successful fuel delivery products—built with the same precision, machining quality, and reliability that is the foundation of GFB's reputation. Go Fast Bits FX-S fuel pressure regulators are available in different model configurations to meet the needs of your specific setup. The 8050 models have multiple inlet/gauge ports that allow for a wide range of fuel system setups beyond the usual inlet/outlet, including parallel fuel rail or returnless "deadhead" systems. The two gauge ports allow you to run a mechanical fuel pressure gauge and an ECU fuel pressure sensor if you want. GFB also offers the 8051 model—a direct drop-in Bosch replacement for common Bosch regulators that clip into the fuel rail, rather than replacing the entire fuel rail or using an adaptor with a separate fuel pressure regulator. By simply clipping in the FX-S 8051 fuel pressure regulator will allow you to run a much larger pump setup even with the factory rail. Whether you run pump petrol/gasoline, Ethanol, Methanol or Diesel—Go Fast Bits has you covered—no matter what your fuel pressure regulatory requirements are! Features of FX-S Series fuel pressure regulators: * Billet aluminum construction with black anodized finish * Features double-layer diaphragm that has twice the reinforcing material of the single layer type used in most regulators * Valve seat has a soft, more compliant yet resilient material that positively seals and holds fuel pressure for easier startup vs. conventional aftermarket fuel pressure regulators that utilize metal-to-metal valve and seat * PTFE co-polymer seat with spherical stainless valve retains fuel pressure longer after shutdown * Spring pre-load adjustment screw is O-ring sealed and does not leak vacuum/boost * Completely serviceable
UPC | 9328022002361 |
Brand | Go Fast Bits |
Quantity | Sold individually. |
Part Type | Fuel Pressure Regulators |
Gauge Port | Yes |
Rebuildable | Yes |
Product Line | Go Fast Bits FX-S Fuel Pressure Regulators |
Inlet Quantity | 4 |
Outlet Quantity | 1 |
Regulator Style | Return |
Inlet Attachment | Female threads |
Regulator Finish | Black anodized |
Fittings Included | No |
Outlet Attachment | Female threads |
Return Attachment | Female threads |
Regulator Location | Inline |
Regulator Material | Billet aluminum |
Return Fitting Size | 1/8 in. NPT |
Regulator Inlet Size | 1/8 in. NPT |
Regulator Outlet Size | 1/8 in. NPT |
Boost/Vacuum Rise Ratio | 1:1 |
Regulator Pressure (psi) | 25-80 |
Mounting Bracket Included | No |
Manufacturer's Part Number | 8050 |
Boost/Vacuum Reference Port | Yes |
No specific fitment data available for this part. For clarification, please contact us.
Application Data | |
---|---|
Universal | Yes |
Fuel Type | DIESEL |
Regulator Usage | Multi-port injection |
Universal | Yes |
Fuel Type | FLEX |
Regulator Usage | Multi-port injection |
Universal | Yes |
Fuel Type | GAS |
Regulator Usage | Multi-port injection |
