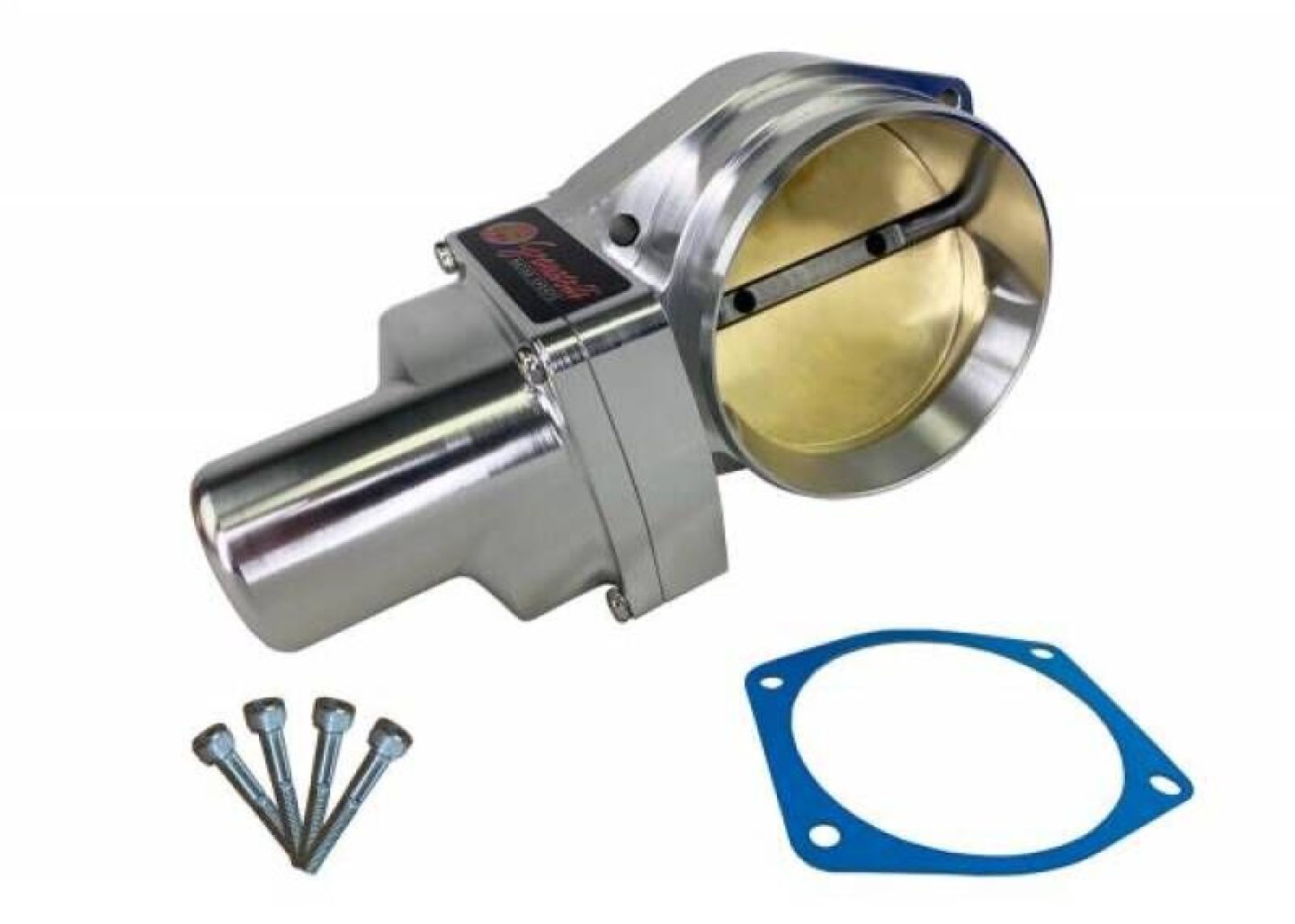

GM DBW LS3/LSA/LSx Throttle Body 105MM - Drive-By-Wire- Natural.
Fuel Injection Throttle Body
Granatelli Motor Sports is proud to offer a variety of performance throttle bodies for late model, drive-by-wire engines. Their throttle bodies are precision-machined to exceed the demands required for increased airflow on high performance applications, both naturally aspirated and forced induction. These upgraded throttle bodies can be used with factory or aftermarket manifolds and utilize the OEM harness connector. The increased size also allows for smoother and quicker engine acceleration--and there's no need to transfer anything over from the factory unit. Proper tuning is highly recommended after installation. Granatelli throttle bodies are available for hundreds of vehicles from the 1990s and up.
Brand | Granatelli Motor Sports |
Manufacturer's Part Number | GMTBLS105 |
Part Type | Throttle Bodies |
Product Line | Granatelli Motor Sports Throttle Bodies |
Summit Racing Part Number | GRN-GMTBLS105 |
UPC | 802735040715 |
Throttle Body Style | Multi-port injection, MPI |
Throttle Body Actuation | Drive-By-Wire |
Venturi Quantity | 1 |
Venturi Diameter (mm) | 105.00mm |
TPS Sensor Included | No |
IAC Motor Included | No |
Gaskets Included | Yes |
Hardware Included | Yes |
Injectors Included | No |
Throttle Body Material | Billet aluminum |
Throttle Body Finish | Natural |
Remanufactured | No |
Quantity | Sold individually. |
Notes | Requires late model 6-pin connector. Supports up to 25 lbs. of boost. |
Compatibility & Application Information | |
---|---|
Universal | No |
Make | CHEVROLET |
Beginning Year | 1997 |
Ending Year | 2004 |
Engine Type | V8 |
Engine Family | Chevy small block Gen III/IV (LS-based engines) |
Engine Size | 5.7L/350 |
Application Notes | Requires late model 6-pin connector. Supports up to 25 lbs. of boost. |
Universal | No |
Make | CHEVROLET |
Beginning Year | 1999 |
Ending Year | 2014 |
Engine Type | V8 |
Engine Family | Chevy small block Gen III/IV (LS-based engines) |
Engine Size | 5.3L/325 |
Application Notes | Requires late model 6-pin connector. Supports up to 25 lbs. of boost. |
Universal | No |
Make | CHEVROLET |
Beginning Year | 1999 |
Ending Year | 2017 |
Engine Type | V8 |
Engine Family | Chevy small block Gen III/IV (LS-based engines) |
Engine Size | 4.8L/294 |
Application Notes | Requires late model 6-pin connector. Supports up to 25 lbs. of boost. |
Universal | No |
Make | CHEVROLET |
Beginning Year | 1999 |
Ending Year | 2020 |
Engine Type | V8 |
Engine Family | Chevy small block Gen III/IV (LS-based engines) |
Engine Size | 6.0L/364 |
Application Notes | Requires late model 6-pin connector. Supports up to 25 lbs. of boost. |
Universal | No |
Make | CHEVROLET |
Beginning Year | 2006 |
Ending Year | 2015 |
Engine Type | V8 |
Engine Family | Chevy small block Gen III/IV (LS-based engines) |
Engine Size | 7.0L/427 |
Application Notes | Requires late model 6-pin connector. Supports up to 25 lbs. of boost. |
Universal | No |
Make | CHEVROLET |
Beginning Year | 2008 |
Ending Year | 2017 |
Engine Type | V8 |
Engine Family | Chevy small block Gen III/IV (LS-based engines) |
Engine Size | 6.2L/376 |
Application Notes | Requires late model 6-pin connector. Supports up to 25 lbs. of boost. |
We do not have any specific fitment data for this part. This could be a generic item or if you need further clarification, please contact us for details to assist us with your compatibility requirements.
