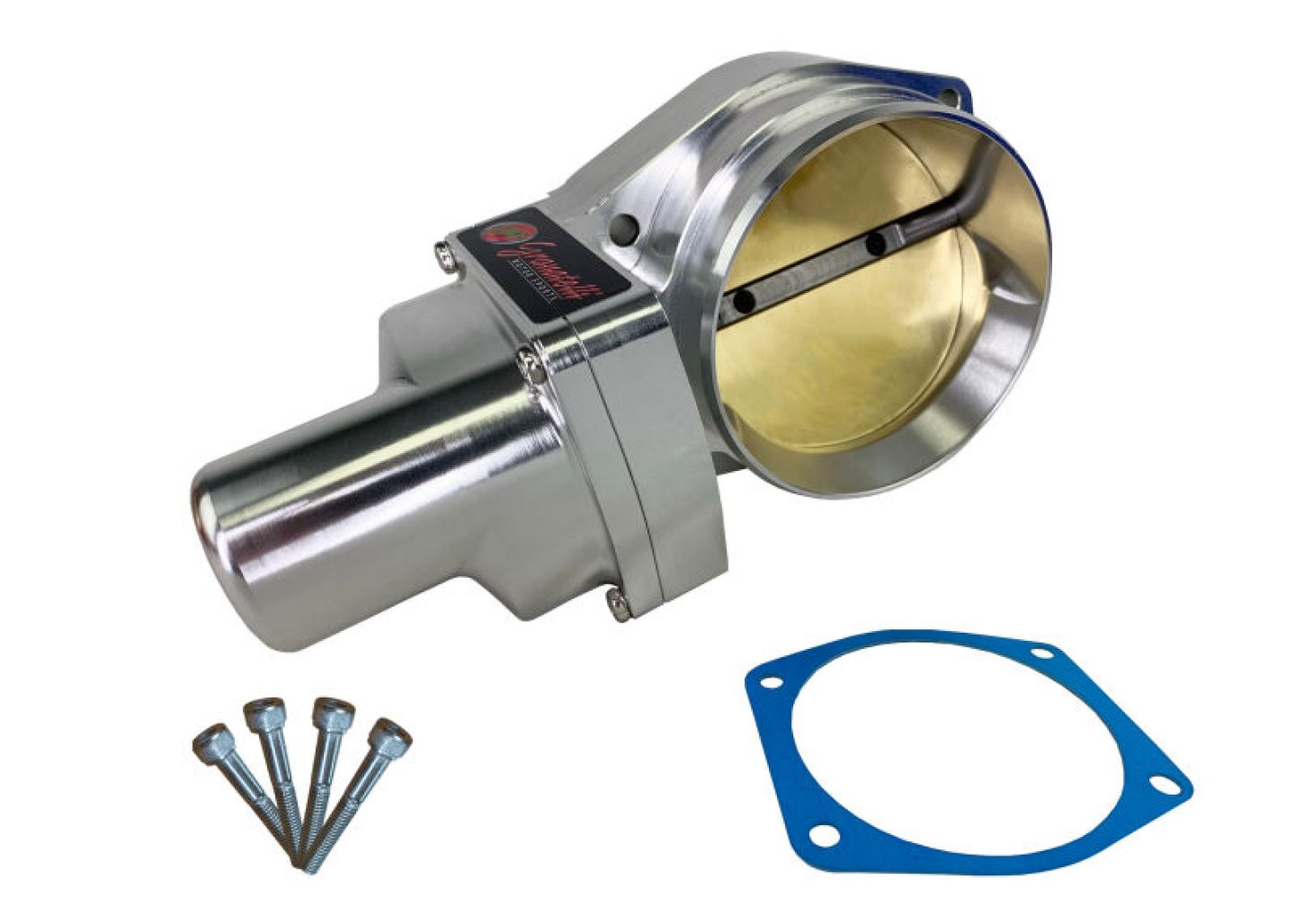

GM DBW LS3/LSA/LSx Throttle Body 103MM - Drive-By-Wire - Polished.
Fuel Injection Throttle Body
Granatelli Motor Sports is proud to offer a variety of performance throttle bodies for late model, drive-by-wire engines. Their throttle bodies are precision-machined to exceed the demands required for increased airflow on high performance applications, both naturally aspirated and forced induction. These upgraded throttle bodies can be used with factory or aftermarket manifolds and utilize the OEM harness connector. The increased size also allows for smoother and quicker engine acceleration--and there's no need to transfer anything over from the factory unit. Proper tuning is highly recommended after installation. Granatelli throttle bodies are available for hundreds of vehicles from the 1990s and up.
UPC | 802735039252 |
Brand | Granatelli Motor Sports |
Notes | Requires late model 6-pin connector. Supports up to 25 lbs. of boost. |
Quantity | Sold individually. |
Part Type | Throttle Bodies |
Product Line | Granatelli Motor Sports Throttle Bodies |
Gaskets Included | Yes |
Venturi Quantity | 1 |
Hardware Included | Yes |
IAC Motor Included | No |
Injectors Included | No |
TPS Sensor Included | No |
Throttle Body Style | Multi-port injection, MPI |
Throttle Body Finish | Polished |
Venturi Diameter (mm) | 103.00mm |
Throttle Body Material | Billet aluminum |
Throttle Body Actuation | Drive-By-Wire |
Summit Racing Part Number | GRN-GMTBLS3P |
Manufacturer's Part Number | GMTBLS3P |
Compatibility & Application Information | |
---|---|
Universal | No |
Make | CHEVROLET |
Beginning Year | 1997 |
Ending Year | 2004 |
Engine Type | V8 |
Engine Family | Chevy small block Gen III/IV (LS-based engines) |
Engine Size | 5.7L/350 |
Universal | No |
Make | CHEVROLET |
Beginning Year | 1999 |
Ending Year | 2014 |
Engine Type | V8 |
Engine Family | Chevy small block Gen III/IV (LS-based engines) |
Engine Size | 5.3L/325 |
Universal | No |
Make | CHEVROLET |
Beginning Year | 1999 |
Ending Year | 2017 |
Engine Type | V8 |
Engine Family | Chevy small block Gen III/IV (LS-based engines) |
Engine Size | 4.8L/294 |
Universal | No |
Make | CHEVROLET |
Beginning Year | 1999 |
Ending Year | 2019 |
Engine Type | V8 |
Engine Family | Chevy small block Gen III/IV (LS-based engines) |
Engine Size | 6.0L/364 |
Universal | No |
Make | CHEVROLET |
Beginning Year | 2006 |
Ending Year | 2015 |
Engine Type | V8 |
Engine Family | Chevy small block Gen III/IV (LS-based engines) |
Engine Size | 7.0L/427 |
Universal | No |
Make | CHEVROLET |
Beginning Year | 2008 |
Ending Year | 2017 |
Engine Type | V8 |
Engine Family | Chevy small block Gen III/IV (LS-based engines) |
Engine Size | 6.2L/376 |
Universal | No |
Make | CHEVROLET |
Model | CAMARO |
Submodel | SS |
Beginning Year | 2010 |
Ending Year | 2011 |
Engine Type | V8 |
Liter | 6.2 |
Granatelli 08-23 GM LS3/LSA/LSX Drive-By-Wire 103mm Throttle Body - Polished | ||||
---|---|---|---|---|
Year | Make | Model | Submodel | Region |
2008 | Chevrolet | Corvette | Base | US |
2009 | Chevrolet | Corvette | ZR1 | US |
2009 | Chevrolet | Corvette | Base | US |
2009 | Pontiac | G8 | GXP | US |
2010 | Chevrolet | Corvette | Grand Sport | US |
2010 | Chevrolet | Corvette | ZR1 | US |
2010 | Chevrolet | Corvette | Base | US |
2010 | Chevrolet | Camaro | SS | US |
2011 | Chevrolet | Corvette | Grand Sport | US |
2011 | Chevrolet | Corvette | Base | US |
2011 | Chevrolet | Camaro | SS | US |
2011 | Chevrolet | Corvette | ZR1 | US |
2012 | Chevrolet | Corvette | Base | US |
2012 | Chevrolet | Camaro | SS | US |
2012 | Chevrolet | Camaro | ZL1 | US |
2012 | Chevrolet | Corvette | ZR1 | US |
2012 | Chevrolet | Corvette | Grand Sport | US |
2013 | Chevrolet | Corvette | Base | US |
2013 | Chevrolet | Camaro | SS | US |
2013 | Chevrolet | Camaro | ZL1 | US |
2013 | Chevrolet | Corvette | ZR1 | US |
2013 | Chevrolet | Corvette | Grand Sport | US |
2014 | Chevrolet | SS | Base | US |
2014 | Chevrolet | Camaro | SS | US |
2014 | Chevrolet | Camaro | ZL1 | US |
2015 | Chevrolet | SS | Base | US |
2015 | Chevrolet | Camaro | ZL1 | US |
2015 | Chevrolet | Camaro | SS | US |
2016 | Chevrolet | SS | Base | US |
2017 | Chevrolet | SS | Base | US |
