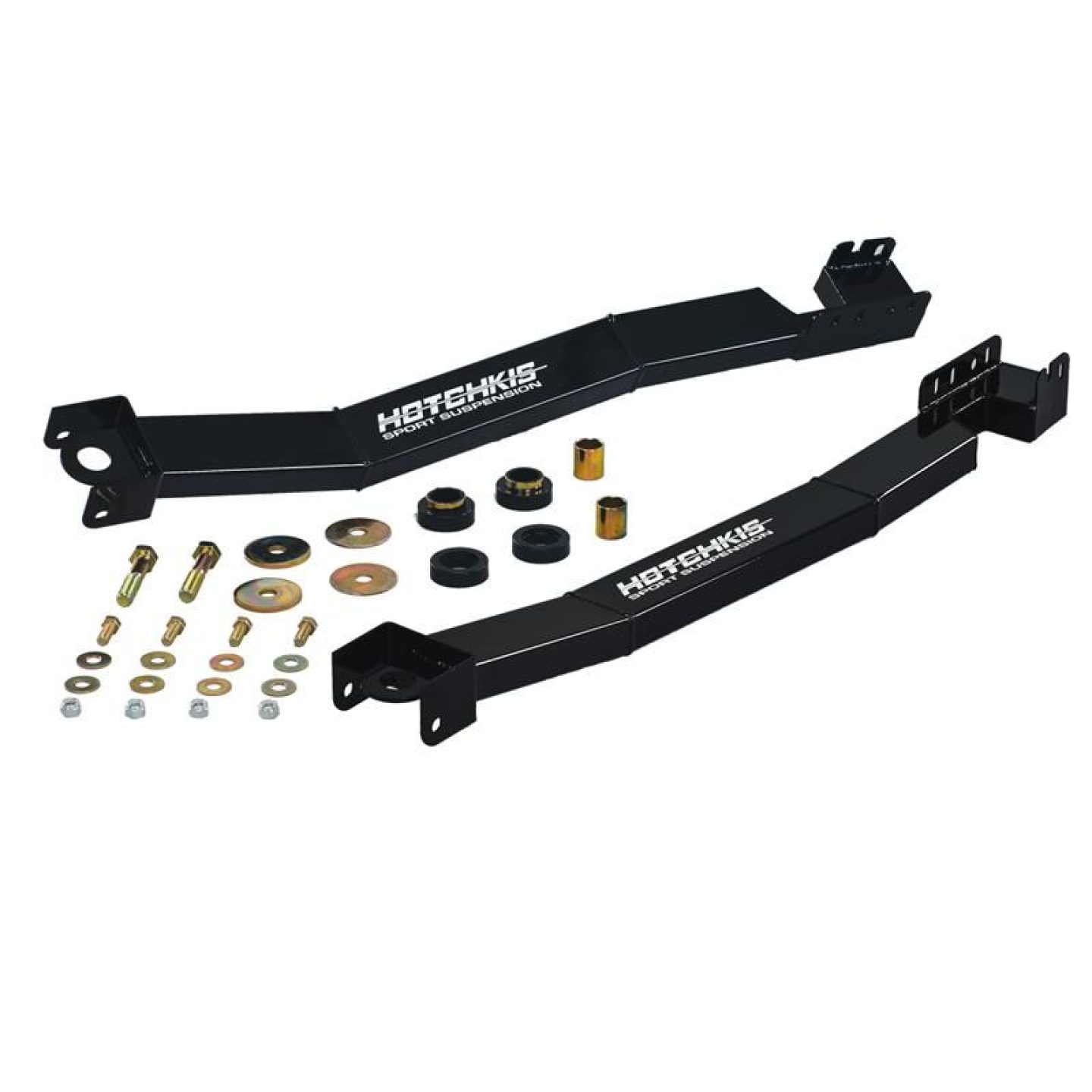

Hotchkis Sport Suspension 4012 1970-1973 Camaro/Firebird Sub Frame Connectors. The Hotchkis Performance sub-frame connectors for 70-74 F-Body cars are designed to add rigidity to the chassis to improve vehicle performance by reducing chassis flex. Fabricated from 1.5 in. x 3 in. .120 wall rectangular steel these TIG-welded connectors are powder coated gloss black. Installation of these connectors does not require modifications or cutting of the floor boards. The rear mount is a weld in while the front mount is a bolt in with the option to weld. This is a must have finishing touch for any F-Body restoration. Features: Powder Coated Gloss Black Finish TIG-welded Fabricated from 1.5 in. x 3 in. .120 wall rectangular steel. Rigidly connects the front subframe to rear chassis frame rail which dramatically reduces chassis flex during hard cornering and acceleration. Does not require cutting or modifying the floor. Front is optional weld or bolt-on. Allows for front subframe removal if needed. Tucked-in design gives excellent ground clearance. Benefits: Improves vehicle handling. Improves vehicle traction. Reduced chassis flex.
Sub-Frame Connector; 1.5x3 in. Steel Rectangular; Black;
Suspension Subframe Connector
Hotchkis Sport Suspension weld-on subframe connectors strengthen the chassis of your unibody to increase cornering and straight line performance. They're engineered to provide maximum ground clearance, while reducing annoying rattles and squeaks.
UPC | 00810361037542 |
Brand | Hotchkis Sport Suspension |
Notes | These sub frame connectors do not require cutting or modifying of the floor. The front of this sub frame connector is bolt-in (with the option to weld) and the rear is weld-in. |
Quantity | Sold as a pair. |
Part Type | Subframe Connectors, Weld-On |
Product Line | Hotchkis Sport Suspension Weld-On Subframe Connectors |
Connector Color | Black powdercoated |
Connector Material | Steel |
Summit Racing Part Number | HSS-4012 |
Manufacturer's Part Number | 4012 |
Compatibility & Application Information | |
---|---|
Make | CHEVROLET |
Model | CAMARO |
Beginning Year | 1970 |
Ending Year | 1973 |
Make | CHEVROLET |
Model | CAMARO |
Submodel | Z28 |
Beginning Year | 1972 |
Ending Year | 1972 |
Make | PONTIAC |
Model | FIREBIRD |
Beginning Year | 1970 |
Ending Year | 1973 |
Make | PONTIAC |
Model | FIREBIRD |
Submodel | ESPRIT |
Beginning Year | 1970 |
Ending Year | 1973 |
Make | PONTIAC |
Model | FIREBIRD |
Submodel | FORMULA |
Beginning Year | 1970 |
Ending Year | 1973 |
Make | PONTIAC |
Model | FIREBIRD |
Submodel | TRANS AM |
Beginning Year | 1970 |
Ending Year | 1973 |
Hotchkis 70-73 Camaro/Firebird Subframe Connector Kit | ||||
---|---|---|---|---|
Year | Make | Model | Submodel | Region |
1970 | Pontiac | Firebird | Formula | US |
1970 | Chevrolet | Camaro | Base | US |
1970 | Chevrolet | Camaro | RS | US |
1970 | Pontiac | Firebird | Trans Am | US |
1970 | Pontiac | Firebird | Base | US |
1970 | Chevrolet | Camaro | SS | US |
1970 | Chevrolet | Camaro | Z28 | US |
1970 | Pontiac | Firebird | Esprit | US |
1971 | Chevrolet | Camaro | RS | US |
1971 | Pontiac | Firebird | Trans Am | US |
1971 | Pontiac | Firebird | Base | US |
1971 | Pontiac | Firebird | Formula | US |
1971 | Chevrolet | Camaro | SS | US |
1971 | Chevrolet | Camaro | Z28 | US |
1971 | Pontiac | Firebird | Esprit | US |
1971 | Chevrolet | Camaro | Base | US |
1972 | Pontiac | Firebird | Formula | US |
1972 | Pontiac | Firebird | Trans Am | US |
1972 | Chevrolet | Camaro | Base | US |
1972 | Pontiac | Firebird | Esprit | US |
1972 | Chevrolet | Camaro | RS | US |
1972 | Chevrolet | Camaro | Z28 | US |
1972 | Pontiac | Firebird | Base | US |
1972 | Chevrolet | Camaro | SS | US |
1973 | Chevrolet | Camaro | LT | US |
1973 | Pontiac | Firebird | Base | US |
1973 | Pontiac | Firebird | Trans Am | US |
1973 | Pontiac | Firebird | Formula | US |
1973 | Chevrolet | Camaro | Z28 | US |
1973 | Chevrolet | Camaro | RS | US |
1973 | Chevrolet | Camaro | Base | US |
1973 | Pontiac | Firebird | Esprit | US |
1975 | Chevrolet | Camaro | Base | US |
