LEAF SPRING
F-150 Option #1 (as shipped)
2017-2020 FORD RAPTOR MULTI RATE LEAF PACK WITH ADD IN LEAF
ICON 17-20 RAPTOR MULTI RATE LEAF PACK W/ ADD IN LEAF
Leaf Spring Kit
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

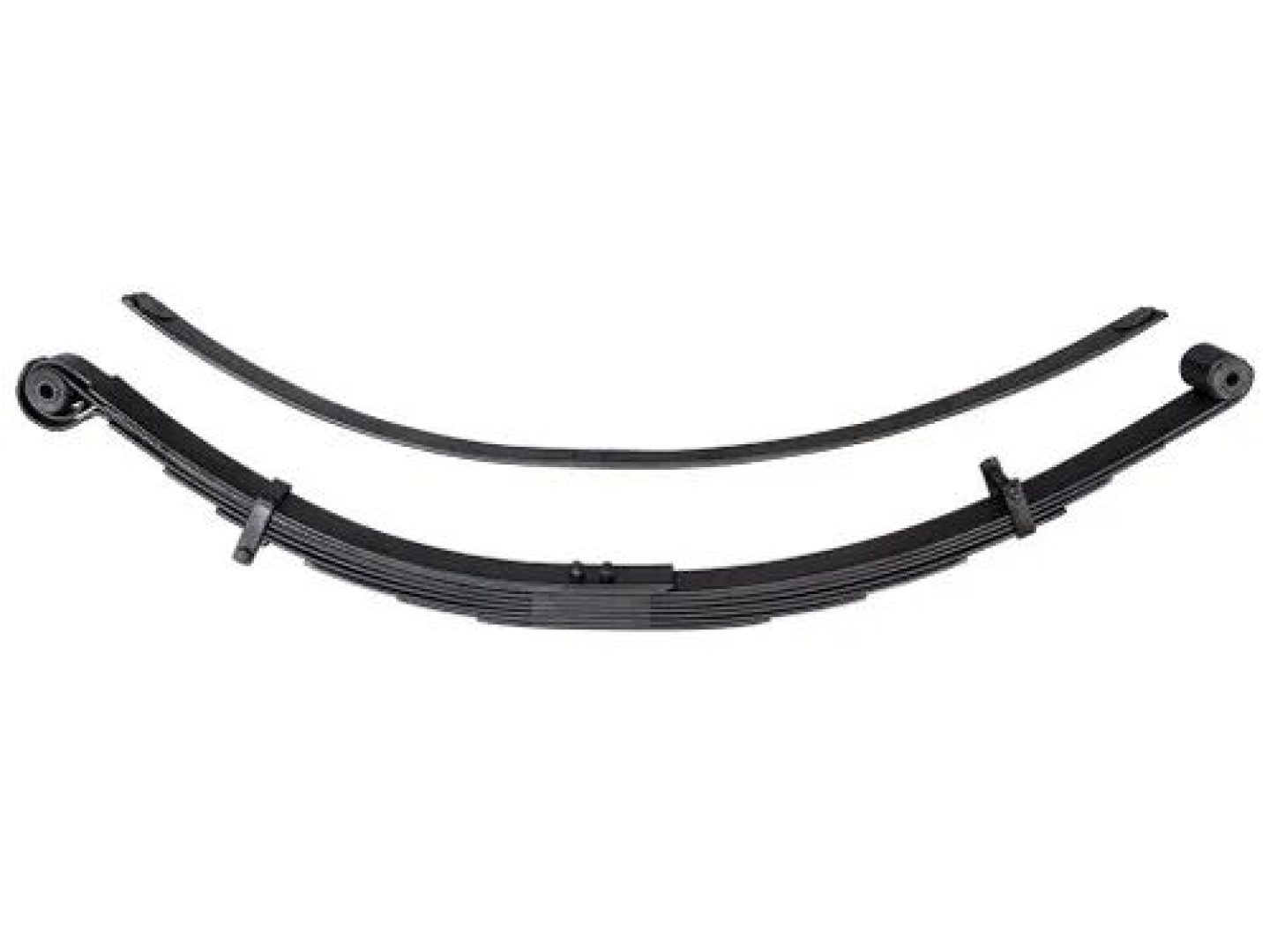

Leaf Spring, Multi-Rate RXT, Includes Add-In Leaf, Ford, Raptor, Each
Icon Vehicle Dynamics multi-rate leaf spring packs include an add-in-leaf to create systems that offer a major performance gain for most any truck setup, even those requiring more load-carrying capabilities. These user-adjustable multi-rate leaf packs feature tip inserts and leaf separators that lessen friction, reduce noise, and increase ride comfort, while military-wrapped eyelets improve the durability and strength of the leaf spring. To increase the ride quality of your truck and gain additional droop travel, the spring rate has been lowered slightly—and this is where the add-in-leaf works. For those who have outfitted their trucks with significant weighty additions, the additional leaf can be exchanged or added to the pack yielding an additional 10 percent or 40 percent spring rate (depending on kit). OE leaf springs can have limiting factors … especially with fully loaded rigs with racks, rooftop tents, and the like. Redefine the potential of your truck; adjust leaf spring rate to compensate for your specific truck setup, be it unloaded or fully loaded, with Icon multi-rate packs.
UPC | 00840103408880 |
Brand | ICON Vehicle Dynamics |
Notes | Raised ride height is based on standard truck with 400 pound constant load. |
Quantity | Sold individually. |
Part Type | Leaf Springs |
Ride Height | Lifted |
Product Line | Icon Vehicle Dynamics Multi-Rate Leaf Spring Packs |
Spring Finish | Black |
Ride Height Note | Additional ride height information may be available for your vehicle, please refer to the app tab. |
Bushings Included | Yes |
Spring Positioning | Rear |
Progressive Rate Spring | No |
Manufacturer's Part Number | 198510 |
Rear Spring Raised Amount Range (in.) | 1.00 in. |
ICON 2017+ Ford Raptor Multi Rate Leaf Pack w/Add In Leaf | ||||
---|---|---|---|---|
Year Range | Make | Model | Submodels | Region |
2017-2023 | Ford | F-150 | Raptor, XL, XLT, SSV, Police Responder, Platinum, Limited, Lariat, King Ranch, Tremor, Raptor R | US |
Please note that this information serves as a fitment guide only. For specific fitment questions or clarifications, please contact us, as manufacturers may introduce variations and modifications during model year or regional revisions. While we strive to provide accurate data, fitment details may vary by region; therefore, compatibility outside the listed region and submodel variant cannot be guaranteed.
Application Data | |
---|---|
Make | FORD |
Model | F-150 |
Submodel | RAPTOR |
Beginning Year | 2017 |
Ending Year | 2020 |
Engine Type | V6 |
Liter | 3.5 |
CID | 213 |
CC | 3496 |
Engine Family | Ford V6 |
Engine Size | 3.5L/213 |
Drivetrain | 4WD |
Engine VIN Code | G |
