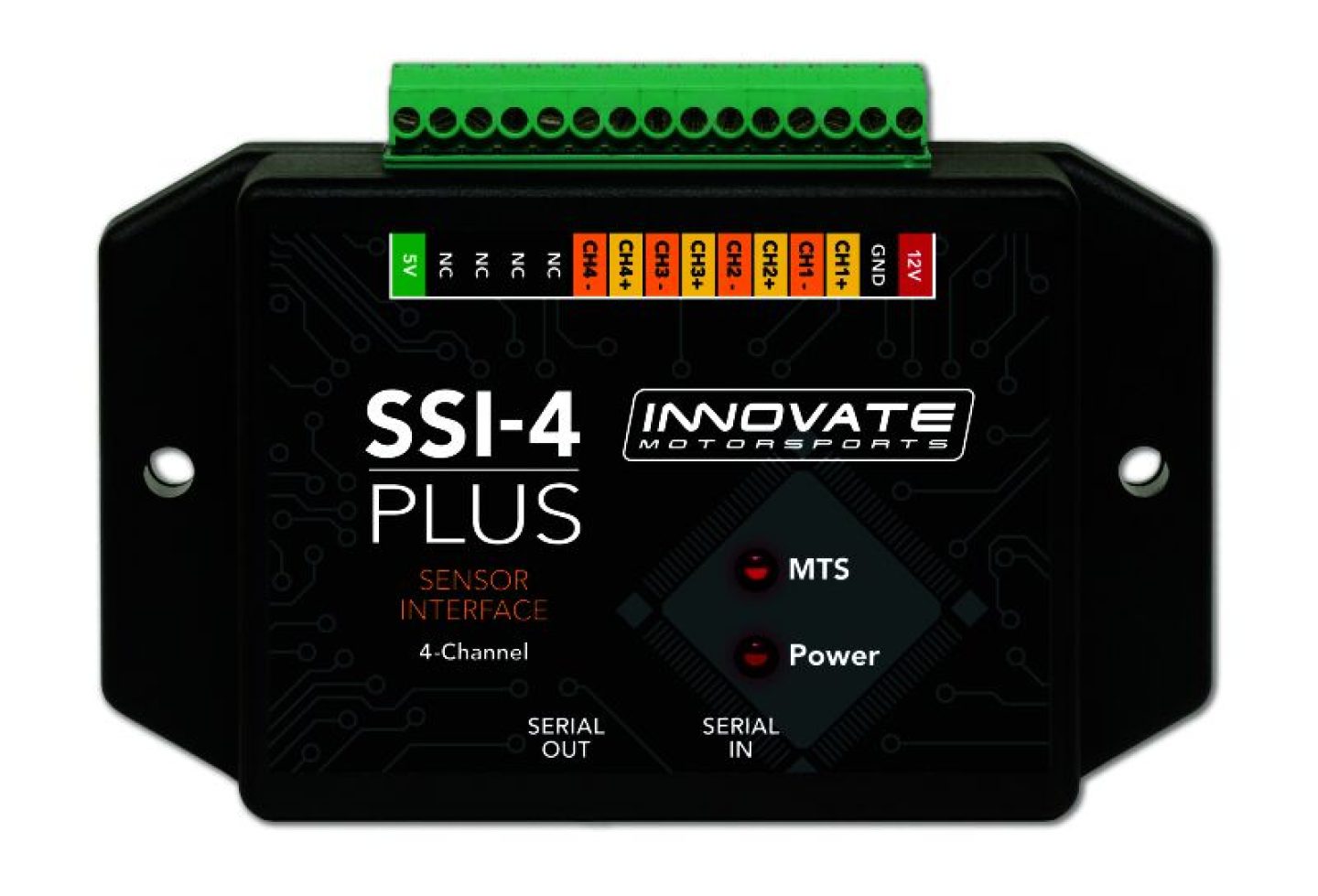

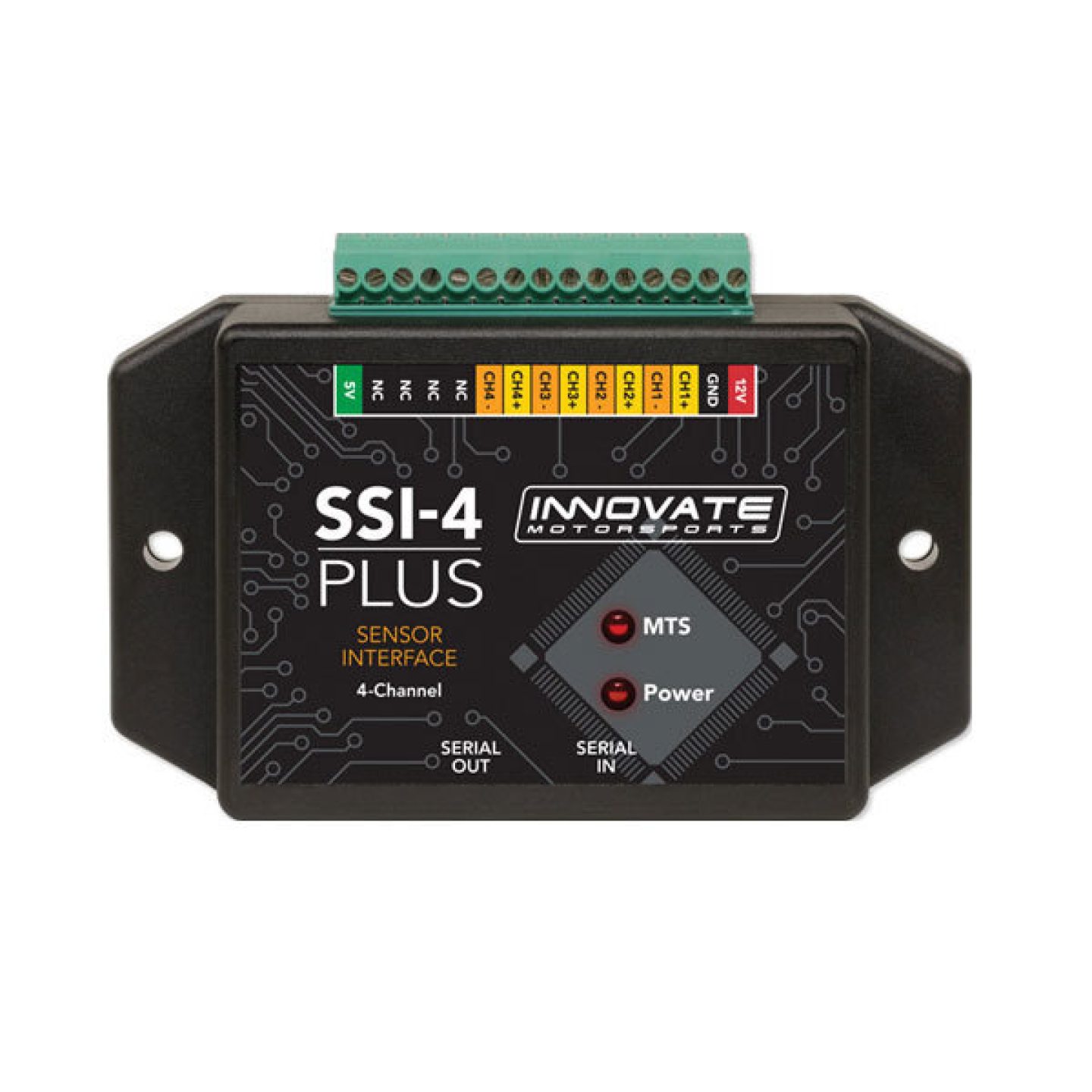

SSI-4 PLUS Interface
The Ssi-4 Plus Will Allow The Capture Of Data From 4 External Sensors. These Sensors Can Be Frequencies Such As Engine Rpm And Speed Sensors Or 0-5V References Like Map Sensors And Pressure Transducers. The Ssi-4 Plus May Be Used As A Stand-Alone System Or Integrated With Other Innovate Motorsports Mts Products To Create A Log Chain. The Ssi-4 Is Also A Key Component Of Innovate Motorsports Modular Tuning System (Mts). Using The Ssi-4 Pluss Serial Ports You Can Daisy-Chain Other Innovate Devices Such As The Mtx-L, Lm-2, Lc-2, And Tc-4 Plus.
SSI-4 PLUS: 4 Channel Sensor Interface
Gauge Sensor Module
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Data Acquisition, SSI-4 Plus, 4-Channel Interface, Module, Cable, Each
Innovate SSI-4 Plus 4-channel interfaces can be used as stand-alone devices for logging data directly into a laptop with the included LogWorks software—or used in conjunction with any other MTS (Modular Tuning System) compliant device. Channel 1 is a direct rpm input by default, and can also be configured for external 0-5 V, frequency, or spark reference for ignition timing measurement. Channels 2-4 are configured to digitize external 0-5 V analog signals by default. Channel 2 can directly measure frequencies (like driveshaft speed) or duty cycles (for injectors). Channel 3 can measure rpm from a VR (variable reluctance) sensor, and can also be set up for ignition timing crank angle reference (trigger wheels) or frequency. Input 4 defaults to digitizing external 0-5 V analog signals, but can also be configured as a frequency input. Take control of your vehicle with an Innovate SSI-4 Plus 4-channel interface.
Brand | Innovate Motorsports |
Manufacturer's Part Number | 3914 |
Part Type | Data Acquisition |
Product Line | Innovate SSI-4 Plus 4-Channel Interfaces |
UPC | 856428039142 |
Quantity | Sold individually. |
Notes | Includes serial program cable, Molex patch cable and instruction manual. |
No specific fitment data available for this part. For clarification, please contact us.
