JBA shorty headers are one of the foremost performance upgrades you can bestow upon your beloved car, truck, or SUV. JBA Headers are significantly less restrictive than stock manifolds and dramatically increase the power and efficiency of your engine. Each header is constructed from durable stainless steel to endure the abuse of racing, towing, and daily driving – built to withstand it all. JBA’s proprietary Firecone collector design uses race proven technology for producing maximum power and torque gains where you drive most. Each system includes factory style emission connections and high-quality hardware for a professional no-leak installation.
JBA Cat4Ward® Header 04-10 F-Series 5.4L 3V 1 5/8" Primary Raw 409 1676S
Unless otherwise stated, this product may be engineered for use in Left-Hand Drive vehicles. Steering components, pedals, shifters, instrument clusters, and adjacent parts can vary between LHD and RHD configurations, but in many cases they are identical depending on the design of the vehicle and part. Carefully review the product images and details to ensure suitability for your vehicle, or contact StreetFX support if you are unsure. Returns are not accepted for special order products.

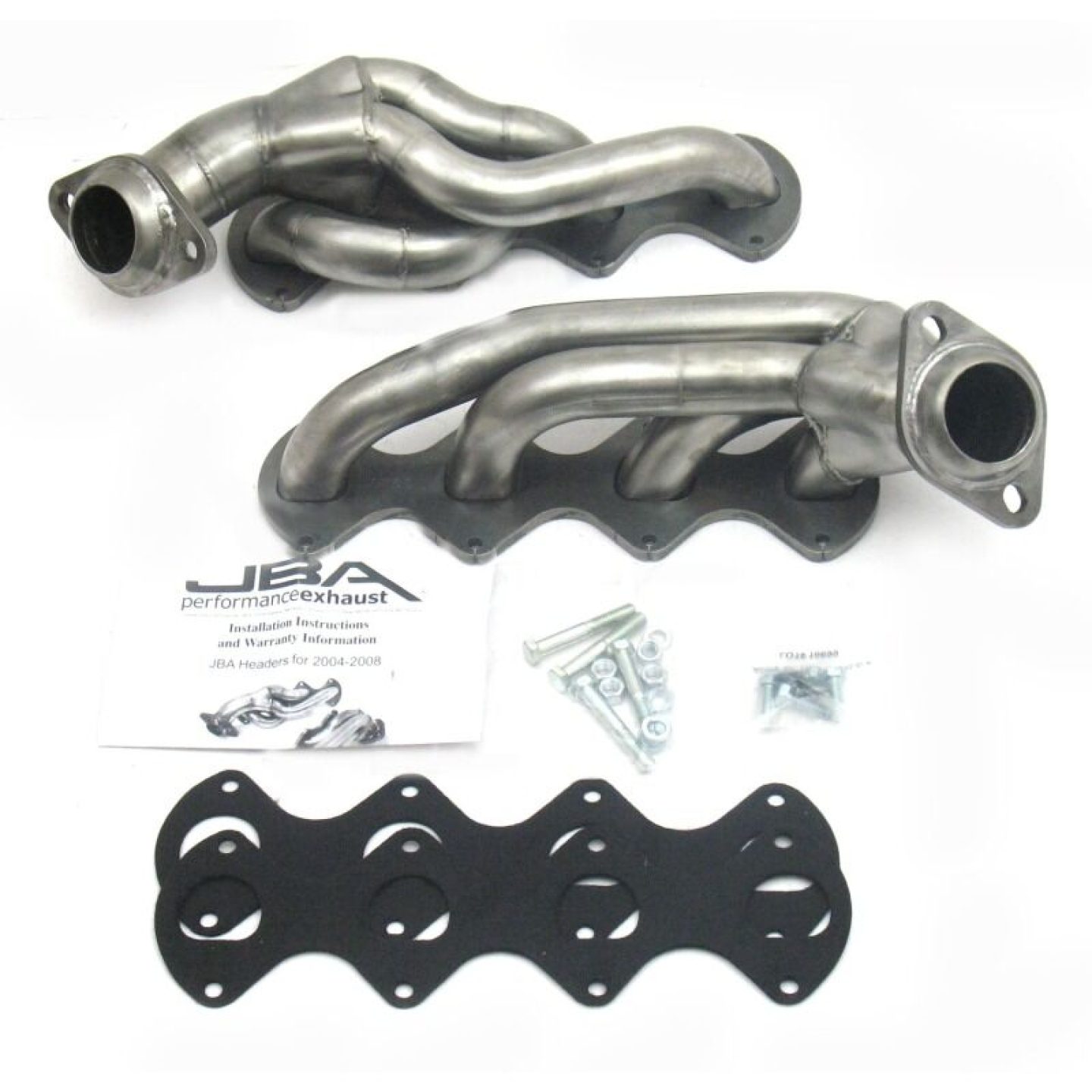

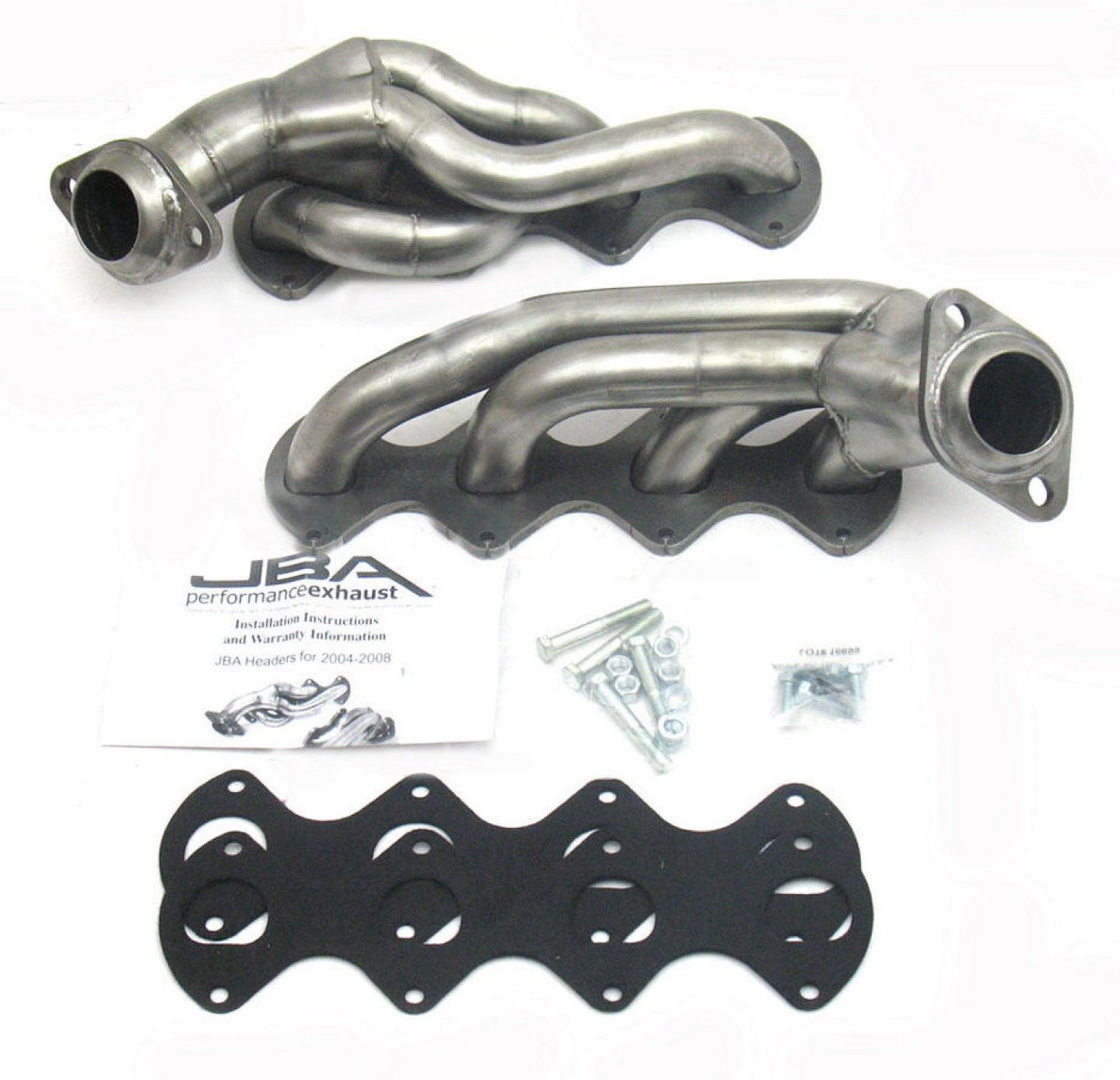

Increase your horsepower and torque with JBA Cat4ward headers! They are designed with 3/8 in. thick laser-cut flanges, mandrel-bent primary tubes, and feature JBA's patented Firecone merge collectors. They're available in either steel or 409 stainless steel and are offered in a chrome plated or high-temperature silver ceramic finish for most applications. JBA includes premium-quality mounting hardware and instructions for the installation and, unless otherwise noted, these headers are designed to fit the vehicle as it came from the manufacturer. This would include components such as cylinder heads, chassis, steering, motor mounts, body mounts, bushings, etc. If aftermarket components, parts from other applications, or custom-altered parts are used on your vehicle, it is the installer's responsibility to verify fitment.
Brand | JBA Performance Exhaust |
Manufacturer's Part Number | 1676S |
Part Type | Headers |
Product Line | JBA Performance Exhaust Cat4ward Headers |
UPC | 694342525958 |
Header Style | Shorty |
Header Material | 409 stainless steel |
Primary Tube Outside Diameter (in.) | 1 5/8 in. |
Header Color | Natural |
Flange Style | Standard |
Weld-Up | No |
Collector Attachment | Ball and socket flange |
Collector Diameter (in.) | 2.50 |
Collector Reducers Included | No |
Tuned | No |
Primary Tube Gauge | 16-gauge |
Flange Thickness (in.) | 0.38 in. |
Bolts/Studs Included | Yes |
Gaskets Included | Yes |
Crossover Pipe Included | No |
Catalytic Converter(s) Included | No |
Motor Mounts Included | No |
Transmission Mount Included | No |
Quantity | Sold as a pair. |
Notes | Fits 3-valve engines only. Headers come with 4 long collector bolts, 3 short header bolts, nuts, washers, and lock washers. |
CARB EO Number(s) | D-57-33 |
Emissions | California EO Approved |
JBA 04-10 Ford F-Series 5.4L 3V 1-5/8in Primary Raw 409SS Cat4Ward Header | ||||
---|---|---|---|---|
Year | Make | Model | Submodel | Region |
2004 | Ford | F-150 | XL | US |
2004 | Ford | F-150 | XLT | US |
2004 | Ford | F-150 | FX4 | US |
2004 | Ford | F-150 | Lariat | US |
2005 | Ford | F-150 | XLT | US |
2005 | Ford | F-150 | XL | US |
2005 | Ford | F-150 | FX4 | US |
2005 | Ford | F-150 | Lariat | US |
2005 | Ford | F-150 | King Ranch | US |
2006 | Ford | F-150 | XLT | US |
2006 | Ford | F-150 | Harley-Davidson Edition | US |
2006 | Ford | F-150 | Lariat | US |
2006 | Ford | F-150 | FX4 | US |
2006 | Lincoln | Mark LT | Base | US |
2006 | Ford | F-150 | XL | US |
2006 | Ford | F-150 | King Ranch | US |
2007 | Ford | F-150 | XLT | US |
2007 | Ford | F-150 | Harley-Davidson Edition | US |
2007 | Ford | F-150 | King Ranch | US |
2007 | Ford | F-150 | XL | US |
2007 | Lincoln | Mark LT | Base | US |
2007 | Ford | F-150 | FX4 | US |
2007 | Ford | F-150 | Lariat | US |
2007 | Ford | F-150 | FX2 | US |
2008 | Ford | F-150 | THE 60TH ANNIVERSARY EDITION | US |
2008 | Ford | F-150 | FX2 | US |
2008 | Ford | F-150 | Lariat | US |
2008 | Lincoln | Mark LT | Base | US |
2008 | Ford | F-150 | XLT | US |
2008 | Ford | F-150 | Limited | US |
2008 | Ford | F-150 | Harley-Davidson Edition | US |
2008 | Ford | F-150 | King Ranch | US |
2008 | Ford | F-150 | XL | US |
2008 | Ford | F-150 | FX4 | US |
2009 | Ford | F-150 | XLT | US |
2009 | Ford | F-150 | Lariat | US |
2009 | Ford | F-150 | XL | US |
2009 | Ford | F-150 | Platinum | US |
2009 | Ford | F-150 | King Ranch | US |
2009 | Ford | F-150 | FX4 | US |
2010 | Ford | F-150 | King Ranch | US |
2010 | Ford | F-150 | Platinum | US |
2010 | Ford | F-150 | Lariat | US |
2010 | Ford | F-150 | XLT | US |
2010 | Ford | F-150 | Harley-Davidson Edition | US |
2010 | Ford | F-150 | XL | US |
2010 | Ford | F-150 | FX2 | US |
2010 | Ford | F-150 | FX4 | US |
2010 | Ford | F-150 | SVT Raptor | US |
