Engine Bearing
Optional to CR4104CP (Race bearings, Tri-metal pMax Black)
CONNECTING ROD BEARING SET For AUDI ABB, ABM, ADP, PP, RN; Race bearings, Trimetal pMax Black
AUDI ABB, ABM, ADP, PP, RN
Engine Connecting Rod Bearing Set
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

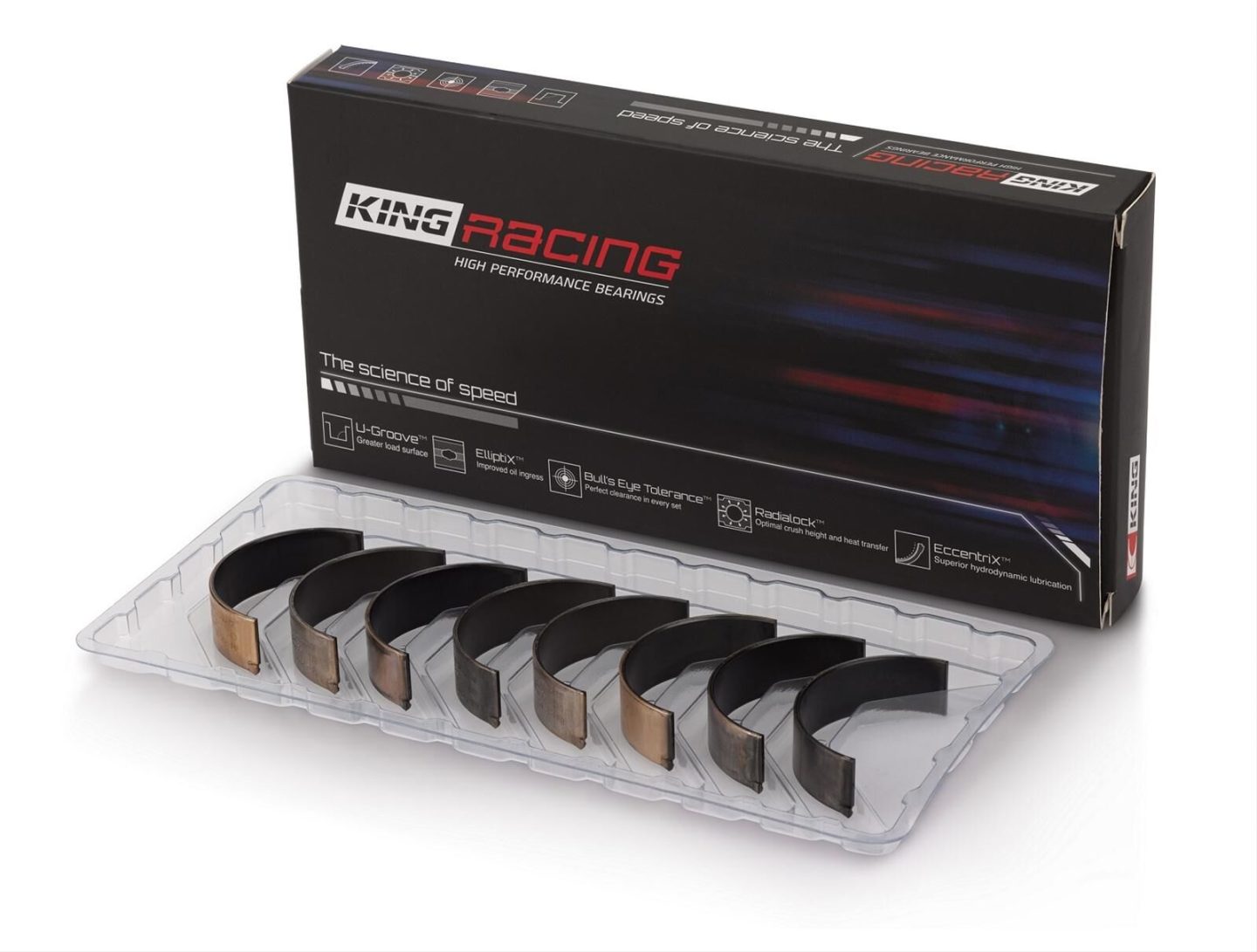

Rod Bearing, XP-Series, Copper/Lead/Nickel, Standard Size, Audi, 1.8, 2.0L, Set of 4
King XP-Series rod bearings feature advanced metallurgical and geometric technologies that meet extreme performance loads. They were developed for all performance applications that use forged steel aftermarket crankshafts and produce high loads for extended periods. King focuses on one product—bearings—and nothing else. Their innovative race-only Xtreme Performance Max Black Tri-Metal rod bearings have a 24 percent stronger overlay and 17 percent more fatigue strength by using a micro process called SecureBond. Built with enhanced tri-metal, King XP-Series rod bearings layer copper-lead construction with a nickel plate barrier and a lead/tin/copper Babbitt overlay over a steel backing in an adhesion process that provides superior stability and durability. King's advanced control measures hit a bull's-eye, maintaining wall thickness tolerances far tighter than their competitors—at an amazing +/- .0001 in.! XP-Series rod bearings are narrowed on the crank cheek side with increased crush height for improved bearing-to-bore contact, heat transfer, and reduced spin potential in high-rpm applications.
UPC | 611500542411 |
Brand | King Engine Bearings |
Notes | Fits applications with 1.5mm oil hole only. |
Quantity | Sold as a set of 4. |
Part Type | Rod Bearings |
Product Line | King XP-Series Rod Bearings |
Bearing Usage | Performance |
Dowel Pin Hole | No |
Narrow Bearing | No |
Bearing Material | Tri-metal copper-lead nickel |

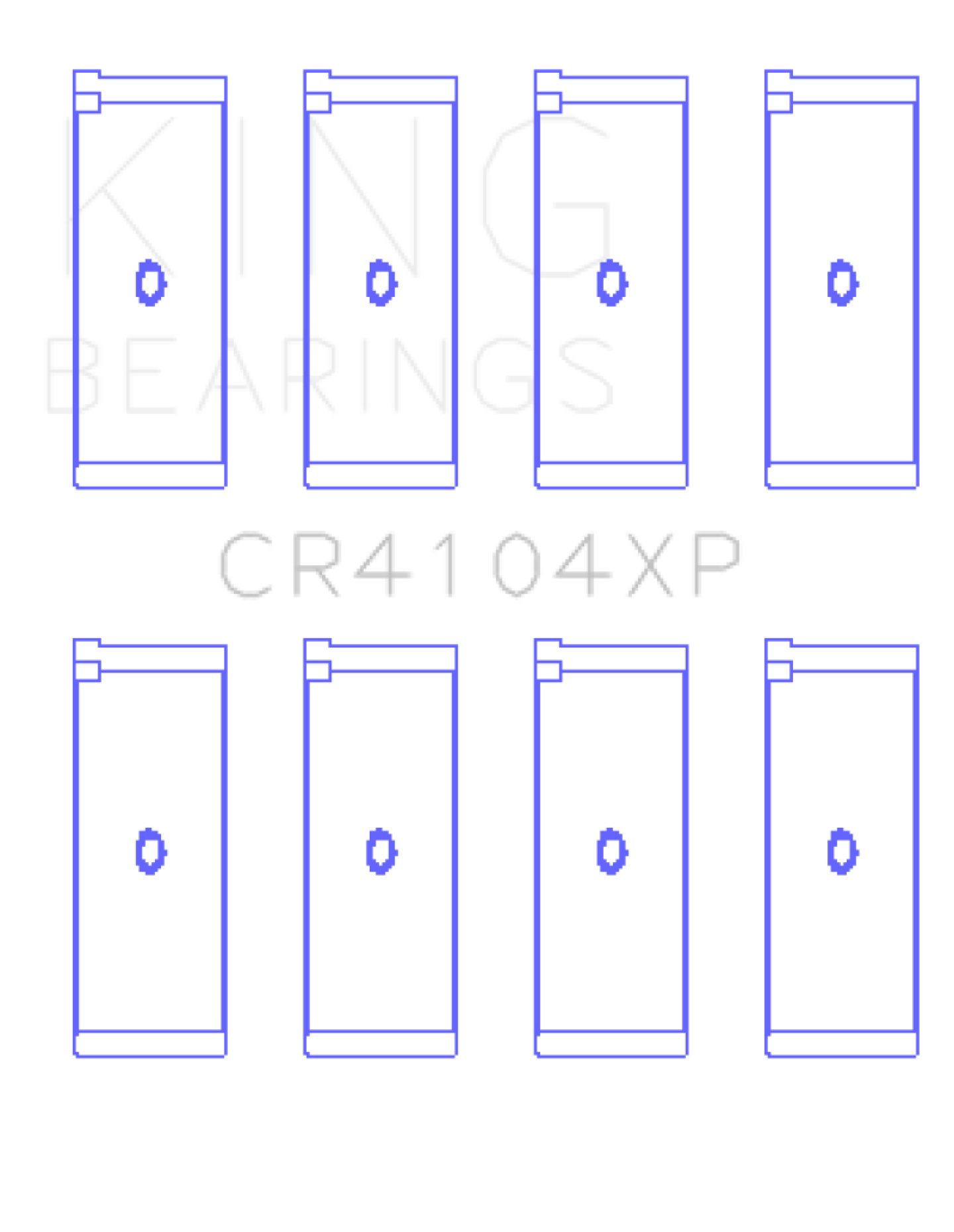

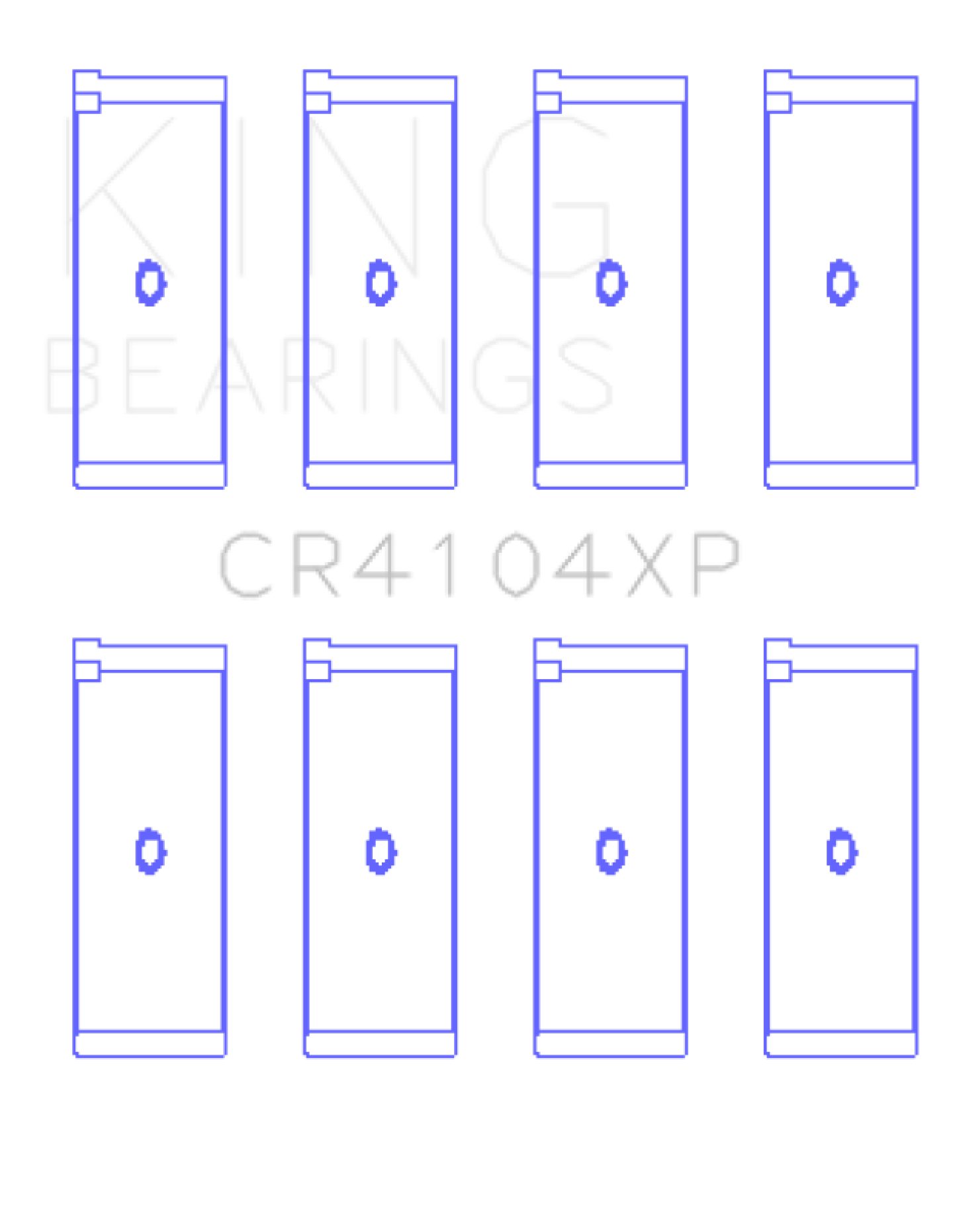

Manufacturer's Part Number | CR4104XP |
Engine Crankshaft Undersize (mm) | Stock |
Engine Crankshaft Undersize (in.) | Stock |
King Audi/VW 83-03 1.6L/1.8L/2.0L (Size STD) Performance Rod Bearing Set | ||||
---|---|---|---|---|
Year Range | Make | Model | Submodels | Region |
1988-1990 | Audi | 80 | Base | US |
1988 | Audi | 90 | Base | US |
1984-1987 | Audi | 4000 | S | US |
1997-2001 | Audi | A4 | Base | US |
1997-2001 | Audi | A4 Quattro | Base, Avant | US |
2001-2006 | Audi | TT | Base | US |
2003-2006 | Audi | TT Quattro | Base | US |
1998-2010 | Volkswagen | Beetle | Base, TDI, GL, GLS, GLX, Sport, Turbo S, GLS TDI, 2.5, S, SE | US |
1995-2002 | Volkswagen | Cabrio | Base, High Line, GLS, GL, GLX | US |
1985-1993 | Volkswagen | Cabriolet | Base, Wolfsburg Edition, Bestseller, Boutique, Carat, Etienne Aigner, Classic | US |
1987-1993 | Volkswagen | Fox | Base, GL, GL Sport | US |
1985-2006 | Volkswagen | Golf | Base, GTI, GL, GT, GTI 16-Valve, GTI 8-Valve, Limited Edition, GTI VR6, Celebration Edition, City, Sport, Jazz, K2, Trek, GLS, TDI, Wolfsburg Edition, GTI GLS, GTI GLX, GTI 337, GTI 1.8T, GTI 20th Anniversary, GL TDI, GLS TDI | US |
1984-2005 | Volkswagen | Jetta | Base, GL, GLI, Wolfsburg Edition, GLI 16-Valve, Carat, Limited Edition, GLS, GLX, Celebration Edition, City, Trek, GT, Jazz, TDI, K2, GL TDI, GLS TDI, 2.5 | US |
2007-2010 | Volkswagen | Jetta | 2.0T, 2.5, GLI, Wolfsburg Edition, S, SE, SEL, TDI, TDI Cup Edition | US |
1990-1996 | Volkswagen | Passat | GL, CL, GLX, GLS, TDI | US |
1998-2005 | Volkswagen | Passat | GLS, GLX, 4 Motion, GLX 4 Motion, GLS 4 Motion, W8, GL, GL TDI, GLS TDI | US |
1984-1985 | Volkswagen | Quantum | GL, Wolfsburg Edition, Base | US |
1983-1984 | Volkswagen | Rabbit | Wolfsburg Edition, GL, GTI, L, LS | US |
1984 | Volkswagen | Rabbit Convertible | Base, Wolfsburg Edition | US |
1984-1988 | Volkswagen | Scirocco | Base, 16-Valve | US |
Please note that this information serves as a fitment guide only. For specific fitment questions or clarifications, please contact us, as manufacturers may introduce variations and modifications during model year or regional revisions. While we strive to provide accurate data, fitment details may vary by region; therefore, compatibility outside the listed region and submodel variant cannot be guaranteed.
Application Data | |
---|---|
Make | AUDI |
Beginning Year | 1998 |
Ending Year | 1999 |
Engine Type | L4 |
Engine Family | Volkswagen 4-cylinder |
Engine Size | 1.8L/1781cc |
Make | AUDI |
Beginning Year | 2000 |
Ending Year | 2000 |
Engine Type | L4 |
Engine Family | Volkswagen 4-cylinder |
Engine Size | 1.8L/1781cc |
Make | AUDI |
Beginning Year | 2000 |
Ending Year | 2001 |
Engine Type | L4 |
Engine Family | Volkswagen 4-cylinder |
Engine Size | 1.8L/1781cc |
