Optional to CR4256AM (Race bearings, Tri-metal pMax Black)
Dodge/Chrysler 148ci EDZ SRT 4 Turbo 2003-2009

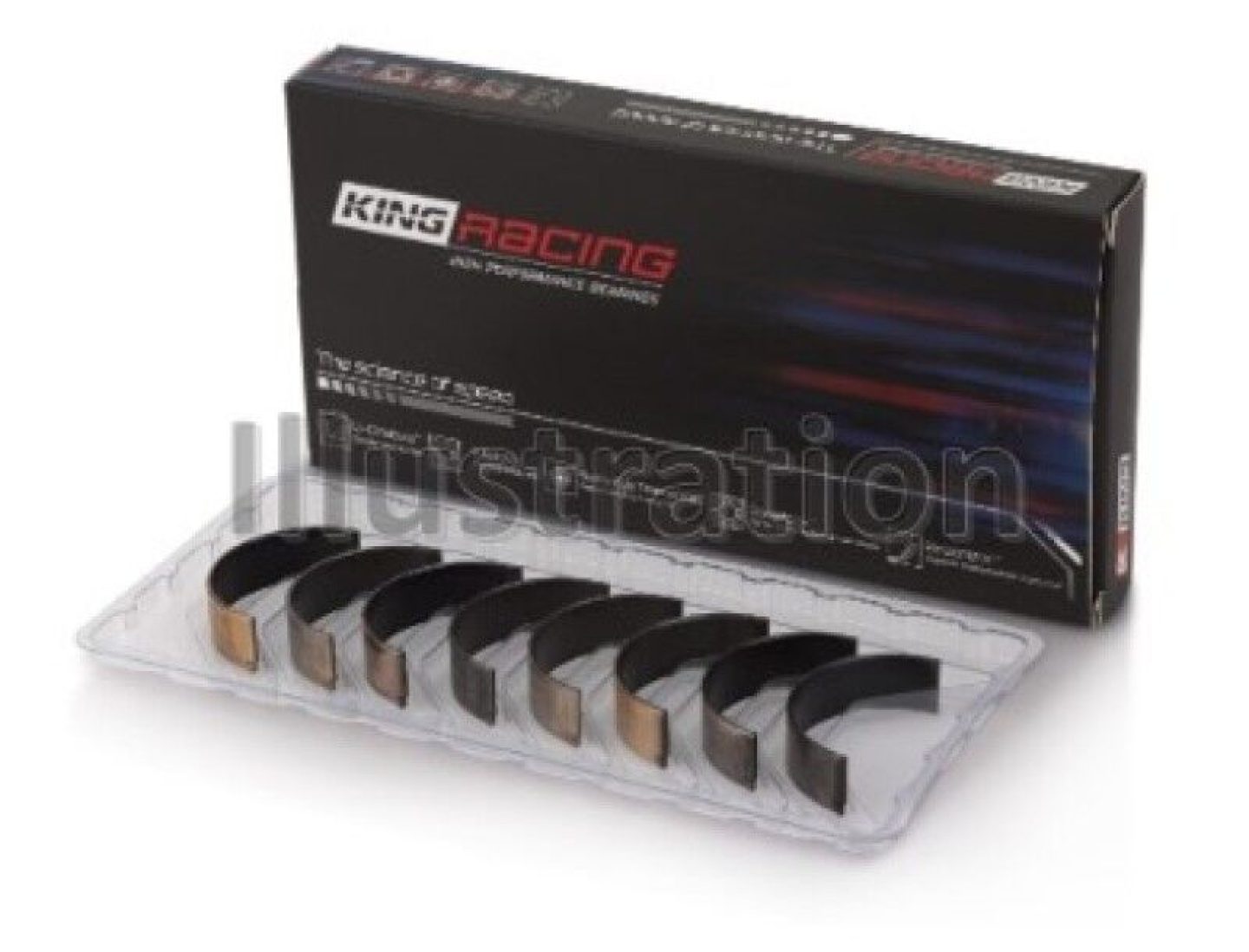

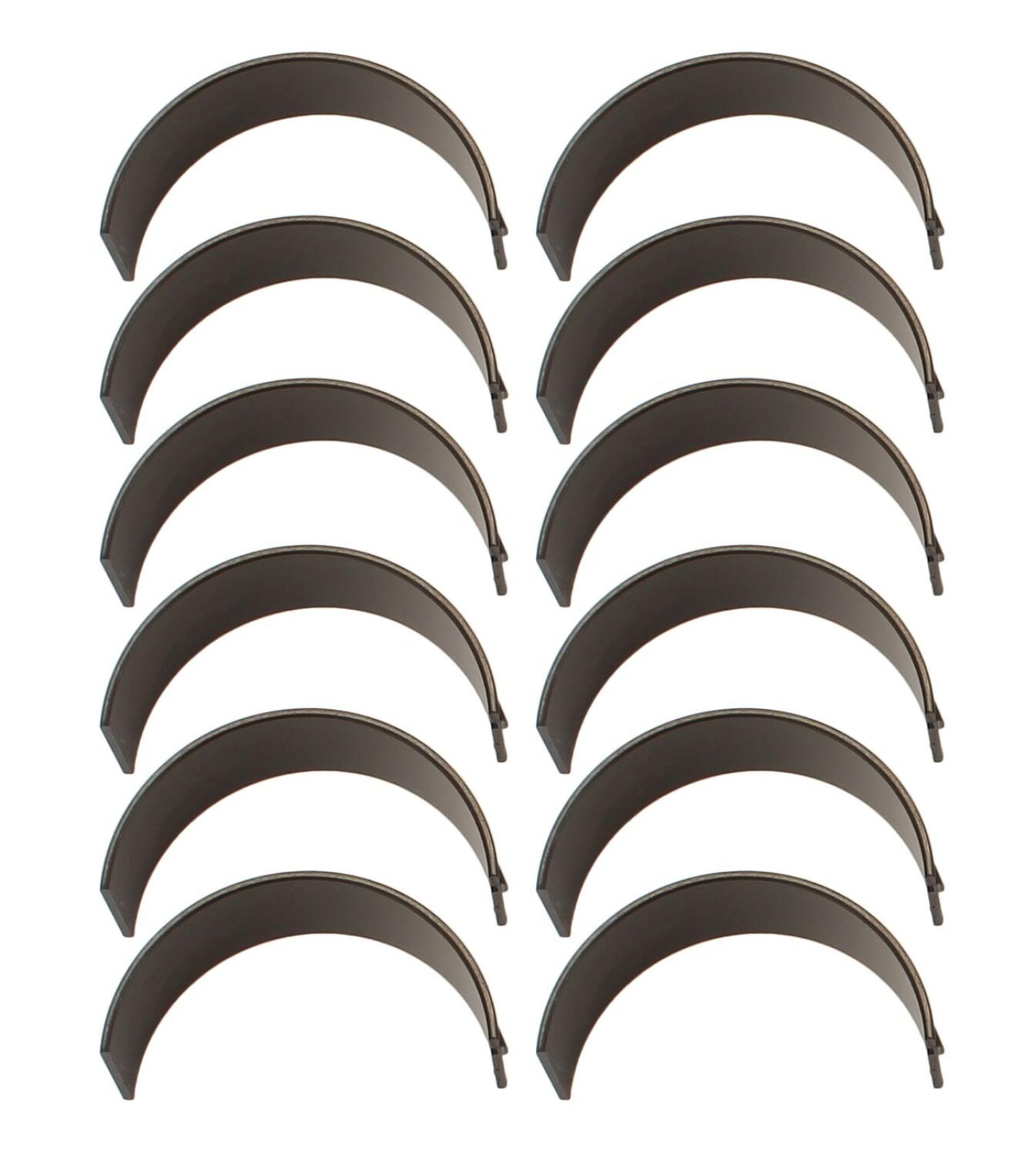

Engine Connecting Rod Bearing Set
King XP-Series rod bearings feature advanced metallurgical and geometric technologies that meet extreme performance loads. They were developed for all performance applications that use forged steel aftermarket crankshafts and produce high loads for extended periods.
King focuses on one product—bearings—and nothing else. Their innovative race-only Xtreme Performance Max Black Tri-Metal rod bearings have a 24 percent stronger overlay and 17 percent more fatigue strength by using a micro process called SecureBond. Built with enhanced tri-metal, King XP-Series rod bearings layer copper-lead construction with a nickel plate barrier and a lead/tin/copper Babbitt overlay over a steel backing in an adhesion process that provides superior stability and durability. King's advanced control measures hit a bull's-eye, maintaining wall thickness tolerances far tighter than their competitors—at an amazing +/- .0001 in.! XP-Series rod bearings are narrowed on the crank cheek side with increased crush height for improved bearing-to-bore contact, heat transfer, and reduced spin potential in high-rpm applications.
UPC | 611500585043 |
Brand | King Engine Bearings |
Quantity | Sold as a set of 4. |
Part Type | Rod Bearings |
Product Line | King XP-Series Rod Bearings |
Bearing Usage | Performance |
Dowel Pin Hole | No |
Narrow Bearing | No |
Bearing Material | Tri-metal copper-lead nickel |
Summit Racing Part Number | KGB-CR4256XP026 |
Manufacturer's Part Number | CR4256XP026 |
Engine Crankshaft Undersize (mm) | 0.026mm |
Engine Crankshaft Undersize (in.) | 0.001 in. |
Compatibility & Application Information | |
---|---|
Make | CHRYSLER |
Beginning Year | 1995 |
Ending Year | 1998 |
Engine Type | L4 |
Engine Family | Mopar 4-cylinder |
Engine Size | 2.4L/148 |
Make | CHRYSLER |
Beginning Year | 2000 |
Ending Year | 2010 |
Engine Type | L4 |
Engine Family | Mopar 4-cylinder |
Engine Size | 2.4L/148 |
Make | CHRYSLER |
Model | CIRRUS |
Submodel | LX |
Beginning Year | 1995 |
Ending Year | 1997 |
Engine Type | L4 |
Liter | 2.4 |
CID | 148 |
CC | 2429 |
Engine Family | Mopar 4-cylinder |
Engine Size | 2.4L/148 |
Application Notes | Optional CR4256AM Race Bearings Race bearings, Trimetal [pMax Black] Crankshaft Undersize-.026mm |
Engine VIN Code | X |
Make | CHRYSLER |
Model | CIRRUS |
Submodel | LX |
Beginning Year | 1999 |
Ending Year | 2000 |
Engine Type | L4 |
Liter | 2.4 |
CID | 148 |
CC | 2429 |
Engine Family | Mopar 4-cylinder |
Engine Size | 2.4L/148 |
Application Notes | Optional CR4256AM Race Bearings Race bearings, Trimetal [pMax Black] Crankshaft Undersize-.026mm |
Engine VIN Code | X |
Make | CHRYSLER |
Model | CIRRUS |
Submodel | LXI |
Beginning Year | 1997 |
Ending Year | 1997 |
Engine Type | L4 |
Liter | 2.4 |
CID | 148 |
CC | 2429 |
Engine Family | Mopar 4-cylinder |
Engine Size | 2.4L/148 |
Application Notes | Optional CR4256AM Race Bearings Race bearings, Trimetal [pMax Black] Crankshaft Undersize-.026mm |
King 03-05 Dodge Neon SRT4 2.4L (Size .026 Oversized) Performance Rod Bearing Set | ||||
---|---|---|---|---|
Year | Make | Model | Submodel | Region |
1995 | Chrysler | Cirrus | LX | US |
1995 | Dodge | Stratus | Base | US |
1995 | Chrysler | Cirrus | LXi | US |
1995 | Dodge | Stratus | ES | US |
1996 | Plymouth | Grand Voyager | Base | US |
1996 | Chrysler | Sebring | LX | US |
1996 | Dodge | Grand Caravan | SE | US |
1996 | Dodge | Stratus | ES | US |
1996 | Plymouth | Voyager | Base | US |
1996 | Dodge | Grand Caravan | ES | US |
1996 | Plymouth | Voyager | SE | US |
1996 | Dodge | Caravan | ES | US |
1996 | Dodge | Stratus | Base | US |
1996 | Plymouth | Grand Voyager | SE | US |
1996 | Dodge | Grand Caravan | Base | US |
1996 | Plymouth | Breeze | Base | US |
1996 | Dodge | Caravan | Base | US |
1996 | Dodge | Caravan | LE | US |
1996 | Chrysler | Sebring | JX | US |
1996 | Chrysler | Sebring | JXi | US |
1996 | Chrysler | Sebring | LXi | US |
1996 | Dodge | Grand Caravan | LE | US |
1996 | Chrysler | Cirrus | LX | US |
1996 | Chrysler | Cirrus | LXi | US |
1996 | Dodge | Caravan | SE | US |
1997 | Chrysler | Cirrus | LX | US |
1997 | Chrysler | Sebring | JXi | US |
1997 | Plymouth | Grand Voyager | Base | US |
1997 | Chrysler | Sebring | LX | US |
1997 | Dodge | Grand Caravan | SE | US |
1997 | Dodge | Stratus | Base | US |
1997 | Plymouth | Breeze | Base | US |
1997 | Plymouth | Voyager | SE | US |
1997 | Dodge | Caravan | SE | US |
1997 | Dodge | Caravan | ES | US |
1997 | Chrysler | Sebring | JX | US |
1997 | Dodge | Stratus | ES | US |
1997 | Dodge | Grand Caravan | ES | US |
1997 | Dodge | Grand Caravan | LE | US |
1997 | Plymouth | Grand Voyager | SE | US |
1997 | Dodge | Caravan | LE | US |
1997 | Plymouth | Voyager | Base | US |
1997 | Dodge | Caravan | Base | US |
1997 | Chrysler | Cirrus | LXi | US |
1997 | Chrysler | Sebring | LXi | US |
1997 | Dodge | Grand Caravan | Base | US |
1998 | Plymouth | Breeze | Expresso | US |
1998 | Dodge | Stratus | Base | US |
1998 | Dodge | Stratus | ES | US |
1998 | Plymouth | Breeze | Base | US |
Note: Over 50 fitments returned for this product, this table is trimmed to only display the first 50. |
