Optional to CR 868SI (Race bearings, Tri-metal pMax Black)
For FORD V8, 4.6L/5.4L SOHC
Ford V8, 4.6L/5.4L SOHC

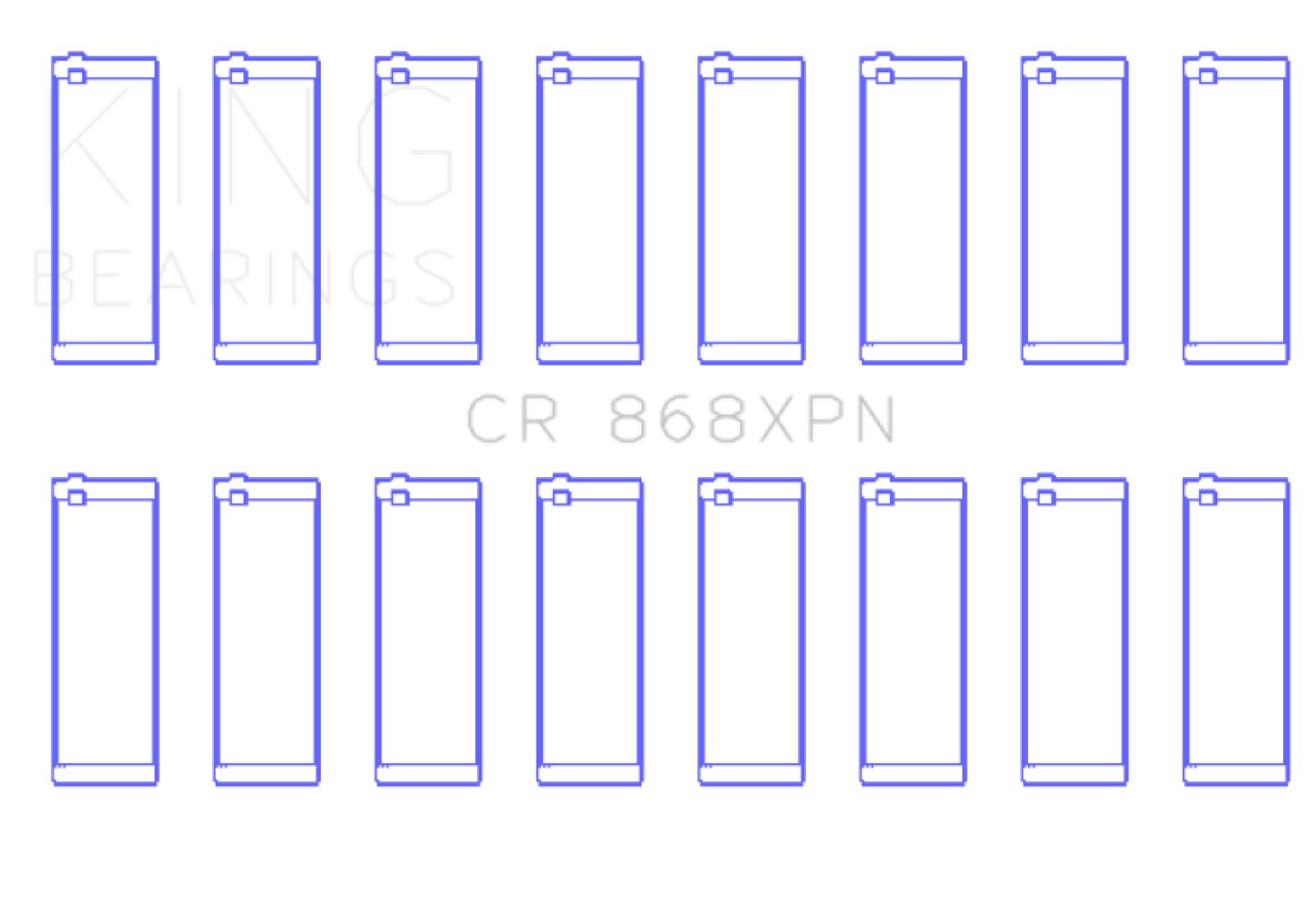

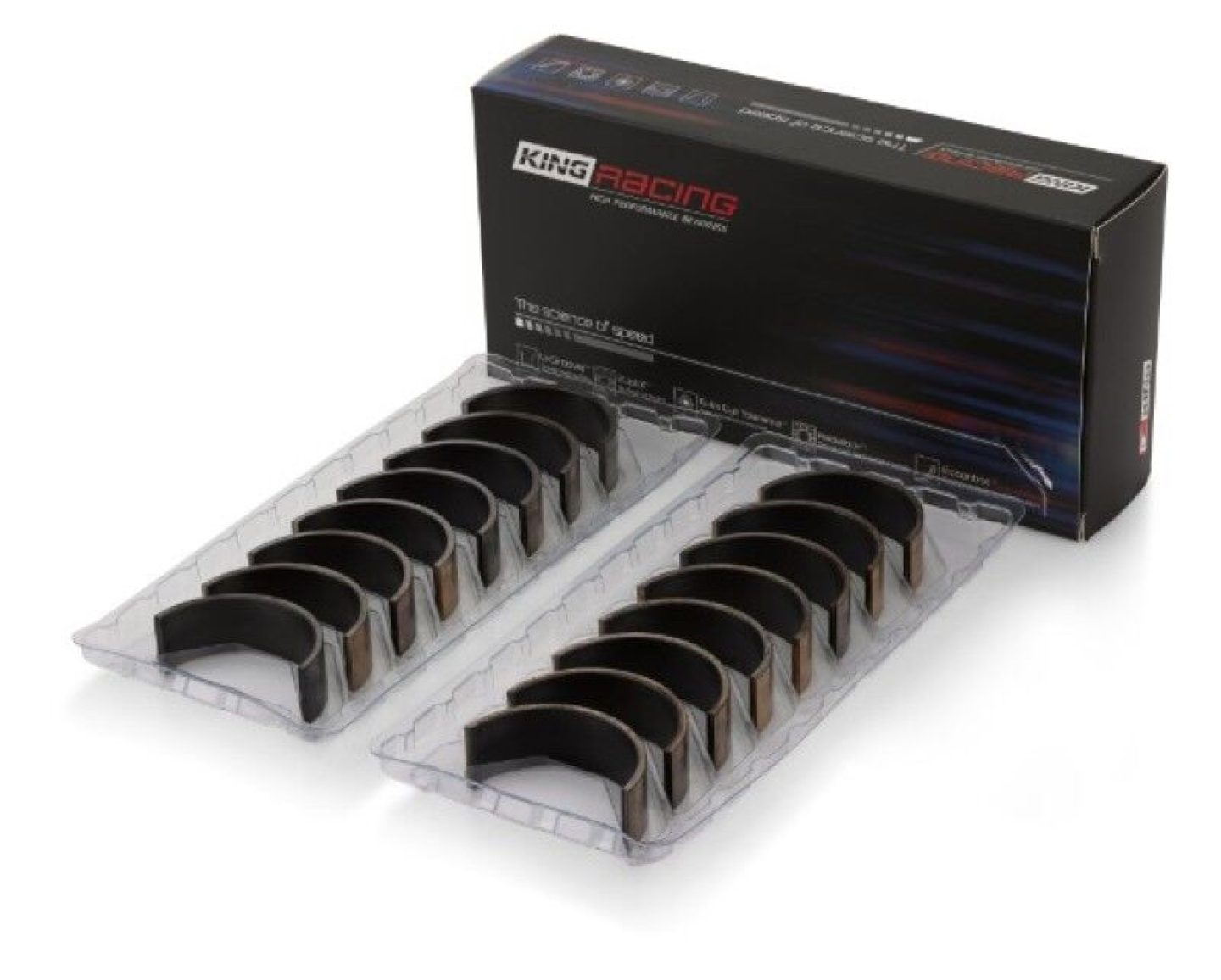

Engine Connecting Rod Bearing Set
King XP-Series rod bearings feature advanced metallurgical and geometric technologies that meet extreme performance loads. They were developed for all performance applications that use forged steel aftermarket crankshafts and produce high loads for extended periods.
King focuses on one product—bearings—and nothing else. Their innovative race-only Xtreme Performance Max Black Tri-Metal rod bearings have a 24 percent stronger overlay and 17 percent more fatigue strength by using a micro process called SecureBond. Built with enhanced tri-metal, King XP-Series rod bearings layer copper-lead construction with a nickel plate barrier and a lead/tin/copper Babbitt overlay over a steel backing in an adhesion process that provides superior stability and durability. King's advanced control measures hit a bull's-eye, maintaining wall thickness tolerances far tighter than their competitors—at an amazing +/- .0001 in.! XP-Series rod bearings are narrowed on the crank cheek side with increased crush height for improved bearing-to-bore contact, heat transfer, and reduced spin potential in high-rpm applications.
UPC | 611500532245 |
Brand | King Engine Bearings |
Quantity | Sold as a set of 8. |
Part Type | Rod Bearings |
Product Line | King XP-Series Rod Bearings |
Bearing Usage | Performance |
Dowel Pin Hole | No |
Narrow Bearing | Yes |
Bearing Material | Tri-metal copper-lead nickel |
Summit Racing Part Number | KGB-CR868XPN |
Manufacturer's Part Number | CR868XPN |
Engine Crankshaft Undersize (mm) | Stock |
Engine Crankshaft Undersize (in.) | Stock |
Compatibility & Application Information | |
---|---|
Make | AVANTI |
Model | AVANTI |
Submodel | BASE |
Beginning Year | 2005 |
Ending Year | 2005 |
Engine Type | V8 |
Liter | 4.6 |
CID | 281 |
Engine Family | Ford modular V8 |
Engine Size | 4.6L/281 |
Application Notes | Optional CR 868SI Race Bearings Race bearings, Trimetal [pMax Black] STD |
Engine VIN Code | X |
Make | AVANTI |
Model | AVANTI |
Submodel | BASE |
Beginning Year | 2006 |
Ending Year | 2007 |
Engine Type | V8 |
Liter | 4.6 |
CID | 281 |
Engine Family | Ford modular V8 |
Engine Size | 4.6L/281 |
Application Notes | Optional CR 868SI Race Bearings Race bearings, Trimetal [pMax Black] STD |
Engine VIN Code | H |
Make | FORD |
Beginning Year | 1992 |
Ending Year | 2006 |
Engine Type | V8 |
Engine Family | Ford modular V8 |
Engine Size | 4.6L/281 |
Make | FORD |
Beginning Year | 1997 |
Ending Year | 2006 |
Engine Type | V8 |
Engine Family | Ford modular V8 |
Engine Size | 5.4L/330 |
Make | FORD |
Model | CROWN VICTORIA |
Submodel | BASE |
Beginning Year | 1992 |
Ending Year | 2008 |
Engine Type | V8 |
Liter | 4.6 |
CID | 281 |
Engine Family | Ford modular V8 |
Engine Size | 4.6L/281 |
Application Notes | Optional CR 868SI Race Bearings Race bearings, Trimetal [pMax Black] STD |
Engine VIN Code | W |
Make | FORD |
Model | CROWN VICTORIA |
King Ford Prod V8 4.6L/5.4L (Size STD) Performance Rod Bearing Set | ||||
---|---|---|---|---|
Year | Make | Model | Submodel | Region |
1991 | Lincoln | Town Car | Executive | US |
1991 | Lincoln | Town Car | Touring Edition | US |
1991 | Lincoln | Town Car | Cartier | US |
1991 | Lincoln | Town Car | Cypress | US |
1991 | Lincoln | Town Car | Base | US |
1991 | Lincoln | Town Car | Signature | US |
1992 | Lincoln | Town Car | Executive | US |
1992 | Lincoln | Town Car | Touring Edition | US |
1992 | Lincoln | Town Car | Cartier | US |
1992 | Ford | Crown Victoria | S | US |
1992 | Ford | Crown Victoria | Touring Sedan | US |
1992 | Mercury | Grand Marquis | GS | US |
1992 | Lincoln | Town Car | Cypress | US |
1992 | Lincoln | Town Car | Base | US |
1992 | Lincoln | Town Car | Signature | US |
1992 | Ford | Crown Victoria | Base | US |
1992 | Ford | Crown Victoria | LX | US |
1992 | Mercury | Grand Marquis | LS | US |
1993 | Ford | Crown Victoria | Police Interceptor | US |
1993 | Lincoln | Town Car | Executive | US |
1993 | Lincoln | Town Car | Touring Edition | US |
1993 | Lincoln | Town Car | Cartier | US |
1993 | Ford | Crown Victoria | S | US |
1993 | Lincoln | Mark VIII | Base | US |
1993 | Mercury | Grand Marquis | GS | US |
1993 | Lincoln | Town Car | Jack Nicklaus | US |
1993 | Lincoln | Town Car | Cypress | US |
1993 | Lincoln | Town Car | Base | US |
1993 | Lincoln | Town Car | Signature | US |
1993 | Ford | Crown Victoria | Base | US |
1993 | Ford | Crown Victoria | LX | US |
1993 | Mercury | Grand Marquis | LS | US |
1994 | Ford | Crown Victoria | Police Interceptor | US |
1994 | Lincoln | Town Car | Executive | US |
1994 | Lincoln | Town Car | Touring Edition | US |
1994 | Lincoln | Town Car | Cartier | US |
1994 | Ford | Crown Victoria | S | US |
1994 | Lincoln | Mark VIII | Base | US |
1994 | Lincoln | Town Car | Tournament Edition | US |
1994 | Mercury | Cougar | XR-7 | US |
1994 | Mercury | Grand Marquis | GS | US |
1994 | Ford | Thunderbird | LX | US |
1994 | Lincoln | Town Car | Cypress | US |
1994 | Lincoln | Town Car | Base | US |
1994 | Ford | Thunderbird | Super Coupe | US |
1994 | Lincoln | Town Car | Signature | US |
1994 | Ford | Crown Victoria | LX | US |
1994 | Ford | Crown Victoria | Base | US |
1994 | Mercury | Grand Marquis | LS | US |
1995 | Mercury | Grand Marquis | LS | US |
Note: Over 50 fitments returned for this product, this table is trimmed to only display the first 50. |
