Optional to MB5286SI (Race bearings, Tri-metal pMax Black)
Toyota 1UZ-FE, 2UZ-FE, 3UZ-FE

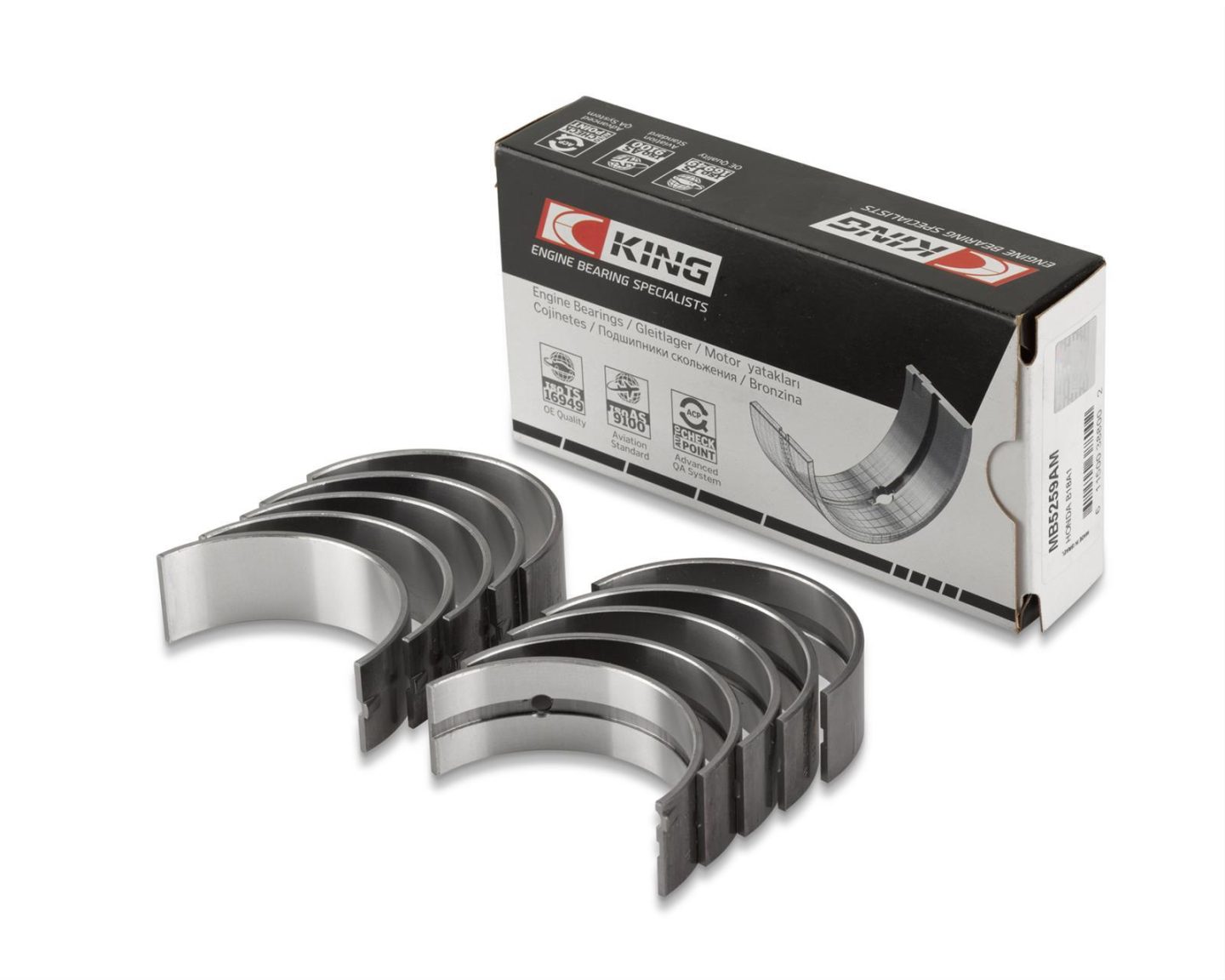

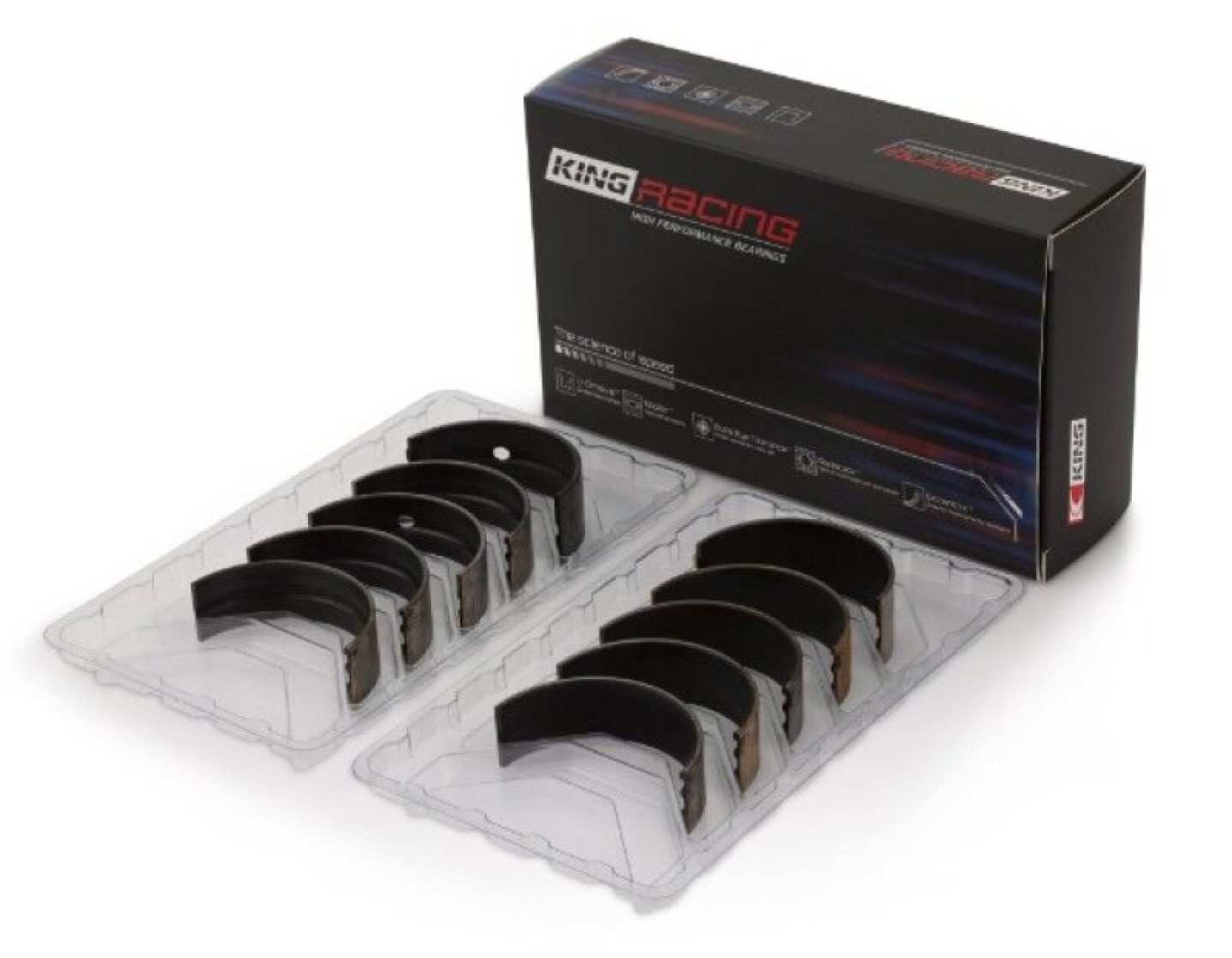

Engine Crankshaft Main Bearing Set
Built with enhanced tri-metal, King XP-Series main bearings have a layered copper lead construction, with a nickel plate barrier and lead/tin/copper Babbitt overlay over a steel backing--in an adhesion process that provides superior stability and durability. King's advanced control measures hit a bull's-eye, maintaining wall thickness tolerances far tighter than their competitors: an amazing +/- .0001 in. The XP-Series main bearings are narrowed for large radii crankshafts and feature enlarged, chamfered oil holes with full, 3/4 in., or 1/2 in. grooving for improved oiling. They deliver consistent and reliable performance with a high-load capacity. These race-only Xtreme Performance (XP-Series) Tri-Lecular main bearings are proven track-tough to handle the ground-shaking power of your race engine. Hundreds of sets are available; order the bearings recommended for your vehicle.
UPC | 611500608780 |
Brand | King Engine Bearings |
Quantity | Sold as a set of 5. |
Part Type | Main Bearings |
Groove Style | 1/2 |
Product Line | King XP-Series Main Bearings |
Bearing Usage | Performance |
Groove Location | Upper |
Grooved Bearing | Yes |
Bearing Material | Tri-metal copper-lead nickel |
Thrust Bearing Oversize | Stock |
Summit Racing Part Number | KGB-MB5286XP026 |
Manufacturer's Part Number | MB5286XP026 |
Engine Crankshaft Undersize (mm) | 0.026mm |
Engine Crankshaft Undersize (in.) | 0.001 in. |
Compatibility & Application Information | |
---|---|
Make | LEXUS |
Model | GS400 |
Submodel | BASE |
Beginning Year | 1998 |
Ending Year | 2000 |
Engine Type | V8 |
Liter | 4.0 |
CC | 3969 |
Engine Family | Toyota V8 |
Engine Size | 4.0L/3969cc |
Application Notes | Optional MB5286SI Race Bearings Race bearings, Trimetal [pMax Black] Crankshaft Undersize-.026mm |
Engine VIN Code | H |
Make | LEXUS |
Model | GX470 |
Submodel | BASE |
Beginning Year | 2003 |
Ending Year | 2009 |
Engine Type | V8 |
Liter | 4.7 |
CID | 285 |
CC | 4663 |
Engine Family | Toyota V8 |
Engine Size | 4.7L/4663cc |
Application Notes | Optional MB5286SI Race Bearings Race bearings, Trimetal [pMax Black] Crankshaft Undersize-.026mm |
Make | LEXUS |
Model | LS400 |
Submodel | BASE |
Beginning Year | 1990 |
Ending Year | 1995 |
Engine Type | V8 |
Liter | 4.0 |
CC | 3969 |
Engine Family | Toyota V8 |
Engine Size | 4.0L/3969cc |
Application Notes | Optional MB5286SI Race Bearings Race bearings, Trimetal [pMax Black] Crankshaft Undersize-.026mm |
Engine VIN Code | U |
Make | LEXUS |
Model | LS400 |
Submodel | BASE |
Beginning Year | 1996 |
Ending Year | 2000 |
Engine Type | V8 |
Liter | 4.0 |
CC | 3969 |
Engine Family | Toyota V8 |
Engine Size | 4.0L/3969cc |
Application Notes | Optional MB5286SI Race Bearings Race bearings, Trimetal [pMax Black] Crankshaft Undersize-.026mm |
Engine VIN Code | H |
Make | LEXUS |
Model | LX470 |
King Toyota 1UZ-FE/2UZ-FE/3UZ-FE (Size .025) Performance Main Bearing Set | ||||
---|---|---|---|---|
Year | Make | Model | Submodel | Region |
1990 | Lexus | LS400 | Base | US |
1991 | Lexus | LS400 | Base | US |
1992 | Lexus | LS400 | Base | US |
1992 | Lexus | SC400 | Base | US |
1993 | Lexus | SC400 | Base | US |
1993 | Lexus | LS400 | Base | US |
1994 | Lexus | SC400 | Base | US |
1994 | Lexus | LS400 | Base | US |
1995 | Lexus | SC400 | Base | US |
1995 | Lexus | LS400 | Base | US |
1996 | Lexus | LS400 | Base | US |
1996 | Lexus | SC400 | Base | US |
1997 | Lexus | LS400 | Base | US |
1997 | Lexus | SC400 | Base | US |
1998 | Toyota | Land Cruiser | Base | US |
1998 | Lexus | LX470 | Base | US |
1998 | Lexus | SC400 | Base | US |
1998 | Lexus | GS400 | Base | US |
1998 | Lexus | LS400 | Base | US |
1999 | Lexus | LS400 | Base | US |
1999 | Toyota | Land Cruiser | Base | US |
1999 | Lexus | GS400 | Base | US |
1999 | Lexus | LX470 | Base | US |
1999 | Lexus | SC400 | Base | US |
2000 | Lexus | GS400 | Base | US |
2000 | Toyota | Land Cruiser | Base | US |
2000 | Toyota | Tundra | Limited | US |
2000 | Toyota | Tundra | Base | US |
2000 | Lexus | SC400 | Base | US |
2000 | Lexus | LX470 | Base | US |
2000 | Toyota | Tundra | SR5 | US |
2000 | Lexus | LS400 | Base | US |
2001 | Toyota | Sequoia | Limited | US |
2001 | Toyota | Tundra | Base | US |
2001 | Toyota | Tundra | Limited | US |
2001 | Toyota | Sequoia | SR5 | US |
2001 | Lexus | LX470 | Base | US |
2001 | Toyota | Tundra | SR5 | US |
2001 | Toyota | Land Cruiser | Base | US |
2002 | Toyota | Tundra | SR5 | US |
2002 | Toyota | Tundra | Limited | US |
2002 | Toyota | Tundra | Base | US |
2002 | Toyota | Sequoia | SR5 | US |
2002 | Toyota | Land Cruiser | Base | US |
2002 | Lexus | LX470 | Base | US |
2002 | Toyota | Sequoia | Limited | US |
2003 | Toyota | Sequoia | Limited | US |
2003 | Toyota | Land Cruiser | Base | US |
2003 | Toyota | Tundra | Limited | US |
2003 | Lexus | LX470 | Base | US |
Note: Over 50 fitments returned for this product, this table is trimmed to only display the first 50. |
