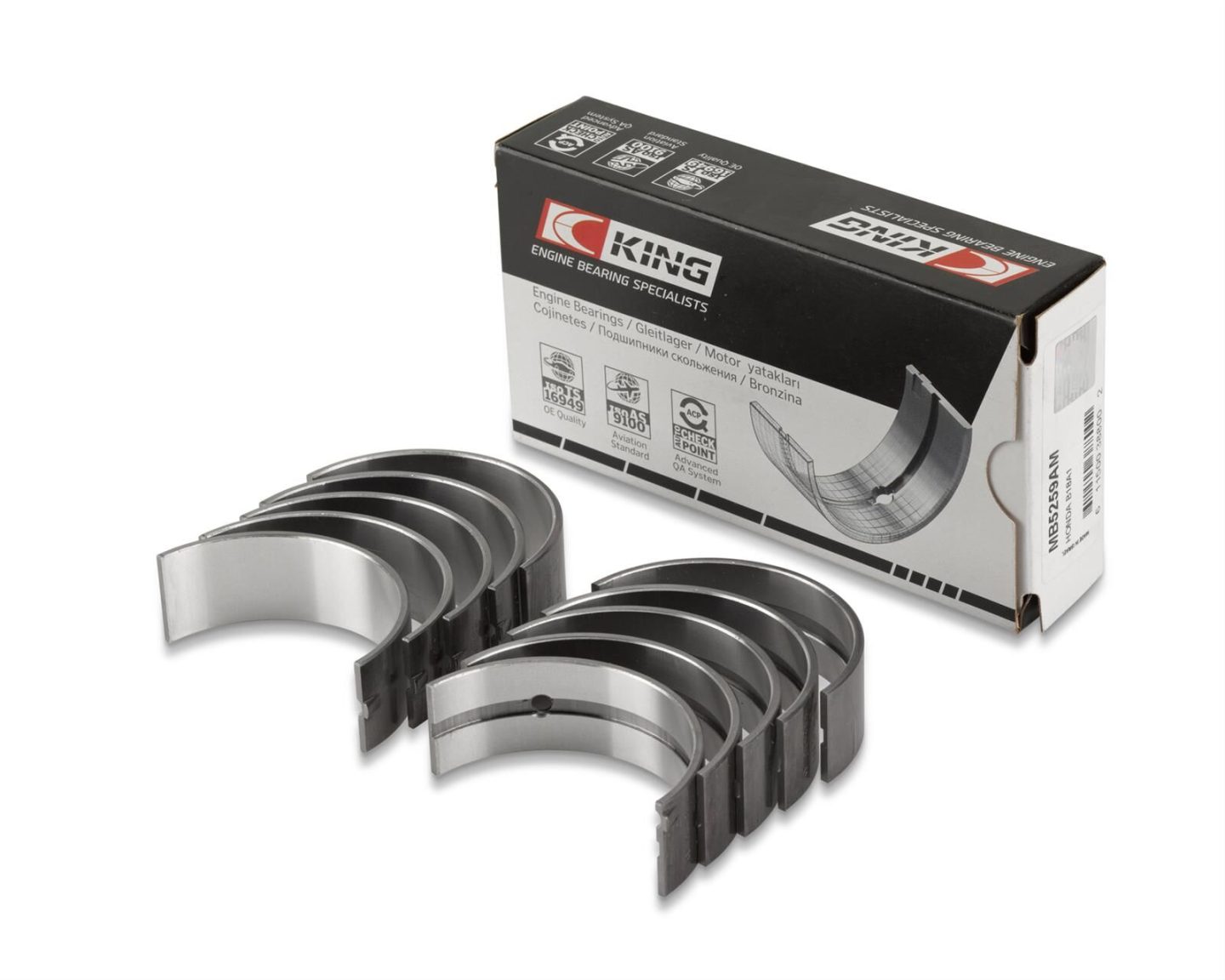

Honda D16A/Y/Z H22A4 F23A
Engine Crankshaft Main Bearing Set
King AM-Series main bearings are recommended for street or marine applications. These crankshaft bearings have superior embeddability, which provides greater macro-particle to reduce scratching of the crank journals and tearing or weakening of the Babbitt overlays. King AM-Series main bearings feature tolerance control to within plus or minus .0001—and they're lead-free, making them environmentally-friendly and user-safe. Hundreds of performance sets are available; order the replacement bearings designed to fit your vehicle.
UPC | 611500205217 |
Brand | King Engine Bearings |
Quantity | Sold as a set of 5. |
Part Type | Main Bearings |
Groove Style | 1/2 |
Product Line | King AM-Series Main Bearings |
Bearing Usage | Direct replacement |
Groove Location | Upper |
Grooved Bearing | Yes |
Bearing Material | Alecular silicon |
Thrust Bearing Oversize | Stock |
Summit Racing Part Number | KGB-MB5568AM025 |
Manufacturer's Part Number | MB5568AM025 |
Engine Crankshaft Undersize (mm) | 0.25mm |
Engine Crankshaft Undersize (in.) | 0.010 in. |
Compatibility & Application Information | |
---|---|
Make | ACURA |
Beginning Year | 1986 |
Ending Year | 1989 |
Engine Type | L4 |
Engine Family | Honda/Acura 4-cylinder |
Engine Size | 1.6L/1590cc |
Make | ACURA |
Beginning Year | 1997 |
Ending Year | 2000 |
Engine Type | L4 |
Engine Family | Honda/Acura 4-cylinder |
Engine Size | 1.6L/1590cc |
Make | ACURA |
Model | CL |
Submodel | BASE |
Beginning Year | 1998 |
Ending Year | 1998 |
Engine Type | L4 |
Liter | 2.3 |
CC | 2254 |
Engine Family | Honda/Acura 4-cylinder |
Engine Size | 2.3L/2254cc |
Application Notes | bimetal (aluminum base) Crankshaft Undersize-0.25mm |
Make | ACURA |
Model | CL |
Submodel | PREMIUM |
Beginning Year | 1998 |
Ending Year | 1999 |
Engine Type | L4 |
Liter | 2.3 |
CC | 2254 |
Engine Family | Honda/Acura 4-cylinder |
Engine Size | 2.3L/2254cc |
Application Notes | bimetal (aluminum base) Crankshaft Undersize-0.25mm |
Make | ACURA |
Model | ILX |
Submodel | BASE |
Beginning Year | 2013 |
Ending Year | 2015 |
Engine Type | L4 |
Liter | 2.4 |
CID | 144 |
CC | 2354 |
Engine Family | Honda/Acura 4-cylinder |
Engine Size | 2.4L/2354cc |
Application Notes | bimetal (aluminum base) Crankshaft Undersize-0.25mm |
Make | ACURA |
Model | INTEGRA |
Submodel | LS |
Beginning Year | 1986 |
King Honda D16A/Y/Z H22A4 F23A (Size +0.25mm) Crankshaft Main Bearing Set | ||||
---|---|---|---|---|
Year | Make | Model | Submodel | Region |
1986 | Acura | Integra | LS | US |
1986 | Acura | Integra | RS | US |
1987 | Acura | Integra | RS | US |
1987 | Acura | Integra | LS | US |
1987 | Acura | Integra | LS Special Edition | US |
1988 | Acura | Integra | LS | US |
1988 | Honda | CRX | HF | US |
1988 | Acura | Integra | LS Special Edition | US |
1988 | Honda | CRX | Si | US |
1988 | Honda | CRX | DX | US |
1988 | Acura | Integra | RS | US |
1988 | Honda | Prelude | 2.0 Si 4WS | US |
1988 | Honda | Civic | DX | US |
1988 | Honda | Civic | Wagovan | US |
1988 | Honda | Civic | RT 4WD | US |
1988 | Honda | Prelude | 2.0 S | US |
1988 | Honda | Prelude | 2.0 Si | US |
1988 | Honda | Civic | LX | US |
1988 | Honda | Civic | Base | US |
1989 | Acura | Integra | RS | US |
1989 | Honda | Civic | Wagovan | US |
1989 | Honda | CRX | HF | US |
1989 | Honda | Civic | RT 4WD | US |
1989 | Honda | Civic | DX | US |
1989 | Honda | CRX | Base | US |
1989 | Honda | CRX | Si | US |
1989 | Acura | Integra | LS | US |
1989 | Honda | Civic | LX | US |
1989 | Honda | Prelude | 2.0 S | US |
1989 | Honda | Prelude | 2.0 Si 4WS | US |
1989 | Honda | Prelude | 2.0 Si | US |
1989 | Honda | Civic | Si | US |
1989 | Honda | Civic | Base | US |
1990 | Honda | Civic | Si | US |
1990 | Honda | Civic | LX | US |
1990 | Honda | CRX | Base | US |
1990 | Honda | Civic | RT 4WD | US |
1990 | Honda | Prelude | Si 4WS | US |
1990 | Honda | CRX | Si | US |
1990 | Honda | Prelude | 2.0 Si | US |
1990 | Honda | Prelude | Si ALB | US |
1990 | Honda | Civic | DX | US |
1990 | Honda | CRX | HF | US |
1990 | Honda | Civic | Base | US |
1990 | Honda | Civic | EX | US |
1990 | Honda | Prelude | Si | US |
1990 | Honda | Prelude | 2.0 S | US |
1991 | Honda | CRX | Base | US |
1991 | Honda | CRX | HF | US |
1991 | Honda | Civic | RT 4WD | US |
Note: Over 50 fitments returned for this product, this table is trimmed to only display the first 50. |
