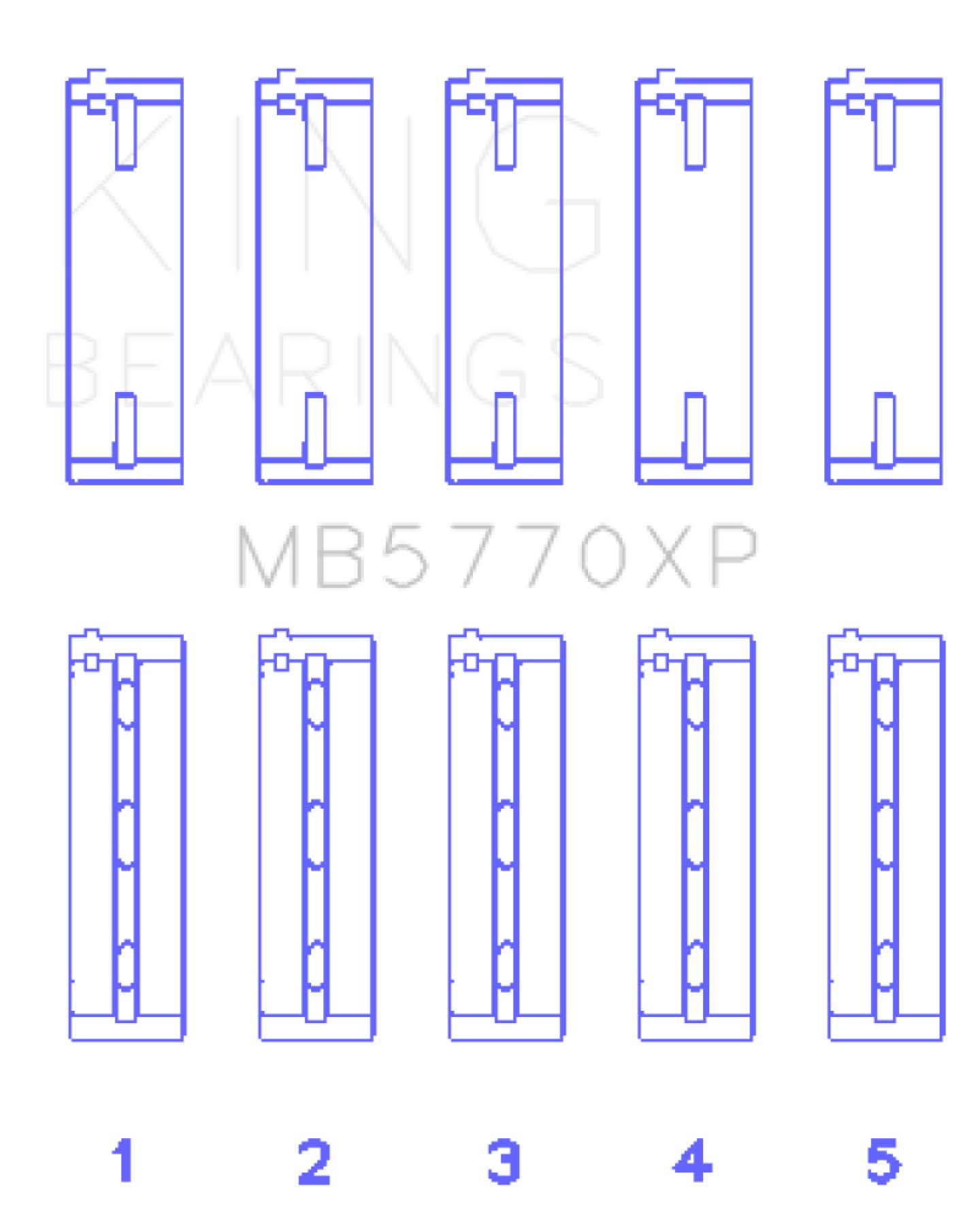

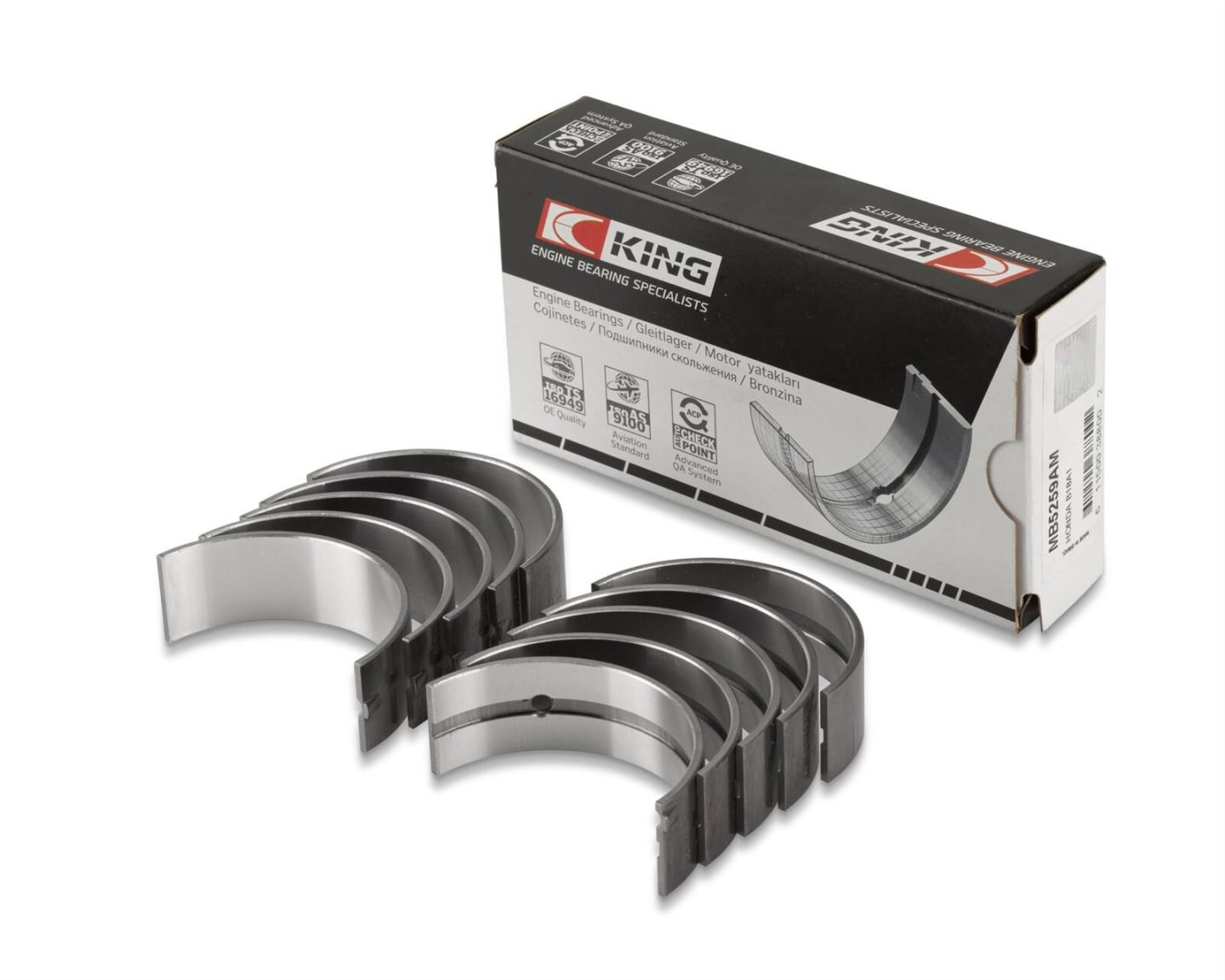

MAIN BEARING SET For NISSAN VK45DD/E, VK50VE, VK56DE/VD; Race bearings, Trimetal pMax Black
NISSAN VK45DD/E, VK50VE, VK56DE/VD
Engine Crankshaft Main Bearing Set
Built with enhanced tri-metal, King XP-Series main bearings have a layered copper lead construction, with a nickel plate barrier and lead/tin/copper Babbitt overlay over a steel backing--in an adhesion process that provides superior stability and durability. King's advanced control measures hit a bull's-eye, maintaining wall thickness tolerances far tighter than their competitors: an amazing +/- .0001 in. The XP-Series main bearings are narrowed for large radii crankshafts and feature enlarged, chamfered oil holes with full, 3/4 in., or 1/2 in. grooving for improved oiling. They deliver consistent and reliable performance with a high-load capacity. These race-only Xtreme Performance (XP-Series) Tri-Lecular main bearings are proven track-tough to handle the ground-shaking power of your race engine. Hundreds of sets are available; order the bearings recommended for your vehicle.
Brand | King Engine Bearings |
Manufacturer's Part Number | MB5770XP025 |
Part Type | Main Bearings |
Product Line | King XP-Series Main Bearings |
Summit Racing Part Number | KGB-MB5770XP025 |
UPC | 611500595646 |
Bearing Usage | Performance |
Engine Crankshaft Undersize (in.) | 0.010 in. |
Engine Crankshaft Undersize (mm) | 0.25mm |
Grooved Bearing | Yes |
Groove Location | Upper |
Groove Style | 1/2 |
Thrust Bearing Oversize | Stock |
Bearing Material | Tri-metal copper-lead nickel |
Quantity | Sold as a set of 5. |
Compatibility & Application Information | |
---|---|
Make | INFINITI |
Model | FX45 |
Submodel | BASE |
Beginning Year | 2003 |
Ending Year | 2005 |
Engine Type | V8 |
Liter | 4.5 |
CC | 4500 |
Engine Family | Nissan V8 |
Engine Size | 4.5L/4500cc |
Application Notes | Optional MB5770SI Race Bearings Race bearings, Trimetal [pMax Black] Crankshaft Undersize-0.25mm |
Make | INFINITI |
Model | FX45 |
Submodel | BASE |
Beginning Year | 2006 |
Ending Year | 2008 |
Engine Type | V8 |
Liter | 4.5 |
CC | 4494 |
Engine Family | Nissan V8 |
Engine Size | 4.5L/4494cc |
Application Notes | Optional MB5770SI Race Bearings Race bearings, Trimetal [pMax Black] Crankshaft Undersize-0.25mm |
Make | INFINITI |
Model | FX50 |
Submodel | BASE |
Beginning Year | 2009 |
Ending Year | 2013 |
Engine Type | V8 |
Liter | 5.0 |
CC | 5026 |
Engine Family | Nissan V8 |
Engine Size | 5.0L/5026cc |
Application Notes | Optional MB5770SI Race Bearings Race bearings, Trimetal [pMax Black] Crankshaft Undersize-0.25mm |
Make | INFINITI |
Model | M45 |
Submodel | BASE |
Beginning Year | 2003 |
Ending Year | 2004 |
Engine Type | V8 |
Liter | 4.5 |
CC | 4500 |
Engine Family | Nissan V8 |
Engine Size | 4.5L/4500cc |
Application Notes | Optional MB5770SI Race Bearings Race bearings, Trimetal [pMax Black] Crankshaft Undersize-0.25mm |
Make | INFINITI |
Model | M45 |
Submodel | BASE |
Beginning Year | 2006 |
Ending Year | 2010 |
Engine Type | V8 |
King Nissan VK45DD/E/ VK50VE/ Vk56DE/VD (Size 0.25) Main Bearing Set | ||||
---|---|---|---|---|
Year | Make | Model | Submodel | Region |
1990 | INFINITI | Q45 | Base | US |
1991 | INFINITI | Q45 | A | US |
1991 | INFINITI | Q45 | Base | US |
1992 | INFINITI | Q45 | Base | US |
1992 | INFINITI | Q45 | A | US |
1993 | INFINITI | Q45 | Base | US |
1993 | INFINITI | Q45 | A | US |
1994 | INFINITI | Q45 | T | US |
1994 | INFINITI | Q45 | A | US |
1994 | INFINITI | Q45 | Base | US |
1995 | INFINITI | Q45 | Base | US |
1995 | INFINITI | Q45 | T | US |
1995 | INFINITI | Q45 | A | US |
1996 | INFINITI | Q45 | A | US |
1996 | INFINITI | Q45 | T | US |
1996 | INFINITI | Q45 | Base | US |
2002 | INFINITI | Q45 | Base | US |
2003 | INFINITI | Q45 | Base | US |
2003 | INFINITI | FX45 | Base | US |
2003 | INFINITI | M45 | Base | US |
2004 | INFINITI | FX45 | Base | US |
2004 | Nissan | Pathfinder Armada | LE | US |
2004 | Nissan | Pathfinder | LE | US |
2004 | Nissan | Pathfinder | SE | US |
2004 | INFINITI | QX56 | Base | US |
2004 | INFINITI | Q45 | Base | US |
2004 | INFINITI | M45 | Base | US |
2004 | Nissan | TITAN | XE | US |
2004 | Nissan | TITAN | SE | US |
2004 | Nissan | TITAN | LE | US |
2004 | Nissan | Pathfinder Armada | SE | US |
2005 | Nissan | TITAN | LE | US |
2005 | INFINITI | FX45 | Base | US |
2005 | INFINITI | Q45 | Base | US |
2005 | Nissan | Armada | SE | US |
2005 | Nissan | Armada | SE Off-Road | US |
2005 | Nissan | TITAN | SE | US |
2005 | Nissan | TITAN | XE | US |
2005 | Nissan | Armada | LE | US |
2005 | INFINITI | QX56 | Base | US |
2006 | Nissan | Armada | SE Off-Road | US |
2006 | INFINITI | M45 | Base | US |
2006 | INFINITI | Q45 | Base | US |
2006 | INFINITI | QX56 | Base | US |
2006 | Nissan | TITAN | XE | US |
2006 | Nissan | Armada | SE | US |
2006 | Nissan | TITAN | SE | US |
2006 | Nissan | Armada | LE | US |
2006 | Nissan | TITAN | LE | US |
2006 | INFINITI | M45 | Sport | US |
Note: Over 50 fitments returned for this product, this table is trimmed to only display the first 50. |
