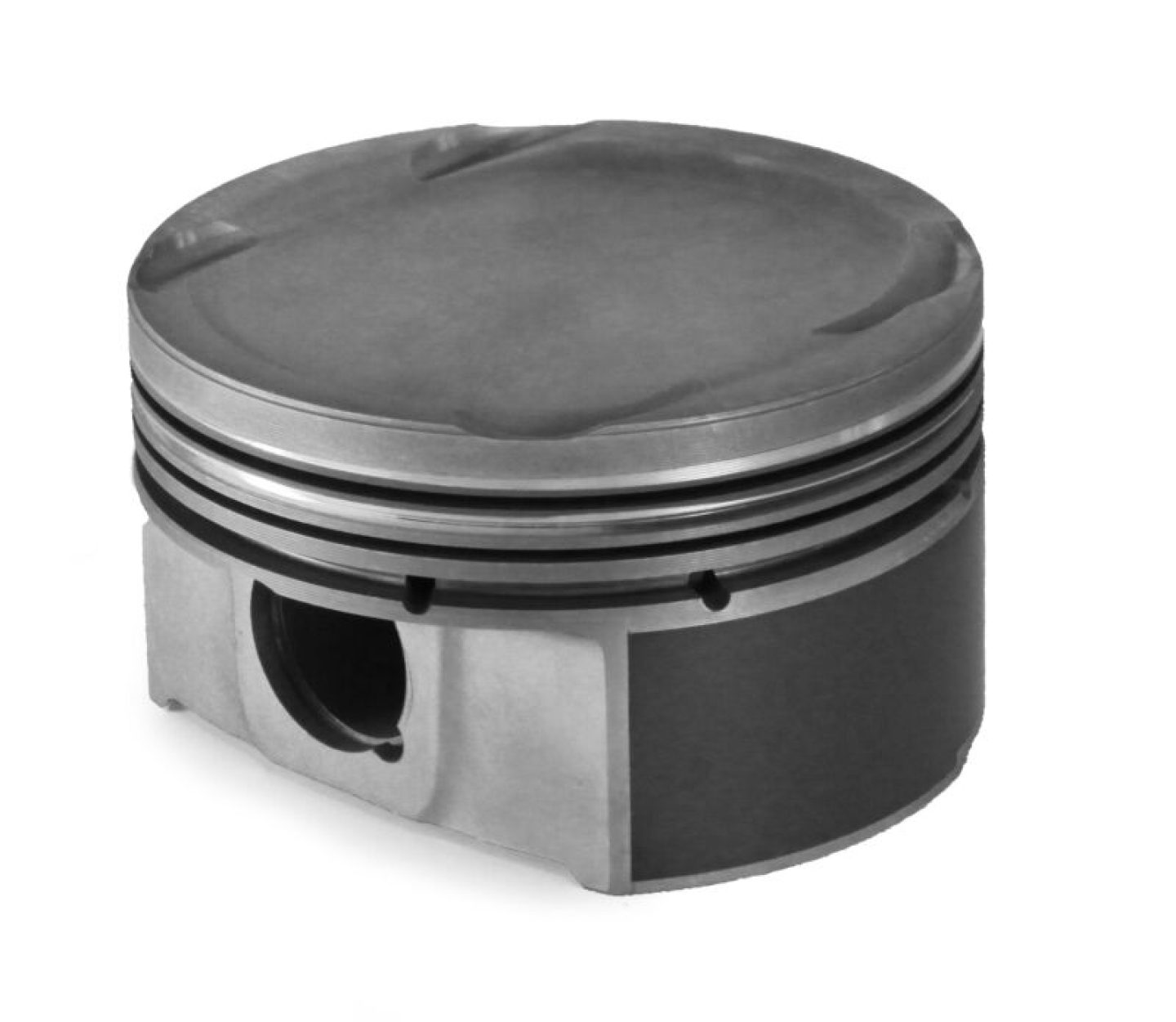

Engine Piston Kit .
BMW S52
Mahle PowerPak piston and ring kits include forged pistons, low-drag rings, steel pins, and wire locks—all in one race-proven package. The pistons are hand-deburred and then coated with dry phosphate to protect against ring micro-welding and pin galling during initial startup. For additional performance, Mahle added its proprietary Grafal anti-friction coating to the piston skirts. These replacement packages are available in a wide variety of size options for fitment with specific engines and pistons.
Brand | Mahle |
Notes | Pistons fits the S52 B32 engine. |
Stroke | 89.60mm |
Gapless | No |
File Fit | Yes |
Quantity | Sold as a set of 6. |
Bore (mm) | 86.600mm |
Part Type | Pistons |
Bore (in.) | 3.409 in. |
Rod Length | 135.000mm |
Piston Style | Dish, with four valve reliefs |
Product Line | Mahle PowerPak Piston and Ring Kits |
Piston Material | Forged aluminum |
Wrist Pin Style | Floating |
Oil Ring Tension | Standard |
Oil Ring Material | Chrome plated stainless steel |
Top Ring Material | Steel |
Engine Stroke Type | Stock |
Oil Ring Thickness | 2.8mm |
Pin Diameter (in.) | 0.866 in. |
Top Ring Thickness | 1.2mm |
Wrist Pin Included | Yes |
Second Ring Material | Cast iron |
Piston Ring Thickness | 1.20mm x 1.20mm x 2.80mm |
Piston Rings Included | Yes |
Second Ring Thickness | 1.2mm |
Piston Head Volume (cc) | +11.00cc |
Compression Height (in.) | 1.220 in. |
Top Ring Facing Material | Chromium nitride |
Summit Racing Part Number | MLE-930024409 |
Actual Engine Displacement | 3.2L/3152cc |
Manufacturer's Part Number | 930024409 |
Second Ring Facing Material | Phosphate coated |
Wrist Pin Retainers Included | Yes |
Compatibility & Application Information | |
---|---|
Make | BMW |
Model | M3 |
Beginning Year | 1996 |
Ending Year | 1999 |
Engine Type | L6 |
Engine Family | BMW inline 6-cylinder |
Engine Size | 3.2L/3152cc |
Application Notes | Pistons fits the S52 B32 engine. |
We do not have any specific fitment data for this part. This could be a generic item or if you need further clarification, please contact us for details to assist us with your compatibility requirements.
