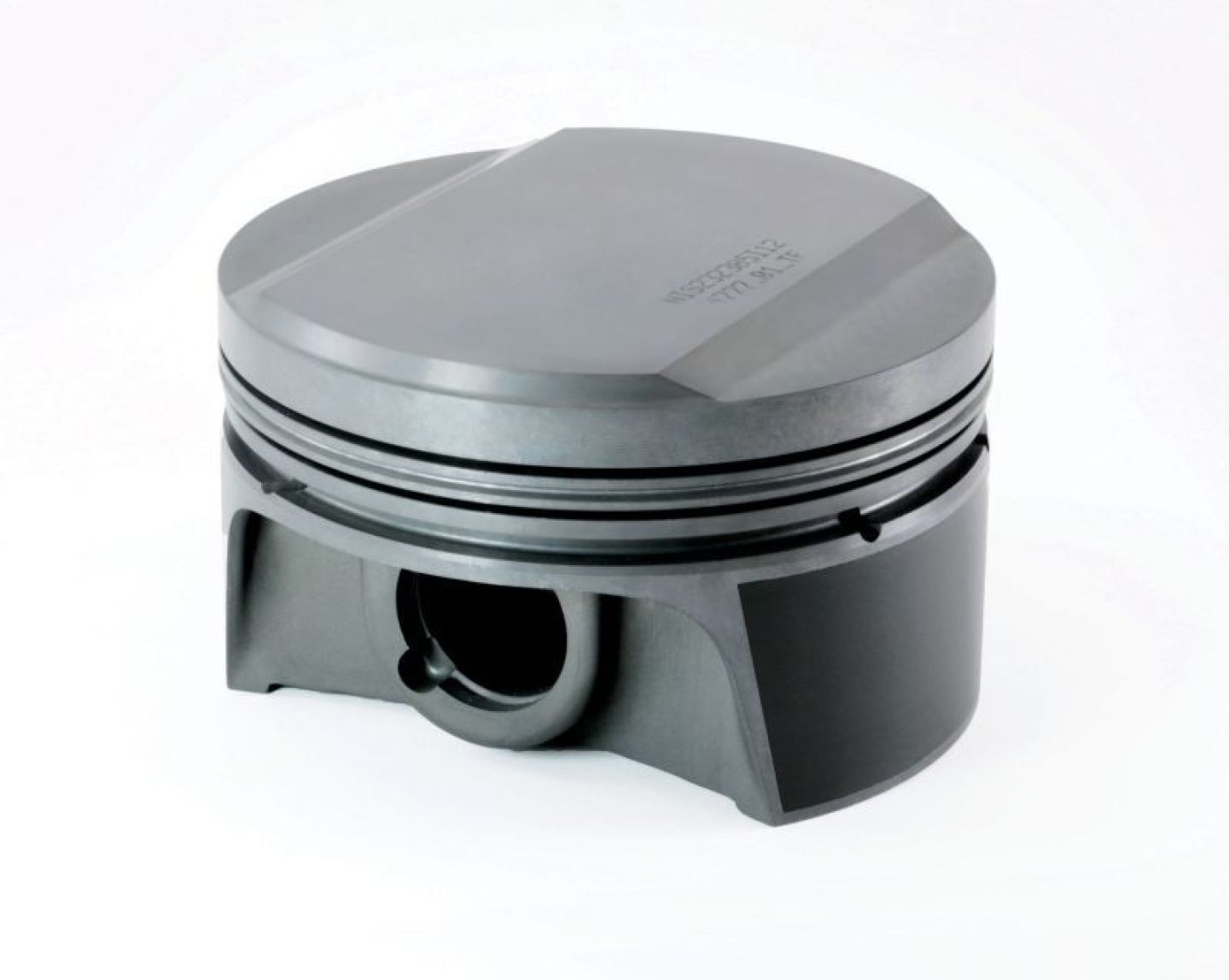

Engine Piston Kit .
Nissan RB25DET
Mahle PowerPak piston and ring kits include forged pistons, low-drag rings, steel pins, and wire locks—all in one race-proven package. The pistons are hand-deburred and then coated with dry phosphate to protect against ring micro-welding and pin galling during initial startup. For additional performance, Mahle added its proprietary Grafal anti-friction coating to the piston skirts. These replacement packages are available in a wide variety of size options for fitment with specific engines and pistons.
Brand | Mahle |
Notes | Piston fits the Nissan RB25DET Skyline engines. |
Stroke | 71.70mm |
Gapless | No |
File Fit | No |
Quantity | Sold as a set of 6. |
Bore (mm) | 86.50mm |
Part Type | Pistons |
Bore (in.) | 3.406 in. |
Rod Length | 121.500mm |
Piston Style | Dome, with no valve reliefs |
Product Line | Mahle PowerPak Piston and Ring Kits |
Piston Material | Forged aluminum |
Wrist Pin Style | Floating |
Oil Ring Tension | Standard |
Oil Ring Material | Chrome plated stainless steel |
Top Ring Material | Stainless steel |
Engine Stroke Type | Stock |
Oil Ring Thickness | 2.8mm |
Pin Diameter (in.) | 0.827 in. |
Top Ring Thickness | 1.2mm |
Wrist Pin Included | Yes |
Second Ring Material | Cast iron |
Piston Ring Thickness | 1.20mm x 1.20mm x 2.80mm |
Piston Rings Included | Yes |
Second Ring Thickness | 1.2mm |
Piston Head Volume (cc) | -11.50cc |
Compression Height (in.) | 1.232 in. |
Top Ring Facing Material | Gas nitrided |
Summit Racing Part Number | MLE-929811650 |
Actual Engine Displacement | 2.5L/2528cc |
Manufacturer's Part Number | 929811650 |
Second Ring Facing Material | Phosphate coated |
Wrist Pin Retainers Included | Yes |
Compatibility & Application Information | |
---|---|
Make | NISSAN |
Engine Type | L6 |
Application Notes | Piston fits the Nissan RB25DET Skyline engines. |
We do not have any specific fitment data for this part. This could be a generic item or if you need further clarification, please contact us for details to assist us with your compatibility requirements.
