Connecting Rod
Manley's Pro Series I-Beam Connecting Rods represent the epitome of precision, performance, and quality. Engineered with meticulous attention to detail and a finely tuned manufacturing process, these rods are a testament to our commitment to excellence. Elevate your engine's capabilities and achieve outstanding results with these exceptional connecting rods.

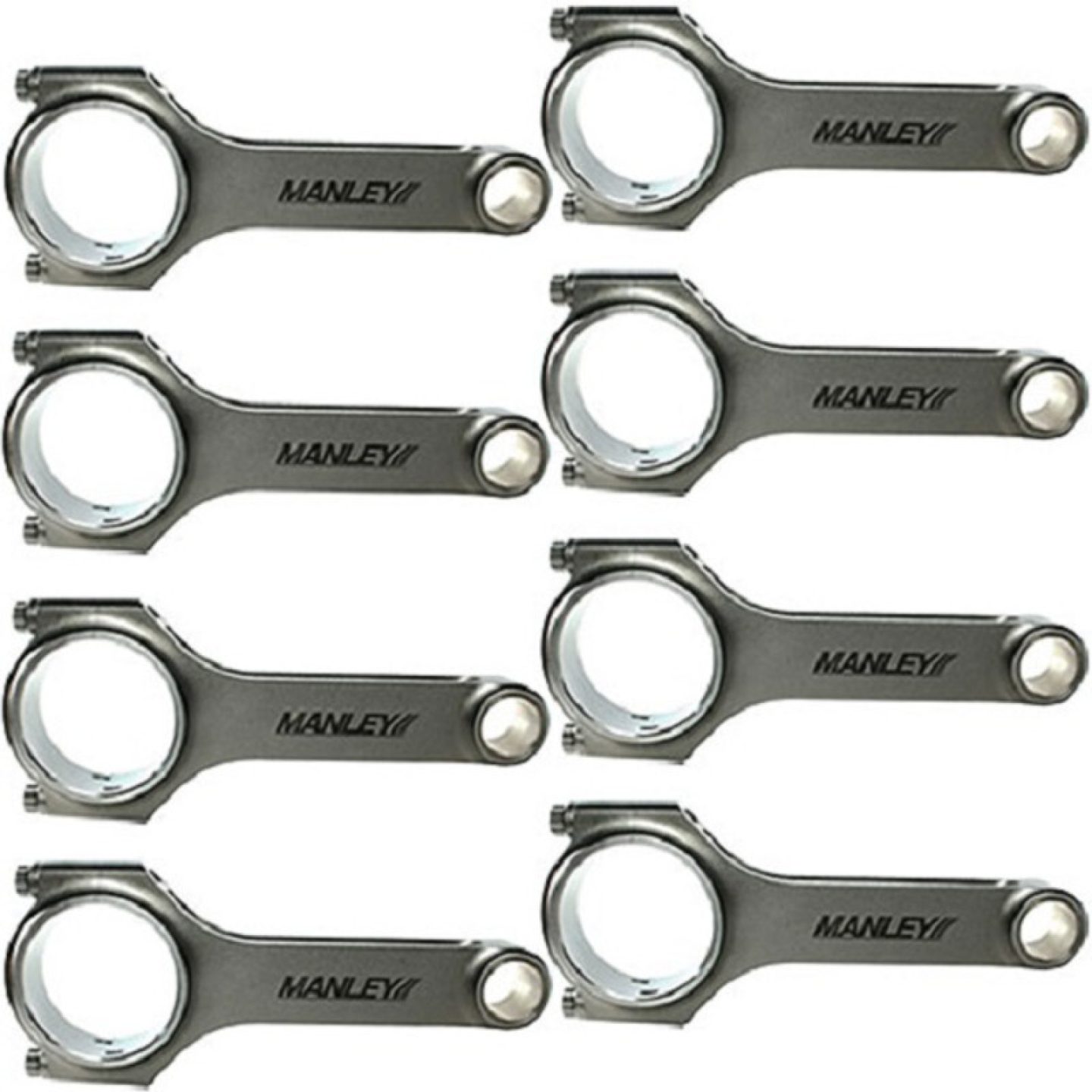

Manley Connecting Rod, ROD-HEMI 6.2,6.4 6.200 STD WEIGHT.
Engine Connecting Rod Set
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Connecting Rods, Chrysler 6.2L/6.4L Hemi Std Wt Pro Series Connecting Rods. 6.200" long, 7/16" ARP 2000 bolts
Manley Pro Series I-beam connecting rods are forged from 4340 aircraft-quality vacuum degassed material. They're fully machined to produce the strongest rods possible. These rods are shot-peened to Mil specs and are 100 percent individually magnafluxed. They feature 7/16 in. ARP cap screws with 12-point heads and your choice of material grade to maximize your needed tensile strength! Manley Pro Series I-beam connecting rods are available in various sizes for a wide range of vehicles and horsepower ranges from 850 to 1,600 hp. Match up your specs, then order an individual rod or a larger set quantity.
Brand | Manley |
Manufacturer's Part Number | 14562-8 |
Part Type | Connecting Rods |
Product Line | Manley Pro Series I-Beam Connecting Rods |
UPC | 807298112800 |
Connecting Rod Length Center to Center (in.) | 6.200 in. |
Connecting Rod Beam Style | I-beam |
Connecting Rod Material | Forged 4340 steel |
Wrist Pin Style | Floating |
Pin End Bore Diameter | 0.945 in. |
Big End Bore Diameter (in.) | 2.2520 |
Quantity | Sold as a set of 8. |
Cap Retention Style | Cap screw |
Big End Width (in.) | 0.933 |
Clearanced for Stroker | No |
Connecting Rod Bolt Brand | ARP |
Connecting Rod Bolt Diameter | 7/16 in. |
Connecting Rod Bolt Material | ARP2000 alloy |
Fastener Tensile Strength (psi) | 200,000 psi |
Connecting Rod Bolt Head Style | 12-point |
Approximate Connecting Rod Weight (g) | 685 |
Advertised Horsepower Rating | 1,200 hp |
Pin End Width (in.) | 1.000 in. |
Weight Matched Set | Yes |
Remanufactured | No |
Magnafluxed | Yes |
Connecting Rod Color | Natural |
Notes | Heavier beam for forced induction applications. |
No specific fitment data available for this part. For clarification, please contact us.
