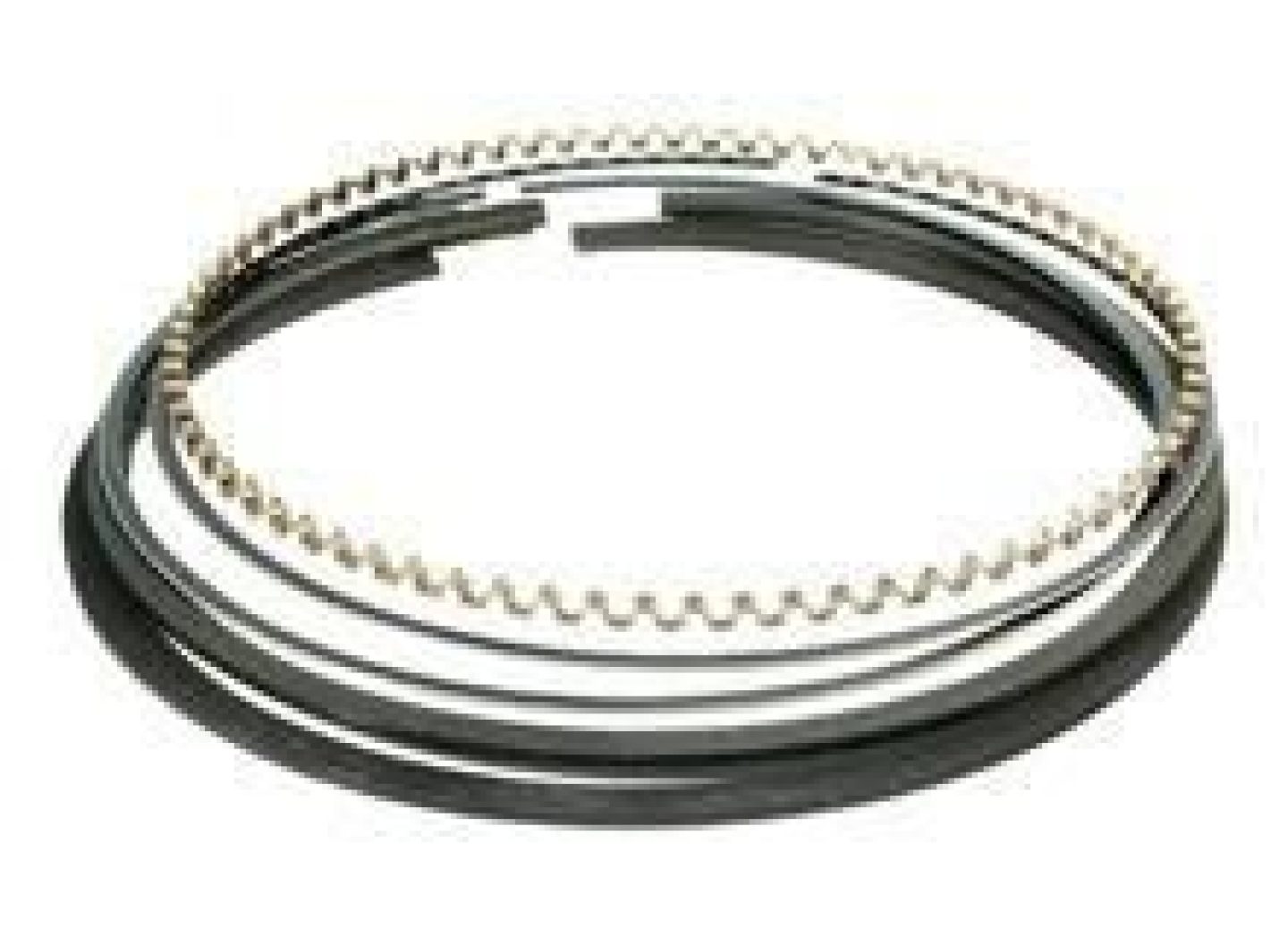

Manley Piston Ring, RING-86.5mm 1.2mm,1.2mm,2.8mm.
Engine Piston Ring
Manley performance piston rings feature a high performance, ductile-iron top ring with a plasma-moly inlay. The second rings are constructed from reverse-twist cast iron, and the oil rings are 3-piece, standard-tension rings. Manley performance rings are available in both standard and file fit sizes. Choose the set designed for your engine application.
Brand | Manley |
Manufacturer's Part Number | 46865-4 |
Part Type | Piston Rings |
Product Line | Manley Performance Piston Rings |
UPC | 807298040691 |
Bore (in.) | 3.405 in. |
Bore (mm) | 86.500mm |
File Fit | Yes |
Gapless | No |
Gas Ported | No |
Top Ring Included | Yes |
Top Ring Thickness | 1.2mm |
Top Ring Material | Ductile iron |
Top Ring Facing Material | Ductile iron |
Second Ring Included | Yes |
Second Ring Thickness | 1.2mm |
Second Ring Material | Cast iron |
Second Ring Facing Material | Cast iron |
Oil Ring Included | Yes |
Oil Ring Thickness | 2.8mm |
Oil Ring Tension Rating | 7-11 lb. |
Oil Ring Material | Stainless steel |
Quantity | Sold as a set. |
Notes | Napier style second ring. |
Manley 86.5mm Bore Size 1.2mm x 1.2mm x 2.8mm Ring Width Ring Set | ||||
---|---|---|---|---|
Year | Make | Model | Submodel | Region |
1993 | Mitsubishi | Eclipse | GSX | US |
1993 | Plymouth | Laser | RS | US |
1993 | Eagle | Talon | TSi | US |
1993 | Mitsubishi | Eclipse | GS | US |
1993 | Mitsubishi | Eclipse | GST | US |
1994 | Plymouth | Laser | RS | US |
1994 | Mitsubishi | Eclipse | GSX | US |
1994 | Eagle | Talon | TSi | US |
1994 | Mitsubishi | Eclipse | GS | US |
1994 | Mitsubishi | Eclipse | GST | US |
1995 | Mitsubishi | Galant | S | US |
1995 | Mitsubishi | Expo | Base | US |
1995 | Mitsubishi | Eclipse | GSX | US |
1995 | Mitsubishi | Galant | ES | US |
1995 | Mitsubishi | Galant | LS | US |
1995 | Mitsubishi | Mighty Max | Base | US |
1995 | Mitsubishi | Eclipse | GST | US |
1995 | Eagle | Talon | TSi | US |
1996 | Mitsubishi | Eclipse | GSX | US |
1996 | Mitsubishi | Eclipse | Spyder GS | US |
1996 | Mitsubishi | Galant | S | US |
1996 | Eagle | Talon | TSi | US |
1996 | Mitsubishi | Eclipse | Spyder GST | US |
1996 | Mitsubishi | Galant | ES | US |
1996 | Mitsubishi | Galant | LS | US |
1996 | Mitsubishi | Mighty Max | Base | US |
1996 | Mitsubishi | Eclipse | GST | US |
1997 | Mitsubishi | Eclipse | Spyder GS | US |
1997 | Eagle | Talon | TSi | US |
1997 | Mitsubishi | Galant | ES | US |
1997 | Mitsubishi | Galant | DE | US |
1997 | Mitsubishi | Galant | LS | US |
1997 | Mitsubishi | Montero Sport | ES | US |
1997 | Mitsubishi | Eclipse | Spyder GST | US |
1997 | Mitsubishi | Eclipse | GSX | US |
1997 | Mitsubishi | Eclipse | GST | US |
1998 | Mitsubishi | Eclipse | GSX | US |
1998 | Mitsubishi | Montero Sport | ES | US |
1998 | Mitsubishi | Eclipse | Spyder GS | US |
1998 | Eagle | Talon | TSi | US |
1998 | Mitsubishi | Galant | DE | US |
1998 | Mitsubishi | Galant | LS | US |
1998 | Mitsubishi | Galant | ES | US |
1998 | Mitsubishi | Eclipse | Spyder GST | US |
1998 | Mitsubishi | Eclipse | GST | US |
1999 | Mitsubishi | Galant | ES | US |
1999 | Mitsubishi | Eclipse | GSX | US |
1999 | Mitsubishi | Eclipse | Spyder GS | US |
1999 | Mitsubishi | Montero Sport | ES | US |
1999 | Mitsubishi | Eclipse | Spyder GST | US |
Note: Over 50 fitments returned for this product, this table is trimmed to only display the first 50. |
