Our signature "Platinum Series" pistons feature 2618 alloy forgings, proven cam and barrel skirt profiles, tool steel wrist pins, and moly skirt coatings on select part numbers. Join the ranks of professional engine builders and tuners who rely on Manley pistons for superior performance and durability.

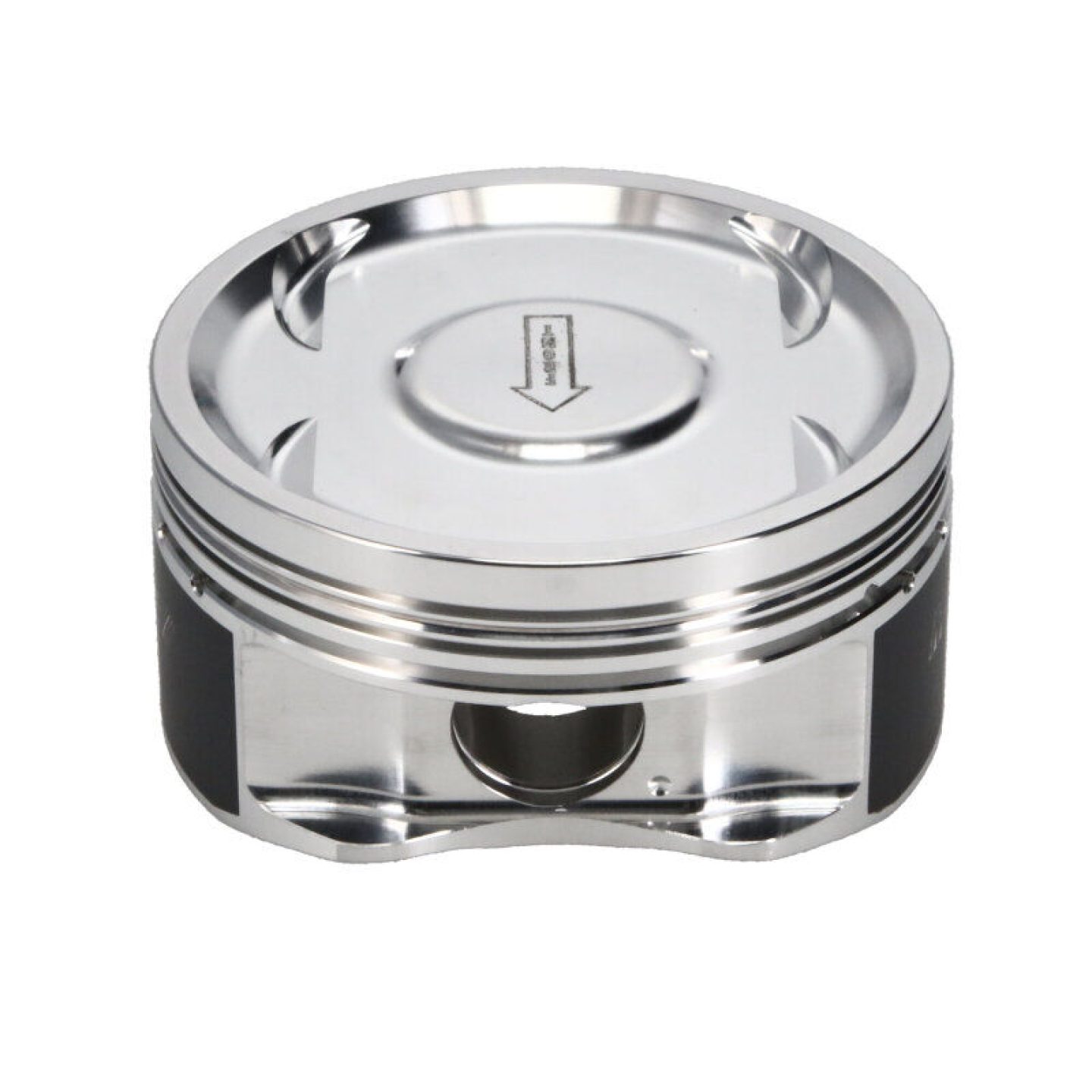

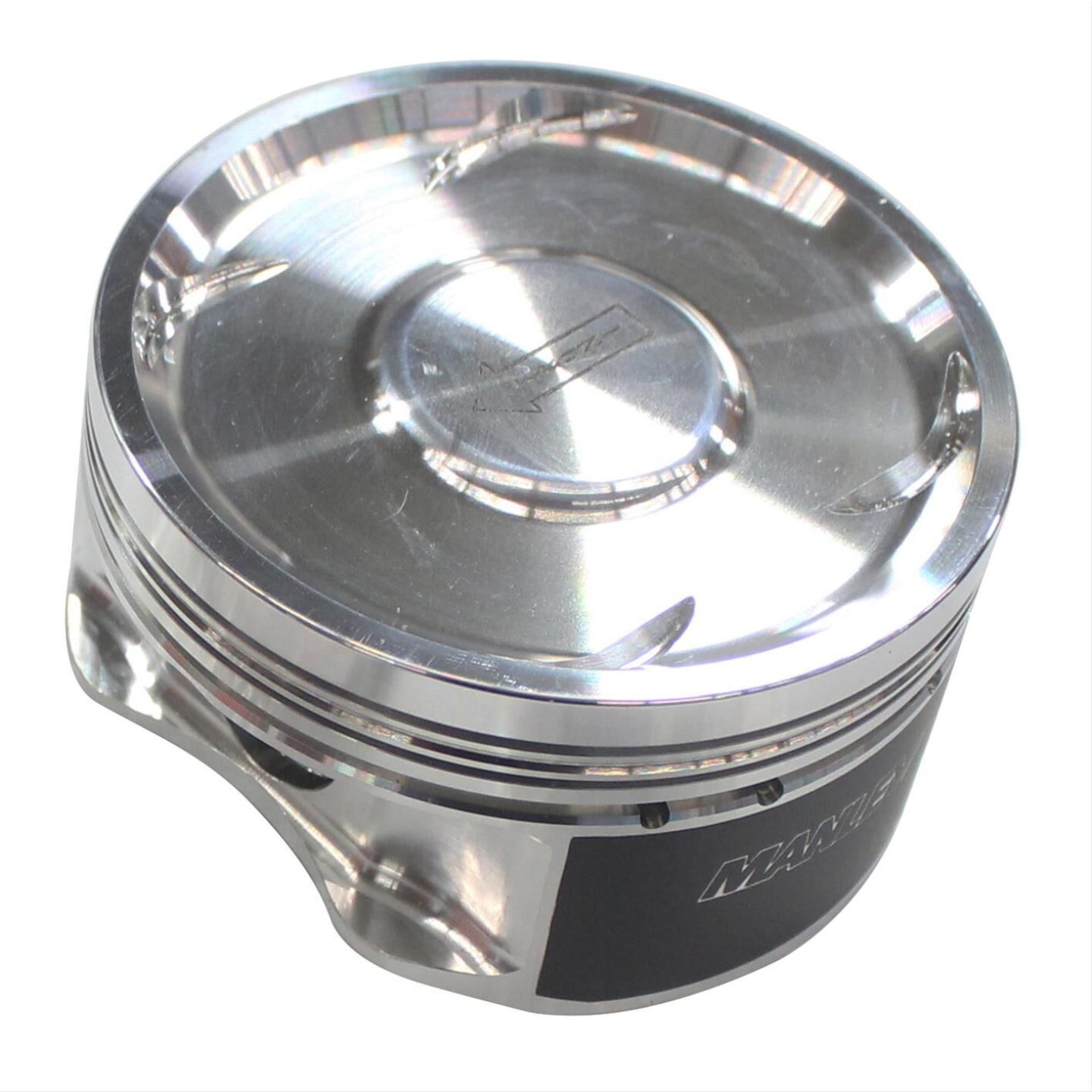

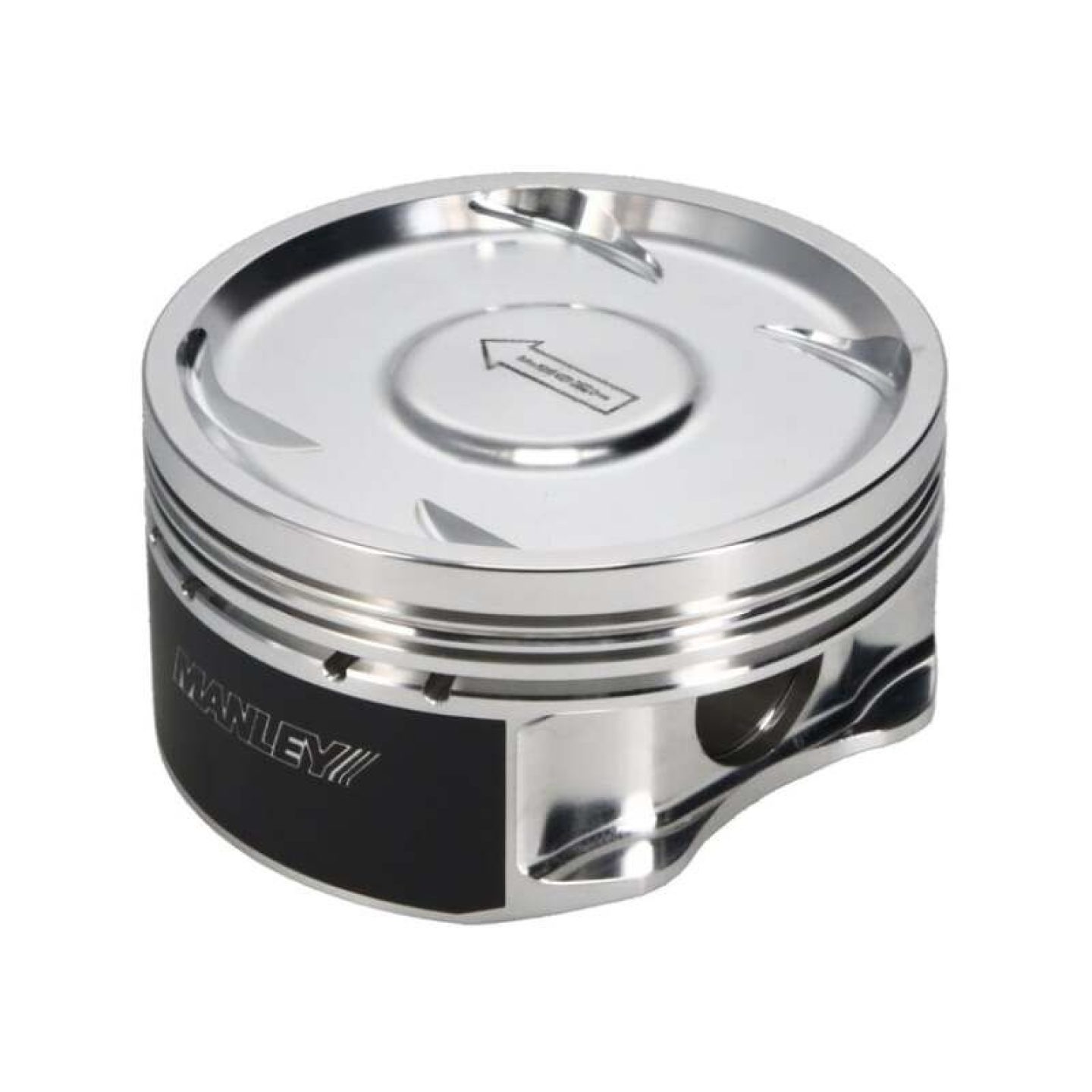

Manley Piston Set, PIST-SUBARU 99.5mm/1.209 CD/DDISH.
Engine Piston Set
Manley Platinum Series pistons are designed to provide trouble-free installation, excellent reliability, and maximum horsepower for your application. Available in 2618 and 4032 forgings, they provide the optimum balance between strength and weight, with no grain-interrupting internal milling. The Platinum Series pistons' 2618 alloy offers maximum high-temperature strength and fatigue resistance, while the 4032 alloy is ideal for moderate-horsepower street applications. Order the style and size pistons designed for your vehicle and engine.
UPC | 807298042091 |
Brand | Manley |
Notes | Designed for EJ257 2.5L 16V engines 2004 and later. |
Stroke | 79.00mm |
Gapless | No |
File Fit | No |
Quantity | Sold as a kit. |
Bore (mm) | 99.500mm |
Part Type | Pistons |
Bore (in.) | 3.917 in. |
Rod Length | 5.137 in. |
Piston Style | Dish, with no valve reliefs |
Product Line | Manley Platinum Series Pistons |
Piston Material | Forged aluminum |
Wrist Pin Style | Press-fit or floating |
Oil Ring Tension | Standard |
Oil Ring Material | Stainless steel |
Top Ring Material | Steel |
Engine Stroke Type | Stock |
Oil Ring Thickness | 2.0mm |
Pin Diameter (in.) | 0.906 in. |
Top Ring Thickness | 1.2mm |
Wrist Pin Included | Yes |
Second Ring Material | Iron |
Piston Rings Included | No |
Second Ring Thickness | 1.2mm |
Piston Head Volume (cc) | +22.00cc |
Compression Height (in.) | 1.209 in. |
Top Ring Facing Material | Plasma-moly |
Manufacturer's Part Number | 612000C-4 |
Second Ring Facing Material | Cast iron |
Wrist Pin Retainers Included | Yes |
Compatibility & Application Information | |
---|---|
Make | SUBARU |
Beginning Year | 2004 |
Ending Year | 2015 |
Engine Type | H4 |
Engine Family | Subaru 4-cylinder |
Engine Size | 2.5L/2458cc |
Manley 04+ Subaru WRX STi (EJ257) STD Stroke 99.5mm STD Bore 8.5:1 Dish Piston Set with Rings | ||||
---|---|---|---|---|
Year | Make | Model | Submodel | Region |
2004 | Subaru | Impreza | WRX STI | US |
2005 | Subaru | Impreza | WRX STI | US |
2006 | Subaru | Impreza | WRX STI | US |
2007 | Subaru | Impreza | WRX STI Limited | US |
2007 | Subaru | Impreza | WRX STI | US |
2008 | Subaru | Impreza | WRX STI | US |
2009 | Subaru | Impreza | WRX STI | US |
2010 | Subaru | Impreza | WRX STI | US |
2010 | Subaru | Impreza | WRX STI Special Edition | US |
2011 | Subaru | Impreza | WRX STI | US |
2011 | Subaru | Impreza | WRX STI Limited | US |
2012 | Subaru | Impreza | WRX STI Limited | US |
2012 | Subaru | Impreza | WRX STI | US |
