When it comes to H-Beam connecting rods, not all are created equal. Manley's H-Beam Series stands out as a superior choice, offering exceptional quality at an economical price point. These connecting rods are meticulously crafted to meet the same high-quality standards as our renowned Sportsmaster? and Pro Series rods.

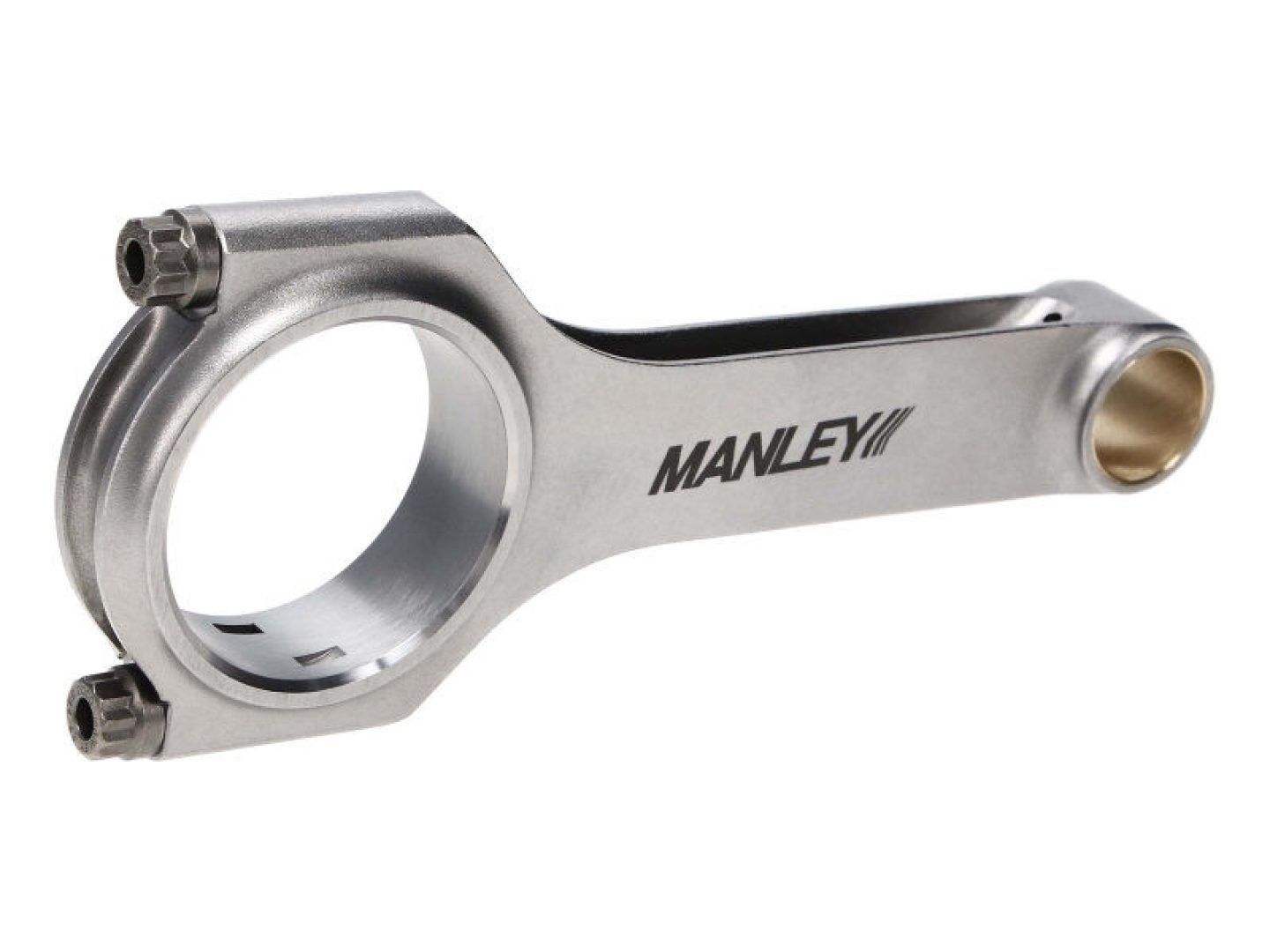

Manley Connecting Rod, ROD-SBC LS-1 6.125 H LITE.
Engine Connecting Rod Set
Manley takes their H-Lite Series connecting rods seriously. Manufactured from 4340 forgings, the rods are heat-treated, stress-relieved, shot-peened, and 100 percent magnafluxed. These lightweight versions feature premium 3/8 in. ARP 2000 cap fasteners. They offer exacting tolerances, high-quality standards, and pricing that's hard to beat. All H-beams are not the same; ensure a successful build with Manley Performance steel H-Lite connecting rods—available for applications spanning a half-century.
UPC | 807298017112 |
Brand | Manley |
Notes | Designed for racing use only. Custom pistons required when using connecting rods with custom wrist pin diameter and longer than stock length. |
Quantity | Sold as a set of 8. |
Part Type | Connecting Rods |
Magnafluxed | Yes |
Product Line | Manley H-Lite Series Connecting Rods |
Remanufactured | No |
Wrist Pin Style | Floating |
Weight Matched Set | Yes |
Cap Retention Style | Cap screw |
Connecting Rod Color | Shot-peened |
Advertised RPM Rating | 8,000 rpm |
Pin End Bore Diameter | 0.928 in. |
Clearanced for Stroker | No |
Connecting Rod Material | Forged 4340 steel |
Connecting Rod Beam Style | H-beam |
Connecting Rod Bolt Brand | ARP |
Manufacturer's Part Number | 14031-8 |
Rod Journal Diameter (in.) | 2.100 |
Big End Bore Diameter (in.) | 2.2250 |
Advertised Horsepower Rating | 700 hp |
Connecting Rod Bolt Diameter | 3/8 in. |
Connecting Rod Bolt Material | ARP2000 alloy |
Connecting Rod Bolt Head Style | 12-point |
Fastener Tensile Strength (psi) | 220,000 psi |
Approximate Connecting Rod Weight (g) | 605 |
Connecting Rod Length Center to Center (in.) | 6.125 in. |
Compatibility & Application Information | |
---|---|
Make | CHEVROLET |
Beginning Year | 1997 |
Ending Year | 2004 |
Engine Type | V8 |
Engine Family | Chevy small block Gen III/IV (LS-based engines) |
Engine Size | 5.7L/350 |
Manley Chevy Small Block LS/LT1 6.125in H Beam Connecting Rod Set w/ ARP2000 Bolts | ||||
---|---|---|---|---|
Year | Make | Model | Submodel | Region |
1997 | Chevrolet | Corvette | Base | US |
1998 | Chevrolet | Camaro | Z28 | US |
1998 | Pontiac | Firebird | Formula | US |
1998 | Chevrolet | Corvette | Base | US |
1999 | Chevrolet | Camaro | Z28 | US |
1999 | Pontiac | Firebird | Formula | US |
1999 | Chevrolet | Corvette | Base | US |
2000 | Chevrolet | Corvette | Base | US |
2000 | Pontiac | Firebird | Formula | US |
2000 | Chevrolet | Camaro | Z28 | US |
2001 | Pontiac | Firebird | Formula | US |
2001 | Chevrolet | Camaro | Z28 | US |
2001 | Chevrolet | Corvette | Base | US |
2002 | Chevrolet | Corvette | Base | US |
2002 | Chevrolet | Camaro | Z28 | US |
2002 | Pontiac | Firebird | Formula | US |
2003 | Chevrolet | Corvette | Base | US |
2004 | Chevrolet | Corvette | Base | US |
2004 | Pontiac | GTO | Base | US |
