Crankshaft
Our "Pro Series" 4340 alloy steel crankshafts are available with many value packed and high-performance enhancing features for a wide range of domestic engine applications.
Manley Crankshaft, CRANK-4340 FORGE 4.050 STROKE.
Engine Crankshaft
Unless otherwise stated, wheels and tyres are supplied individually. They are not typically listed as a full set since most vehicles run different widths and offsets front to rear. Please carefully check your PCD, width and offset (ET) when choosing wheels or wheel and tyre packages. If you need more information or clarification, contact StreetFX customer support prior to ordering.
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

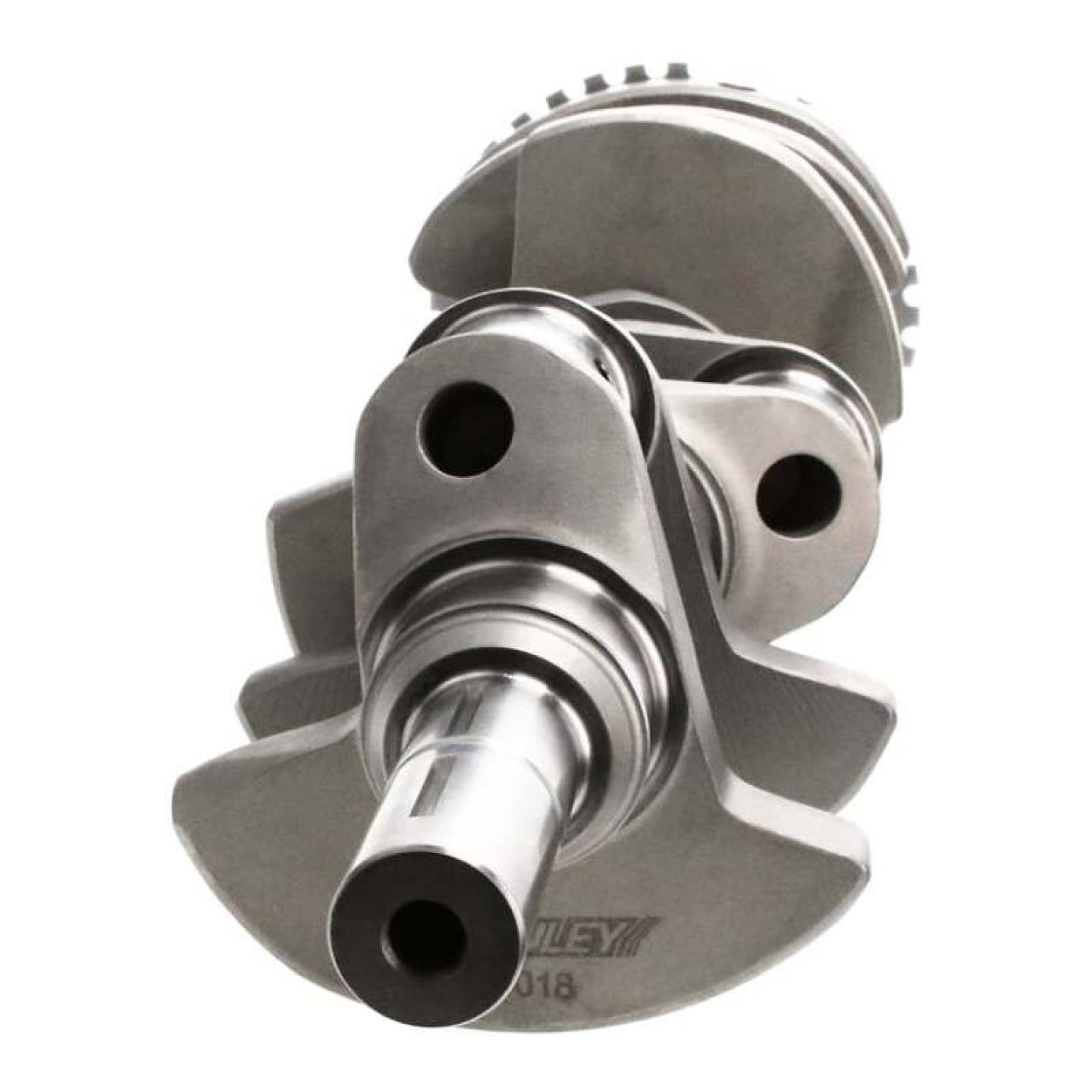

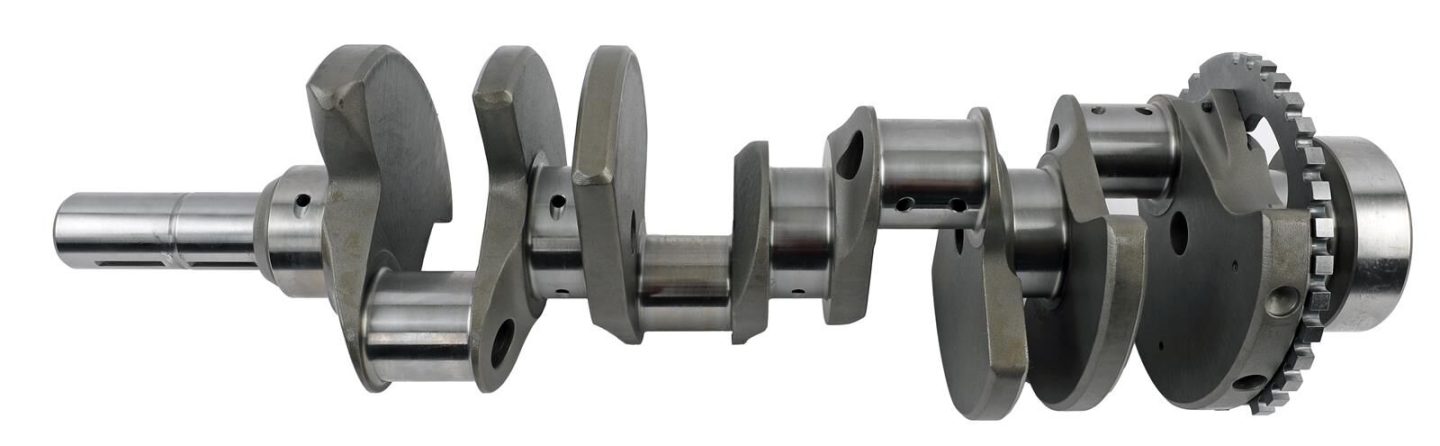

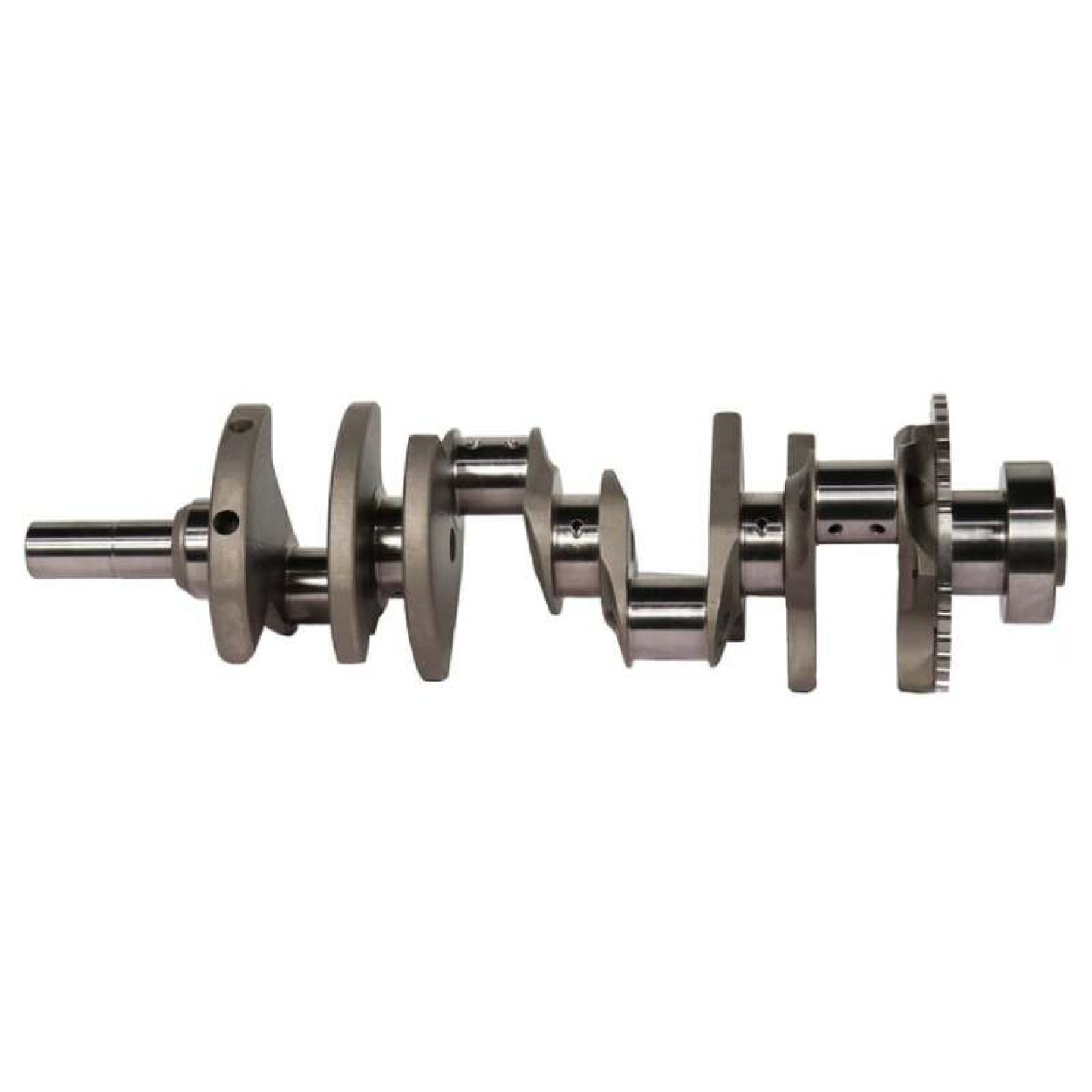

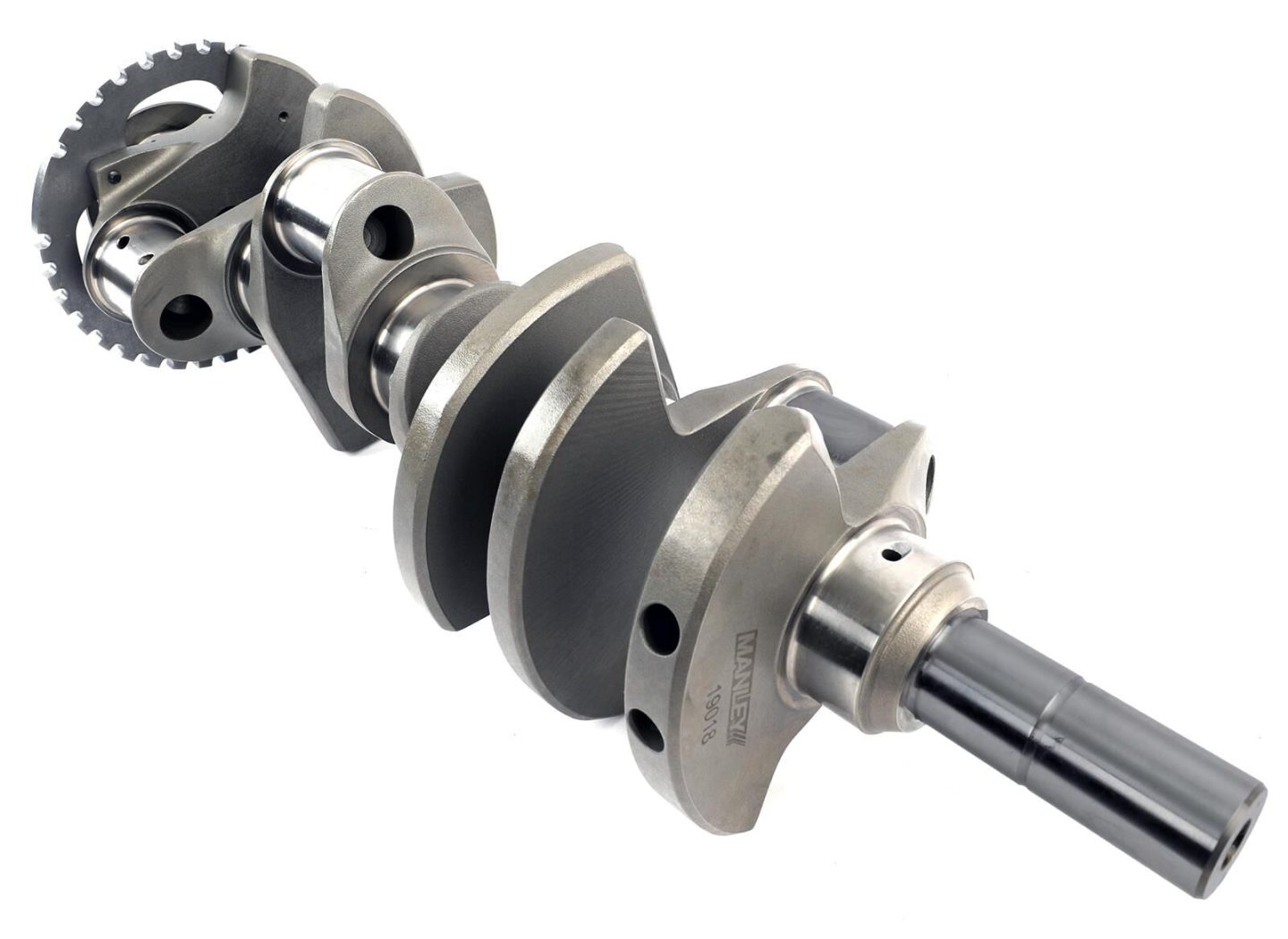

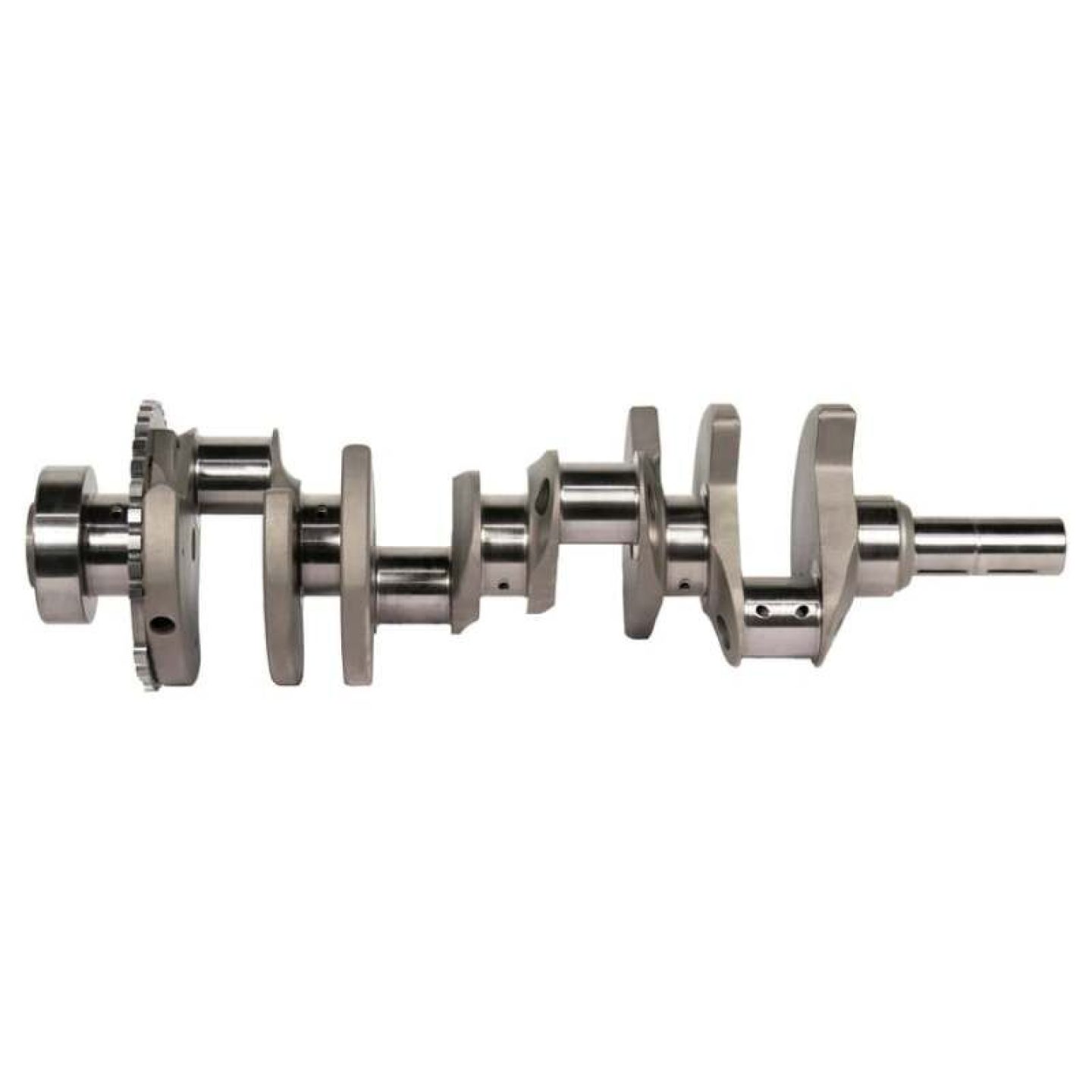

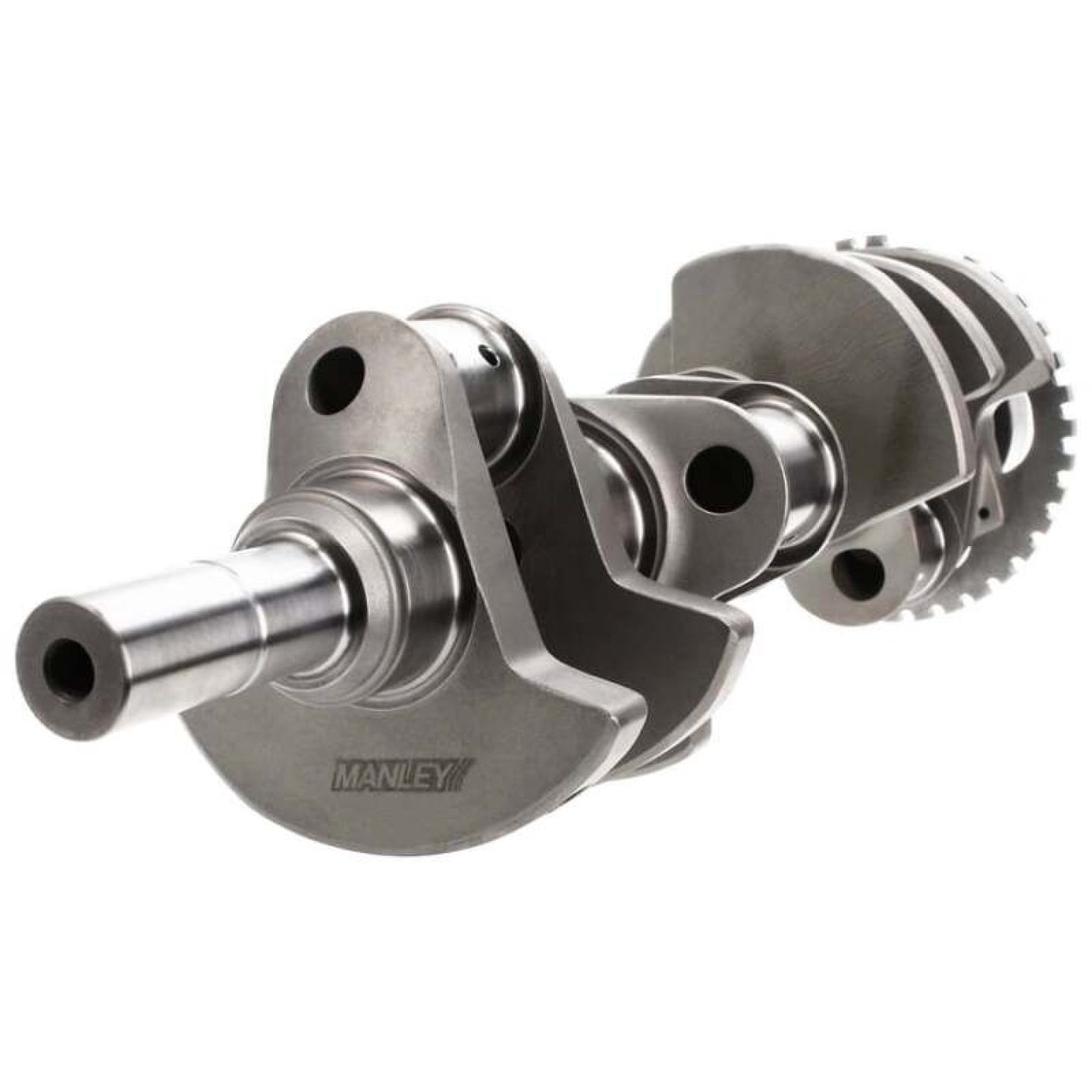

Crankshaft, 1-Piece Seal, Internal Balance, Forged 4340 Steel, 4.050 in. Stroke, Mopar Hemi V8 Modular, Each
Manley Pro Series crankshafts can make your short block bulletproof. They feature forged 4340 construction and undergo a multi-step heat-treatment process and are then nitrided for added strength. The crankshafts are stress-relieved, shot-peened, and magnafluxed. Manley Pro Series crankshafts have micro-polished large .125 in. radius journals, gun-drilled mains, and lightened rod journals for weight reduction. The counterweights are fully profiled and they are designed for internal balancing.
UPC | 807298068428 |
Brand | Manley |

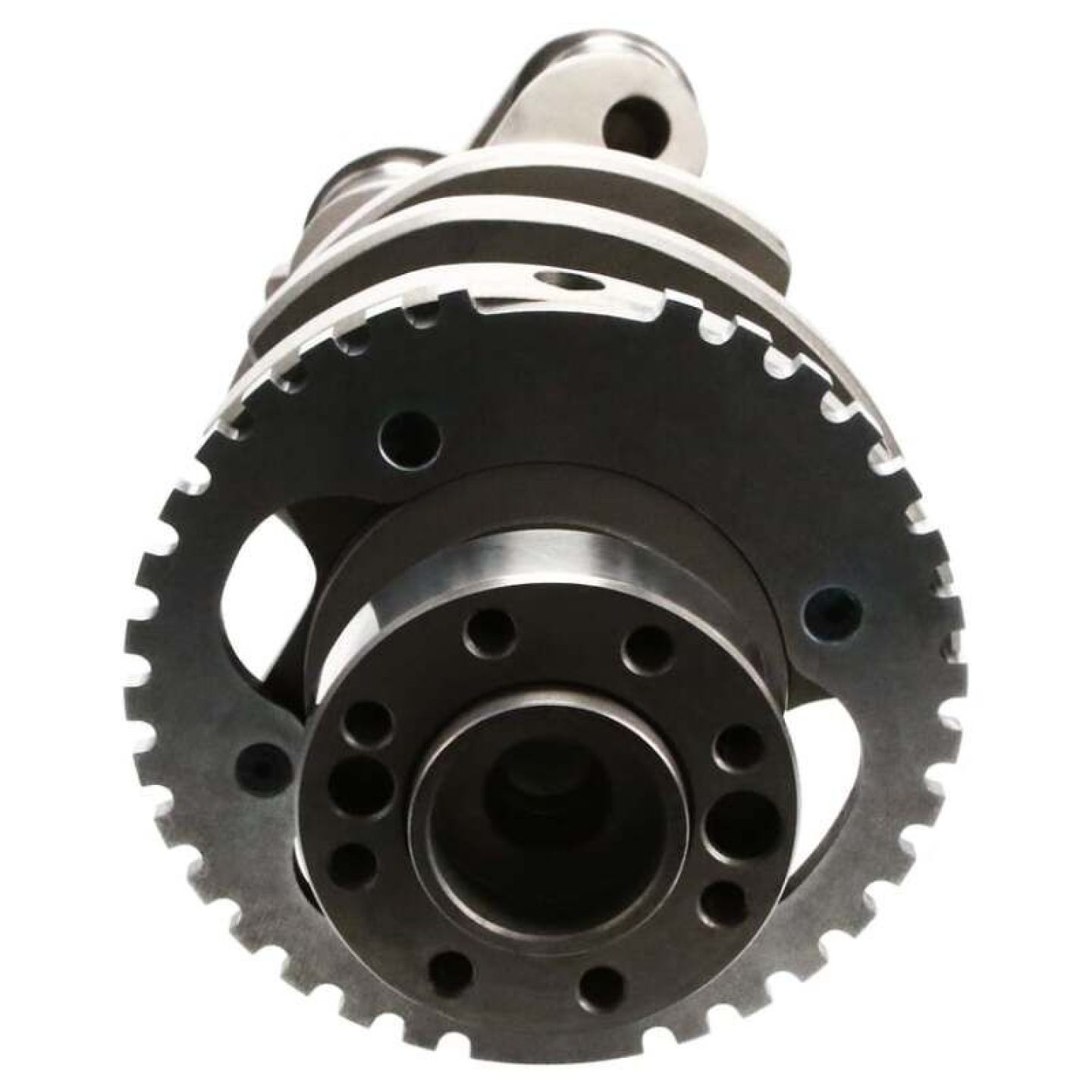

Notes | 2008 and earlier Hemi motors have 32-tooth reluctor wheel. 2009 and later have 58-tooth. Crank snout is dual keyed for supercharger drive pulleys. |
Weight | 49.000 lbs. |
Quantity | Sold individually. |
Lightened | Yes |
Part Type | Crankshafts |
Product Line | Manley Pro Series Crankshafts |
Engine Balance | Internal |
Crankshaft Material | Forged 4340 steel |
Engine Stroke (in.) | 4.050 in. |
Rear Main Seal Style | 1-piece |
Rod Bearings Included | No |
Crankshaft Snout Style | Standard |
Main Bearings Included | No |
Requires Narrow Bearings | Yes |
Manufacturer's Part Number | 191832 |
Rod Journal Diameter (in.) | 2.000 |
No specific fitment data available for this part. For clarification, please contact us.
Application Data | |
---|---|
Stroker Crankshaft | Yes |
Make | CHRYSLER |
Beginning Year | 2005 |
Ending Year | 2010 |
Engine Type | V8 |
Engine Family | Mopar Hemi Gen III |
Engine Size | 6.1L/370 |
Rod Length (application) | 6.125 in. |
Crankshaft to Flywheel/Flexplate Attachment | 8-bolt |
Stroker Crankshaft | Yes |
Make | CHRYSLER |
Beginning Year | 2005 |
Ending Year | 2012 |
Engine Type | V8 |
Engine Family | Mopar Hemi Gen III |
Engine Size | 5.7L/345 |
Rod Length (application) | 6.125 in. |
Crankshaft to Flywheel/Flexplate Attachment | 8-bolt |
Stroker Crankshaft | Yes |
Make | DODGE |
Beginning Year | 2003 |
Ending Year | 2012 |
Engine Type | V8 |
Engine Family | Mopar Hemi Gen III |
Engine Size | 5.7L/345 |
Rod Length (application) | 6.125 in. |
Crankshaft to Flywheel/Flexplate Attachment | 8-bolt |
