Piston
Our signature "Platinum Series" pistons feature 2618 alloy forgings, proven cam and barrel skirt profiles, tool steel wrist pins, and moly skirt coatings on select part numbers. Join the ranks of professional engine builders and tuners who rely on Manley pistons for superior performance and durability.
Manley Piston Set, PIST-4.100/1.120CD/20.5ccDISH.
Engine Piston Set
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

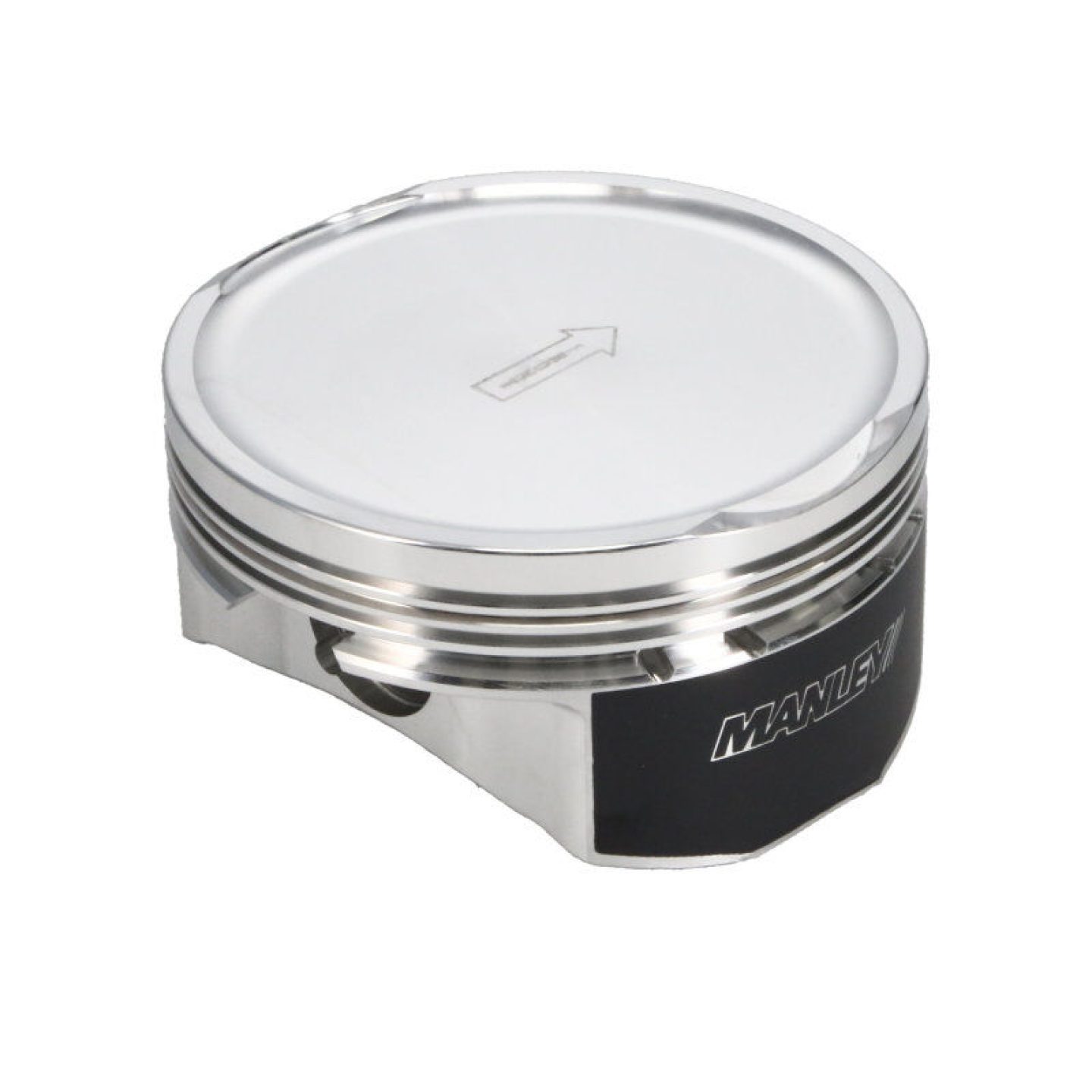

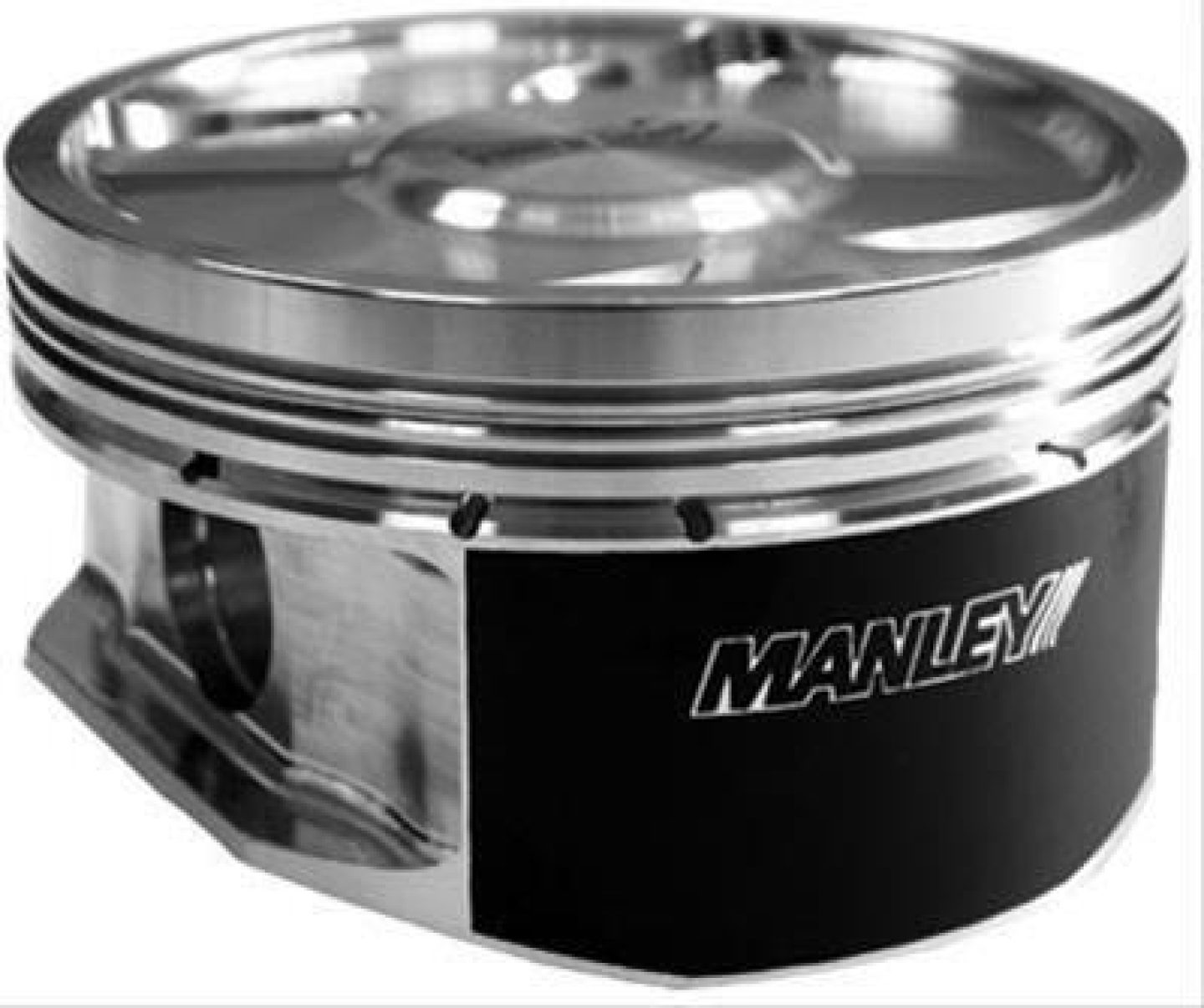

Pistons, Platinum Series, Forged, Dish, 4.100 in. Bore, Dodge, 6.4L, Set of 8
Manley Platinum Series pistons are designed to provide trouble-free installation, excellent reliability, and maximum horsepower for your application. Available in 2618 and 4032 forgings, they provide the optimum balance between strength and weight, with no grain-interrupting internal milling. The Platinum Series pistons' 2618 alloy offers maximum high-temperature strength and fatigue resistance, while the 4032 alloy is ideal for moderate-horsepower street applications. Order the style and size pistons designed for your vehicle and engine.
UPC | 807298094465 |
Brand | Manley |
Stroke | 4.050 in. |
Gapless | No |
File Fit | No |
Quantity | Sold as a set of 8. |
Bore (mm) | 104.140mm |
Part Type | Pistons |
Bore (in.) | 4.100 in. |
Rod Length | 6.125 in. |
Piston Style | Dish, with no valve reliefs |
Product Line | Manley Platinum Series Pistons |
Piston Material | Forged aluminum |
Wrist Pin Style | Floating |
Pin Diameter (in.) | 0.927 in. |
Wrist Pin Included | Yes |
Piston Ring Thickness | 1.50mm x 1.50mm x 3.00mm |
Piston Rings Included | No |
Piston Head Volume (cc) | +20.50cc |
Compression Height (in.) | 1.120 in. |
Manufacturer's Part Number | 599910C-8 |
Wrist Pin Retainers Included | Yes |
No specific fitment data available for this part. For clarification, please contact us.
Application Data | |
---|---|
Make | DODGE |
Beginning Year | 2011 |
Ending Year | 2021 |
Engine Type | V8 |
Engine Family | Mopar Hemi Gen III |
Engine Size | 6.4L/392 |
