Piston
Our signature "Platinum Series" pistons feature 2618 alloy forgings, proven cam and barrel skirt profiles, tool steel wrist pins, and moly skirt coatings on select part numbers. Join the ranks of professional engine builders and tuners who rely on Manley pistons for superior performance and durability.
Manley Piston Set, PIST-3.552/1.220 CD/FT .
Engine Piston Set
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

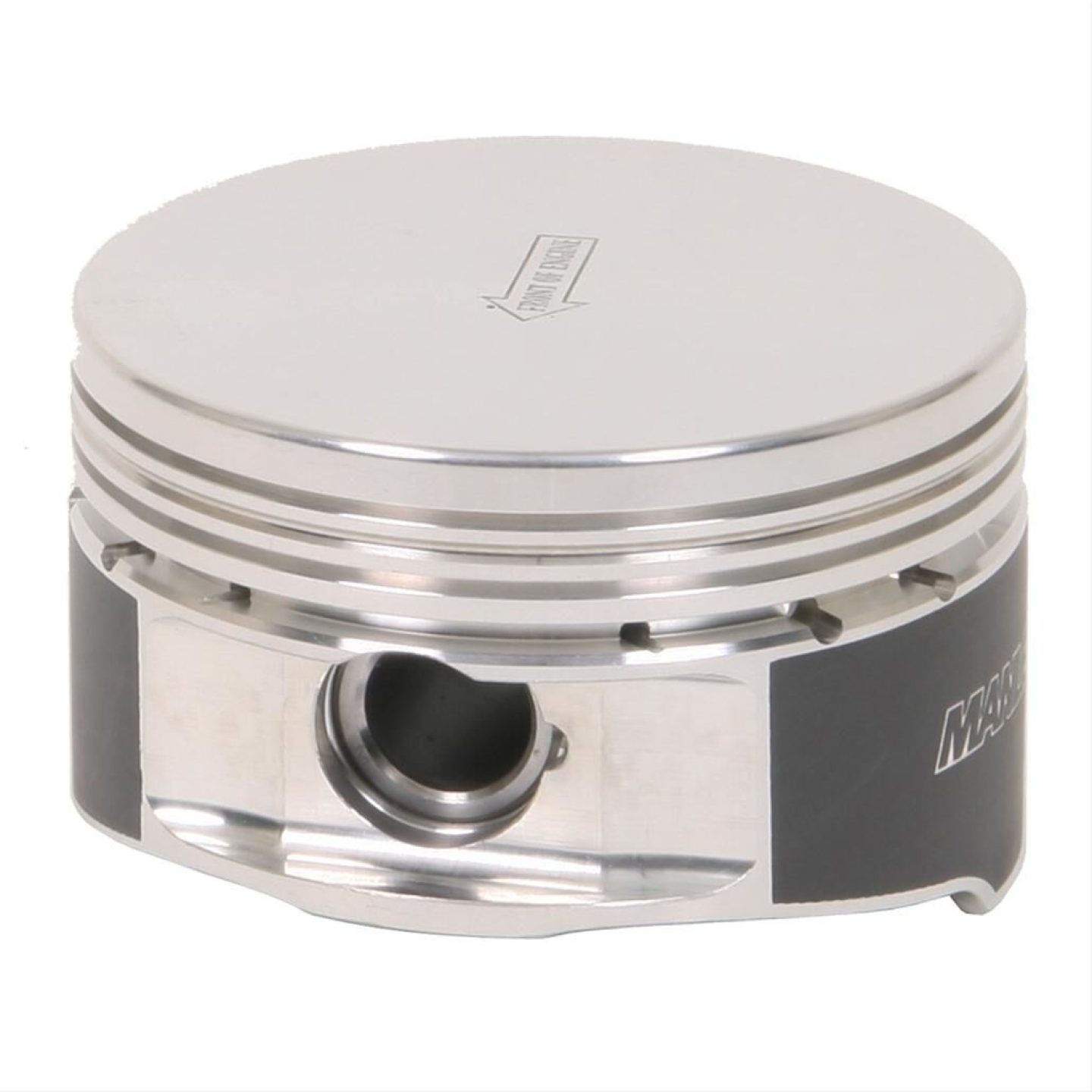

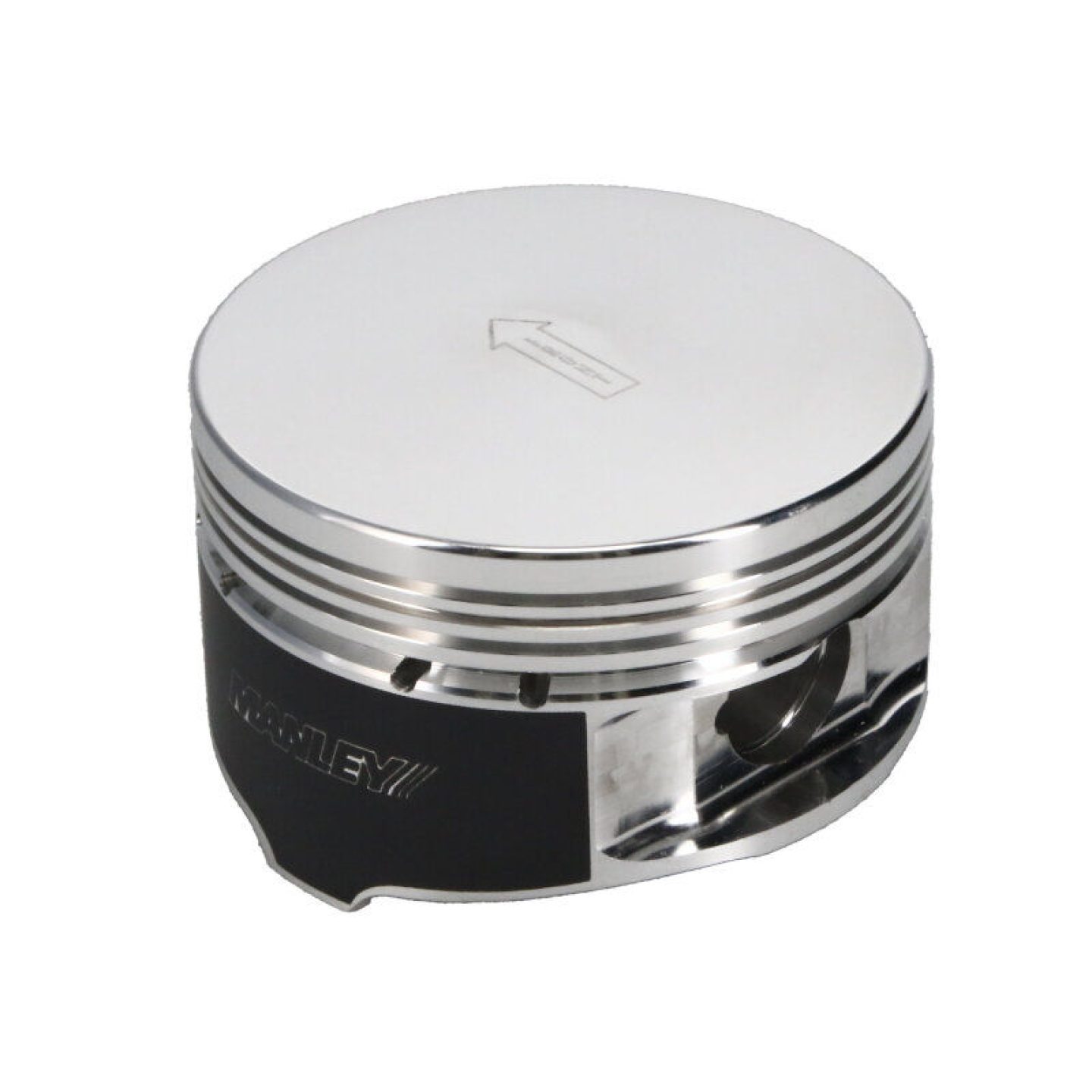

Pistons, Forged, Flat, 3.552 in. Bore, Ford, Modular V8, Set of 8
Manley Platinum Series pistons are designed to provide trouble-free installation, excellent reliability, and maximum horsepower for your application. Available in 2618 and 4032 forgings, they provide the optimum balance between strength and weight, with no grain-interrupting internal milling. The Platinum Series pistons' 2618 alloy offers maximum high-temperature strength and fatigue resistance, while the 4032 alloy is ideal for moderate-horsepower street applications. Order the style and size pistons designed for your vehicle and engine.
UPC | 807298024622 |
Brand | Manley |
Notes | Coated skirt. |
Stroke | 3.543 in. |
Gapless | No |
File Fit | No |
Quantity | Sold as a set of 8. |
Bore (mm) | 90.221mm |
Part Type | Pistons |
Bore (in.) | 3.552 in. |
Rod Length | 5.933 in. |
Piston Style | Flat top, with no valve reliefs |
Product Line | Manley Platinum Series Pistons |
Piston Material | Forged aluminum |
Wrist Pin Style | Press-fit or floating |
Engine Stroke Type | Stock |
Pin Diameter (in.) | 0.866 in. |
Wrist Pin Included | Yes |
Piston Ring Thickness | 1.50mm x 1.50mm x 3.00mm |
Piston Rings Included | No |
Piston Head Volume (cc) | 0.00cc |
Compression Height (in.) | 1.220 in. |
Manufacturer's Part Number | 594000C-8 |
Wrist Pin Retainers Included | Yes |
Manley Ford Platinum Series Flat Top Piston Set | ||||
---|---|---|---|---|
Year Range | Make | Model | Submodels | Region |
1997-2003 | Ford | F-150 | Base, Lightning, Harley-Davidson Edition | US |
2005-2008 | Ford | F-150 | FX4, King Ranch, Lariat, XLT, XL, Harley-Davidson Edition, FX2, Limited | US |
2006-2008 | Ford | F-250 Super Duty | XL, XLT, Lariat, King Ranch, FX4 | US |
2006-2008 | Ford | F-350 Super Duty | XL, XLT, Lariat, King Ranch, FX4 | US |
2005-2006 | Ford | GT | Base | US |
1996-2004 | Ford | Mustang | GT, SVT Cobra, SVT Cobra R | US |
2007-2008 | Ford | Mustang | Shelby GT500 | US |
Please note that this information serves as a fitment guide only. For specific fitment questions or clarifications, please contact us, as manufacturers may introduce variations and modifications during model year or regional revisions. While we strive to provide accurate data, fitment details may vary by region; therefore, compatibility outside the listed region and submodel variant cannot be guaranteed.
Application Data | |
---|---|
Make | FORD |
Beginning Year | 1992 |
Ending Year | 2008 |
Engine Type | V8 |
Engine Family | Ford modular V8 |
Engine Size | 4.6L/281 |
Make | FORD |
Beginning Year | 1997 |
Ending Year | 2008 |
Engine Type | V8 |
Engine Family | Ford modular V8 |
Engine Size | 5.4L/330 |
Make | LINCOLN |
Beginning Year | 1991 |
Ending Year | 2008 |
Engine Type | V8 |
Engine Family | Ford modular V8 |
Engine Size | 4.6L/281 |
