Manley's Pro Series I-Beam Connecting Rods represent the epitome of precision, performance, and quality. Engineered with meticulous attention to detail and a finely tuned manufacturing process, these rods are a testament to our commitment to excellence. Elevate your engine's capabilities and achieve outstanding results with these exceptional connecting rods.

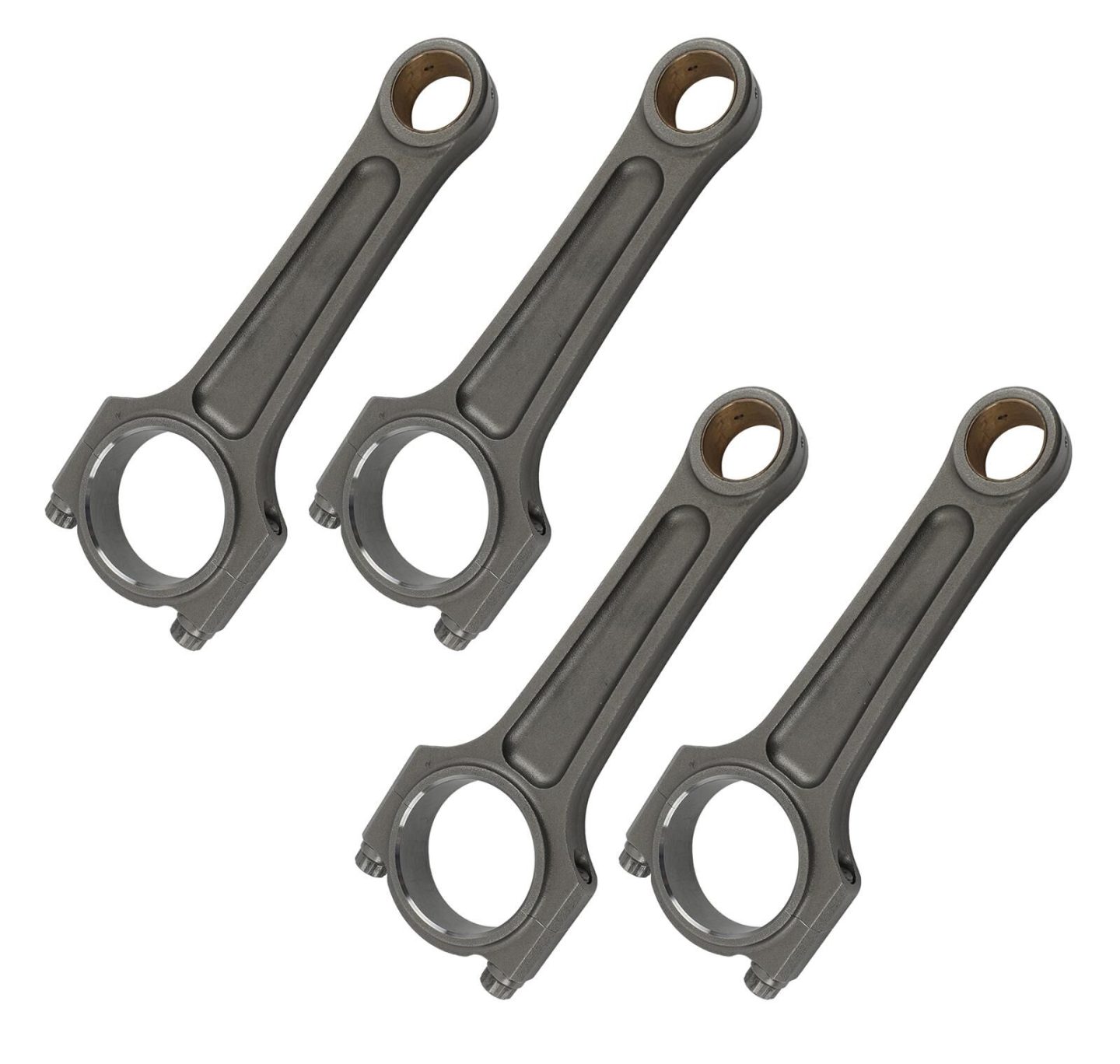

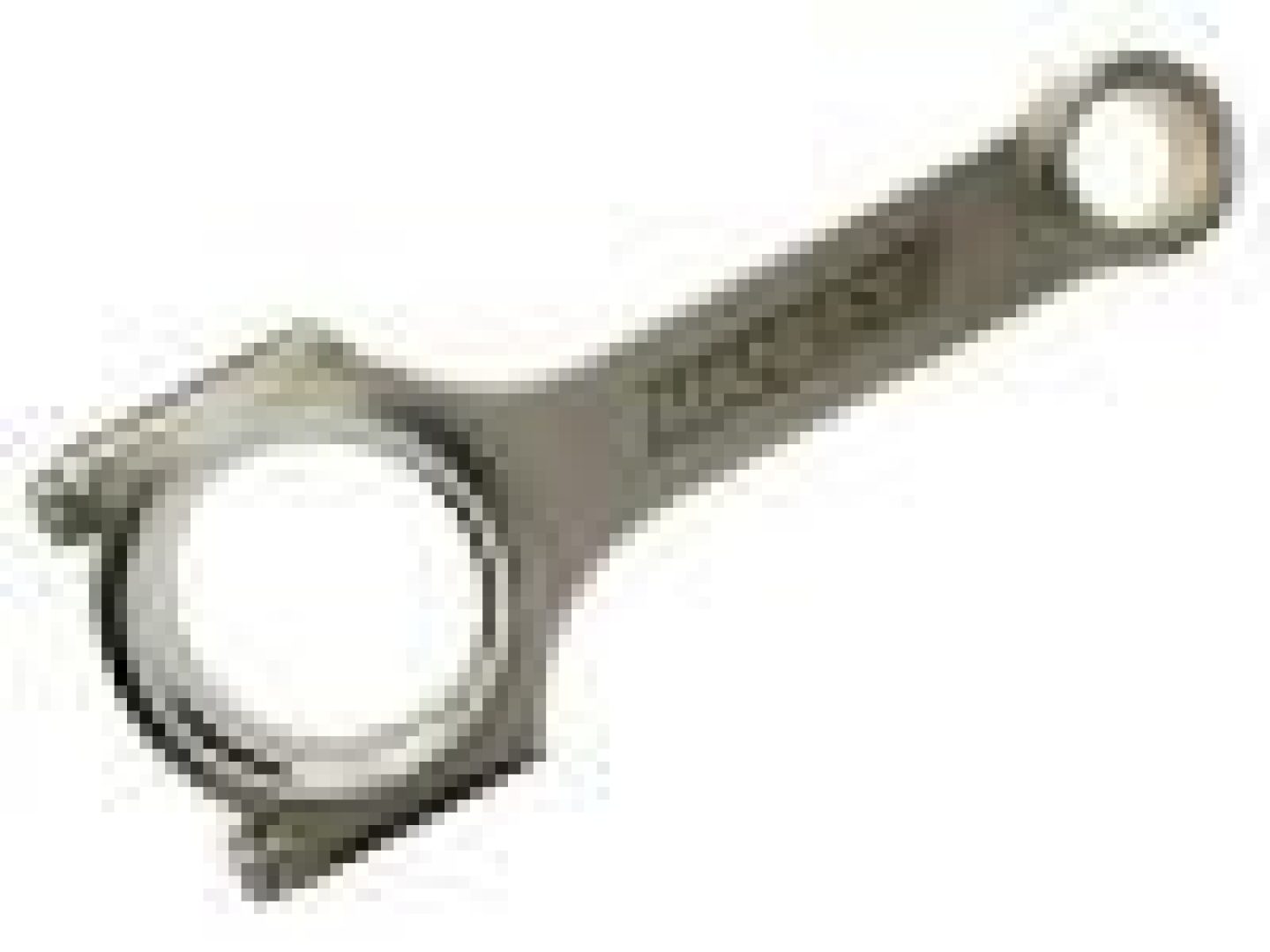

Manley Connecting Rod, ROD-HONDA CRV K24 02-UP T/T.
Engine Connecting Rod Set
Manley Pro Series I-Beam Turbo Tuff connecting rods are assembled from high-quality 4340 forged steel. Every rod is fully machined to the highest standards, and the Turbo Tuff design combines the appropriate weight and rugged strength for ultimate horsepower utilization. Each rod is shot-peened after machining and individually magnafluxed. These connecting rods feature 7/16 in. ARP 2000 cap screws with 12-point heads for outstanding 200,000 psi tensile strength.
UPC | 807298009360 |
Brand | Manley |
Quantity | Sold as a set of 4. |
Part Type | Connecting Rods |
Magnafluxed | Yes |
Product Line | Manley Pro Series I-Beam Turbo Tuff Connecting Rods |
Remanufactured | No |
Wrist Pin Style | Floating |
Weight Matched Set | Yes |
Big End Width (in.) | 0.780 |
Cap Retention Style | Cap screw |
Connecting Rod Color | Shot-peened |
Pin End Bore Diameter | 0.867 in. |
Clearanced for Stroker | No |
Connecting Rod Material | Forged 4340 steel |
Connecting Rod Beam Style | I-beam |
Connecting Rod Bolt Brand | ARP |
Manufacturer's Part Number | 14405-4 |
Big End Bore Diameter (in.) | 2.0080 |
Advertised Horsepower Rating | 1,000 hp |
Connecting Rod Bolt Diameter | 3/8 in. |
Connecting Rod Bolt Material | ARP2000 alloy |
Connecting Rod Bolt Head Style | 12-point |
Fastener Tensile Strength (psi) | 200,000 psi |
Approximate Connecting Rod Weight (g) | 590 |
Connecting Rod Length Center to Center (in.) | 5.984 in. |
Compatibility & Application Information | |
---|---|
Make | ACURA |
Beginning Year | 2004 |
Ending Year | 2008 |
Engine Type | L4 |
Engine Family | Honda/Acura 4-cylinder |
Engine Size | 2.4L/2354cc |
Make | ACURA |
Beginning Year | 2009 |
Ending Year | 2014 |
Engine Type | L4 |
Engine Family | Honda/Acura 4-cylinder |
Engine Size | 2.4L/2354cc |
Make | ACURA |
Beginning Year | 2013 |
Ending Year | 2021 |
Engine Type | L4 |
Engine Family | Honda/Acura 4-cylinder |
Engine Size | 2.4L/2354cc |
Make | ACURA |
Beginning Year | 2015 |
Ending Year | 2021 |
Engine Type | L4 |
Engine Family | Honda/Acura 4-cylinder |
Engine Size | 2.4L/2356cc |
Make | HONDA |
Beginning Year | 2002 |
Ending Year | 2006 |
Engine Type | L4 |
Engine Family | Honda/Acura 4-cylinder |
Engine Size | 2.4L/2354cc |
Make | HONDA |
Beginning Year | 2003 |
Ending Year | 2006 |
Engine Type | L4 |
Engine Family | Honda/Acura 4-cylinder |
Engine Size | 2.4L/2354cc |
Make | HONDA |
Beginning Year | 2006 |
Ending Year | 2011 |
Engine Type | L4 |
Engine Family | Honda/Acura 4-cylinder |
Engine Size | 2.4L/2354cc |
Make | HONDA |
Beginning Year | 2007 |
Ending Year | 2009 |
Engine Type | L4 |
Engine Family | Honda/Acura 4-cylinder |
Engine Size | 2.4L/2354cc |
Make | HONDA |
Beginning Year | 2008 |
Manley Honda/Acura (K24) Turbo Tuff Pro Series I Beam Connecting Rod Set | ||||
---|---|---|---|---|
Year | Make | Model | Submodel | Region |
2002 | Honda | CR-V | EX | US |
2002 | Honda | CR-V | LX | US |
2003 | Honda | CR-V | EX | US |
2003 | Honda | CR-V | LX | US |
2003 | Honda | Accord | DX | US |
2003 | Honda | Element | DX | US |
2003 | Honda | Element | EX | US |
2003 | Honda | Accord | LX | US |
2003 | Honda | Accord | EX | US |
2004 | Honda | CR-V | LX | US |
2004 | Acura | TSX | Base | US |
2004 | Honda | Accord | LX | US |
2004 | Honda | Accord | DX | US |
2004 | Honda | Element | DX | US |
2004 | Honda | Accord | EX | US |
2004 | Honda | Element | EX | US |
2004 | Honda | Element | LX | US |
2004 | Honda | CR-V | EX | US |
2005 | Honda | Element | EX | US |
2005 | Acura | TSX | Base | US |
2005 | Honda | Accord | EX | US |
2005 | Honda | Element | LX | US |
2005 | Honda | Accord | DX | US |
2005 | Honda | CR-V | LX | US |
2005 | Honda | Accord | LX | US |
2005 | Honda | CR-V | EX | US |
2006 | Honda | Accord | EX | US |
2006 | Honda | Element | EX | US |
2006 | Honda | Element | LX | US |
2006 | Acura | TSX | Base | US |
2006 | Honda | Accord | Value Package | US |
2006 | Honda | CR-V | EX | US |
2006 | Honda | CR-V | LX | US |
2006 | Honda | Accord | LX | US |
2006 | Honda | Accord | LX Special Edition | US |
2007 | Honda | Accord | Value Package | US |
2007 | Honda | Element | EX | US |
2007 | Honda | Element | SC | US |
2007 | Honda | Element | LX | US |
2007 | Honda | CR-V | EX | US |
2007 | Honda | CR-V | LX | US |
2007 | Honda | Accord | Special Edition | US |
2007 | Honda | Accord | LX | US |
2007 | Honda | Accord | EX | US |
2007 | Acura | TSX | Base | US |
2008 | Honda | Element | LX | US |
2008 | Honda | Element | EX | US |
2008 | Honda | CR-V | LX | US |
2008 | Acura | TSX | Base | US |
2008 | Honda | Element | SC | US |
Note: Over 50 fitments returned for this product, this table is trimmed to only display the first 50. |
