Connecting Rod
When it comes to H-Beam connecting rods, not all are created equal. Manley's H-Beam Series stands out as a superior choice, offering exceptional quality at an economical price point. These connecting rods are meticulously crafted to meet the same high-quality standards as our renowned Sportsmaster? and Pro Series rods.

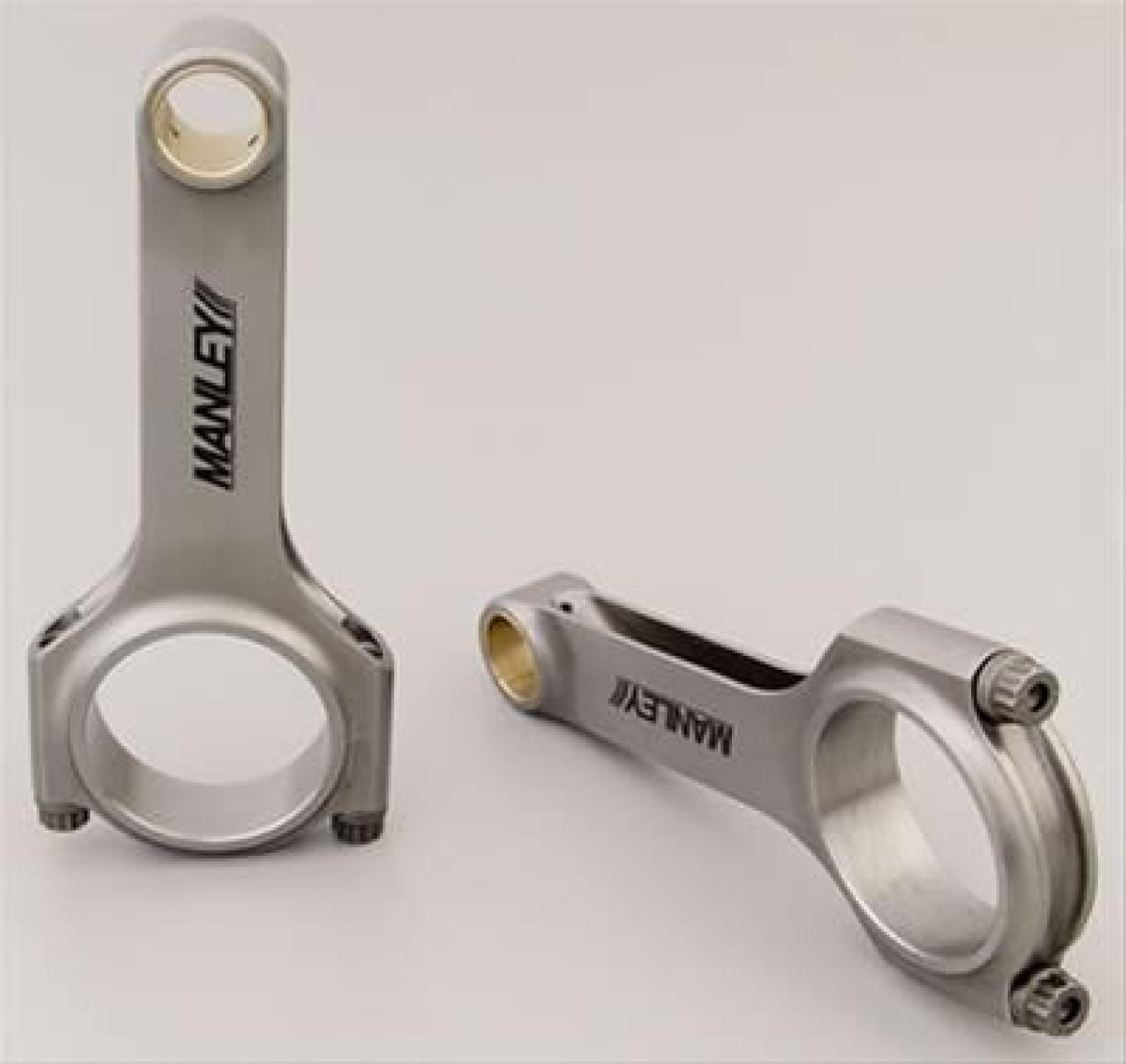

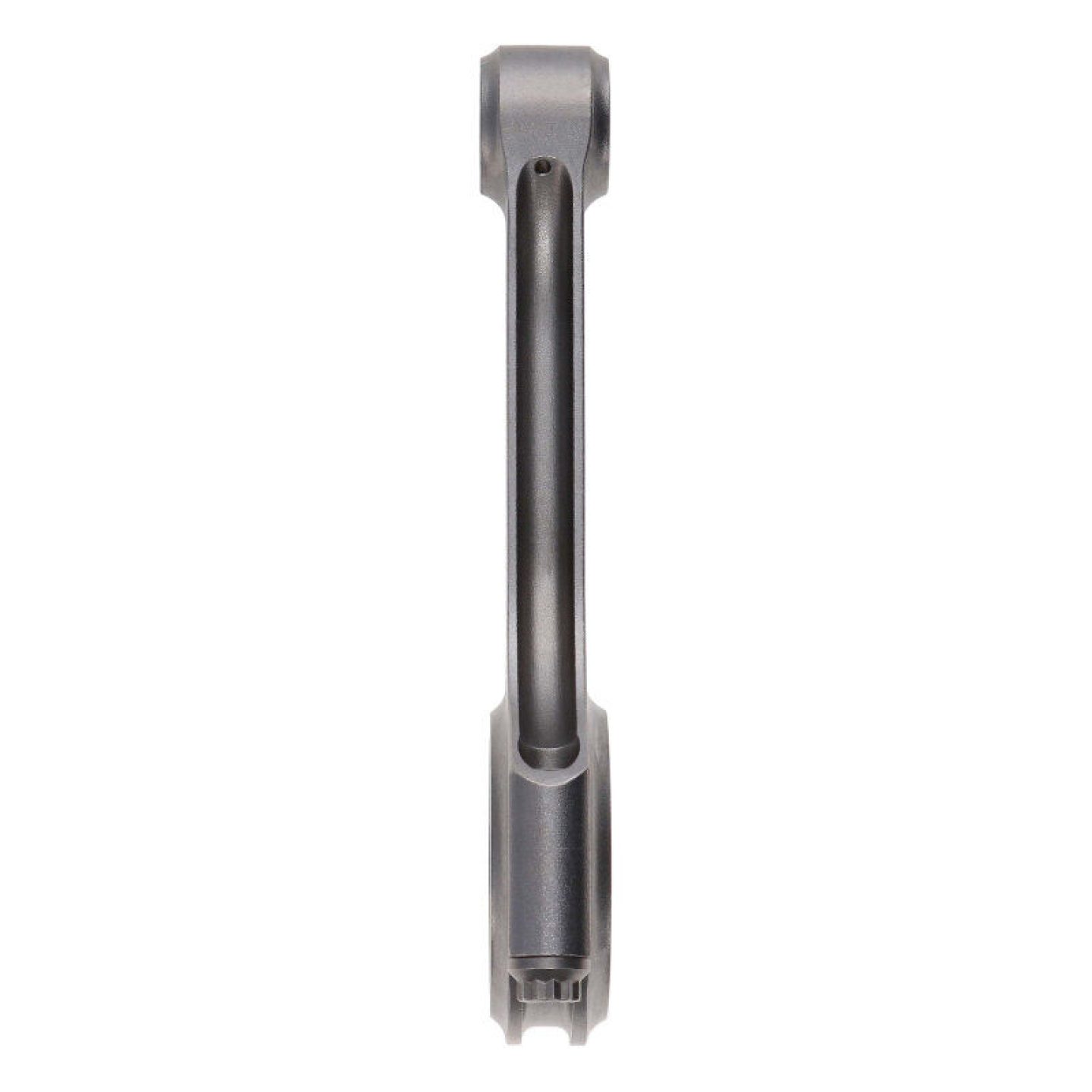

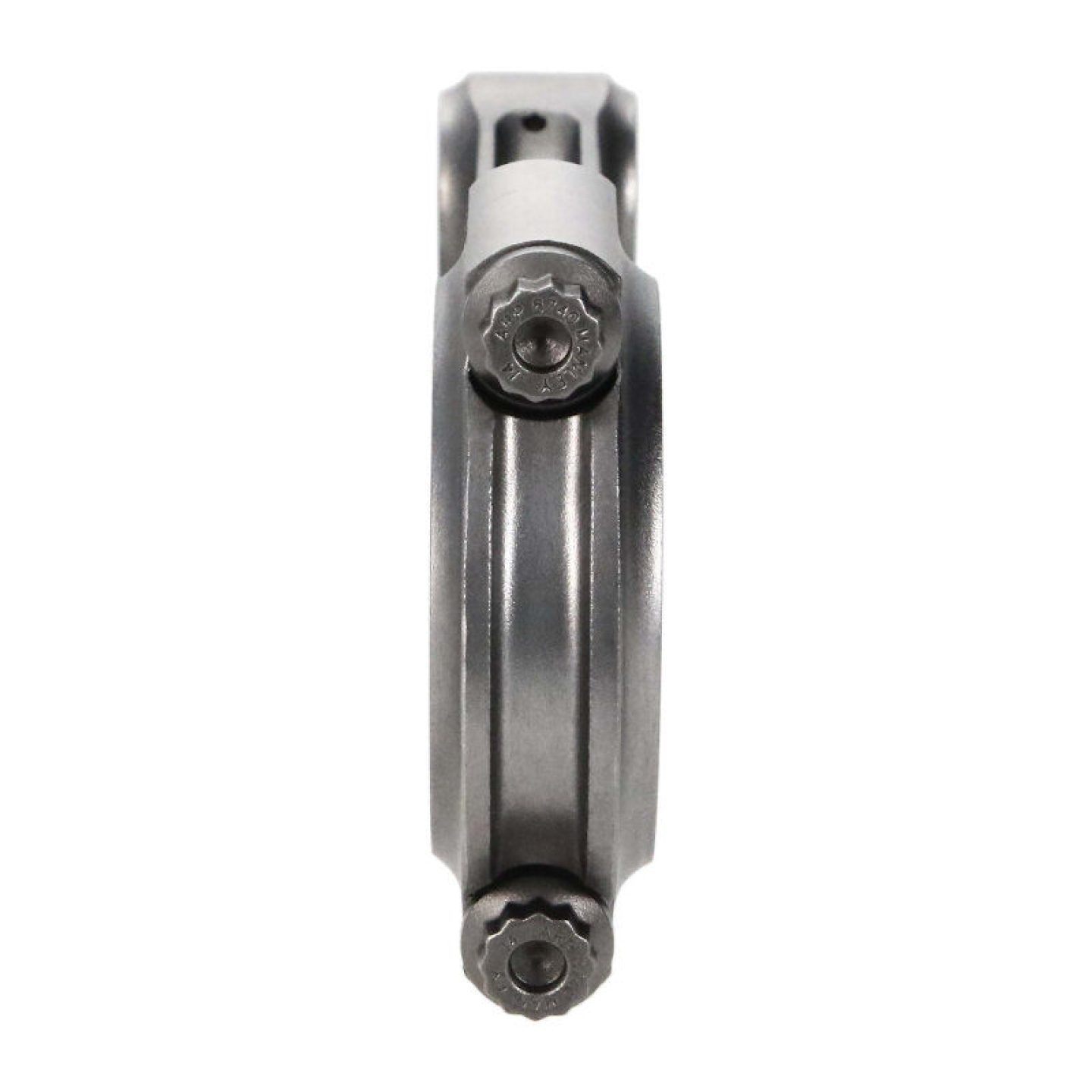

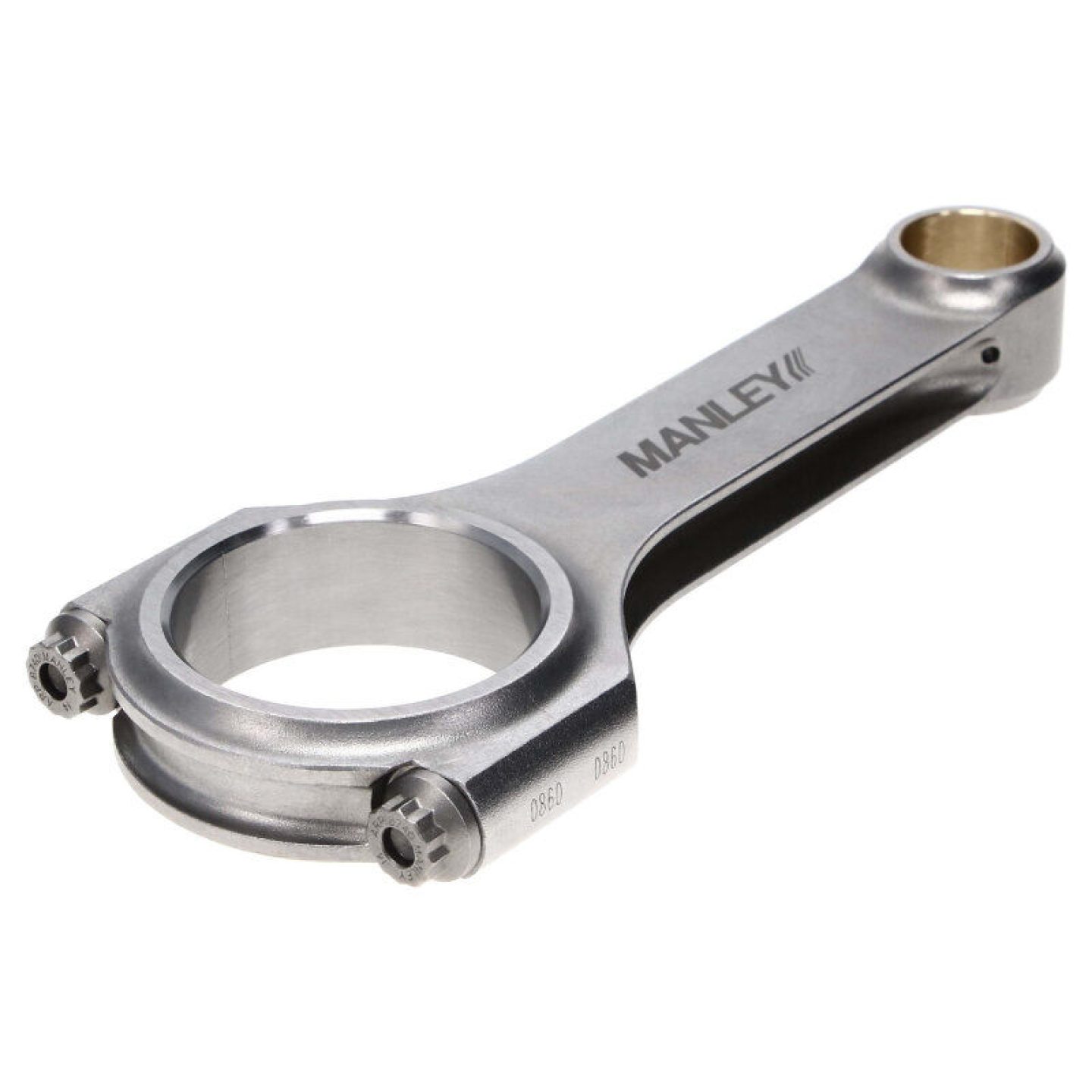

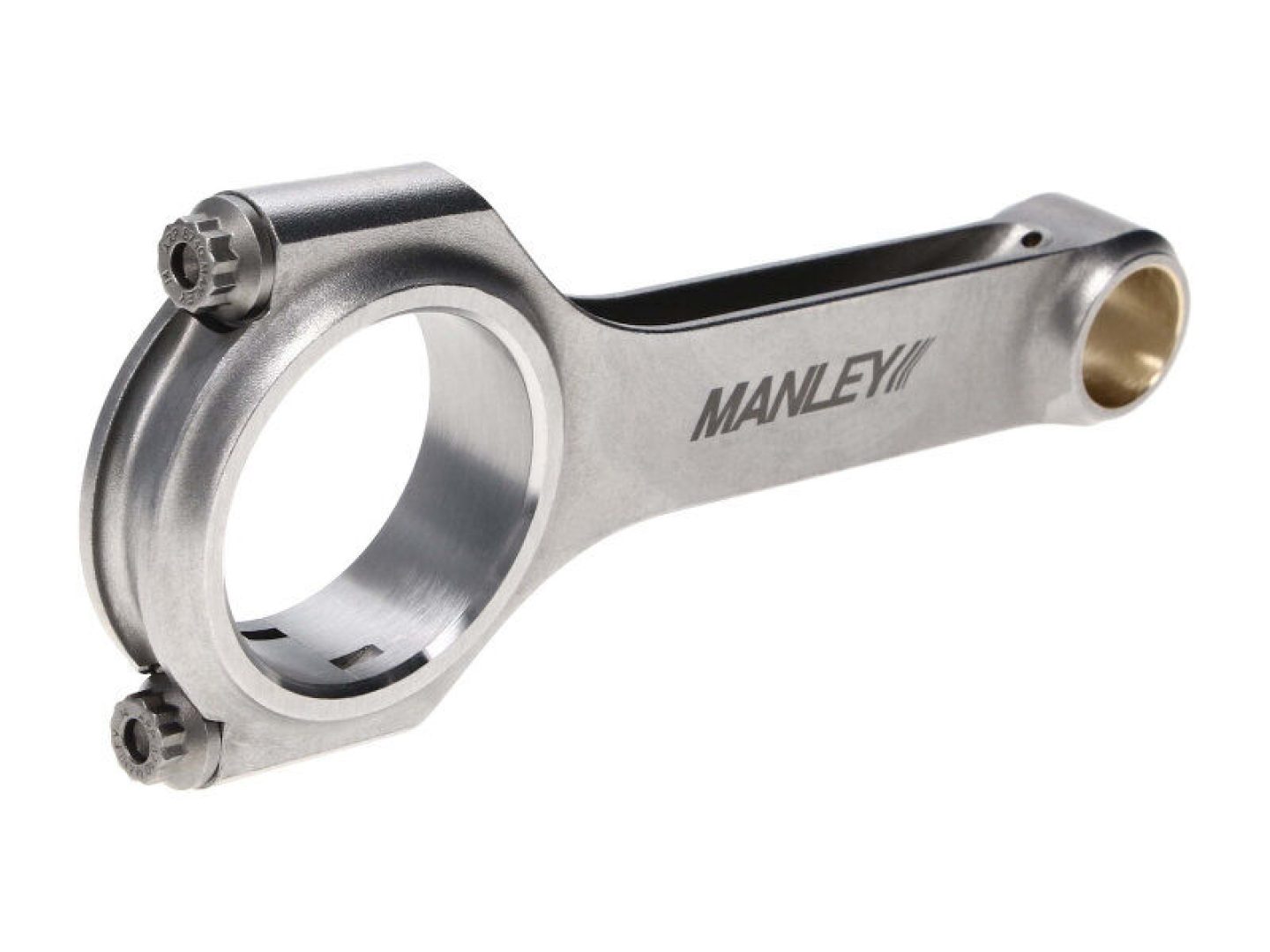

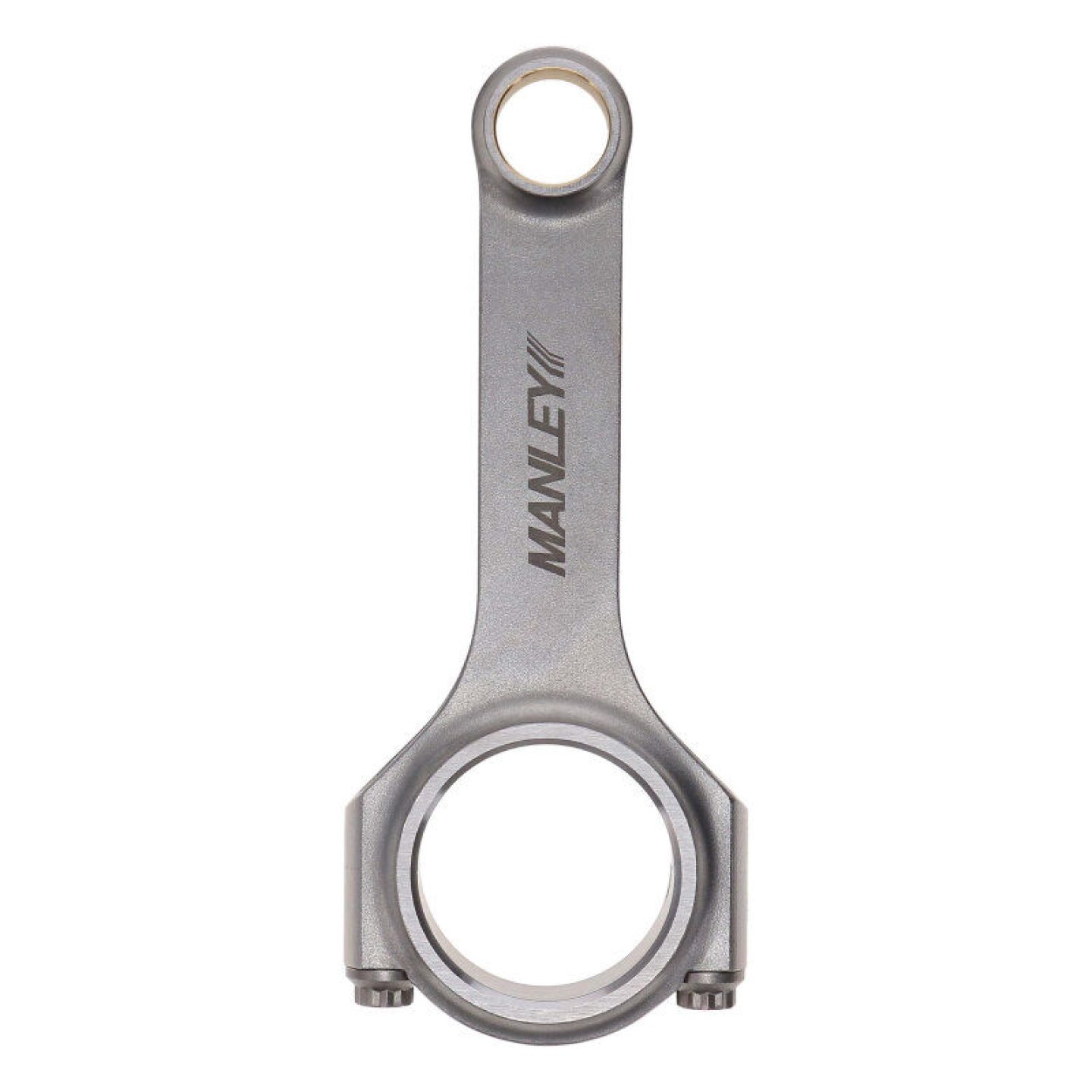

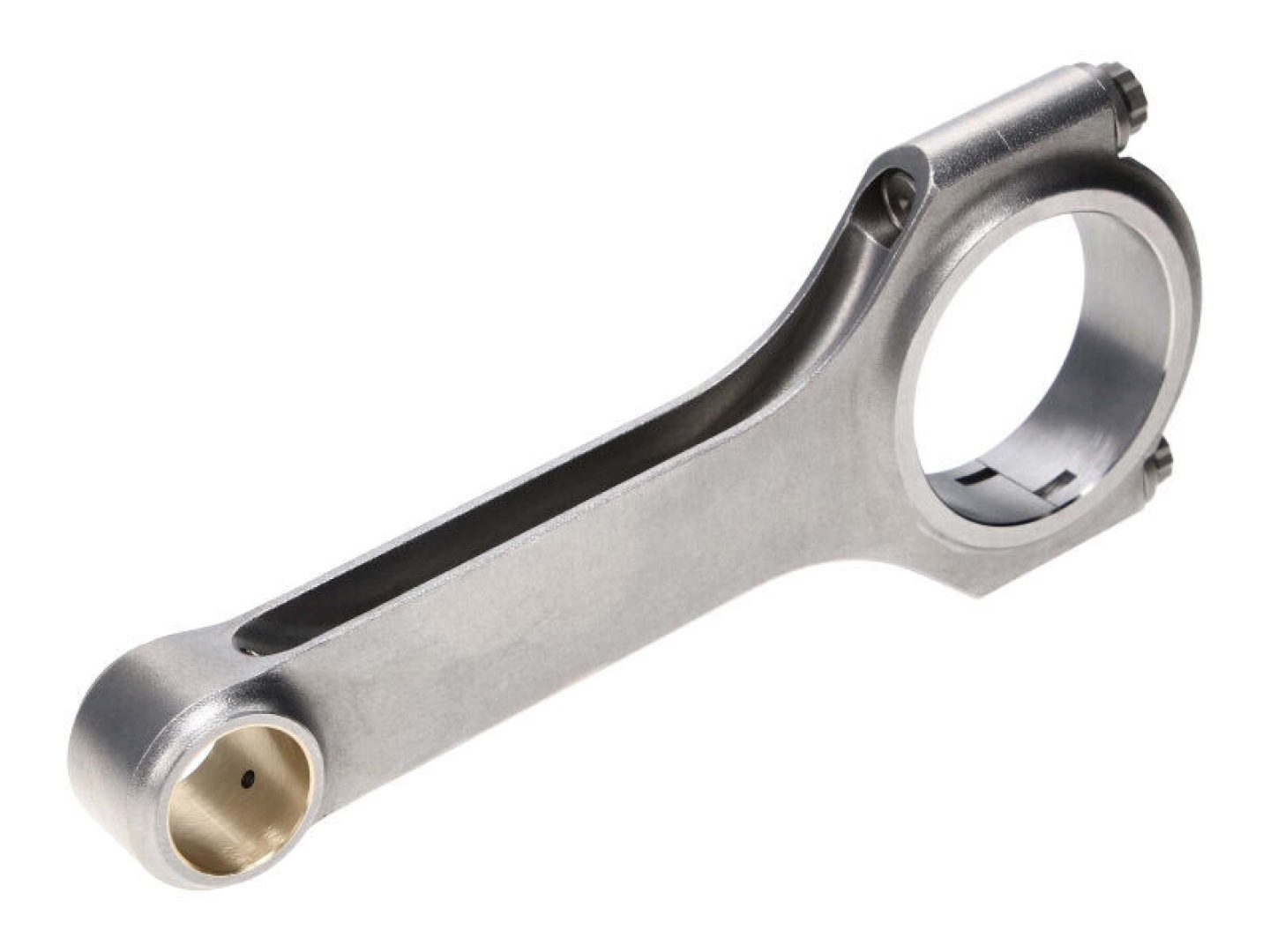

Manley Connecting Rod, ROD-SUBARU EJ 18/20/22 H/B.
Engine Connecting Rod
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
ROD-SUBARU EJ 18/20/22 H/B
Manley steel H-beam connecting rods are made from forged 4340 steel alloy. They're packed full of performance features, such as a compact uniform-grain structure for ultimate strength, full machining, stress relieving, and magnafluxing. The wrist pin and big end bores are honed to a +/-.0002 in. tolerance, and the wrist pins get a bronze alloy bushing. These units include cap screw ARP 8740 alloy rod bolts, and each rod set is weight-matched to within 2 grams. Available individually or in a set, order the model recommended for your vehicle year/make and engine application.
UPC | 807298005324 |
Brand | Manley |
Notes | Fits EJ205 and EJ257 engines only. |
Quantity | Sold individually. |
Part Type | Connecting Rods |
Magnafluxed | Yes |
Product Line | Manley Steel H-Beam Connecting Rods |
Remanufactured | No |
Wrist Pin Style | Floating |
Weight Matched Set | Yes |
Big End Width (in.) | 0.840 |
Cap Retention Style | Cap screw |
Connecting Rod Color | Shot-peened |
Pin End Bore Diameter | 0.906 in. |
Clearanced for Stroker | No |
Connecting Rod Material | Forged 4340 steel |
Connecting Rod Beam Style | H-beam |
Connecting Rod Bolt Brand | ARP |
Manufacturer's Part Number | 14024-1 |
Big End Bore Diameter (in.) | 2.1650 |
Advertised Horsepower Rating | 600 hp |
Connecting Rod Bolt Diameter | 3/8 in. |
Connecting Rod Bolt Material | ARP2000 alloy |
Connecting Rod Bolt Head Style | 12-point |
Fastener Tensile Strength (psi) | 200,000 psi |
Approximate Connecting Rod Weight (g) | 530 |
Connecting Rod Length Center to Center (in.) | 5.137 in. |
Manley Subaru WRX / STI (EJ18/20/22/25) H Beam Single Connecting Rod | ||||
---|---|---|---|---|
Year Range | Make | Model | Submodels | Region |
2005-2006 | Saab | 9-2X | Aero | US |
1981-1987 | Subaru | Brat | DL, GL, GL Turbo | US |
1980-1989 | Subaru | DL | Base | US |
1980-1989 | Subaru | GL | Base, Turbo | US |
1985-1989 | Subaru | GL-10 | Base, Turbo | US |
1980-1982 | Subaru | GLF | Base | US |
2002-2014 | Subaru | Impreza | WRX, WRX STI, WRX STI Limited, WRX Premium, WRX Limited, WRX STI Special Edition | US |
1995 | Subaru | Legacy | Base | US |
1990-1994 | Subaru | Loyale | Base, RS Turbo, Turbo, RS | US |
1986-1989 | Subaru | RX | Turbo | US |
1981-1982 | Subaru | Standard | Base | US |
1985-1991 | Subaru | XT | DL, GL, GL-10 | US |
Please note that this information serves as a fitment guide only. For specific fitment questions or clarifications, please contact us, as manufacturers may introduce variations and modifications during model year or regional revisions. While we strive to provide accurate data, fitment details may vary by region; therefore, compatibility outside the listed region and submodel variant cannot be guaranteed.
Application Data | |
---|---|
Make | SUBARU |
Beginning Year | 2002 |
Ending Year | 2005 |
Engine Type | H4 |
Engine Family | Subaru 4-cylinder |
Engine Size | 2.0L/1994cc |
Make | SUBARU |
Beginning Year | 2004 |
Ending Year | 2020 |
Engine Type | H4 |
Engine Family | Subaru 4-cylinder |
Engine Size | 2.5L/2458cc |
