Connecting Rod
Manley's Pro Series I-Beam Connecting Rods represent the epitome of precision, performance, and quality. Engineered with meticulous attention to detail and a finely tuned manufacturing process, these rods are a testament to our commitment to excellence. Elevate your engine's capabilities and achieve outstanding results with these exceptional connecting rods.

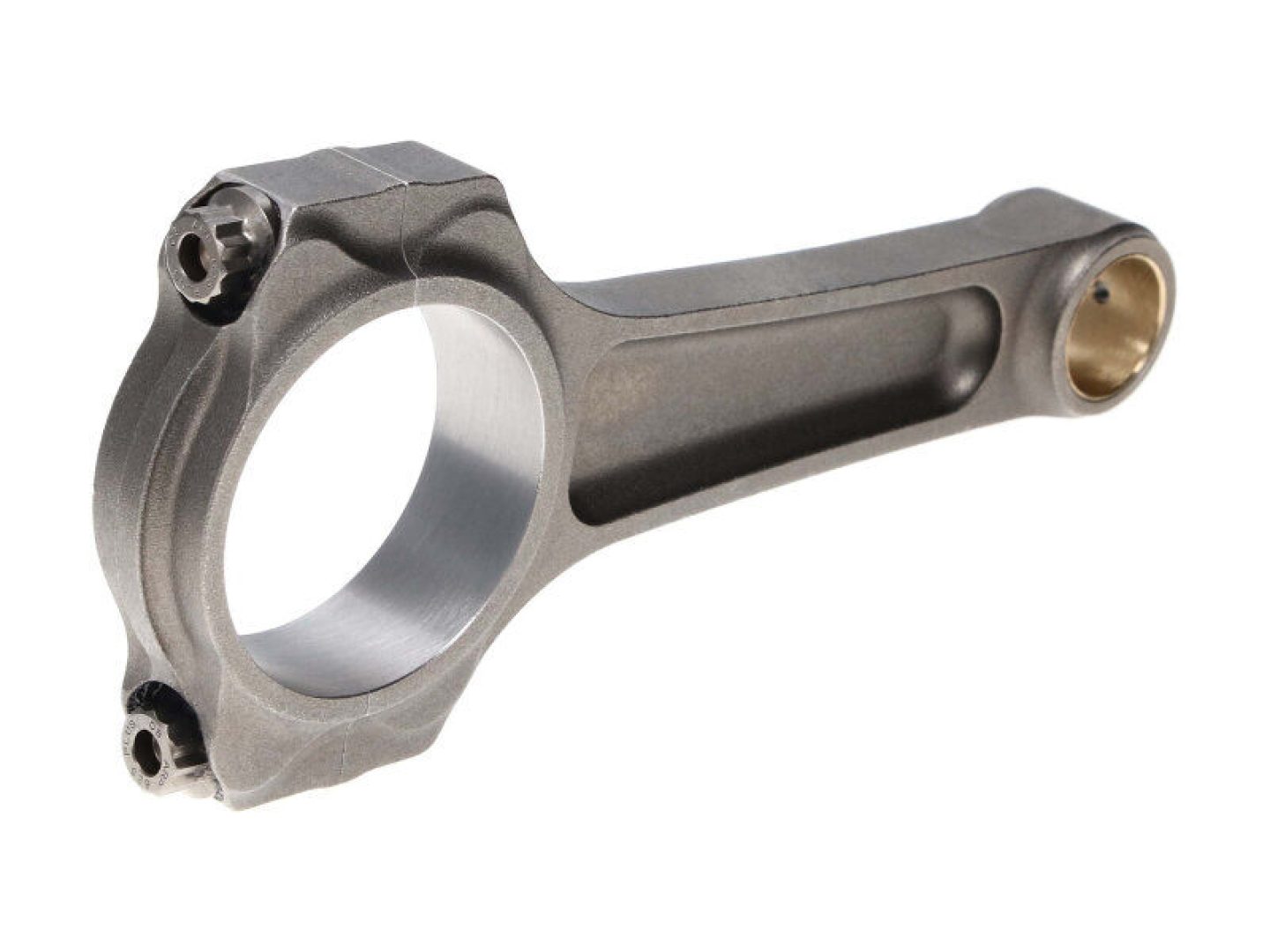

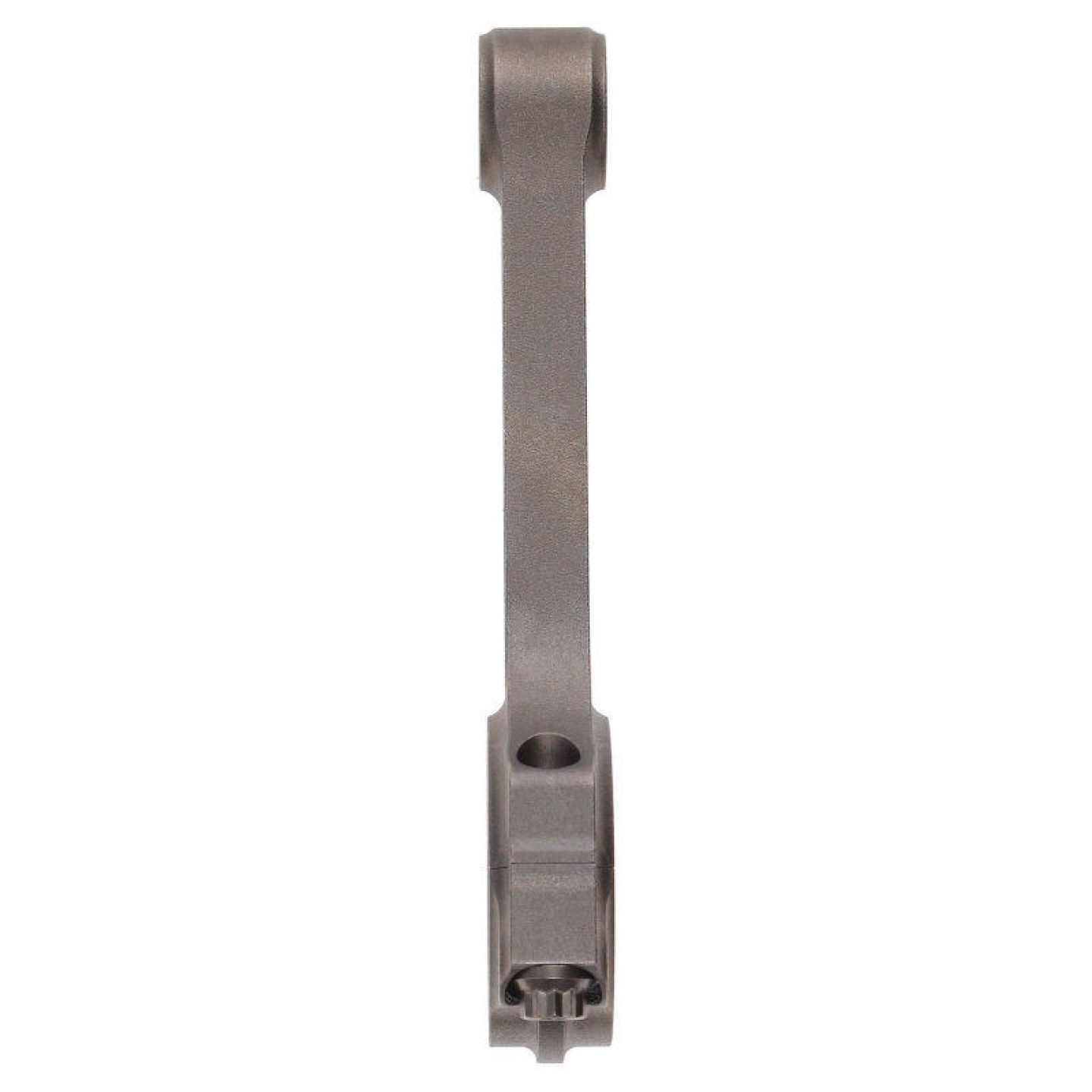

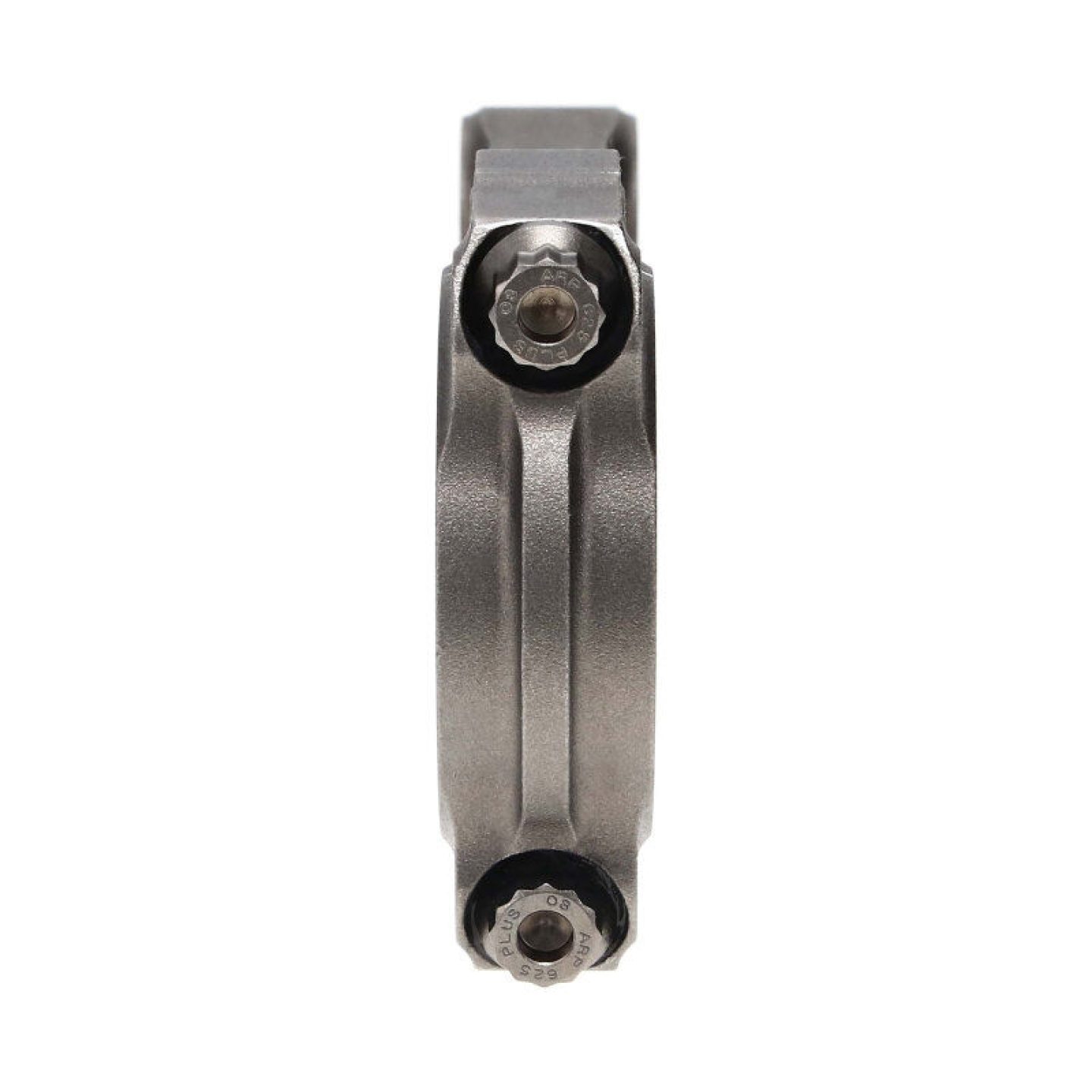

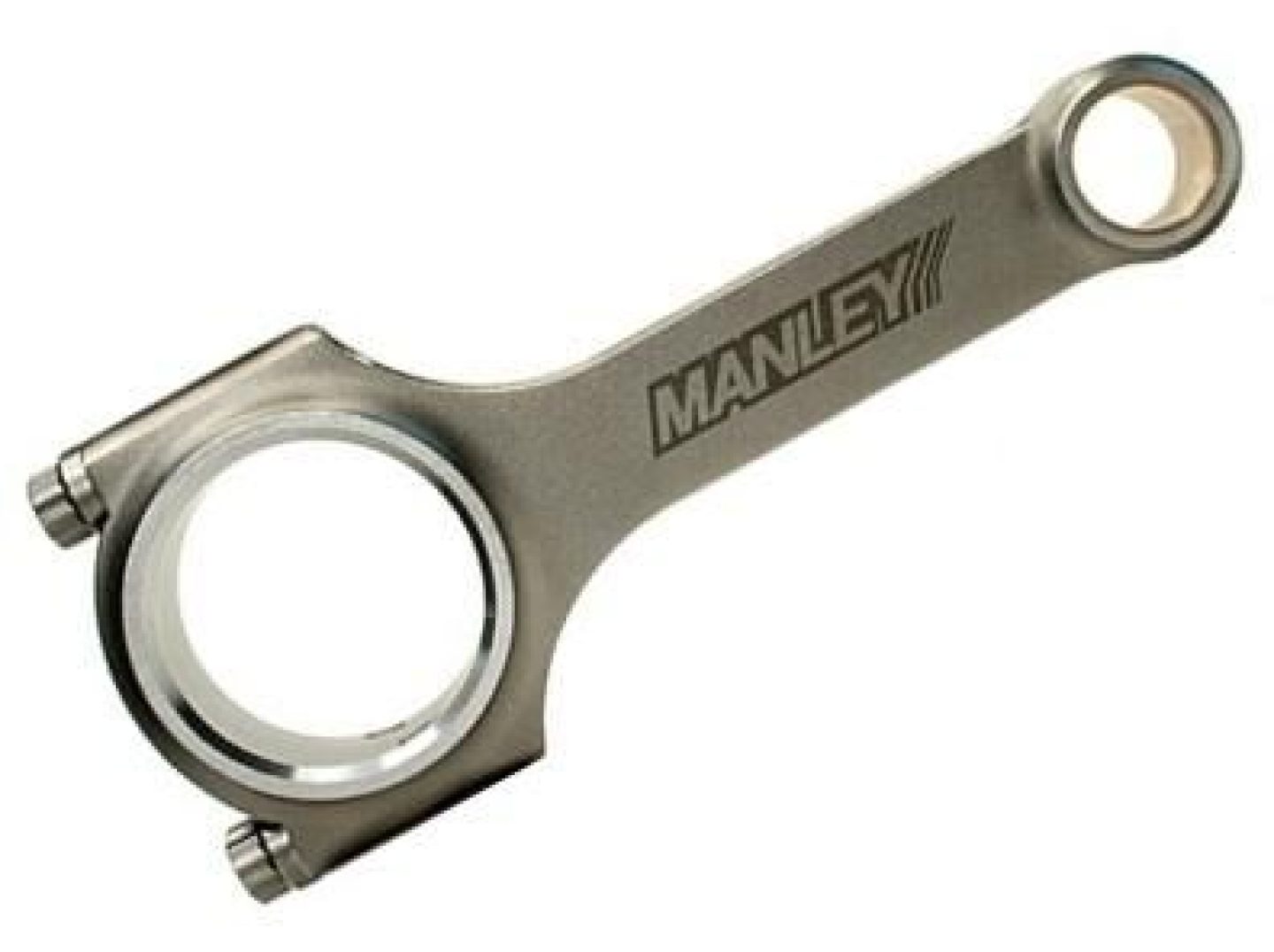

Manley Connecting Rod, ROD-SUBARU WRX EJ20/STi EJ25 .
Engine Connecting Rod
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
ROD-SUBARU WRX EJ20/STi EJ25 T/T
Manley Pro Series I-Beam Turbo Tuff connecting rods are assembled from high-quality 4340 forged steel. Every rod is fully machined to the highest standards, and the Turbo Tuff design combines the appropriate weight and rugged strength for ultimate horsepower utilization. Each rod is shot-peened after machining and individually magnafluxed. These connecting rods feature 7/16 in. ARP 2000 cap screws with 12-point heads for outstanding 200,000 psi tensile strength.
UPC | 807298045535 |
Brand | Manley |
Quantity | Sold individually. |
Part Type | Connecting Rods |
Magnafluxed | Yes |
Product Line | Manley Pro Series I-Beam Turbo Tuff Connecting Rods |
Remanufactured | No |
Wrist Pin Style | Floating |
Weight Matched Set | Yes |
Big End Width (in.) | 0.840 |
Cap Retention Style | Cap screw |
Connecting Rod Color | Shot-peened |
Pin End Bore Diameter | 0.906 in. |
Clearanced for Stroker | No |
Connecting Rod Material | Forged 4340 steel |
Connecting Rod Beam Style | I-beam |
Connecting Rod Bolt Brand | ARP |
Manufacturer's Part Number | 14416-1 |
Big End Bore Diameter (in.) | 2.1650 |
Advertised Horsepower Rating | 1,000 hp |
Connecting Rod Bolt Diameter | 3/8 in. |
Connecting Rod Bolt Material | ARP2000 alloy |
Connecting Rod Bolt Head Style | 12-point |
Fastener Tensile Strength (psi) | 200,000 psi |
Approximate Connecting Rod Weight (g) | 590 |
Connecting Rod Length Center to Center (in.) | 5.137 in. |
Manley Subaru WRX / STI (EJ20/EJ25) Turbo Tuff Pro Series I Beam Connecting Rod - SINGLE ROD | ||||
---|---|---|---|---|
Year Range | Make | Model | Submodels | Region |
2005-2006 | Saab | 9-2X | Aero | US |
2002-2012 | Subaru | Impreza | WRX, WRX STI, WRX TR, WRX Limited, WRX STI Limited, WRX Premium, WRX STI Special Edition | US |
Please note that this information serves as a fitment guide only. For specific fitment questions or clarifications, please contact us, as manufacturers may introduce variations and modifications during model year or regional revisions. While we strive to provide accurate data, fitment details may vary by region; therefore, compatibility outside the listed region and submodel variant cannot be guaranteed.
Application Data | |
---|---|
Make | SUBARU |
Beginning Year | 2002 |
Ending Year | 2005 |
Engine Type | H4 |
Engine Family | Subaru 4-cylinder |
Engine Size | 2.0L/1994cc |
Make | SUBARU |
Beginning Year | 2004 |
Ending Year | 2020 |
Engine Type | H4 |
Engine Family | Subaru 4-cylinder |
Engine Size | 2.5L/2458cc |
