Clutch Kit

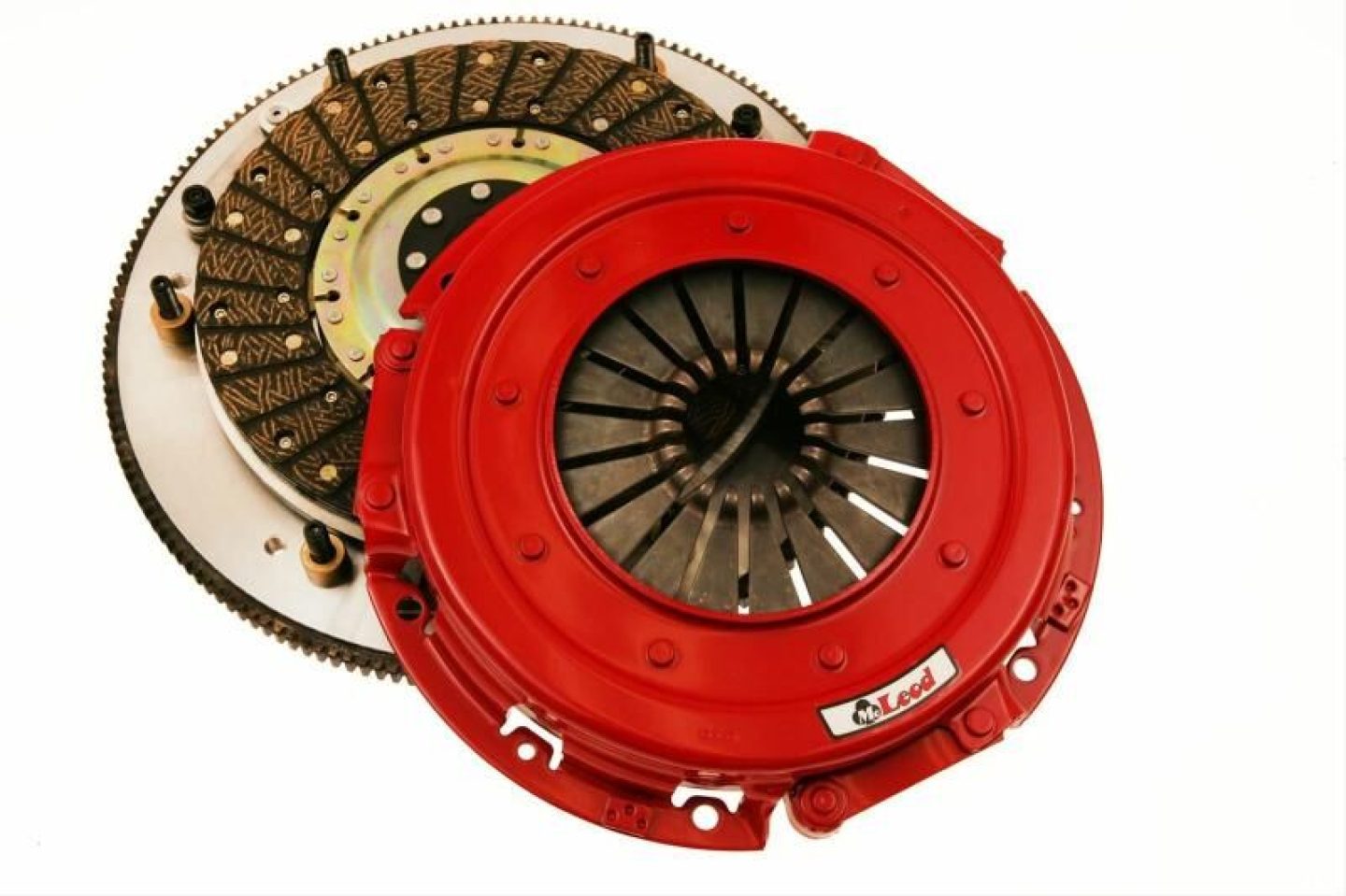

Intended for the high horsepower street fan, the McLeod RST Street twin clutch kit is able to handle 800hp, this clutch can handle almost any horse-power you can throw at it and still remain streetable. Organic lined clutch discs will provide smooth engagement with a soft pedal effort to make this clutch kit ideal for the street performance enthusiast. Kit Includes: Pressure Plate, two organic friction discs, steel flywheel, floater plate, adapter ring and pilot tool.
The RST Street Twin Clutch is capable of handling up to 800 HP while still maintaining a stock pedal feel. The RST comes as a kit and can mount directly to the stock flywheel. (Where Applicable)
Cadillac: CTS 09 - 15 6.2 L Engine, Chevrolet: Camaro 12 - 23 6.2 L Engine, Chevrolet: Corvette 14 - 19 6.2 L Engine
Transmission Clutch and Flywheel Kit
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Clutch Kit, RST Street Twin, 1.125 in. - 26-spline, Organic Disc, Pressure Plate, Billet Steel Flywheel, Chevy, 6.2L, Kit

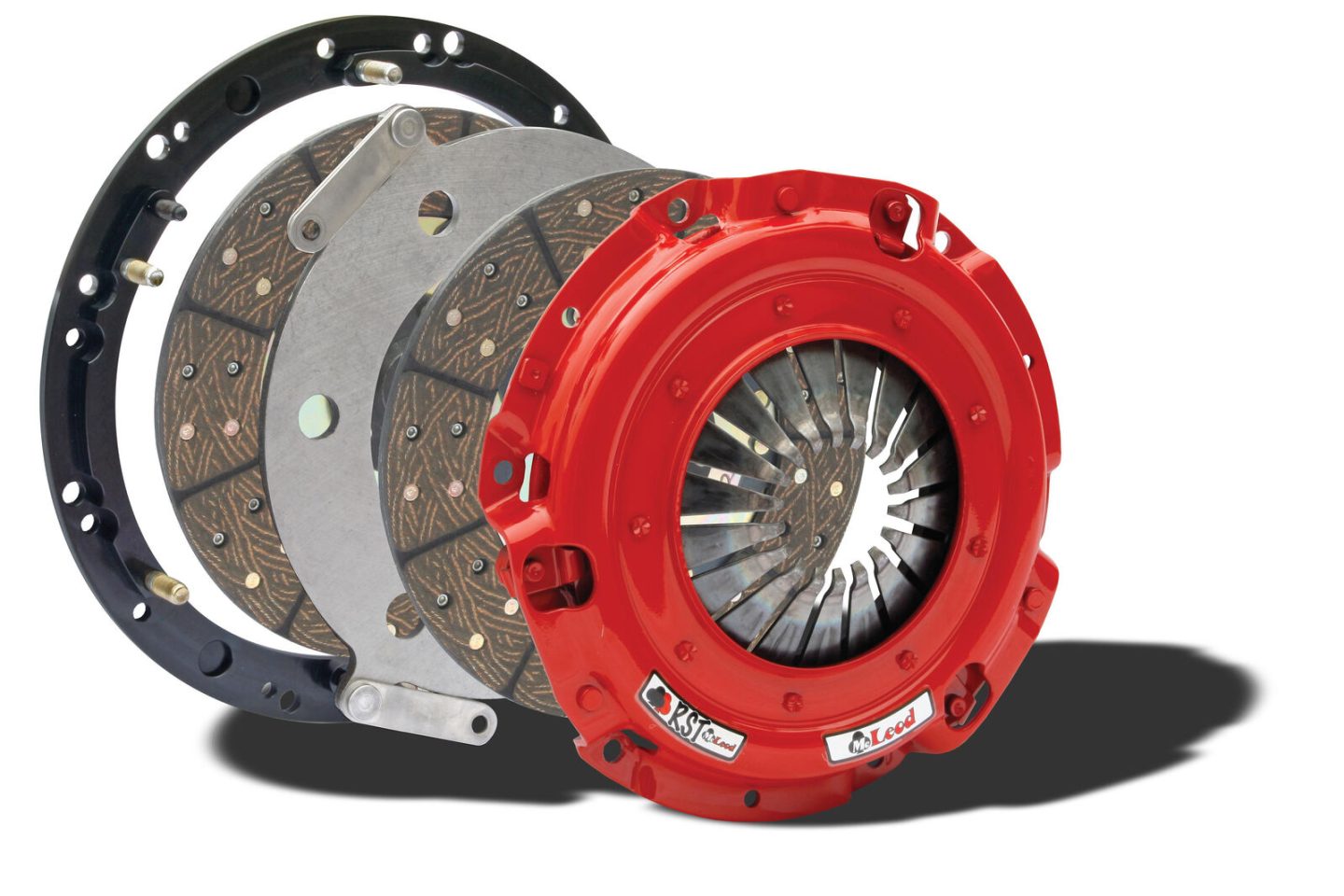

Intended for high-horsepower street fans, the McLeod RST Street Twin clutch kits are economically priced twin disc clutches that use your existing flywheel. Able to handle up to 800 hp, the RST Street Twin clutches remain completely street-drivable. The organic lined clutch discs provide smooth engagement with a soft pedal effort, making these clutch kits ideal for the street performance enthusiast. (For select vehicles where these clutches are not adaptable to your existing flywheel, a new flywheel is included in the kit.) Here are some additional features of the McLeod RST Street Twin clutch kits: * Alignment tool included * Lighter-than-stock pedal feel * Will bolt to factory flywheel * CNC-machined and anodized flywheel adapter ring * Organic disc facing for smooth and even clutch engagement with excellent release qualities * Low rotating mass for quick revs * Blanchard ground floater with multiple straps to reduce noise for streetability
Brand | McLeod Racing |
Manufacturer's Part Number | 6406807 |
Part Type | Clutch Kits |
Product Line | McLeod RST Street Twin Clutch Kits |
UPC | 887753015693 |
Clutch Usage | Performance |
Clutch Disc Quantity | 2 |
Flywheel Included | Yes |
Input Spline Quantity | 26 |
Input Shaft Diameter | 1.125 in. |
Disc Diameter (in.) | 9.688 in. |
Disc Diameter (mm) | 246mm |
Disc Material | Organic |
Disc Style | Full face |
Hub Style | Solid |
Pressure Plate Style | Diaphragm |
Throwout Bearing Included | No |

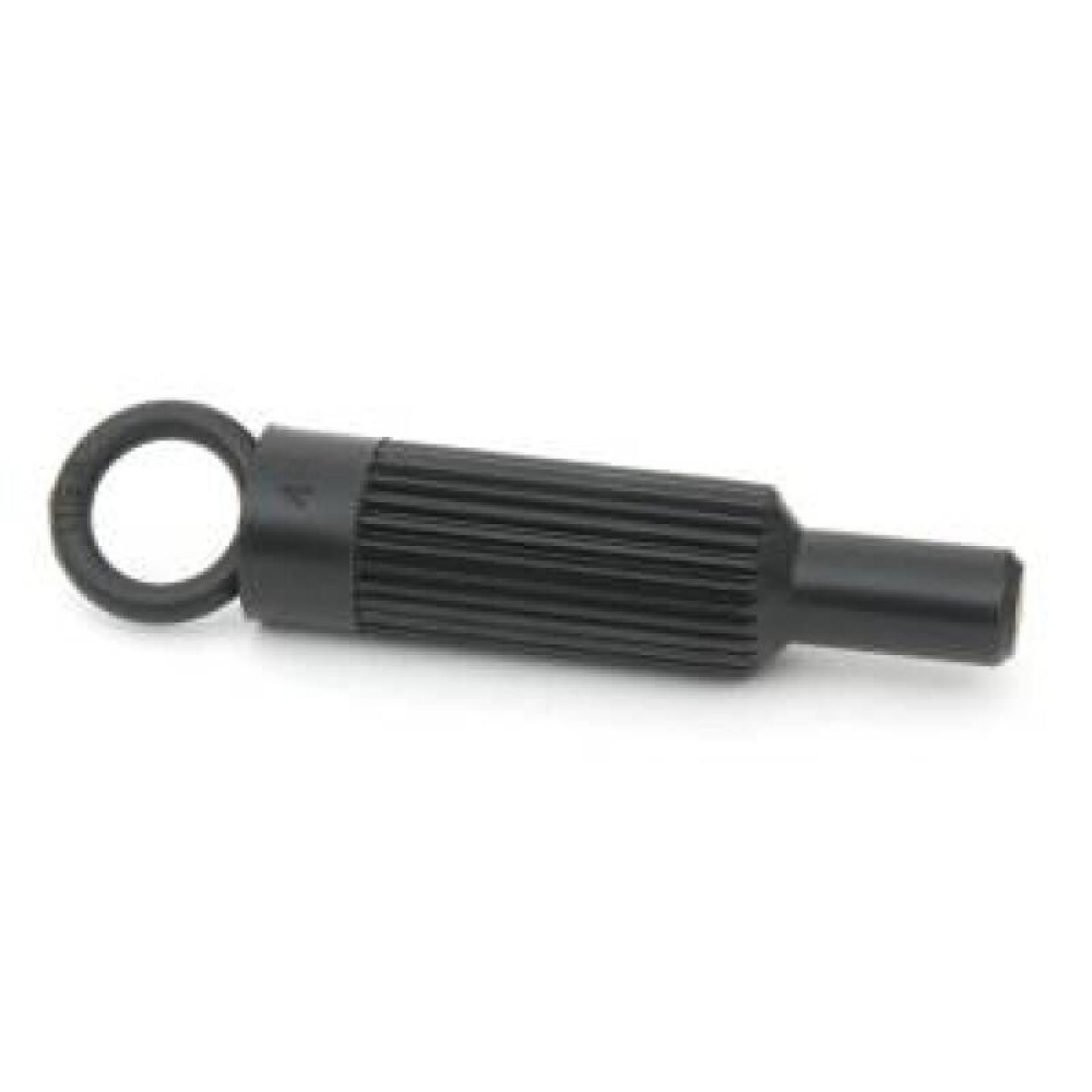

Alignment Tool Included | Yes |
Pilot Bushing Included | No |
Flywheel Material | Billet steel |
Counterweight Assist | No |
Mounting Hardware Included | No |
Quantity | Sold as a kit. |
McLeod RST Street Twin Steel Cad LSA 1-1/8 X 26 Spl Org 168 teeth | ||||
---|---|---|---|---|
Year Range | Make | Model | Submodels | Region |
2009-2015 | Cadillac | CTS | V | US |
2012-2023 | Chevrolet | Camaro | ZL1, SS, LT1 | US |
2014-2019 | Chevrolet | Corvette | Stingray, Z06, Grand Sport | US |
Please note that this information serves as a fitment guide only. For specific fitment questions or clarifications, please contact us, as manufacturers may introduce variations and modifications during model year or regional revisions. While we strive to provide accurate data, fitment details may vary by region; therefore, compatibility outside the listed region and submodel variant cannot be guaranteed.
