Clutch Kit

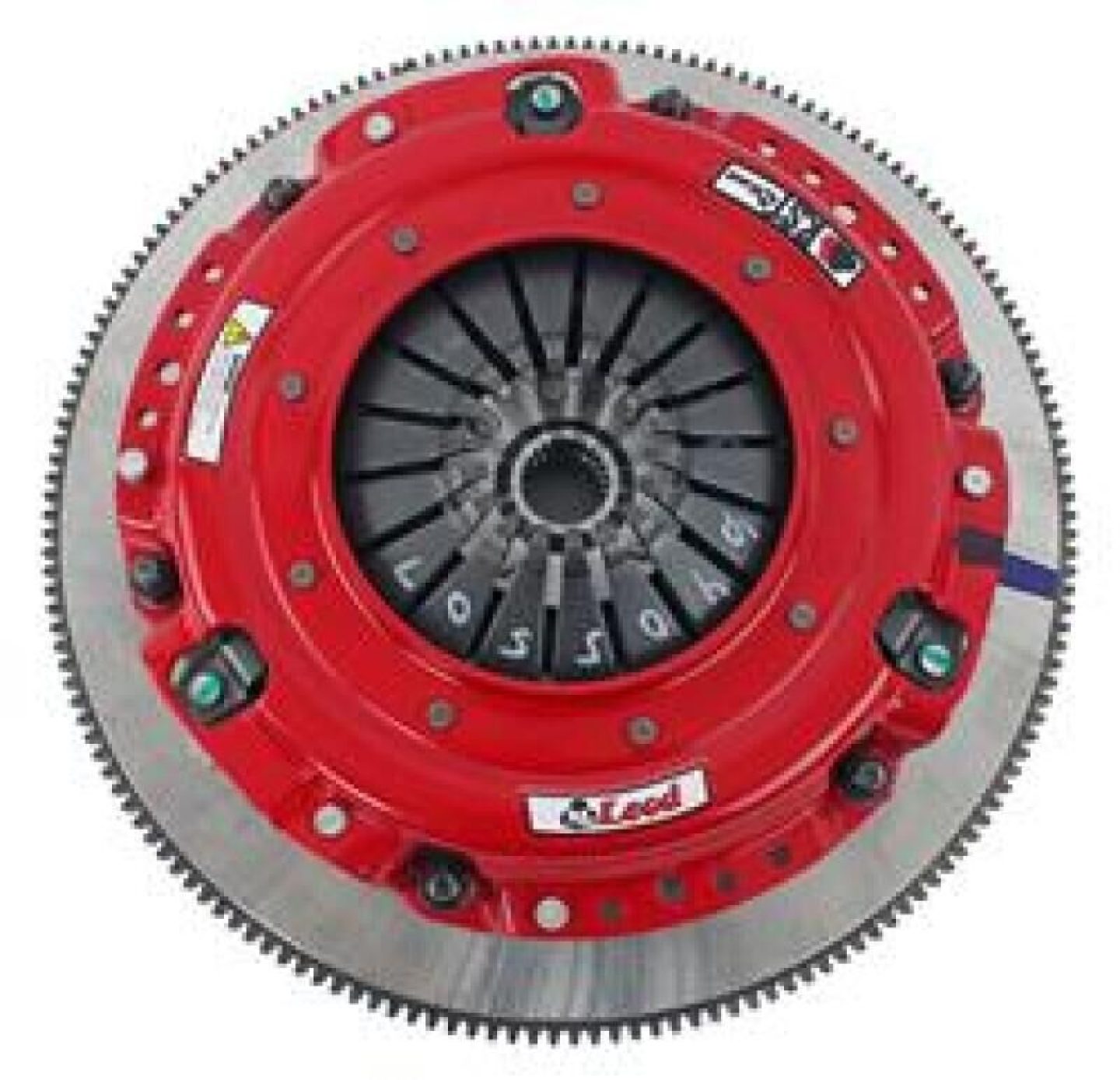

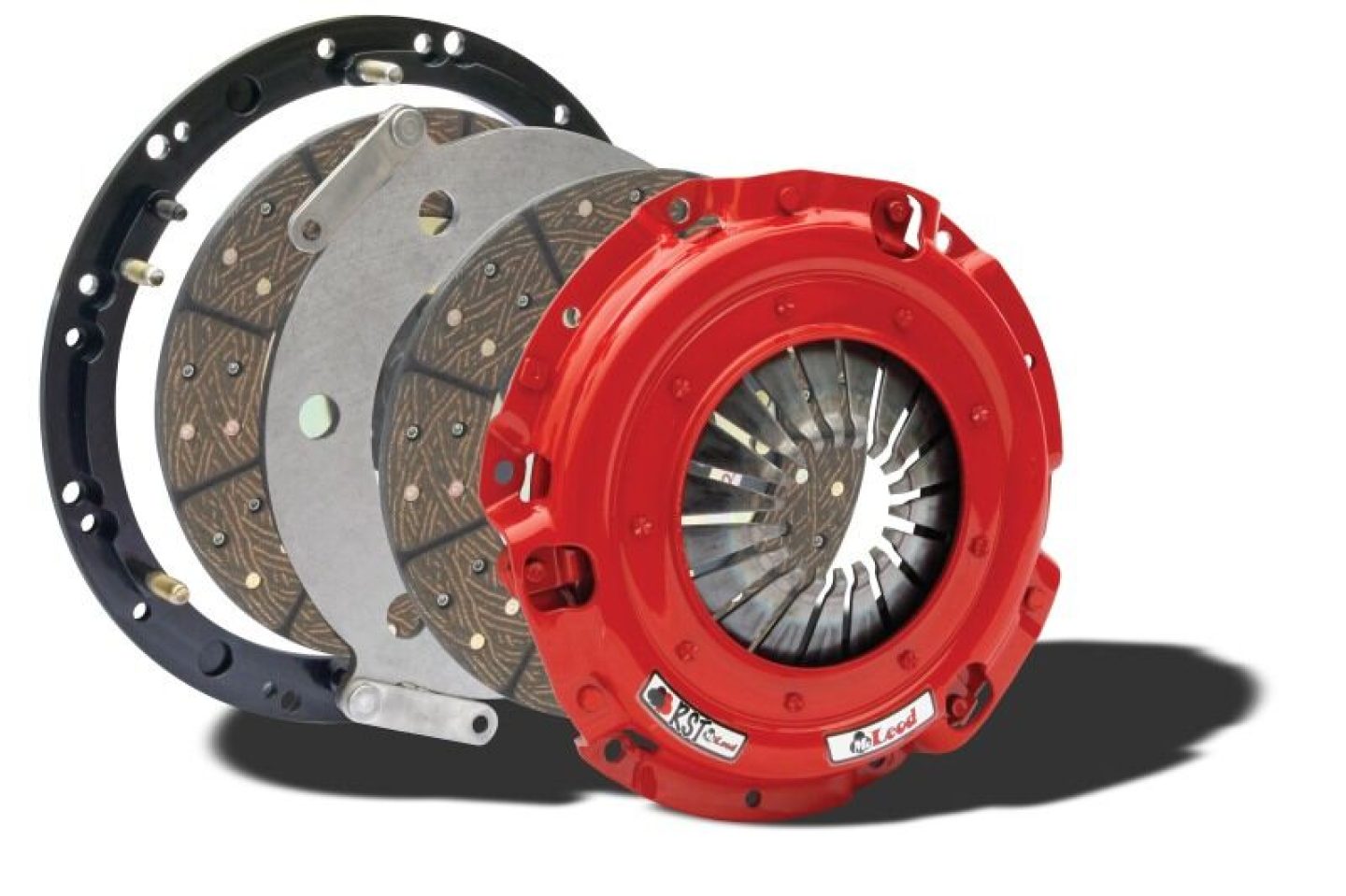

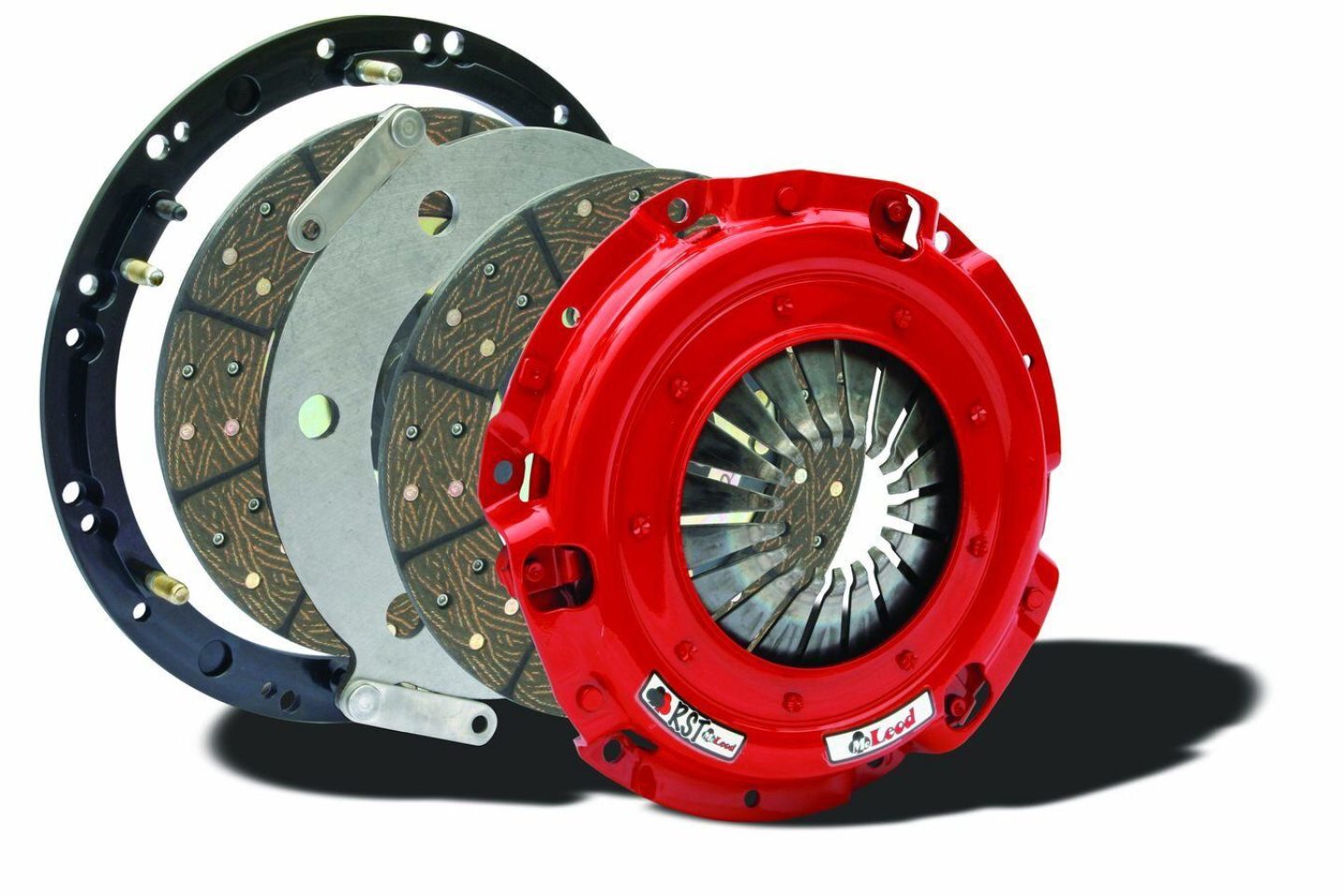

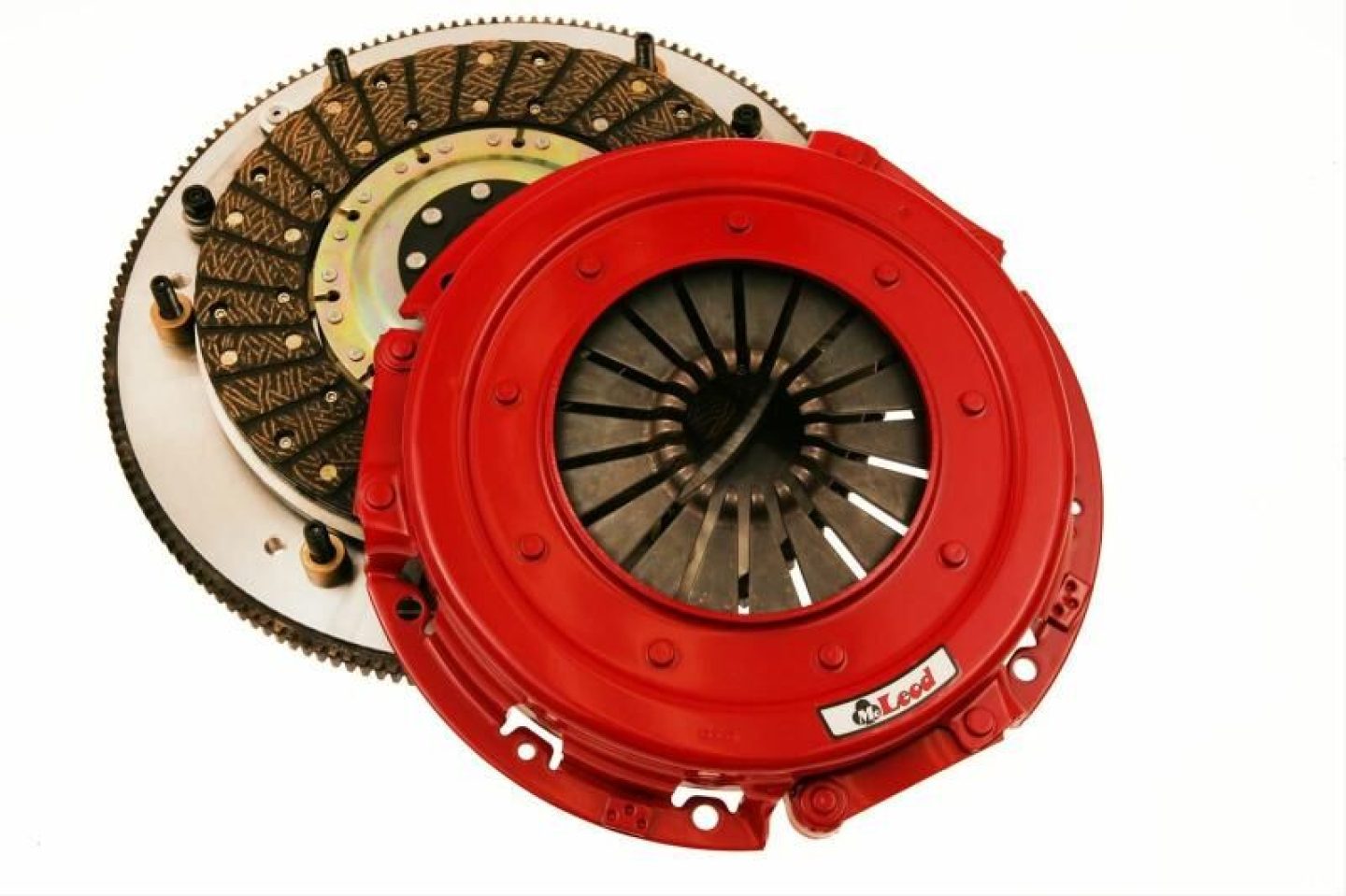

Intended for the high horsepower street fan, the McLeod RST twin disc clutch kit is an economically priced twin disc clutch kit. Able to handle 800hp, this clutch can handle almost any horse-power you can throw at it and still remain street-able. Organic lined clutch discs will provide smooth engagement with a soft pedal effort to make this clutch kit ideal for the street only performance enthusiast. This unit is not intended for competition use! Look to our RXT and RXT 1200 for those applications. This series of clutch comes in 3 different configurations to best suit your needs. Adapter ring version. Another McLeod Racing exclusive. We build a twin disc clutch using a Patented Approved adapter ring to bolt to your supplied flywheel. Complete Unit with Dedicated Flywheel. No need to search for the clutch as one number and the flywheel as another number. McLeod Racing has you covered with one part number and a complete dedicated unit ready to plug and play. You have the choice of running a Billet Steel flywheel for your street applications or a Billet Aluminum flywheel for your track cars.
RST TWN ASSY LS 6BLT CRK 1-1/8 X 26 SPLINE ORG FACING 168 WITH STEEL FLYWHEEL
Chevrolet: Camaro 98 - 02 5.7 L Engine, Chevrolet: Camaro 10 - 13 6.2 L Engine, Chevrolet: Corvette 97 - 04 5.7 L Engine, Chevrolet: Corvette 05 - 07 6 L Engine, Chevrolet: Corvette 08 - 13 6.2 L Engine, Chevrolet: Corvette 06 - 13 7 L Engine, Chevrolet: SSR 05 - 06 6 L Engine, Pontiac: Firebird 98 - 02 5.7 L Engine, Pontiac: GTO 04 - 04 5.7 L Engine, Pontiac: GTO 05 - 06 6 L Engine
Transmission Clutch and Flywheel Kit
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Clutch Kit, RST Street Twin, Organic, 1.125 in. - 26, Billet Steel Flywheel, Chevy, Pontiac, Small Block LS, Kit
Intended for high-horsepower street fans, the McLeod RST Street Twin clutch kits are economically priced twin disc clutches that use your existing flywheel. Able to handle up to 800 hp, the RST Street Twin clutches remain completely street-drivable. The organic lined clutch discs provide smooth engagement with a soft pedal effort, making these clutch kits ideal for the street performance enthusiast. (For select vehicles where these clutches are not adaptable to your existing flywheel, a new flywheel is included in the kit.) Here are some additional features of the McLeod RST Street Twin clutch kits: * Alignment tool included * Lighter-than-stock pedal feel * Will bolt to factory flywheel * CNC-machined and anodized flywheel adapter ring * Organic disc facing for smooth and even clutch engagement with excellent release qualities * Low rotating mass for quick revs * Blanchard ground floater with multiple straps to reduce noise for streetability
UPC | 844336031204 |
Brand | McLeod Racing |
Quantity | Sold as a kit. |
Hub Style | Unsprung |
Part Type | Clutch Kits |
Disc Style | Full face |
Clutch Usage | Performance |
Product Line | McLeod RST Street Twin Clutch Kits |
Disc Material | Organic |
Flywheel Included | Yes |
Flywheel Material | Billet steel |
Disc Diameter (mm) | 246mm |
Disc Diameter (in.) | 9.688 in. |
Clutch Disc Quantity | 2 |
Counterweight Assist | No |
Input Shaft Diameter | 1.125 in. |
Pressure Plate Style | Diaphragm |
Input Spline Quantity | 26 |
Flywheel Bolt Quantity | 6 |
Pilot Bushing Included | No |

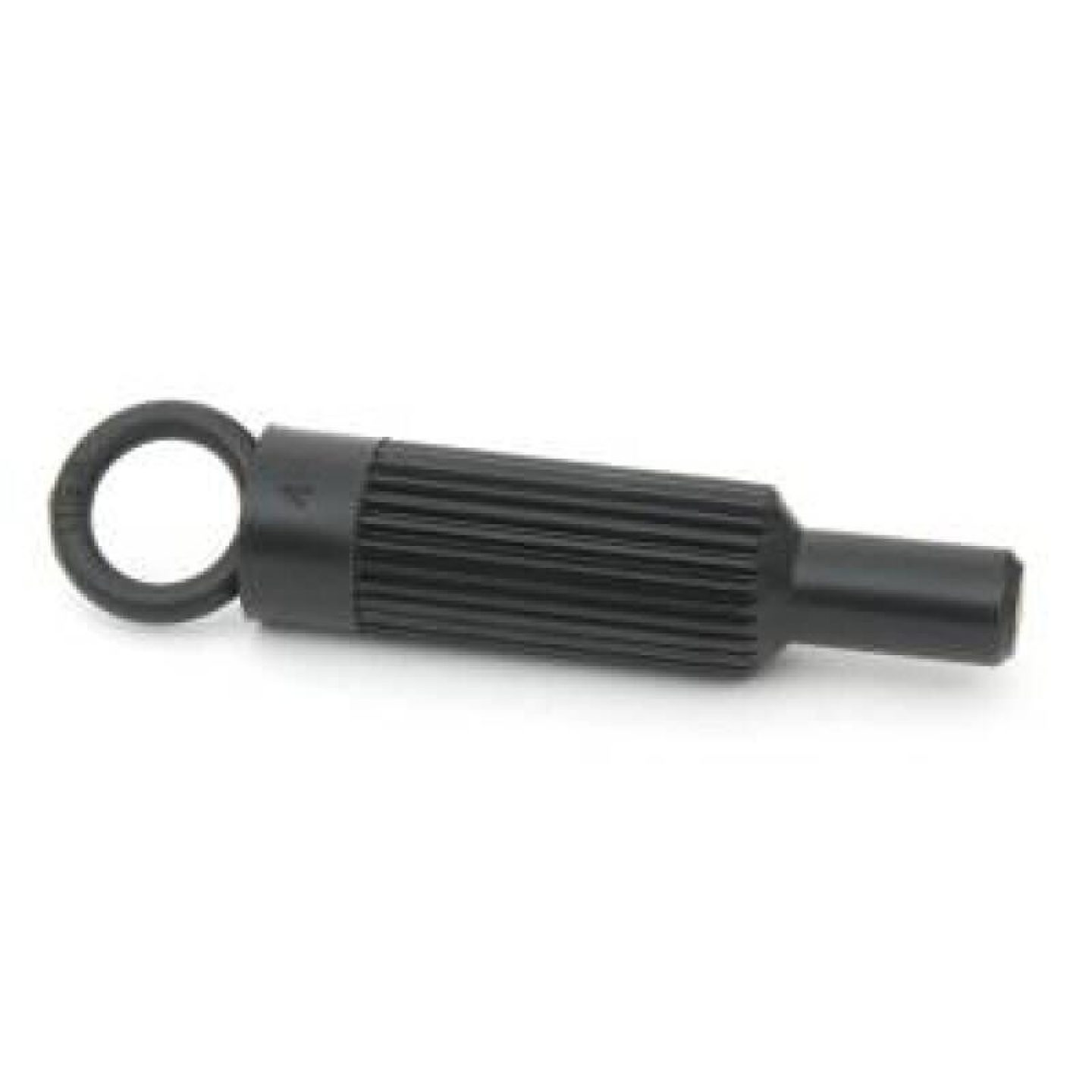

Alignment Tool Included | Yes |
Ring Gear Tooth Quantity | 168-tooth |
Throwout Bearing Included | No |
Manufacturer's Part Number | 6405507 |
Mounting Hardware Included | No |
McLeod RST Twin Assy LS 6Blt Crk 1-1/8 X 26 Spline Org Facing 168 | ||||
---|---|---|---|---|
Year Range | Make | Model | Submodels | Region |
2004-2007 | Cadillac | CTS | V | US |
2007-2009 | Chevrolet | Avalanche | LT, LTZ | US |
1997-1999 | Chevrolet | C1500 | Base, Cheyenne, Silverado, WT, LS | US |
1997-1999 | Chevrolet | C1500 Suburban | Base, LS, LT | US |
1997-2000 | Chevrolet | C2500 | Base, Cheyenne, Silverado, WT, LS | US |
1997-1999 | Chevrolet | C2500 Suburban | Base, LS, LT | US |
1997-2000 | Chevrolet | C3500 | Base, Cheyenne, Silverado, LS | US |
1997-2002 | Chevrolet | Camaro | Z28, Z28 SS | US |
2010-2015 | Chevrolet | Camaro | SS, Z/28 | US |
2011-2014 | Chevrolet | Caprice | PPV | US |
2009-2012 | Chevrolet | Colorado | LT | US |
1997-2013 | Chevrolet | Corvette | Base, Indianapolis 500 Pace Car, Z06, 50th Anniversary Edition, 50th Anniversary Edition Pace Car, 427 Limited Edition Z06, Grand Sport, Z06 Carbon, 427 | US |
1997-2002 | Chevrolet | Express 1500 | Base, LS, LT | US |
1997-2014 | Chevrolet | Express 2500 | Base, LS, LT | US |
1997-2014 | Chevrolet | Express 3500 | Base, LS, LT | US |
2009-2014 | Chevrolet | Express 4500 | Base | US |
1997-1999 | Chevrolet | K1500 | Base, Cheyenne, Silverado, WT, LS | US |
1997-1999 | Chevrolet | K1500 Suburban | Base, LS, LT | US |
1997-2000 | Chevrolet | K2500 | Base, Cheyenne, Silverado, WT, LS | US |
1997-1999 | Chevrolet | K2500 Suburban | Base, LS, LT | US |
1997-2000 | Chevrolet | K3500 | Base, Cheyenne, Silverado, LS | US |
1997-1999 | Chevrolet | P30 | Base | US |
2005-2006 | Chevrolet | SSR | Base | US |
1999-2013 | Chevrolet | Silverado 1500 | Base, LS, LT, WT, SS, Z71 Off-Road, LTZ, Hybrid | US |
2007 | Chevrolet | Silverado 1500 Classic | LS, WT | US |
2001-2003 | Chevrolet | Silverado 1500 HD | LS, LT | US |
2005-2006 | Chevrolet | Silverado 1500 HD | Base, LS, LT | US |
1999-2004 | Chevrolet | Silverado 2500 | Base, LS, LT, WT | US |
2001-2014 | Chevrolet | Silverado 2500 HD | Base, LS, LT, WT, LTZ | US |
2007 | Chevrolet | Silverado 2500 HD Classic | LT, LS, WT | US |
2001-2006 | Chevrolet | Silverado 3500 | Base, LS, LT, WT | US |
2007 | Chevrolet | Silverado 3500 Classic | LS, LT, WT | US |
2007-2014 | Chevrolet | Silverado 3500 HD | LT, LTZ, WT | US |
2006-2009 | Chevrolet | Suburban 1500 | LTZ, LT | US |
2000-2013 | Chevrolet | Suburban 2500 | Base, LS, LT, LTZ | US |
1997-2000 | Chevrolet | Tahoe | Base, LS, LT, Z71, Limited | US |
2008-2013 | Chevrolet | Tahoe | Hybrid | US |
2006-2009 | Chevrolet | Trailblazer | SS | US |
1999-2000 | GMC | C2500 | Sierra SL, Sierra SLE, Sierra SLT | US |
1999-2000 | GMC | C3500 | Sierra SL, Sierra SLE, Sierra SLT | US |
2009-2012 | GMC | Canyon | SLE, SLT | US |
1999-2000 | GMC | K2500 | Sierra SL, Sierra SLE, Sierra SLT | US |
1999-2000 | GMC | K3500 | Sierra SL, Sierra SLE, Sierra SLT | US |
1999 | GMC | P3500 | Base | US |
1999-2006 | GMC | Sierra 1500 | SL, SLE, SLT, Base, HT, WT | US |
2007 | GMC | Sierra 1500 Classic | SL, WT | US |
1999-2004 | GMC | Sierra 2500 | SL, SLE, SLT, Base, WT | US |
2001-2006 | GMC | Sierra 2500 HD | SL, SLE, SLT, Base, WT | US |
2007 | GMC | Sierra 2500 HD Classic | SL, SLT, SLE, WT | US |
Note: Displaying first 50 entries. |
Please note that this information serves as a fitment guide only. For specific fitment questions or clarifications, please contact us, as manufacturers may introduce variations and modifications during model year or regional revisions. While we strive to provide accurate data, fitment details may vary by region; therefore, compatibility outside the listed region and submodel variant cannot be guaranteed.
Application Data | |
---|---|
Make | CADILLAC |
Model | CTS |
Submodel | V |
Beginning Year | 2004 |
Ending Year | 2005 |
Engine Type | V8 |
Liter | 5.7 |
CID | 346 |
Engine Family | Chevy small block Gen III/IV (LS-based engines) |
Engine Size | 5.7L/346 |
Application Notes | Transmission Control Type: Manual |
Engine VIN Code | S |
Make | CADILLAC |
Model | CTS |
Submodel | V |
Beginning Year | 2006 |
Ending Year | 2007 |
Engine Type | V8 |
Liter | 6.0 |
CID | 364 |
CC | 5967 |
Engine Family | Chevy small block Gen III/IV (LS-based engines) |
Engine Size | 6.0L/364 |
Application Notes | Transmission Control Type: Manual |
Engine VIN Code | U |
Make | CHEVROLET |
Model | CAMARO |
Submodel | SS |
Beginning Year | 2010 |
Ending Year | 2015 |
Engine Type | V8 |
Liter | 6.2 |
CID | 376 |
CC | 6162 |
Engine Family | Chevy small block Gen III/IV (LS-based engines) |
Engine Size | 6.2L/376 |
Application Notes | Transmission Control Type: Manual |
Engine VIN Code | J |
