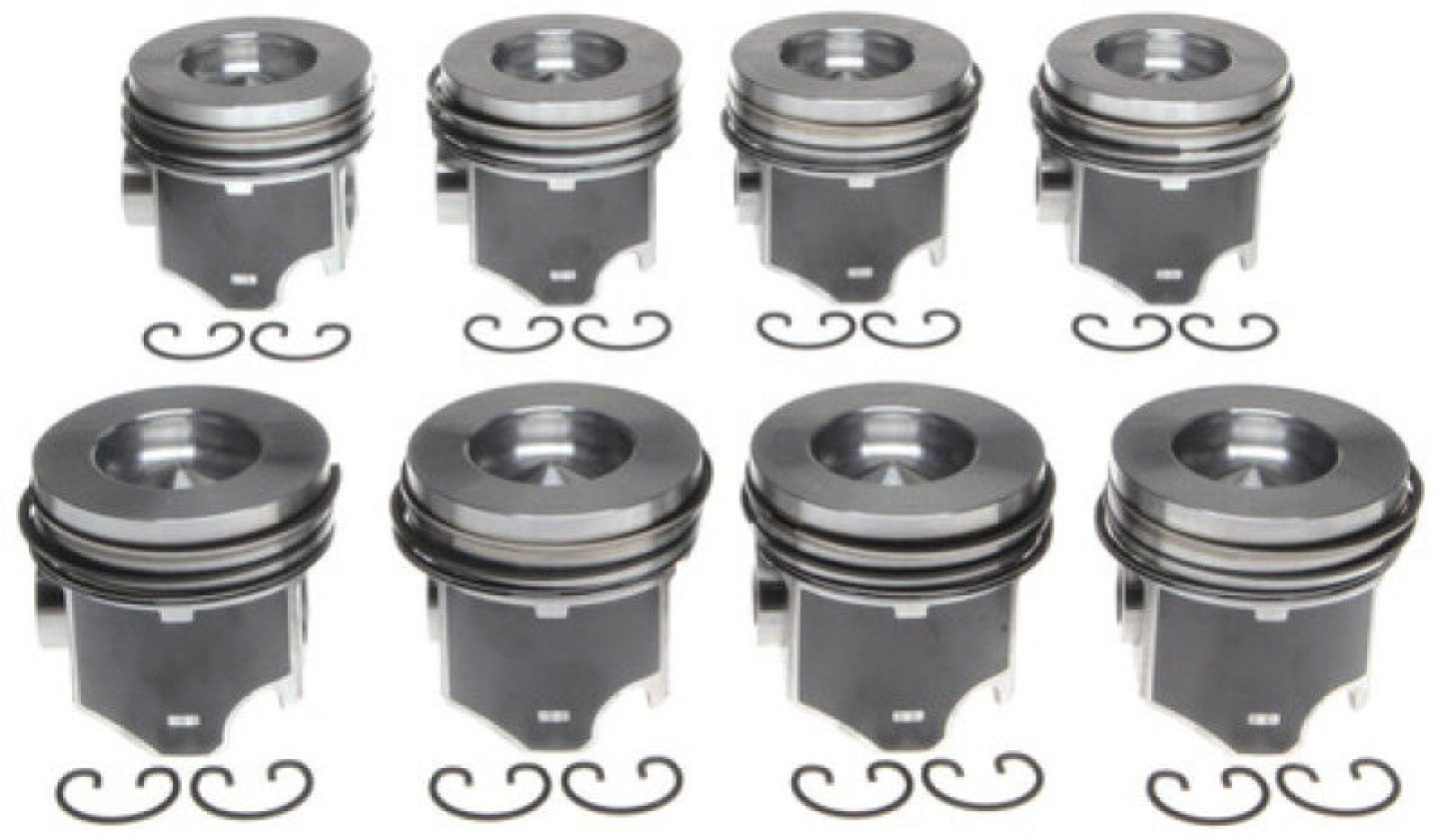

Mahle OE Ford IHC T444E Navistar 445 V8 7.3L Direct Injection Turbo Piston Set (Set of 8)
MAHLE(R) pistons are OE quality and have the same great OE features such as compensated ring grooves to assure proper ring loading and oil control, as well as expansion controlled designs for small fitting clearances to reduce engine noise, wear, emissions, and improve oil control. MAHLE offers pistons ready for installation with mounted piston rings, with pin and clips included for the convenience of the engine builder. MAHLE is one of the largest OE piston manufacturers in the world.
Engine Piston Set
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Piston, Dish, 4.130 in. Bore, Ford, Powerstroke, 7.3L, Each
Mahle Original replacement pistons have the same great OE features to provide the perfect fit and function in your vehicle. They offer things like compensated ring grooves to ensure proper ring loading and oil control; as well as expansion-controlled designs for small fitting clearances—to reduce engine noise, wear, emissions, and improved oil control. Choose the model designed for your vehicle and engine application.
Brand | MAHLE Original |
Manufacturer's Part Number | 224-3163.020 |
Part Type | Pistons |
Product Line | Mahle Original OE Replacement Pistons |
UPC | 27067811455 |
Piston Rings Included | No |
Bore (in.) | 4.130 in. |
Bore (mm) | 104.902mm |
Stroke | 4.180 in. |
Engine Stroke Type | Stock |
Rod Length | 7.130 in. |
Piston Style | Dish, with no valve reliefs |
Piston Material | Cast aluminum |
Compression Height (in.) | 2.142 in. |
Piston Head Volume (cc) | +39.59cc |
Wrist Pin Style | Press-fit or floating |
Wrist Pin Retainers Included | Yes |
Wrist Pin Included | Yes |
Pin Diameter (in.) | 1.308 in. |
Piston Ring Thickness | 2.00mm x 3.00mm x 3.50mm |
File Fit | No |
Gapless | No |
Remanufactured | No |
Quantity | Sold as a set of 8. |
Mahle OE Ford IHC T444E Navistar 445 V8 7.3L Direct Injection Turbo Piston Set (Set of 8) | ||||
---|---|---|---|---|
Year Range | Make | Model | Submodels | Region |
2003 | Ford | E-350 Club Wagon | Chateau, XL, XLT | US |
1995-1998 | Ford | E-350 Econoline | Base, XL | US |
1995-2002 | Ford | E-350 Econoline Club Wagon | Chateau, Custom, XLT, Chateau HD, XL HD, XLT HD, XL | US |
1999-2003 | Ford | E-350 Super Duty | Base, XL | US |
2000-2002 | Ford | E-450 Econoline Super Duty | Custom | US |
2003 | Ford | E-450 Super Duty | Custom | US |
2002 | Ford | E-550 Econoline Super Duty | Custom | US |
2003 | Ford | E-550 Super Duty | Custom | US |
1996-1999 | Ford | Econoline Super Duty | Custom, Base | US |
2000-2003 | Ford | Excursion | Limited, XLT, Eddie Bauer | US |
1995-1997 | Ford | F Super Duty | XL, XLT, Base | US |
1995-1996 | Ford | F-250 | Eddie Bauer, Special, XL, XLT | US |
1997 | Ford | F-250 HD | XL, XLT | US |
1999-2003 | Ford | F-250 Super Duty | Lariat, XL, XLT | US |
1995-1997 | Ford | F-350 | Eddie Bauer, Special, XL, XLT, Base | US |
1999-2003 | Ford | F-350 Super Duty | Lariat, XL, XLT, King Ranch | US |
1999-2003 | Ford | F-450 Super Duty | Lariat, XL, XLT | US |
1999-2003 | Ford | F-550 Super Duty | Lariat, XL, XLT | US |
Please note that this information serves as a fitment guide only. For specific fitment questions or clarifications, please contact us, as manufacturers may introduce variations and modifications during model year or regional revisions. While we strive to provide accurate data, fitment details may vary by region; therefore, compatibility outside the listed region and submodel variant cannot be guaranteed.
