MAHLE Original pistons are OE quality and have the same great OE features such as compensated ring grooves to assure proper ring loading and oil control, as well as expansion controlled designs for small fitting clearances to reduce engine noise, wear, emissions, and improve oil control.

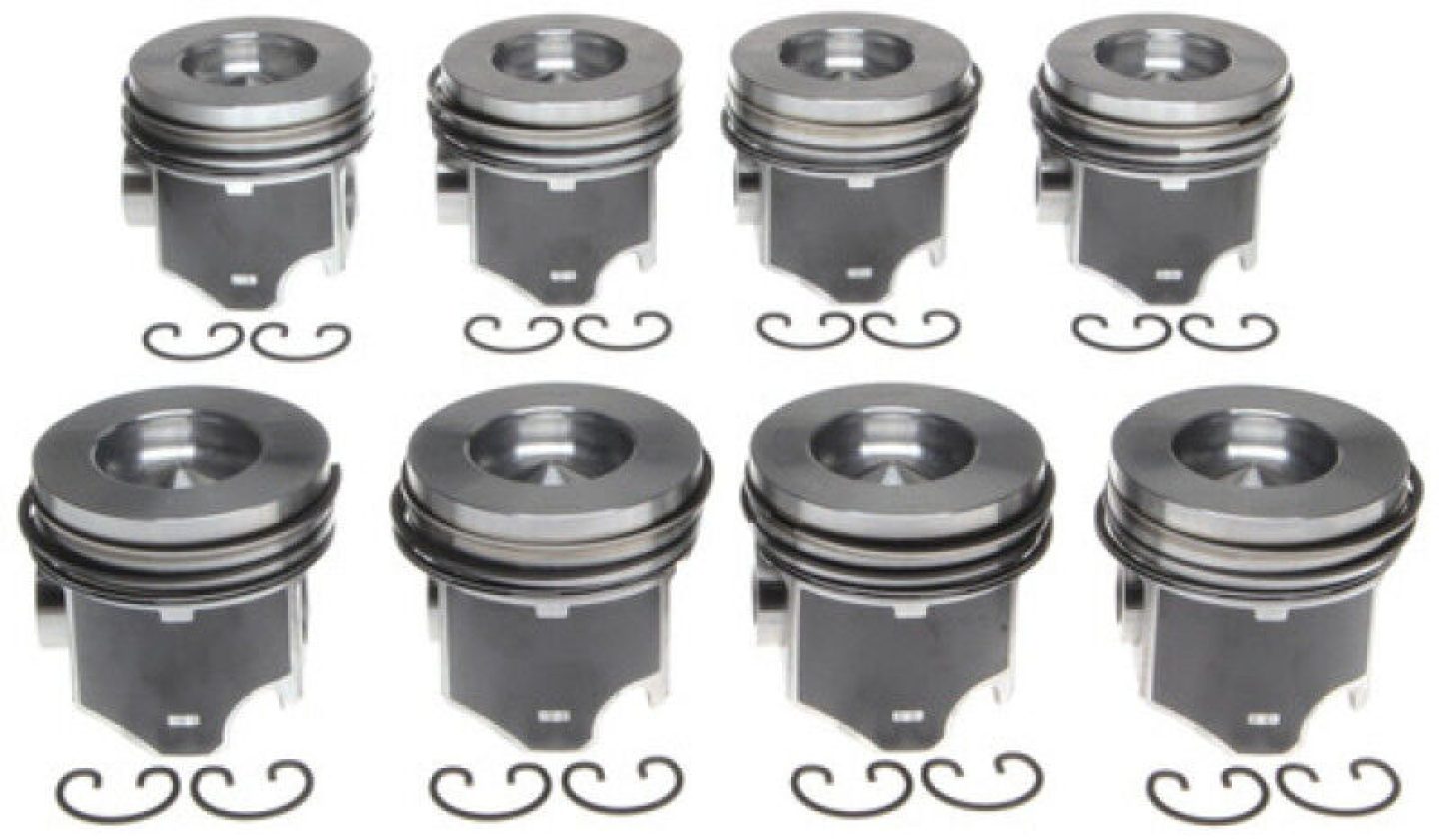

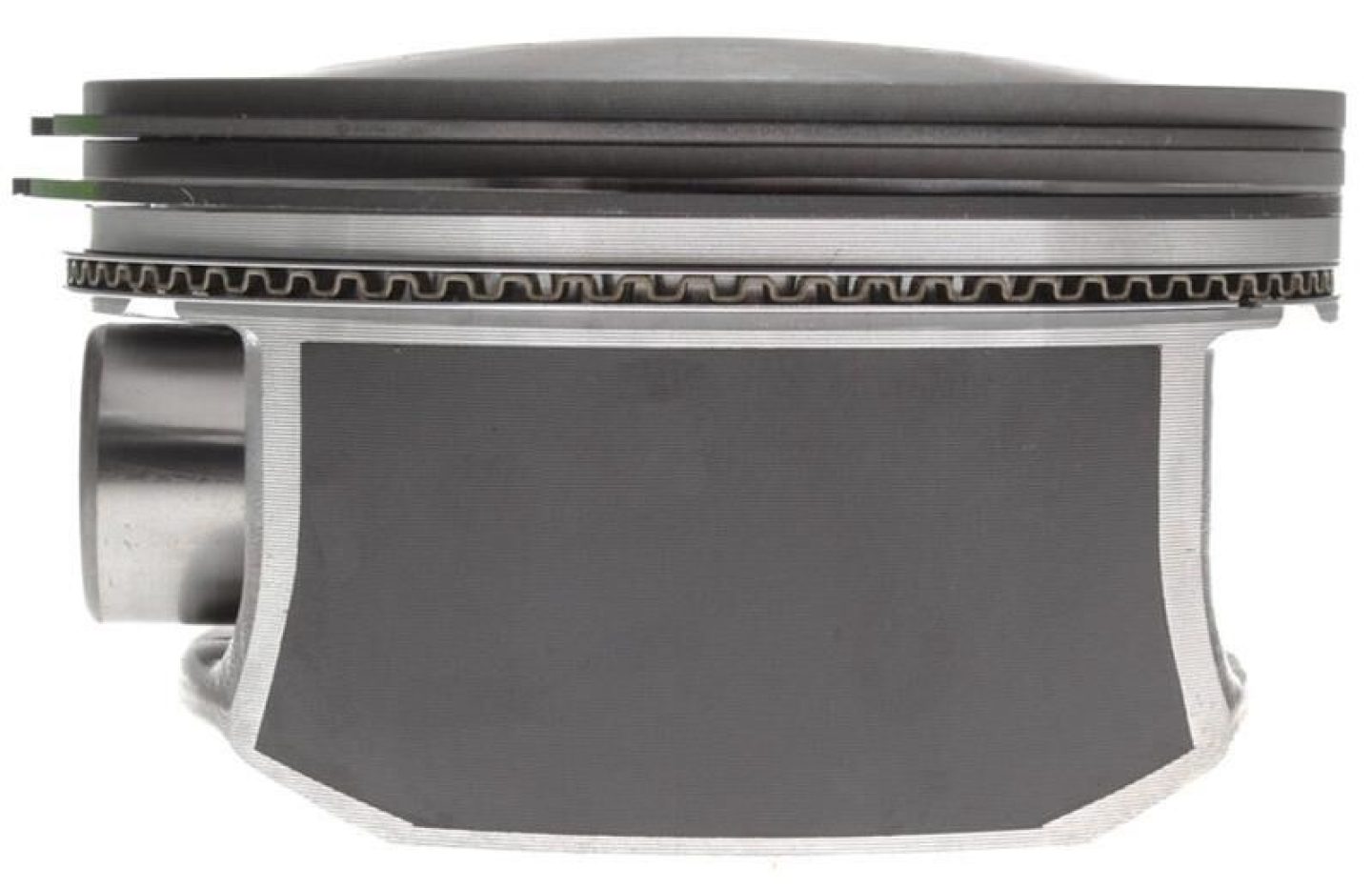

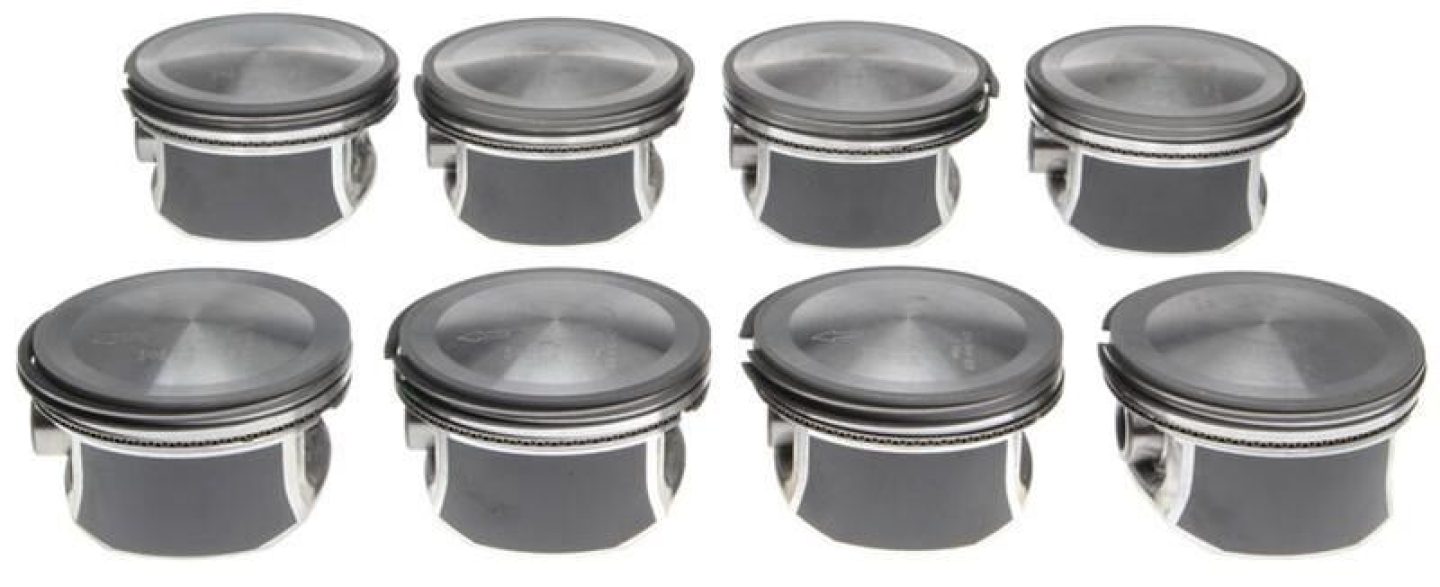

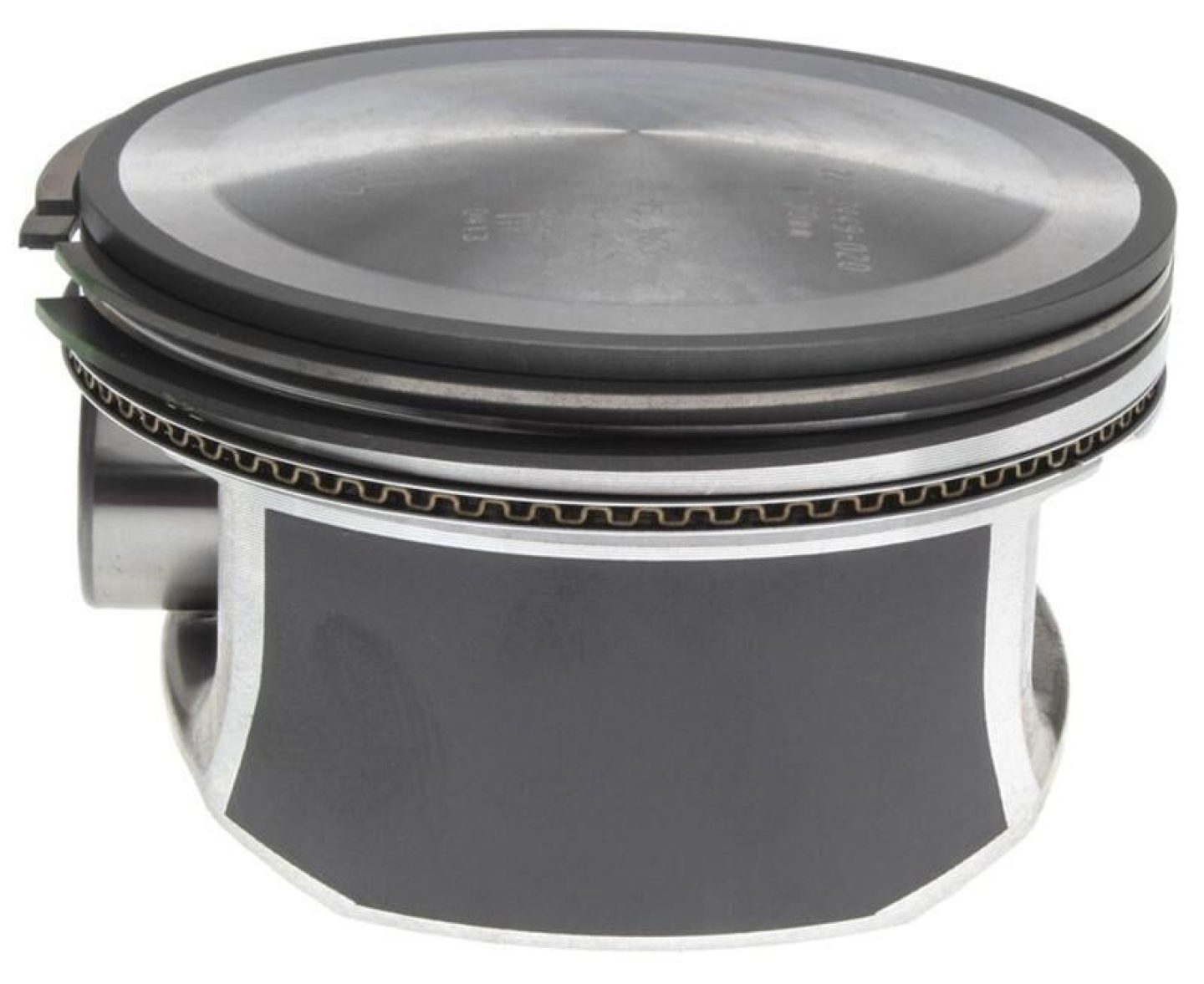

Engine Piston Set
Mahle Original replacement pistons have the same great OE features to provide the perfect fit and function in your vehicle. They offer things like compensated ring grooves to ensure proper ring loading and oil control; as well as expansion-controlled designs for small fitting clearances—to reduce engine noise, wear, emissions, and improved oil control. Choose the model designed for your vehicle and engine application.
Brand | MAHLE Original |
Manufacturer's Part Number | 224-3449 |
Part Type | Pistons |
Product Line | Mahle Original OE Replacement Pistons |
Summit Racing Part Number | MAH-2243449 |
UPC | 27067469779 |
Piston Rings Included | No |
Bore (in.) | 3.917 in. |
Bore (mm) | 99.492mm |
Stroke | 3.578 in. |
Engine Stroke Type | Stock |
Piston Style | Dome, with no valve reliefs |
Piston Material | Cast aluminum |
Compression Height (in.) | 1.211 in. |
Wrist Pin Style | Press-fit |
Wrist Pin Retainers Included | No |
Wrist Pin Included | Yes |
Pin Diameter (in.) | 0.945 in. |
Piston Ring Thickness | 1.50mm x 1.50mm x 3.00mm |
File Fit | No |
Gapless | No |
Remanufactured | No |
Quantity | Sold as a set of 8. |
Mahle OE Dodge Trk 5.7L V8 Hemi 2002-06 Piston Set (Set of 8) | ||||
---|---|---|---|---|
Year | Make | Model | Submodel | Region |
2003 | Dodge | Ram 2500 | SLT | US |
2003 | Dodge | Ram 3500 | ST | US |
2003 | Dodge | Ram 3500 | SLT | US |
2003 | Dodge | Ram 2500 | Laramie | US |
2003 | Dodge | Ram 1500 | SLT | US |
2003 | Dodge | Ram 1500 | ST | US |
2003 | Dodge | Ram 1500 | Laramie | US |
2003 | Dodge | Ram 3500 | Laramie | US |
2003 | Dodge | Ram 2500 | ST | US |
2004 | Dodge | Ram 3500 | Laramie | US |
2004 | Dodge | Ram 2500 | ST | US |
2004 | Dodge | Ram 3500 | ST | US |
2004 | Dodge | Durango | SLT | US |
2004 | Dodge | Ram 1500 | SLT | US |
2004 | Dodge | Ram 1500 | Laramie | US |
2004 | Dodge | Ram 2500 | SLT | US |
2004 | Dodge | Ram 3500 | SLT | US |
2004 | Dodge | Ram 1500 | ST | US |
2004 | Dodge | Durango | Limited | US |
2005 | Dodge | Ram 1500 | Laramie | US |
2005 | Dodge | Durango | Limited | US |
2005 | Dodge | Ram 3500 | ST | US |
2005 | Dodge | Ram 1500 | ST | US |
2005 | Dodge | Durango | SLT | US |
2005 | Dodge | Ram 1500 | SLT | US |
2005 | Dodge | Ram 2500 | SLT | US |
2005 | Dodge | Ram 2500 | Laramie | US |
2005 | Dodge | Ram 3500 | Laramie | US |
2005 | Dodge | Ram 2500 | ST | US |
2005 | Dodge | Ram 3500 | SLT | US |
2005 | Chrysler | 300 | C | US |
2005 | Dodge | Magnum | R/T | US |
2005 | Dodge | Durango | ST | US |
2005 | Jeep | Grand Cherokee | Limited | US |
2006 | Dodge | Ram 2500 | Sport | US |
2006 | Dodge | Ram 3500 | ST | US |
2006 | Dodge | Ram 1500 | TRX4 | US |
2006 | Dodge | Ram 2500 | TRX4 | US |
2006 | Dodge | Ram 2500 | Power Wagon | US |
2006 | Dodge | Ram 2500 | SLT | US |
2006 | Chrysler | 300 | C | US |
2006 | Dodge | Ram 3500 | Laramie | US |
2006 | Dodge | Ram 3500 | SLT | US |
2006 | Dodge | Durango | Adventurer | US |
2006 | Jeep | Grand Cherokee | Limited | US |
2006 | Dodge | Charger | R/T | US |
2006 | Dodge | Durango | SLT | US |
2006 | Dodge | Ram 1500 | ST | US |
2006 | Dodge | Ram 2500 | ST | US |
2006 | Dodge | Ram 1500 | Sport | US |
Note: Over 50 fitments returned for this product, this table is trimmed to only display the first 50. |
