MAHLE Original pistons are OE quality and have the same great OE features such as compensated ring grooves to assure proper ring loading and oil control, as well as expansion controlled designs for small fitting clearances to reduce engine noise, wear, emissions, and improve oil control.

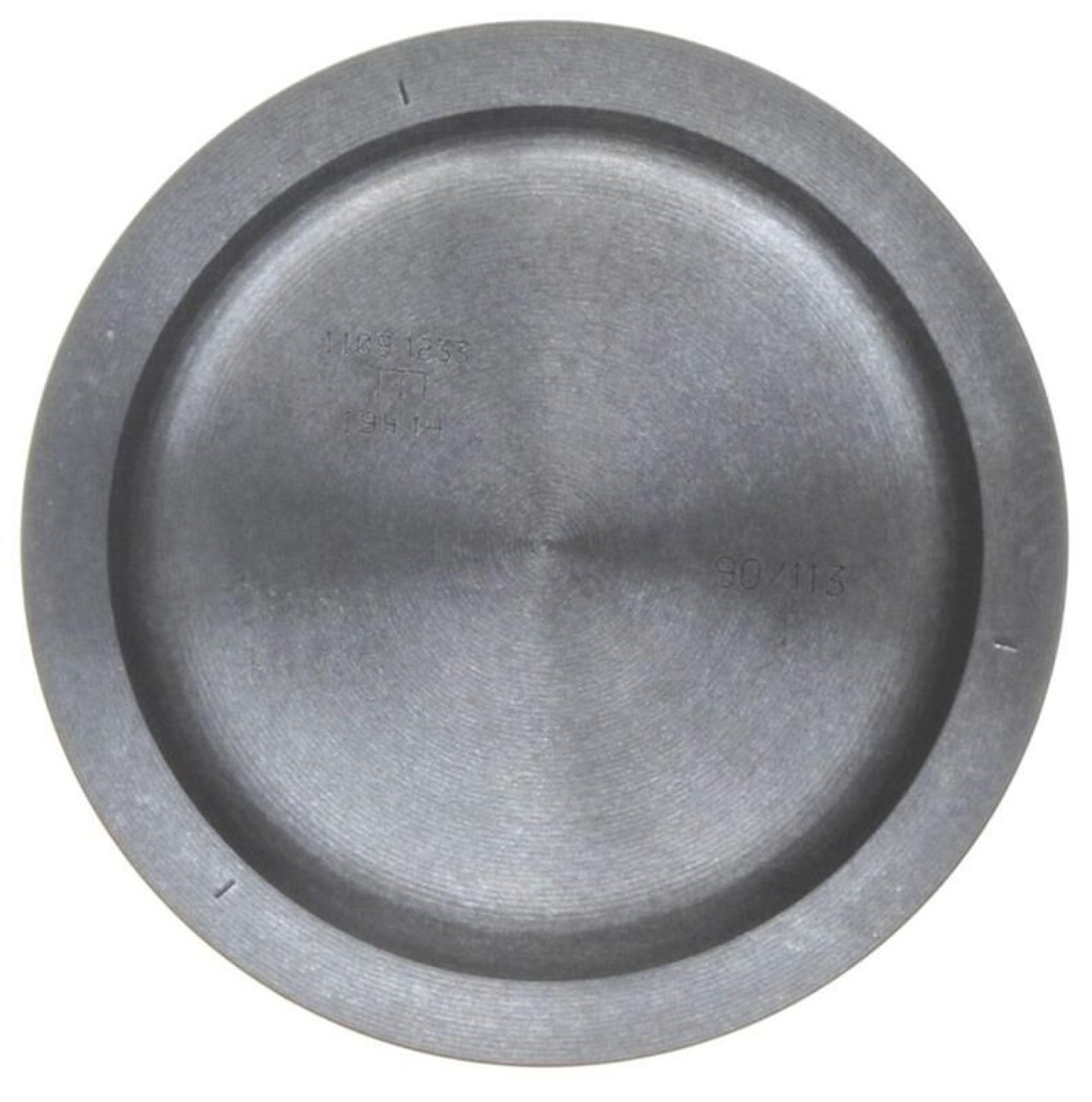

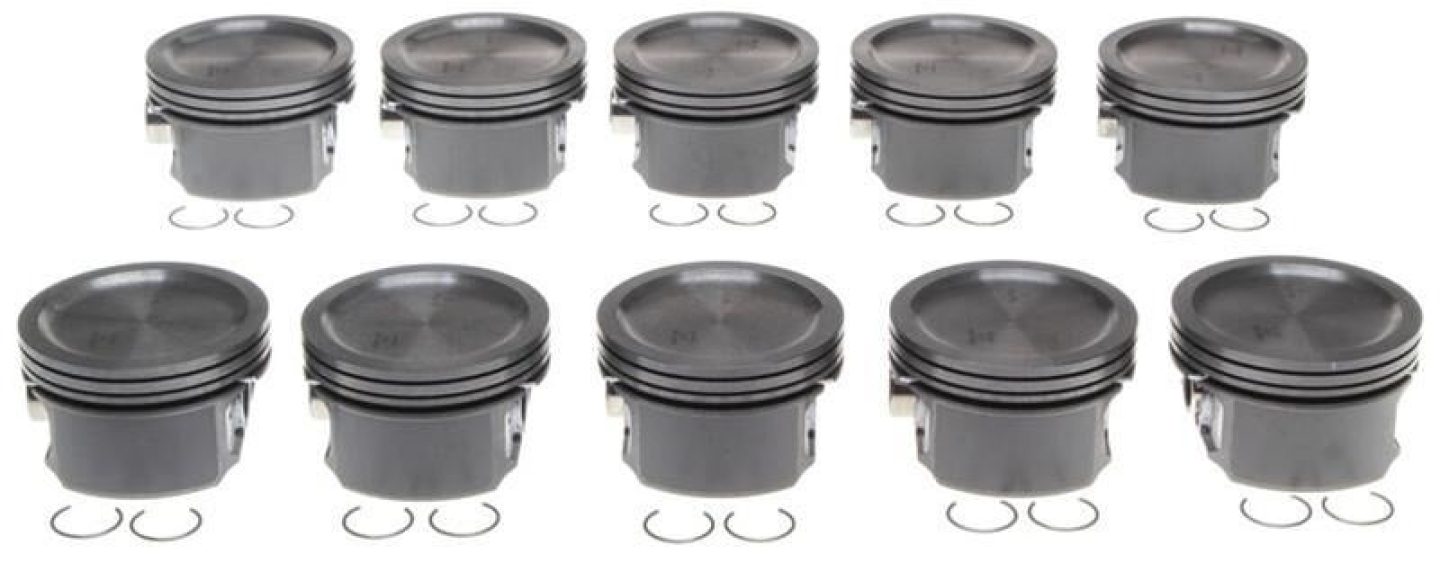

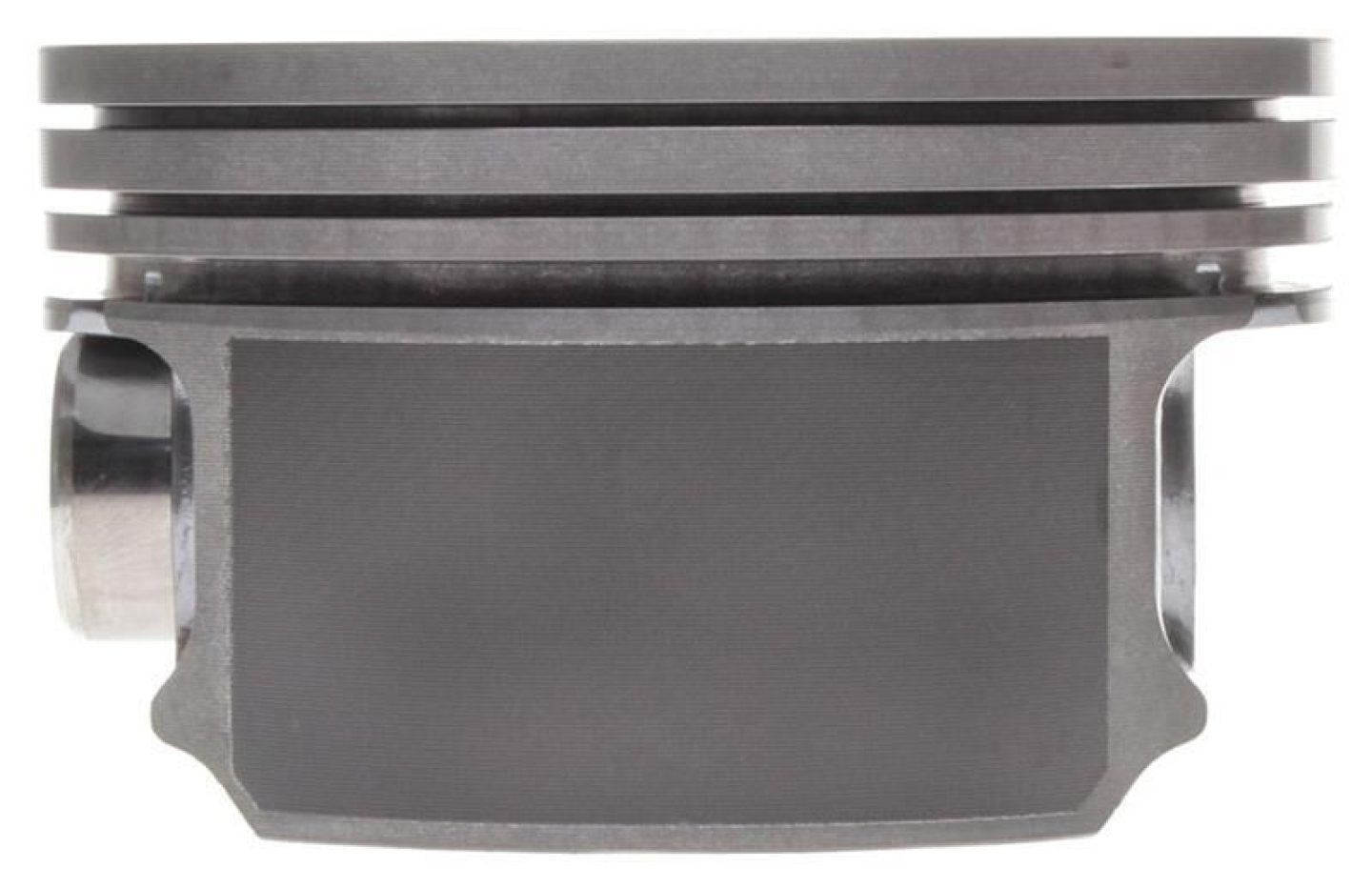

Engine Piston Set
Mahle Original replacement pistons have the same great OE features to provide the perfect fit and function in your vehicle. They offer things like compensated ring grooves to ensure proper ring loading and oil control; as well as expansion-controlled designs for small fitting clearances—to reduce engine noise, wear, emissions, and improved oil control. Choose the model designed for your vehicle and engine application.
Brand | MAHLE Original |
Manufacturer's Part Number | 224-3485 |
Part Type | Pistons |
Product Line | Mahle Original OE Replacement Pistons |
Summit Racing Part Number | MAH-2243485 |
UPC | 27067714305 |
Piston Rings Included | No |
Bore (in.) | 3.630 in. |
Bore (mm) | 92.200mm |
Stroke | 4.165 in. |
Engine Stroke Type | Stock |
Piston Style | Dish, with no valve reliefs |
Piston Material | Cast aluminum |
Compression Height (in.) | 1.210 in. |
Wrist Pin Style | Press-fit |
Wrist Pin Retainers Included | No |
Wrist Pin Included | Yes |
Pin Diameter (in.) | 0.866 in. |
Piston Ring Thickness | 1.50mm x 1.50mm x 3.00mm |
File Fit | No |
Gapless | No |
Remanufactured | No |
Quantity | Sold as a set of 8. |
Mahle OE Ford 6.8L SOHC P.I.99-05 10 CYL w/ PC Piston Set (Set of 10) | ||||
---|---|---|---|---|
Year | Make | Model | Submodel | Region |
1999 | Ford | E-350 Econoline Club Wagon | XLT | US |
1999 | Ford | E-350 Super Duty | XL | US |
1999 | Ford | E-350 Super Duty | Base | US |
1999 | Ford | E-350 Econoline Club Wagon | Custom | US |
1999 | Ford | F-350 Super Duty | XL | US |
1999 | Ford | F-450 Super Duty | XL | US |
1999 | Ford | F-450 Super Duty | XLT | US |
1999 | Ford | E-350 Econoline Club Wagon | Chateau | US |
1999 | Ford | F-550 Super Duty | XLT | US |
1999 | Ford | F-350 Super Duty | Lariat | US |
1999 | Ford | F-550 Super Duty | Lariat | US |
1999 | Ford | F-550 Super Duty | XL | US |
1999 | Ford | F-450 Super Duty | Lariat | US |
1999 | Ford | Econoline Super Duty | Custom | US |
1999 | Ford | F-350 Super Duty | XLT | US |
1999 | Ford | Econoline Super Duty | Base | US |
2000 | Ford | F-250 Super Duty | Lariat | US |
2000 | Ford | F-450 Super Duty | XL | US |
2000 | Ford | F-550 Super Duty | XLT | US |
2000 | Ford | F-450 Super Duty | XLT | US |
2000 | Ford | E-350 Econoline Club Wagon | Custom | US |
2000 | Ford | E-350 Econoline Club Wagon | XLT | US |
2000 | Ford | F-450 Super Duty | Lariat | US |
2000 | Ford | F-550 Super Duty | Lariat | US |
2000 | Ford | E-350 Econoline Club Wagon | Chateau | US |
2000 | Ford | E-350 Super Duty | XL | US |
2000 | Ford | F-350 Super Duty | XLT | US |
2000 | Ford | Excursion | XLT | US |
2000 | Ford | F-550 Super Duty | XL | US |
2000 | Ford | F-350 Super Duty | Lariat | US |
2000 | Ford | F-350 Super Duty | XL | US |
2000 | Ford | F-250 Super Duty | XLT | US |
2000 | Ford | Excursion | Limited | US |
2000 | Ford | F-250 Super Duty | XL | US |
2000 | Ford | E-350 Super Duty | Base | US |
2000 | Ford | E-450 Econoline Super Duty | Custom | US |
2001 | Ford | F-350 Super Duty | XL | US |
2001 | Ford | F-550 Super Duty | XLT | US |
2001 | Ford | E-350 Econoline Club Wagon | XL | US |
2001 | Ford | F-450 Super Duty | Lariat | US |
2001 | Ford | E-350 Econoline Club Wagon | XLT | US |
2001 | Ford | F-550 Super Duty | Lariat | US |
2001 | Ford | Excursion | XLT | US |
2001 | Ford | E-350 Super Duty | Base | US |
2001 | Ford | F-250 Super Duty | XLT | US |
2001 | Ford | F-250 Super Duty | XL | US |
2001 | Ford | F-250 Super Duty | Lariat | US |
2001 | Ford | F-450 Super Duty | XL | US |
2001 | Ford | Excursion | Limited | US |
2001 | Ford | F-550 Super Duty | XL | US |
Note: Over 50 fitments returned for this product, this table is trimmed to only display the first 50. |
