MAHLE Original pistons are OE quality and have the same great OE features such as compensated ring grooves to assure proper ring loading and oil control, as well as expansion controlled designs for small fitting clearances to reduce engine noise, wear, emissions, and improve oil control.

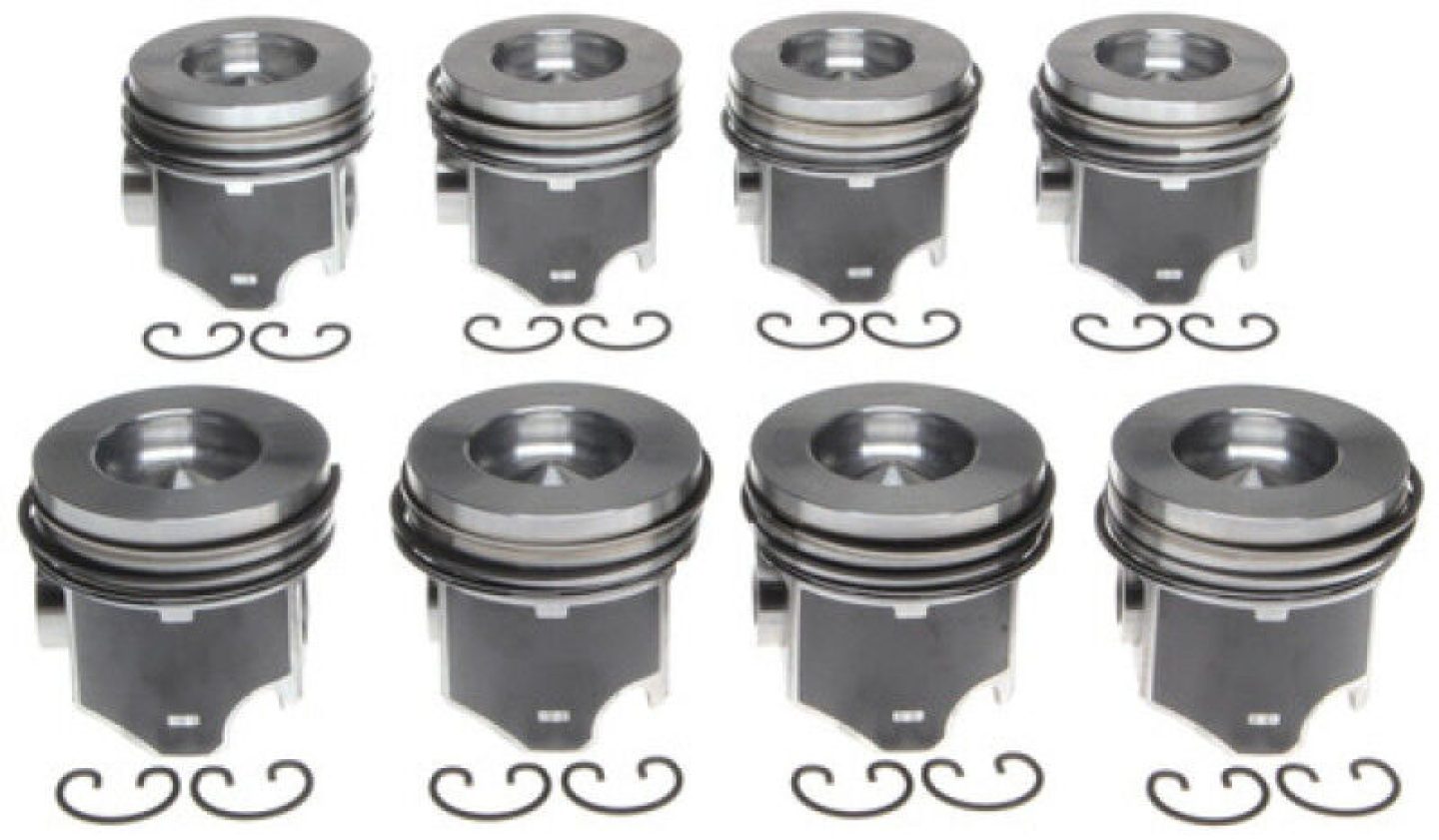

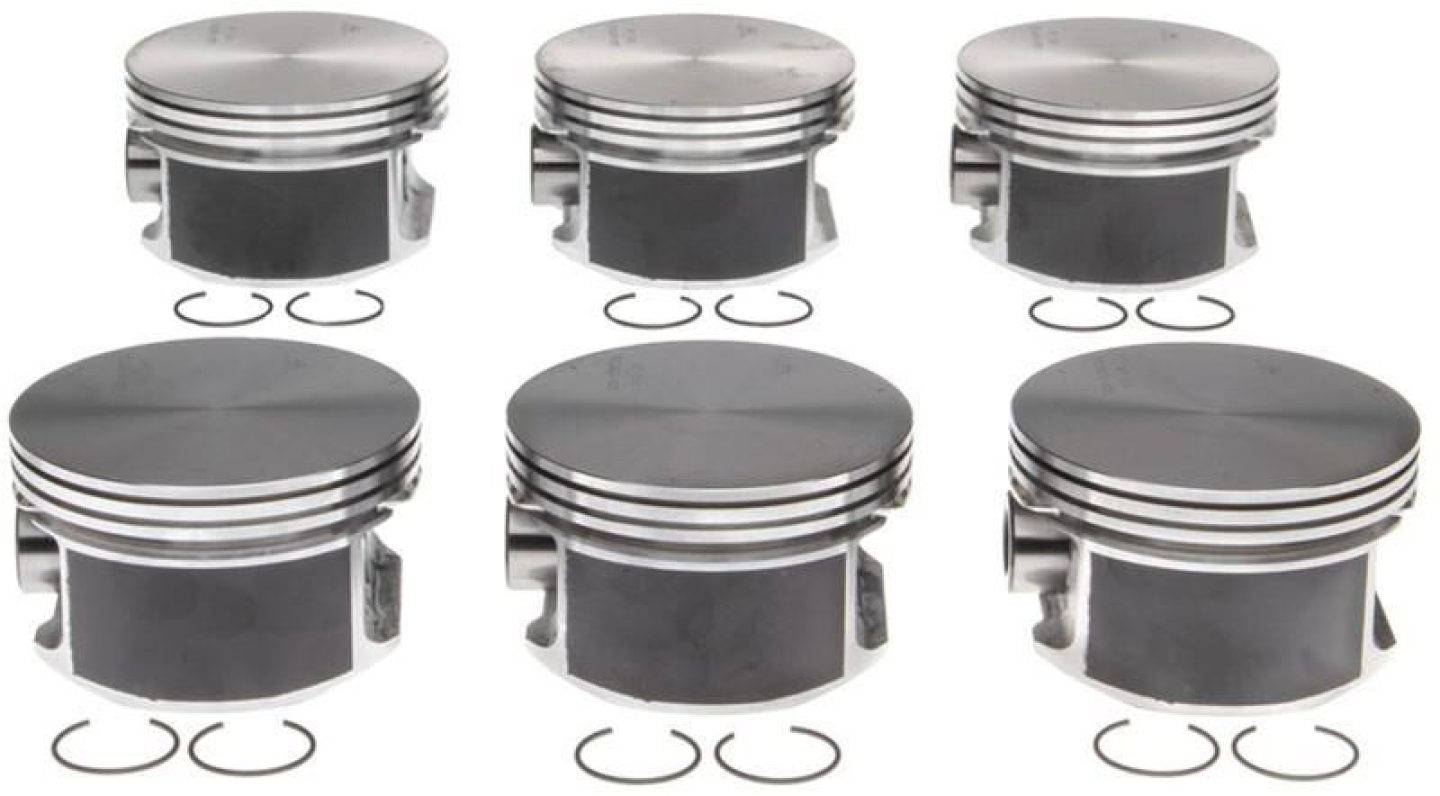

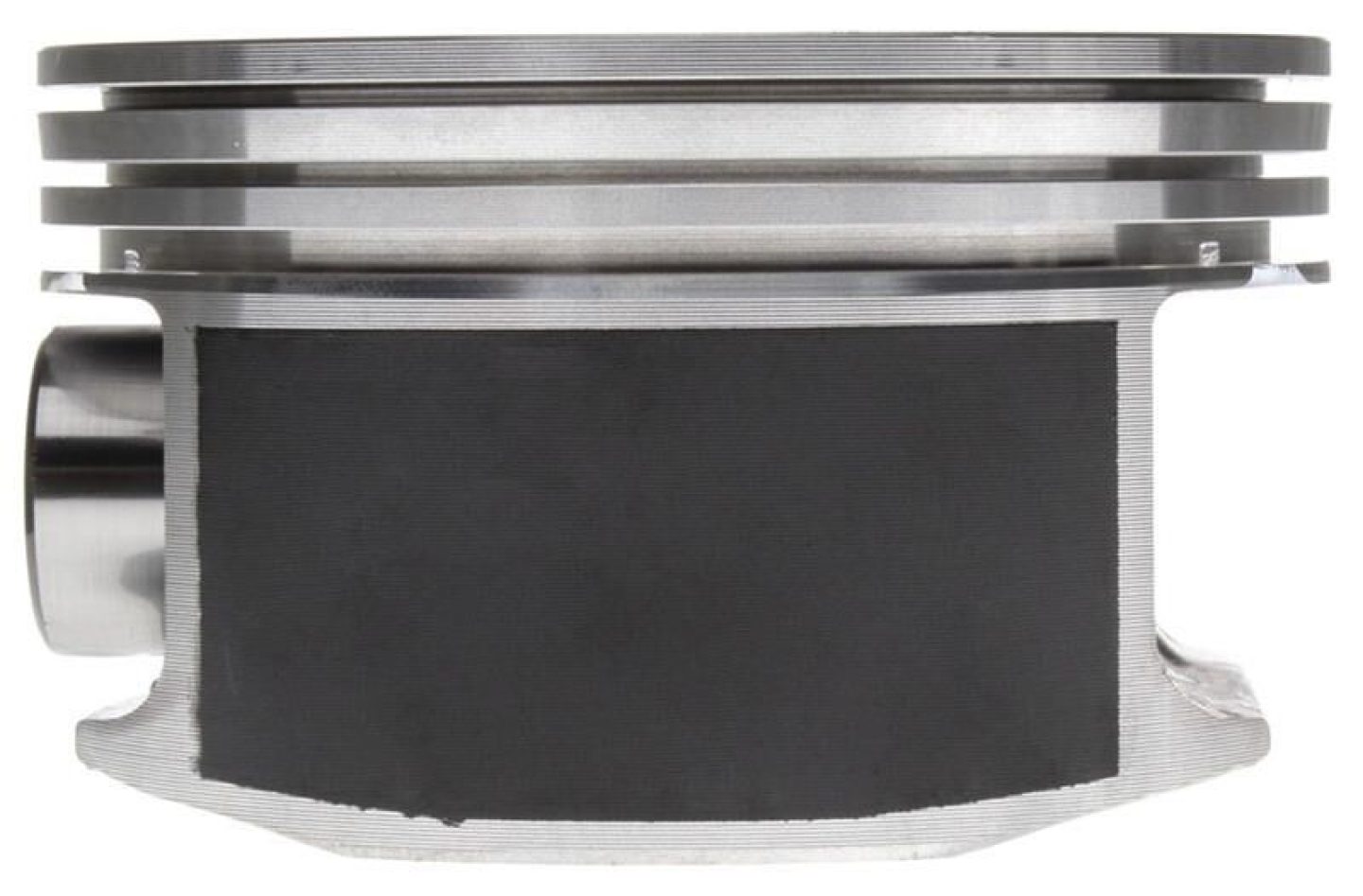

Engine Piston Set
Mahle Original replacement pistons have the same great OE features to provide the perfect fit and function in your vehicle. They offer things like compensated ring grooves to ensure proper ring loading and oil control; as well as expansion-controlled designs for small fitting clearances—to reduce engine noise, wear, emissions, and improved oil control. Choose the model designed for your vehicle and engine application.
Brand | MAHLE Original |
Manufacturer's Part Number | 224-3564 |
Part Type | Pistons |
Product Line | Mahle Original OE Replacement Pistons |
Summit Racing Part Number | MAH-2243564 |
UPC | 27067715029 |
Piston Rings Included | No |
Bore (in.) | 3.660 in. |
Bore (mm) | 93.000mm |
Stroke | 3.571 in. |
Engine Stroke Type | Stock |
Piston Style | Flat top, with no valve reliefs |
Piston Material | Cast aluminum |
Compression Height (in.) | 1.252 in. |
Wrist Pin Style | Press-fit |
Wrist Pin Retainers Included | No |
Wrist Pin Included | Yes |
Pin Diameter (in.) | 0.945 in. |
Piston Ring Thickness | 1.50mm x 1.50mm x 3.00mm |
File Fit | No |
Gapless | No |
Remanufactured | No |
Quantity | Sold as a set of 6. |
Mahle OE Dodge Trk & Jeep 3.7L Vin K 2002-2012 Same as 2243443 (Except 6 Pack) Piston Set (Set of 6) | ||||
---|---|---|---|---|
Year | Make | Model | Submodel | Region |
2002 | Jeep | Liberty | Renegade | US |
2002 | Jeep | Liberty | Sport | US |
2002 | Jeep | Liberty | Limited | US |
2002 | Dodge | Ram 1500 | SLT | US |
2002 | Dodge | Ram 1500 | ST | US |
2003 | Jeep | Liberty | Sport | US |
2003 | Jeep | Liberty | Renegade | US |
2003 | Dodge | Ram 1500 | SLT | US |
2003 | Dodge | Ram 1500 | ST | US |
2003 | Dodge | Ram 1500 | Laramie | US |
2003 | Jeep | Liberty | Limited | US |
2004 | Dodge | Dakota | Sport | US |
2004 | Jeep | Liberty | Renegade | US |
2004 | Dodge | Dakota | Sport Plus | US |
2004 | Dodge | Dakota | SXT | US |
2004 | Jeep | Liberty | Limited | US |
2004 | Dodge | Durango | SLT | US |
2004 | Dodge | Dakota | SLT Plus | US |
2004 | Dodge | Dakota | SLT | US |
2004 | Dodge | Dakota | Base | US |
2004 | Jeep | Liberty | Sport | US |
2004 | Dodge | Durango | ST | US |
2004 | Dodge | Ram 1500 | ST | US |
2005 | Jeep | Grand Cherokee | Laredo | US |
2005 | Jeep | Liberty | Rocky Mountain Edition | US |
2005 | Jeep | Liberty | Renegade | US |
2005 | Jeep | Liberty | Limited | US |
2005 | Dodge | Ram 1500 | ST | US |
2005 | Dodge | Durango | SLT | US |
2005 | Dodge | Durango | SXT | US |
2005 | Dodge | Dakota | SLT | US |
2005 | Dodge | Dakota | Sport | US |
2005 | Jeep | Liberty | Sport | US |
2005 | Dodge | Dakota | ST | US |
2005 | Dodge | Durango | ST | US |
2005 | Dodge | Dakota | Laramie | US |
2006 | Jeep | Grand Cherokee | Laredo | US |
2006 | Dodge | Durango | SXT | US |
2006 | Jeep | Commander | Base | US |
2006 | Jeep | Liberty | Limited | US |
2006 | Mitsubishi | Raider | DuroCross | US |
2006 | Dodge | Durango | SLT | US |
2006 | Dodge | Ram 1500 | ST | US |
2006 | Jeep | Liberty | Renegade | US |
2006 | Jeep | Liberty | Sport | US |
2006 | Jeep | Liberty | 65th Anniversary Edition | US |
2006 | Dodge | Dakota | ST | US |
2006 | Jeep | Grand Cherokee | 65th Anniversary Edition | US |
2006 | Jeep | Commander | 65th Anniversary Edition | US |
2006 | Mitsubishi | Raider | LS | US |
Note: Over 50 fitments returned for this product, this table is trimmed to only display the first 50. |
