MAHLE Original pistons are OE quality and have the same great OE features such as compensated ring grooves to assure proper ring loading and oil control, as well as expansion controlled designs for small fitting clearances to reduce engine noise, wear, emissions, and improve oil control.

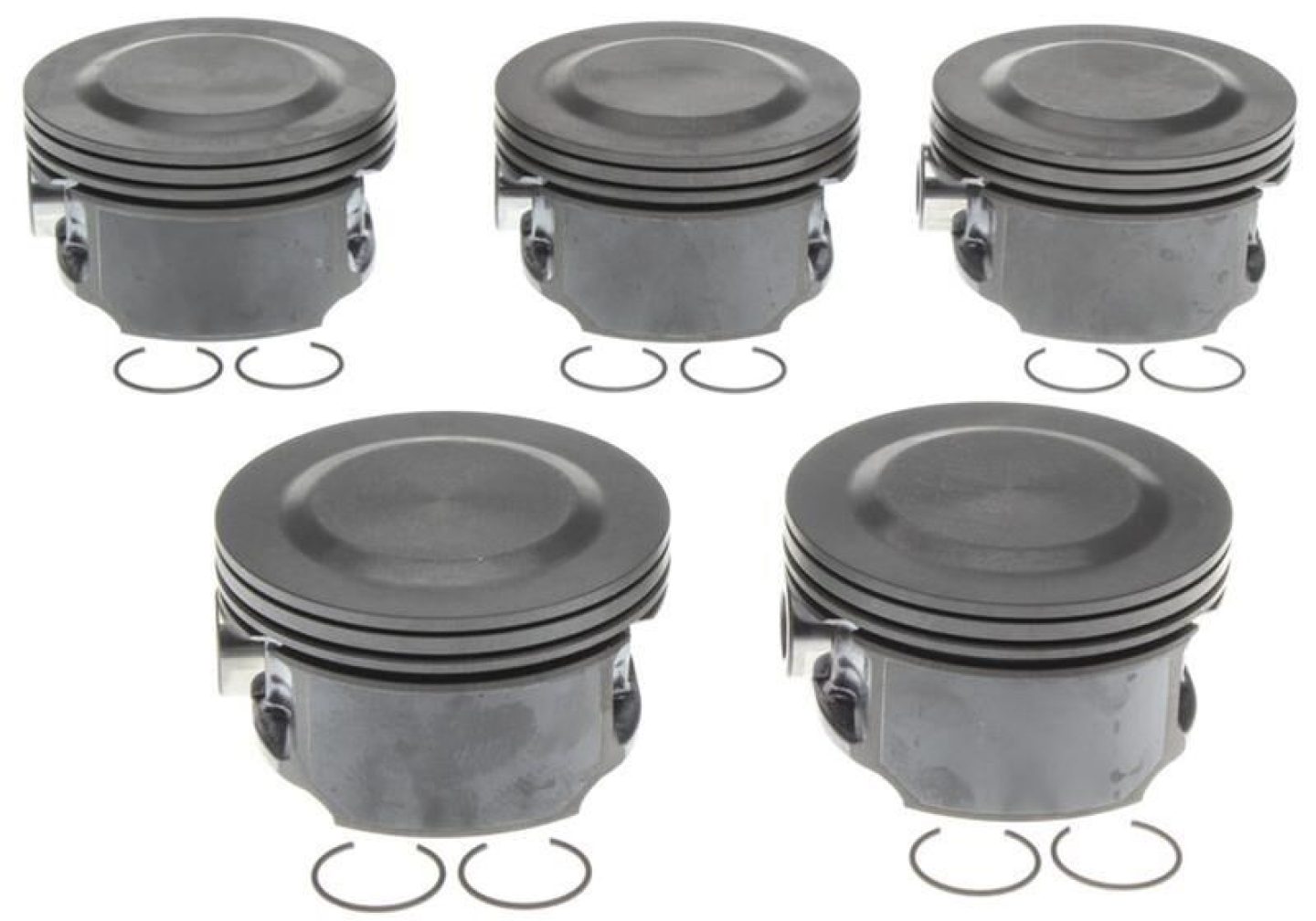

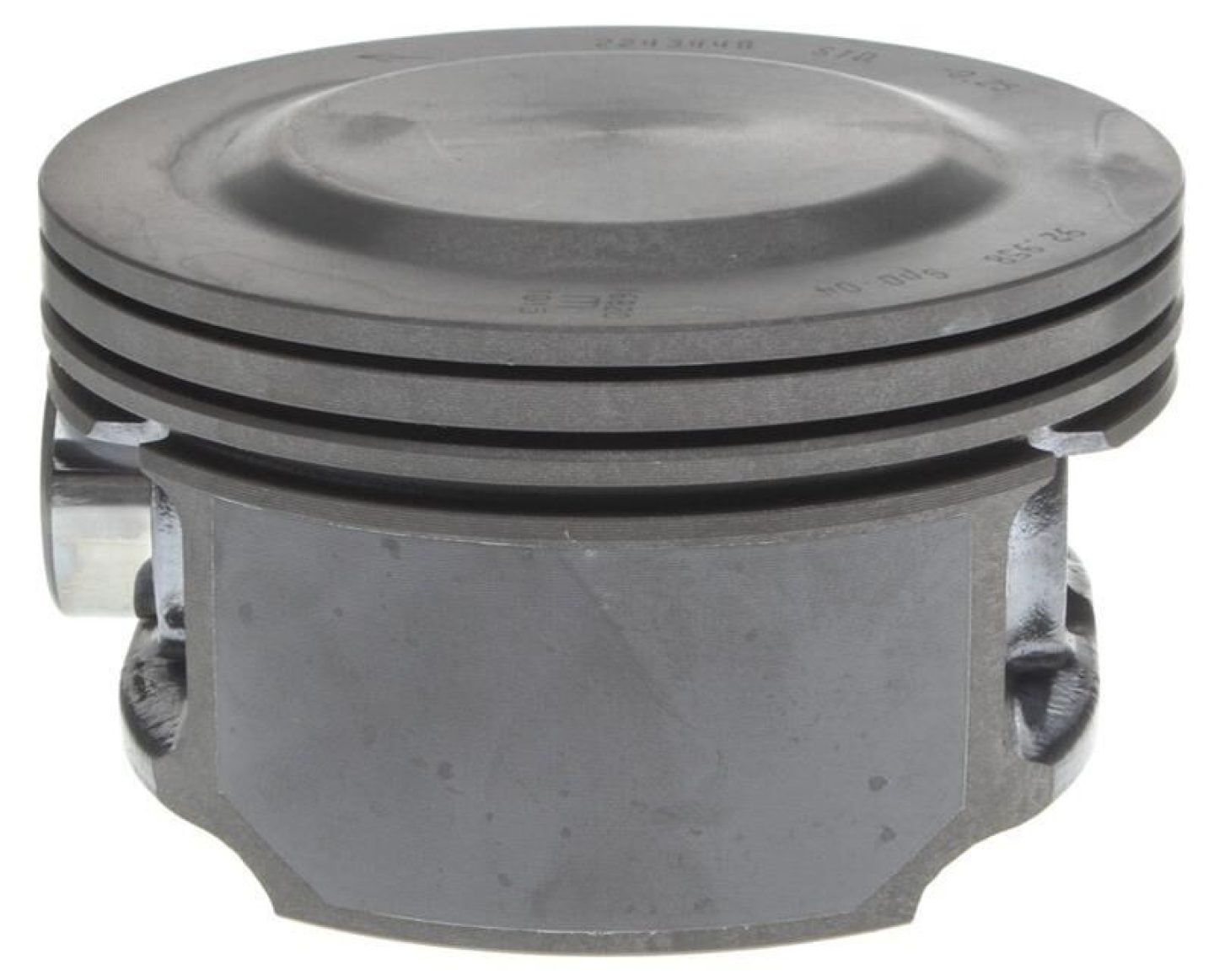

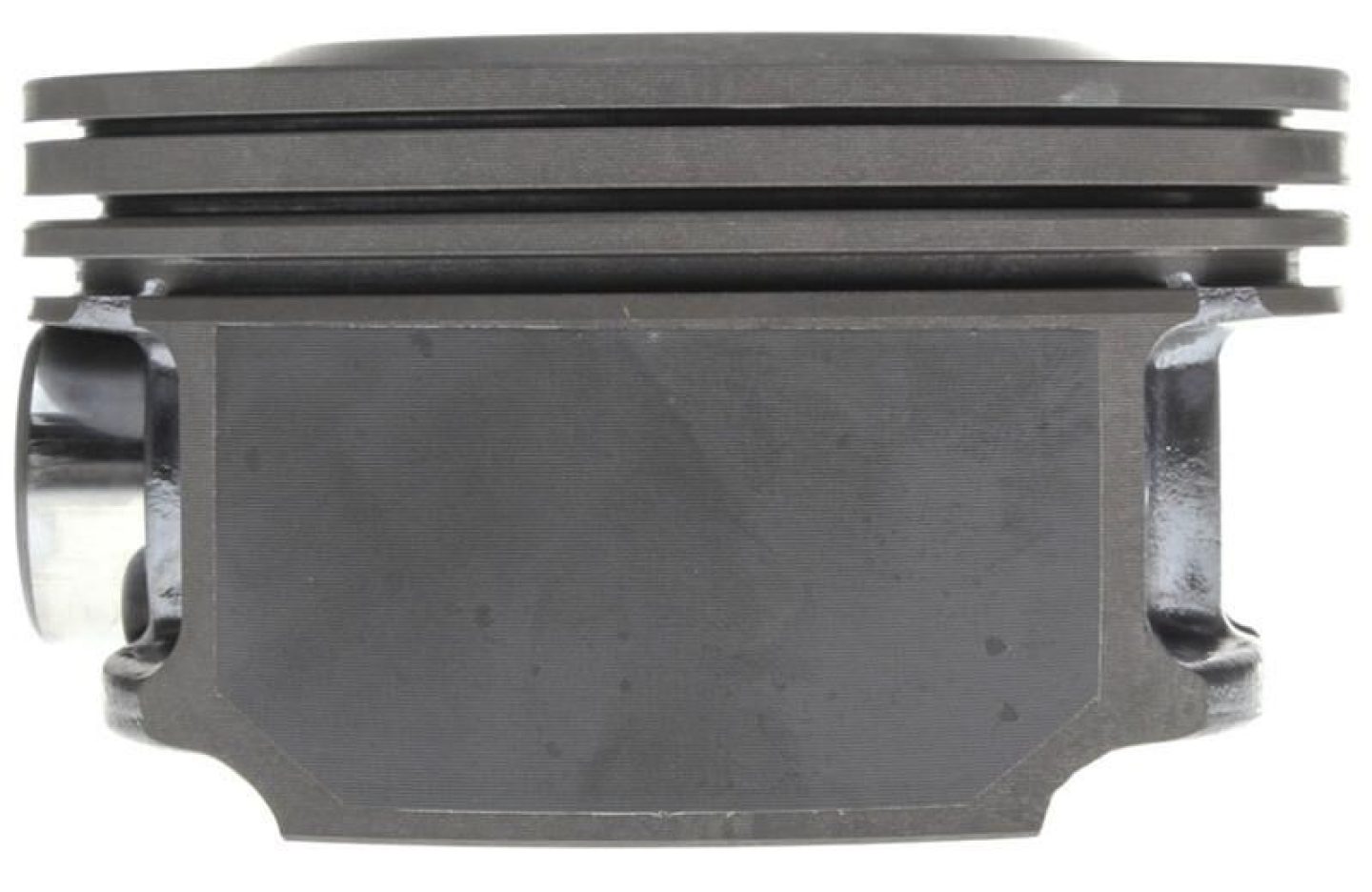

Engine Piston Set
Mahle Original aftermarket replacement pistons have great features to provide the perfect fit and function in your vehicle. They offer things like compensated ring grooves to ensure proper ring loading and oil control; as well as expansion-controlled designs for small fitting clearances—to reduce engine noise, wear, emissions, and improved oil control. Some include hard anodized ring lands, and coatings on the skirts and crowns. Choose the model designed for your vehicle and engine application.
Brand | MAHLE Original |
Manufacturer's Part Number | 224-3565.010 |
Part Type | Pistons |
Product Line | Mahle Original Aftermarket Replacement Pistons |
Summit Racing Part Number | MAH-2243565010 |
UPC | 27067715074 |
Piston Rings Included | No |
Bore (in.) | 3.670 in. |
Bore (mm) | 93.218mm |
Stroke | 4.020 in. |
Engine Stroke Type | Stock |
Piston Style | Dome, with no valve reliefs |
Piston Material | Cast aluminum |
Compression Height (in.) | 1.100 in. |
Wrist Pin Style | Press-fit |
Wrist Pin Retainers Included | No |
Wrist Pin Included | Yes |
Pin Diameter (in.) | 0.905 in. |
Piston Ring Thickness | 1.20mm x 1.50mm x 2.50mm |
File Fit | No |
Gapless | No |
Remanufactured | No |
Quantity | Sold as a set of 5. |
Notes | Pistons have a high dome and coated skirts. |
Mahle OE GMC Trk 3.5L I-5 Vin 6 2004-2006 Canyon Colorado Hummer H3 2006+ Piston Set (Set of 5) | ||||
---|---|---|---|---|
Year | Make | Model | Submodel | Region |
2004 | GMC | Canyon | SL | US |
2004 | GMC | Canyon | Z85 SL | US |
2004 | Chevrolet | Colorado | LS | US |
2004 | GMC | Canyon | Z71 SLE | US |
2004 | Chevrolet | Colorado | Z71 LS | US |
2004 | GMC | Canyon | SLE | US |
2004 | Chevrolet | Colorado | Z71 | US |
2004 | GMC | Canyon | Z71 SL | US |
2004 | Chevrolet | Colorado | Sport | US |
2004 | GMC | Canyon | Z85 SLE | US |
2004 | GMC | Canyon | Z71 Fleet | US |
2004 | Chevrolet | Colorado | Sport LS | US |
2004 | Chevrolet | Colorado | Base | US |
2004 | Chevrolet | Colorado | Z85 | US |
2004 | Chevrolet | Colorado | Z85 LS | US |
2005 | Chevrolet | Colorado | Z71 LS | US |
2005 | Chevrolet | Colorado | Z85 LS | US |
2005 | GMC | Canyon | Z71 Fleet | US |
2005 | Chevrolet | Colorado | Sport LS | US |
2005 | GMC | Canyon | Z71 SL | US |
2005 | Chevrolet | Colorado | Sport | US |
2005 | Chevrolet | Colorado | Z85 | US |
2005 | GMC | Canyon | Z85 SL | US |
2005 | GMC | Canyon | Z71 SLE | US |
2005 | GMC | Canyon | Z85 SLE | US |
2005 | Chevrolet | Colorado | Z71 | US |
2006 | Chevrolet | Colorado | LT | US |
2006 | Chevrolet | Colorado | WT | US |
2006 | Isuzu | i-350 | Base | US |
2006 | GMC | Canyon | SLT | US |
2006 | GMC | Canyon | WT | US |
2006 | GMC | Canyon | SLE | US |
2006 | Hummer | H3 | Base | US |
