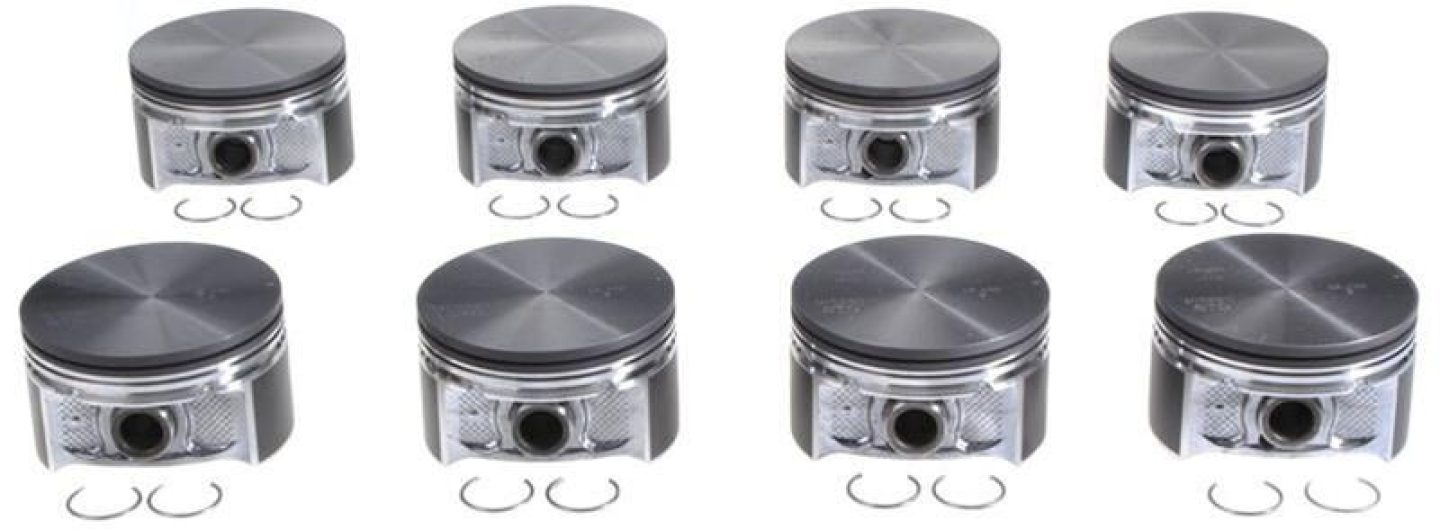

Mahle OE Ford 5.4L SOHC V8 015220-STD w/ PC 2003-2007 Vin 5 Piston Set (Set of 8)
MAHLE(R) pistons are OE quality and have the same great OE features such as compensated ring grooves to assure proper ring loading and oil control, as well as expansion controlled designs for small fitting clearances to reduce engine noise, wear, emissions, and improve oil control. MAHLE offers pistons ready for installation with mounted piston rings, with pin and clips included for the convenience of the engine builder. MAHLE is one of the largest OE piston manufacturers in the world.
Engine Piston Set
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

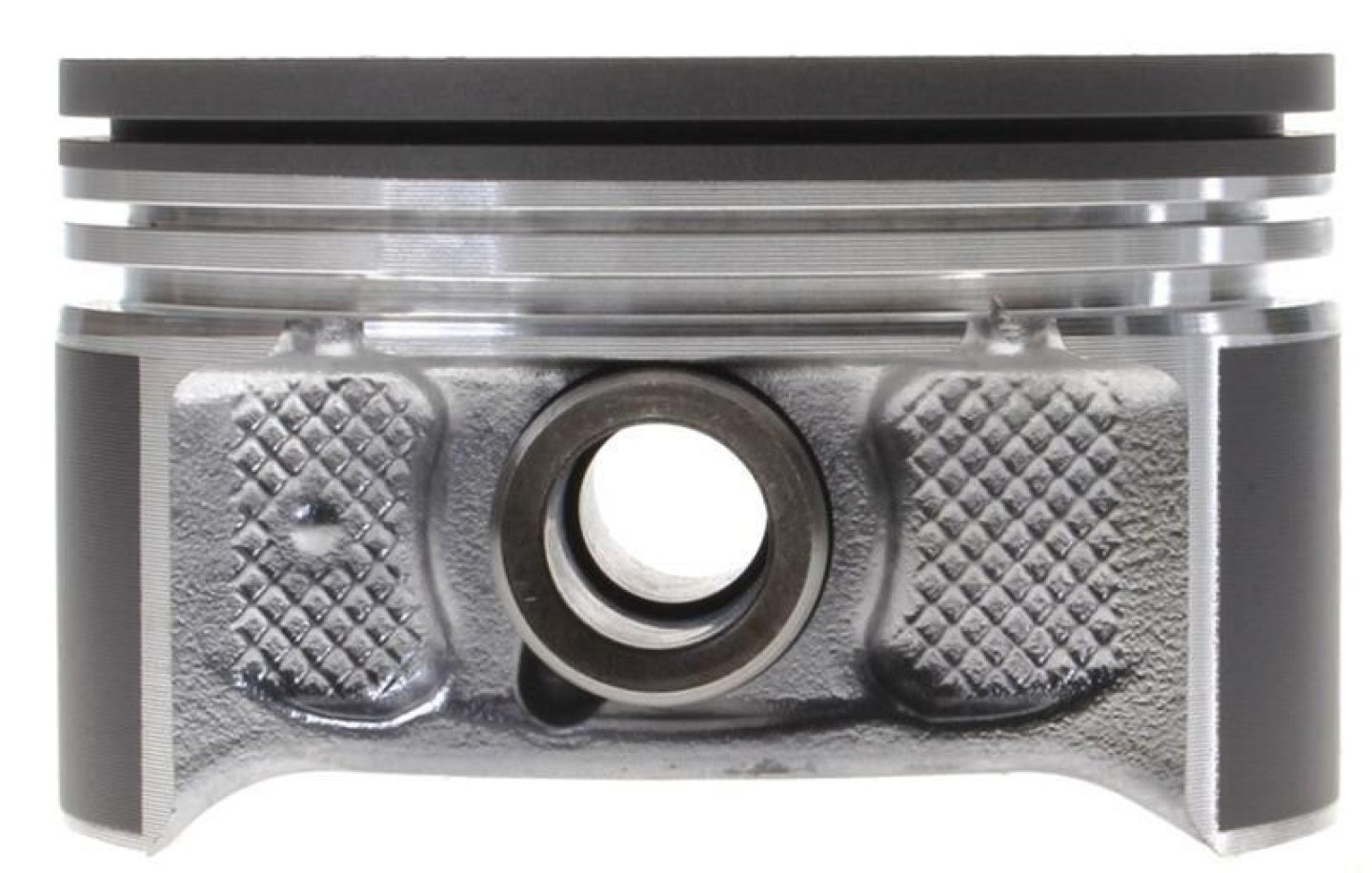

Piston - FORD 5.4L SOHC V8 (015220-STD) W/PC 2003-2007 Vin 5
Mahle Original aftermarket replacement pistons have great features to provide the perfect fit and function in your vehicle. They offer things like compensated ring grooves to ensure proper ring loading and oil control; as well as expansion-controlled designs for small fitting clearances—to reduce engine noise, wear, emissions, and improved oil control. Some include hard anodized ring lands, and coatings on the skirts and crowns. Choose the model designed for your vehicle and engine application.
Brand | MAHLE Original |
Manufacturer's Part Number | 224-3580 |
Part Type | Pistons |
Product Line | Mahle Original Aftermarket Replacement Pistons |
UPC | 27067733429 |
Piston Rings Included | No |
Bore (in.) | 3.552 in. |
Bore (mm) | 90.200mm |
Stroke | 4.170 in. |
Engine Stroke Type | Stock |
Piston Style | Flat top, with no valve reliefs |
Piston Material | Hypereutectic aluminum |
Wrist Pin Style | Press-fit or floating |

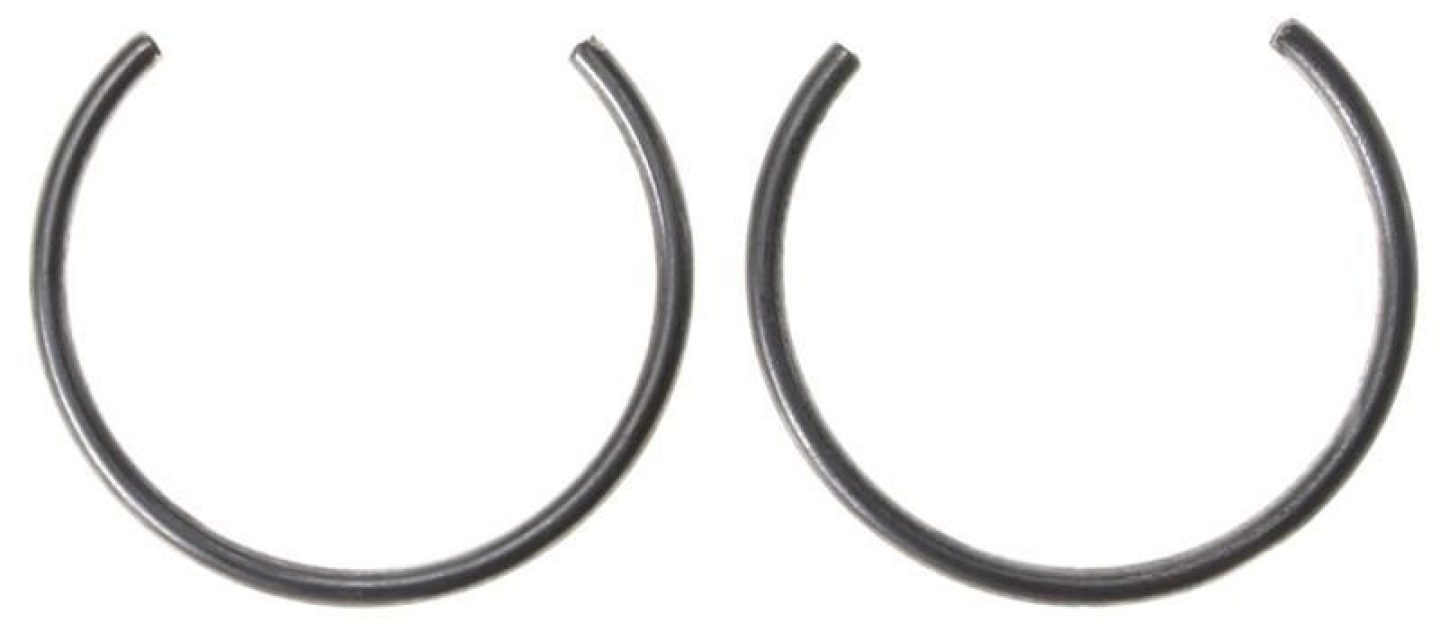

Wrist Pin Retainers Included | Yes |
Wrist Pin Included | Yes |
Pin Diameter (in.) | 0.866 in. |
Piston Ring Thickness | 1.50mm x 1.50mm x 3.00mm |
File Fit | No |
Gapless | No |
Remanufactured | No |
Quantity | Sold as a set of 8. |
Notes | Pistons have coated crowns and skirts. |
Mahle OE Ford 5.4L SOHC V8 015220-STD w/ PC 2003-2007 Vin 5 Piston Set (Set of 8) | ||||
---|---|---|---|---|
Year Range | Make | Model | Submodels | Region |
2005-2010 | Ford | Expedition | Eddie Bauer, XLS, XLT, Limited, XLT Sport, King Ranch, EL Eddie Bauer, EL Limited, EL XLT, Funkmaster Flex Edition, EL King Ranch | US |
2004-2009 | Ford | F-150 | Lariat, XL, XLT, FX4, King Ranch, Harley-Davidson Edition, FX2, Limited, THE 60TH ANNIVERSARY EDITION, Platinum | US |
2005-2010 | Ford | F-250 Super Duty | XLT, XL, Lariat, King Ranch, FX4, Cabela's | US |
2005-2010 | Ford | F-350 Super Duty | XLT, XL, Lariat, King Ranch, FX4, Cabela's | US |
2006-2008 | Lincoln | Mark LT | Base | US |
2005-2010 | Lincoln | Navigator | Base, Luxury, Ultimate, L Ultimate, L Luxury, L | US |
Please note that this information serves as a fitment guide only. For specific fitment questions or clarifications, please contact us, as manufacturers may introduce variations and modifications during model year or regional revisions. While we strive to provide accurate data, fitment details may vary by region; therefore, compatibility outside the listed region and submodel variant cannot be guaranteed.
