MAHLE Original pistons are OE quality and have the same great OE features such as compensated ring grooves to assure proper ring loading and oil control, as well as expansion controlled designs for small fitting clearances to reduce engine noise, wear, emissions, and improve oil control.

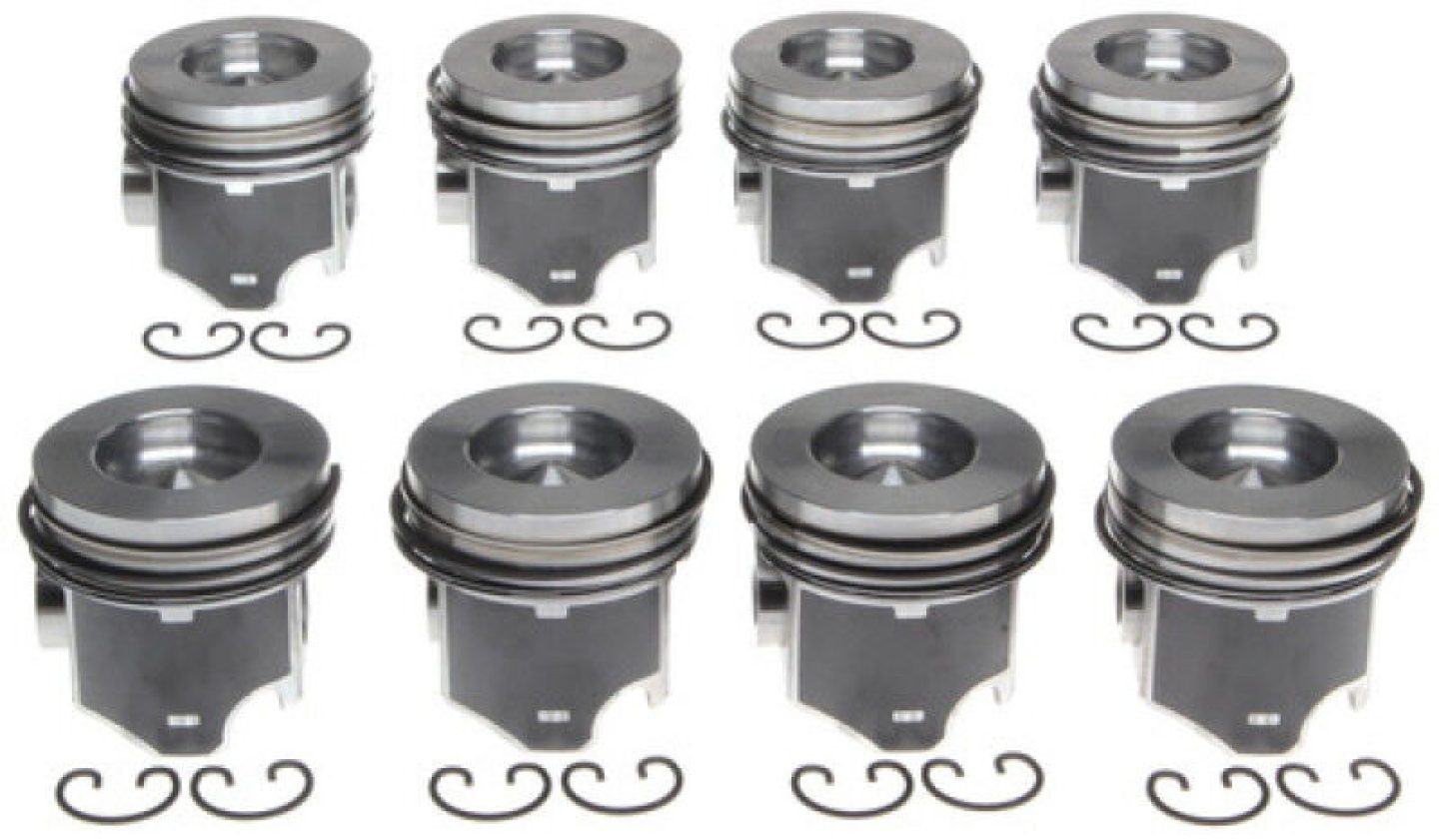

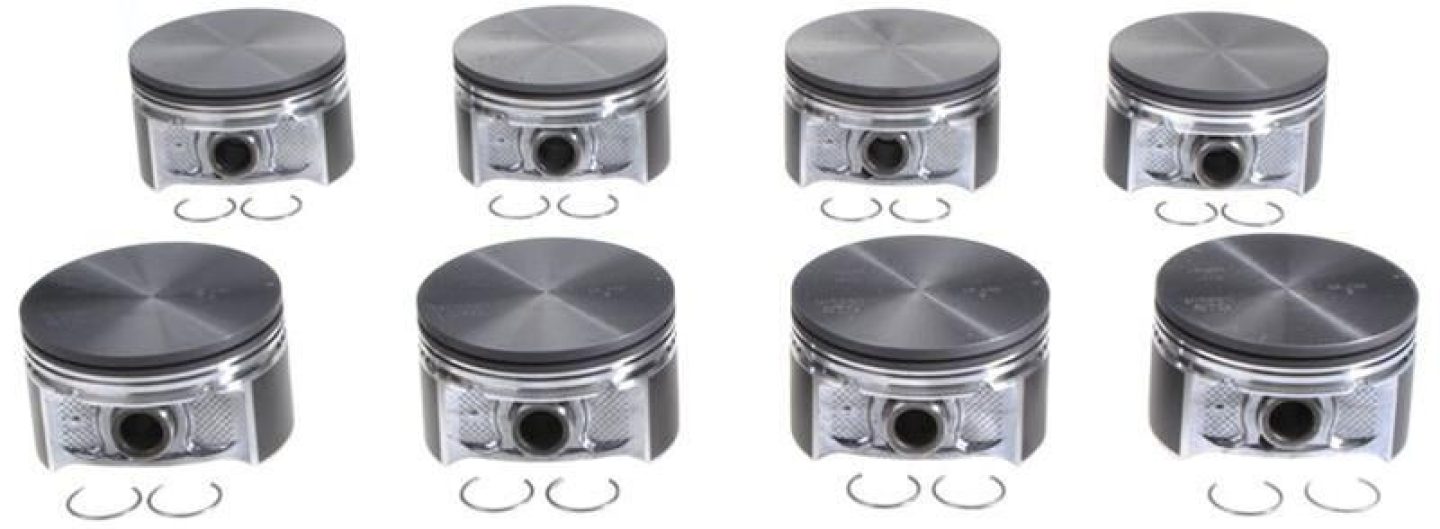

Engine Piston Set
Mahle Original aftermarket replacement pistons have great features to provide the perfect fit and function in your vehicle. They offer things like compensated ring grooves to ensure proper ring loading and oil control; as well as expansion-controlled designs for small fitting clearances—to reduce engine noise, wear, emissions, and improved oil control. Some include hard anodized ring lands, and coatings on the skirts and crowns. Choose the model designed for your vehicle and engine application.
Brand | MAHLE Original |
Manufacturer's Part Number | 224-3580-0.25MM |
Part Type | Pistons |
Product Line | Mahle Original Aftermarket Replacement Pistons |
Summit Racing Part Number | MAH-2243580025MM |
UPC | 27067733467 |
Piston Rings Included | No |
Bore (in.) | 3.561 in. |
Bore (mm) | 90.450mm |
Stroke | 4.170 in. |
Engine Stroke Type | Stock |

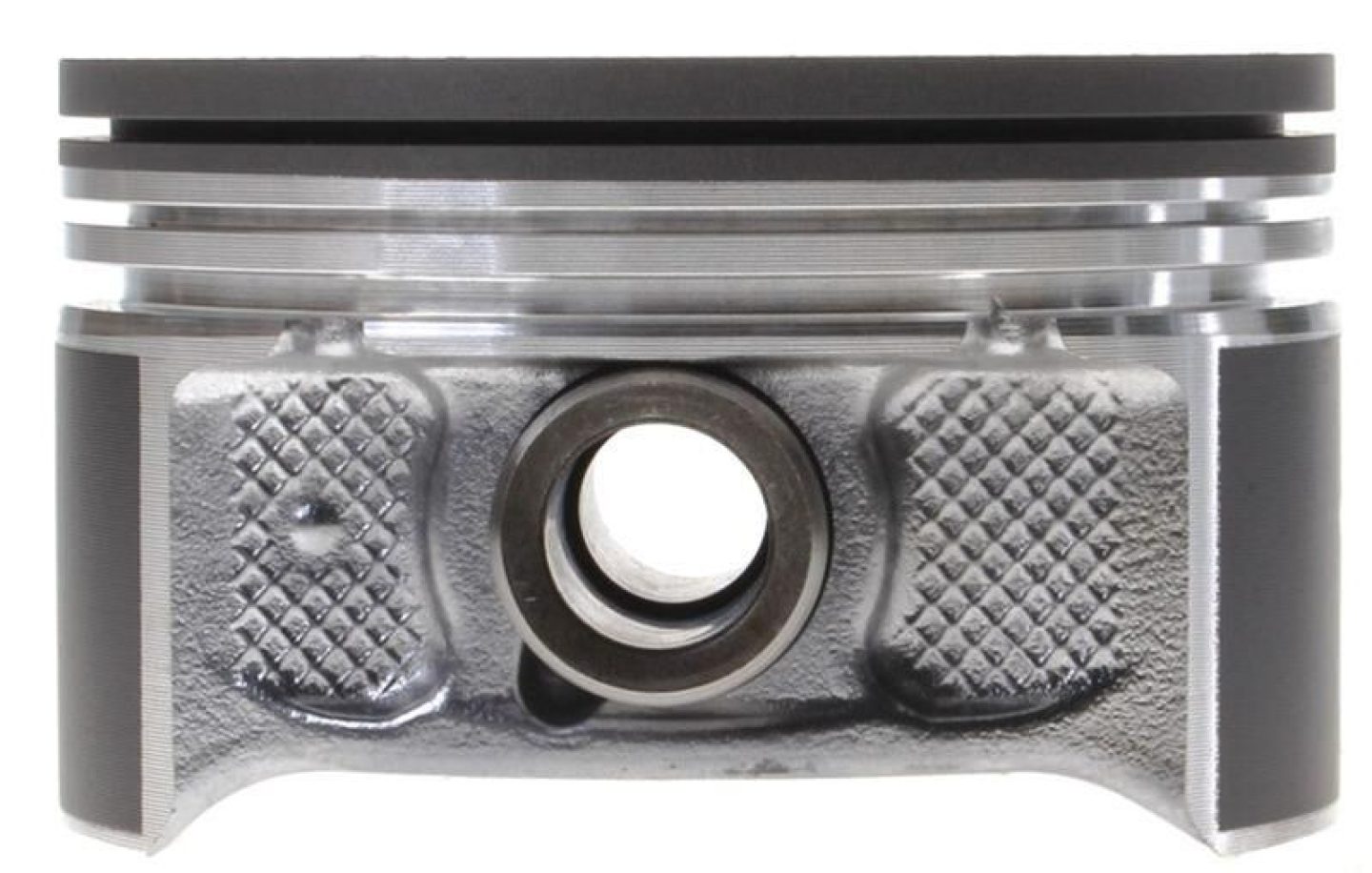

Piston Style | Flat top, with no valve reliefs |
Piston Material | Hypereutectic aluminum |
Wrist Pin Style | Press-fit or floating |

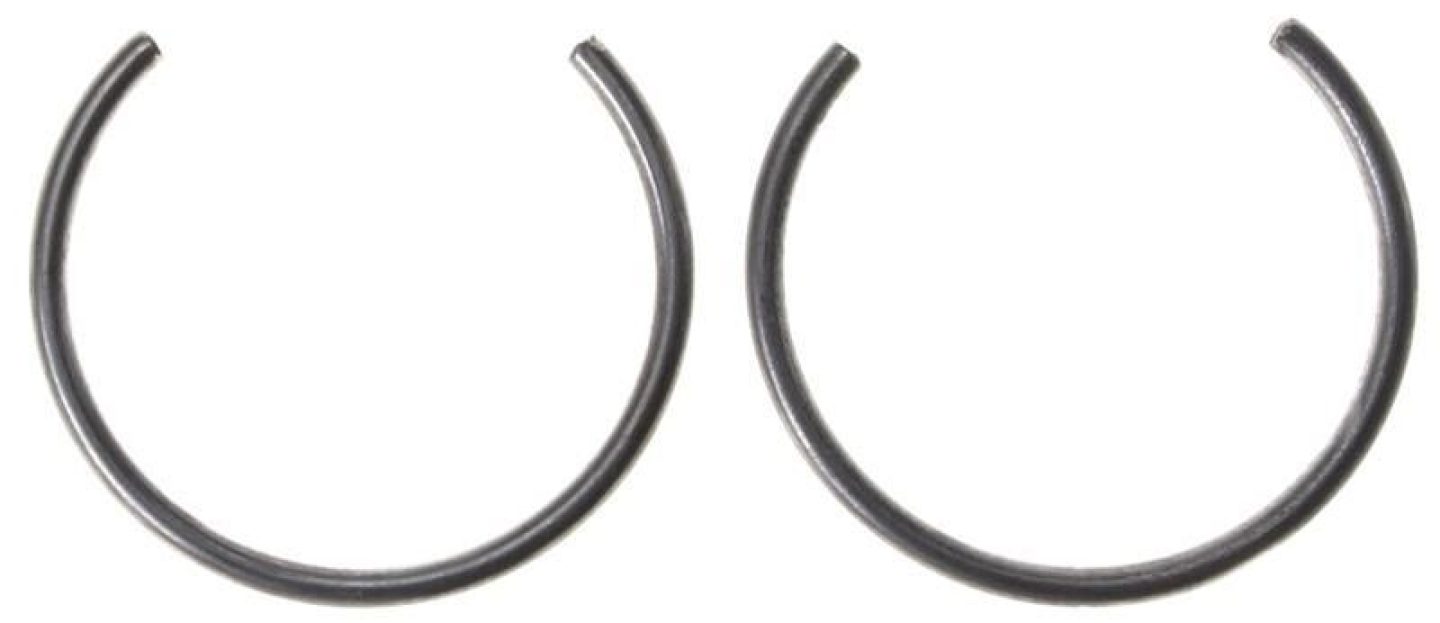

Wrist Pin Retainers Included | Yes |
Wrist Pin Included | Yes |
Pin Diameter (in.) | 0.866 in. |
Piston Ring Thickness | 1.50mm x 1.50mm x 3.00mm |
File Fit | No |
Gapless | No |
Remanufactured | No |
Quantity | Sold as a set of 8. |
Notes | Pistons have coated crowns and skirts. |
Mahle OE Ford 5.4L SOHC V8 015220-025mm w/ PC 2003 - 2007 Vin 5 Piston Set (Set of 8) | ||||
---|---|---|---|---|
Year | Make | Model | Submodel | Region |
2004 | Ford | F-150 | XL | US |
2004 | Ford | F-150 | XLT | US |
2004 | Ford | F-150 | FX4 | US |
2004 | Ford | F-150 | Lariat | US |
2005 | Ford | F-150 | XLT | US |
2005 | Ford | Expedition | Limited | US |
2005 | Ford | F-250 Super Duty | King Ranch | US |
2005 | Ford | F-350 Super Duty | Lariat | US |
2005 | Ford | F-250 Super Duty | XL | US |
2005 | Ford | Expedition | Eddie Bauer | US |
2005 | Ford | F-250 Super Duty | XLT | US |
2005 | Ford | F-350 Super Duty | XLT | US |
2005 | Ford | F-350 Super Duty | King Ranch | US |
2005 | Ford | Expedition | XLS | US |
2005 | Ford | Expedition | XLT | US |
2005 | Ford | F-150 | XL | US |
2005 | Lincoln | Navigator | Base | US |
2005 | Ford | F-150 | FX4 | US |
2005 | Ford | F-150 | Lariat | US |
2005 | Ford | F-150 | King Ranch | US |
2005 | Ford | F-250 Super Duty | Lariat | US |
2005 | Ford | F-350 Super Duty | XL | US |
2006 | Ford | F-250 Super Duty | XL | US |
2006 | Ford | F-350 Super Duty | XL | US |
2006 | Ford | F-350 Super Duty | Lariat | US |
2006 | Ford | F-150 | XLT | US |
2006 | Lincoln | Navigator | Luxury | US |
2006 | Ford | F-150 | Harley-Davidson Edition | US |
2006 | Ford | F-150 | Lariat | US |
2006 | Ford | F-150 | FX4 | US |
2006 | Ford | F-250 Super Duty | Lariat | US |
2006 | Ford | F-250 Super Duty | King Ranch | US |
2006 | Ford | F-350 Super Duty | XLT | US |
2006 | Ford | Expedition | Limited | US |
2006 | Ford | F-350 Super Duty | King Ranch | US |
2006 | Ford | F-250 Super Duty | XLT | US |
2006 | Ford | Expedition | King Ranch | US |
2006 | Ford | Expedition | XLS | US |
2006 | Ford | Expedition | XLT Sport | US |
2006 | Ford | Expedition | Eddie Bauer | US |
2006 | Ford | Expedition | XLT | US |
2006 | Lincoln | Mark LT | Base | US |
2006 | Lincoln | Navigator | Ultimate | US |
2006 | Ford | F-150 | XL | US |
2006 | Ford | F-150 | King Ranch | US |
2007 | Ford | F-350 Super Duty | XL | US |
2007 | Ford | F-250 Super Duty | XLT | US |
2007 | Ford | F-150 | XLT | US |
2007 | Ford | F-150 | Harley-Davidson Edition | US |
2007 | Ford | F-150 | King Ranch | US |
Note: Over 50 fitments returned for this product, this table is trimmed to only display the first 50. |
