MAHLE Original pistons are OE quality and have the same great OE features such as compensated ring grooves to assure proper ring loading and oil control, as well as expansion controlled designs for small fitting clearances to reduce engine noise, wear, emissions, and improve oil control.

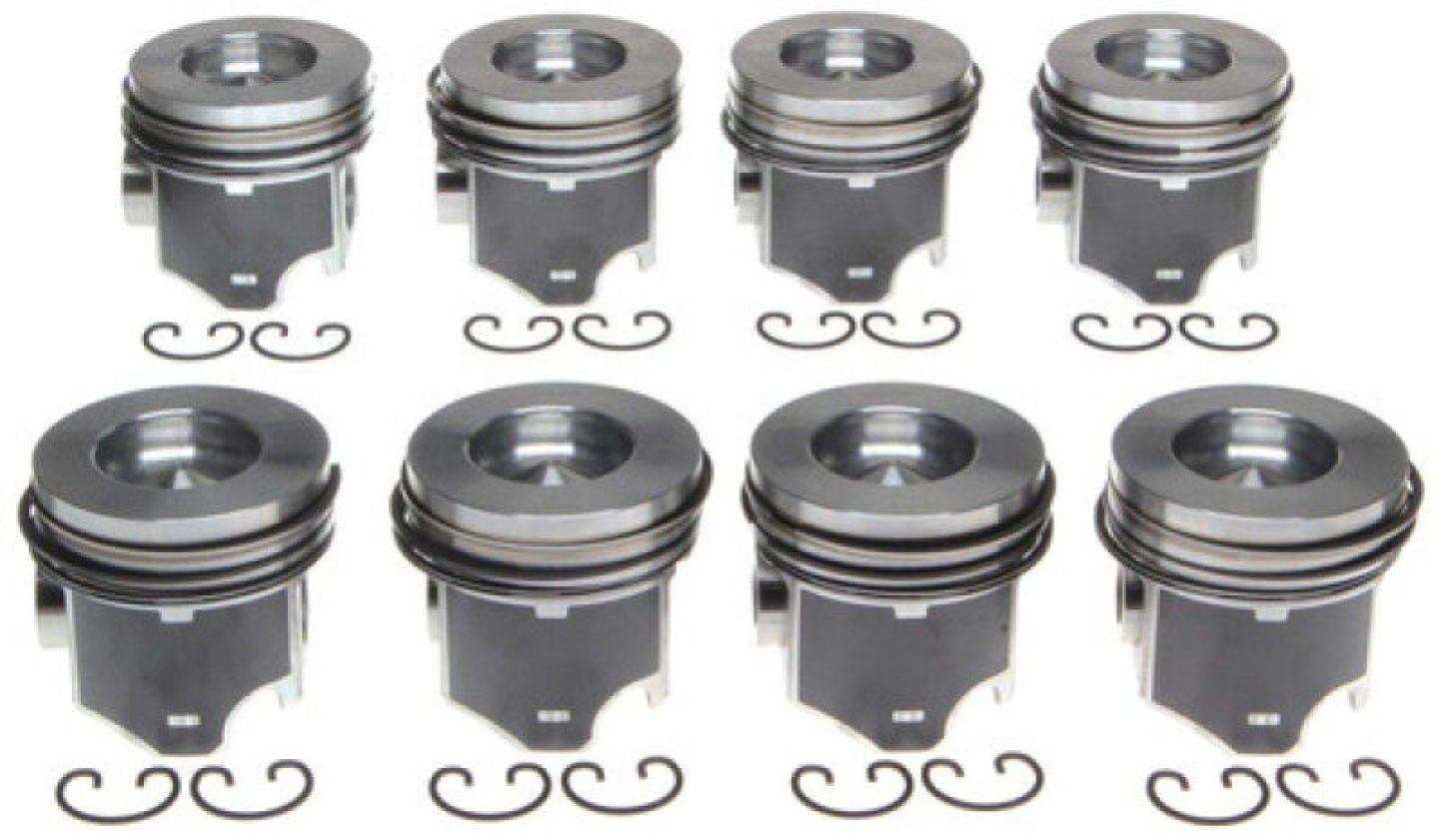

Engine Piston Set
Mahle Original aftermarket replacement pistons have great features to provide the perfect fit and function in your vehicle. They offer things like compensated ring grooves to ensure proper ring loading and oil control; as well as expansion-controlled designs for small fitting clearances—to reduce engine noise, wear, emissions, and improved oil control. Some include hard anodized ring lands, and coatings on the skirts and crowns. Choose the model designed for your vehicle and engine application.
Brand | MAHLE Original |
Manufacturer's Part Number | 224-3664-0.75MM |
Part Type | Pistons |
Product Line | Mahle Original Aftermarket Replacement Pistons |
Summit Racing Part Number | MAH-2243664075MM |
UPC | 27067849113 |
Piston Rings Included | No |
Bore (in.) | 4.030 in. |
Bore (mm) | 102.350mm |
Stroke | 3.620 in. |
Engine Stroke Type | Stock |
Piston Style | Dish, with two valve reliefs |
Piston Material | Cast aluminum |
Wrist Pin Style | Press-fit or floating |
Wrist Pin Retainers Included | Yes |
Wrist Pin Included | Yes |
Pin Diameter (in.) | 0.943 in. |
Piston Ring Thickness | 1.20mm x 1.50mm x 2.50mm |
File Fit | No |
Gapless | No |
Remanufactured | No |
Quantity | Sold as a set of 8. |
Notes | Pistons are coated on the crown and the skirts, and feature a reduced compression height. |
Mahle OE GM 6.0L 05-09 Vin U 0.75MM Reduced Compression Piston Set (Set of 8) | ||||
---|---|---|---|---|
Year | Make | Model | Submodel | Region |
2006 | GMC | Sierra 1500 HD | SLT | US |
2006 | Chevrolet | Express 2500 | Base | US |
2006 | Chevrolet | Express 2500 | LS | US |
2006 | Chevrolet | Express 2500 | LT | US |
2006 | Chevrolet | Express 3500 | LS | US |
2006 | GMC | Sierra 3500 | SLE | US |
2006 | GMC | Sierra 3500 | SLT | US |
2006 | Chevrolet | Silverado 2500 HD | WT | US |
2006 | GMC | Sierra 2500 HD | SL | US |
2006 | GMC | Savana 3500 | LS | US |
2006 | GMC | Sierra 1500 HD | SLE | US |
2006 | Hummer | H2 | Base | US |
2006 | GMC | Sierra 2500 HD | SLE | US |
2006 | GMC | Sierra 3500 | SL | US |
2006 | Chevrolet | Silverado 2500 HD | LT | US |
2006 | Chevrolet | Suburban 2500 | LT | US |
2006 | GMC | Sierra 3500 | WT | US |
2006 | Chevrolet | Express 3500 | LT | US |
2006 | Chevrolet | Silverado 1500 HD | LT | US |
2006 | GMC | Yukon XL 1500 | Denali | US |
2006 | Chevrolet | Silverado 3500 | LT | US |
2006 | GMC | Sierra 2500 HD | WT | US |
2006 | GMC | Sierra 2500 HD | SLT | US |
2006 | GMC | Savana 2500 | Base | US |
2006 | GMC | Savana 3500 | LT | US |
2006 | GMC | Yukon | Denali | US |
2006 | Chevrolet | Suburban 1500 | LTZ | US |
2006 | Chevrolet | Express 3500 | Base | US |
2006 | Chevrolet | Silverado 3500 | WT | US |
2006 | Chevrolet | Silverado 2500 HD | LS | US |
2006 | GMC | Savana 3500 | Base | US |
2006 | Chevrolet | Silverado 3500 | LS | US |
2006 | Chevrolet | Suburban 2500 | LS | US |
2007 | GMC | Sierra 3500 HD | WT | US |
2007 | GMC | Sierra 3500 HD | SLE | US |
2007 | GMC | Sierra 3500 Classic | SLE | US |
2007 | Chevrolet | Silverado 3500 HD | WT | US |
2007 | GMC | Sierra 2500 HD Classic | SLT | US |
2007 | GMC | Sierra 2500 HD Classic | SL | US |
2007 | Chevrolet | Silverado 2500 HD | WT | US |
2007 | GMC | Sierra 2500 HD | SLT | US |
2007 | GMC | Sierra 1500 | SLT | US |
2007 | Chevrolet | Express 2500 | Base | US |
2007 | Chevrolet | Avalanche | LTZ | US |
2007 | Chevrolet | Silverado 1500 | LTZ | US |
2007 | GMC | Sierra 2500 HD Classic | WT | US |
2007 | Chevrolet | Express 3500 | Base | US |
2007 | Chevrolet | Silverado 3500 HD | LTZ | US |
2007 | Chevrolet | Express 2500 | LS | US |
2007 | Chevrolet | Express 3500 | LS | US |
Note: Over 50 fitments returned for this product, this table is trimmed to only display the first 50. |
