MAHLE Original pistons are OE quality and have the same great OE features such as compensated ring grooves to assure proper ring loading and oil control, as well as expansion controlled designs for small fitting clearances to reduce engine noise, wear, emissions, and improve oil control.

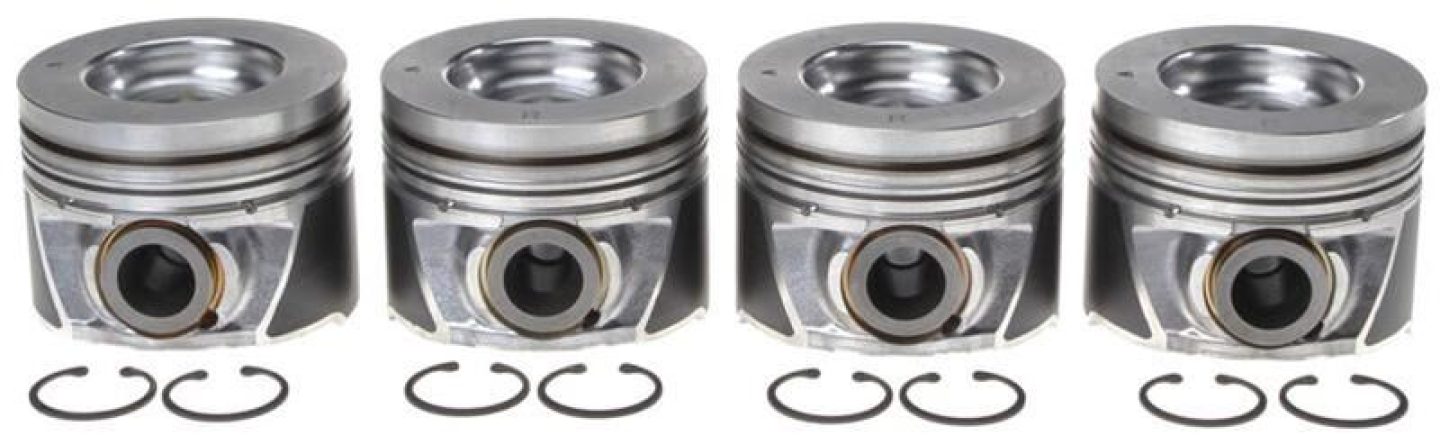

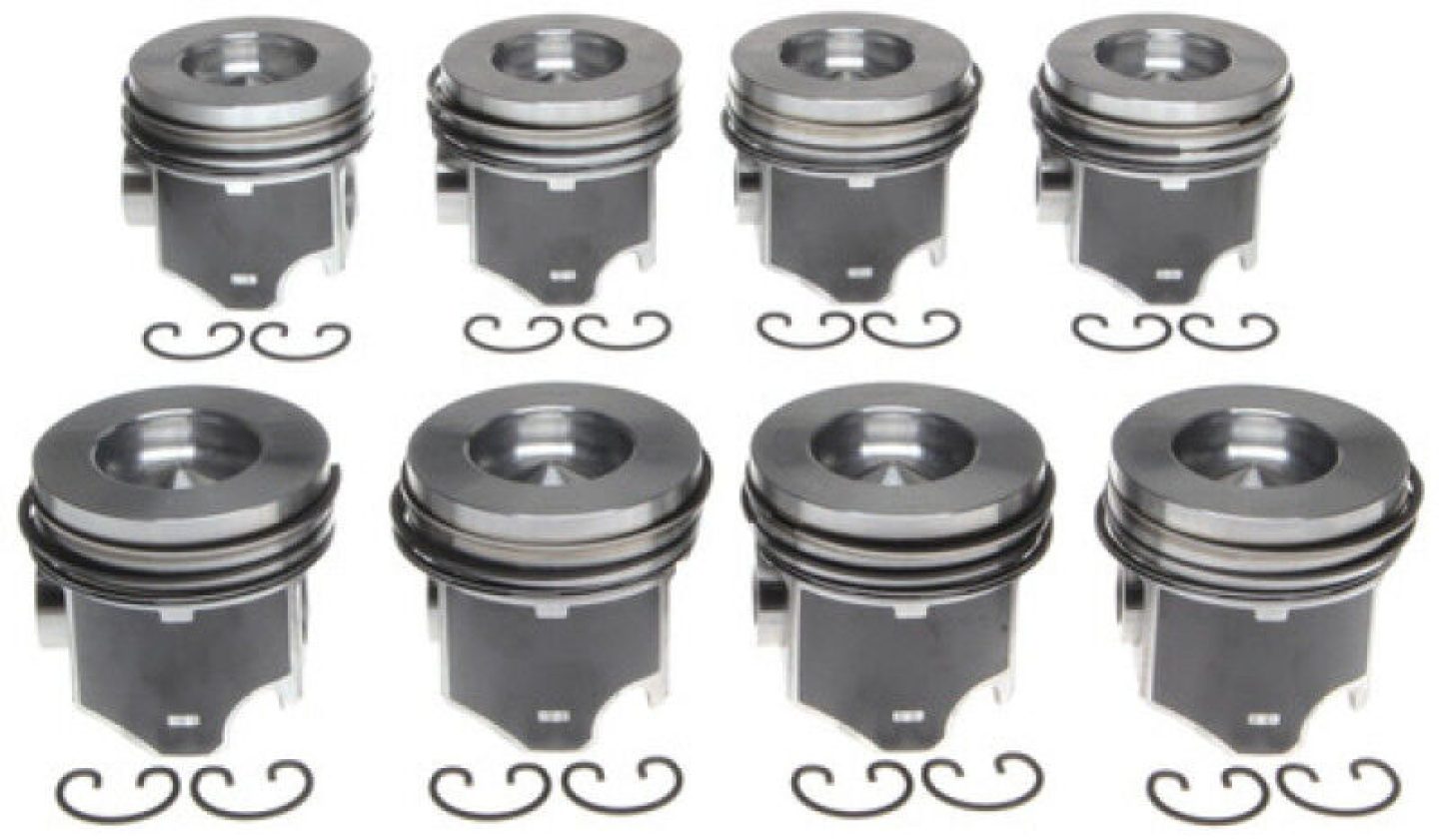

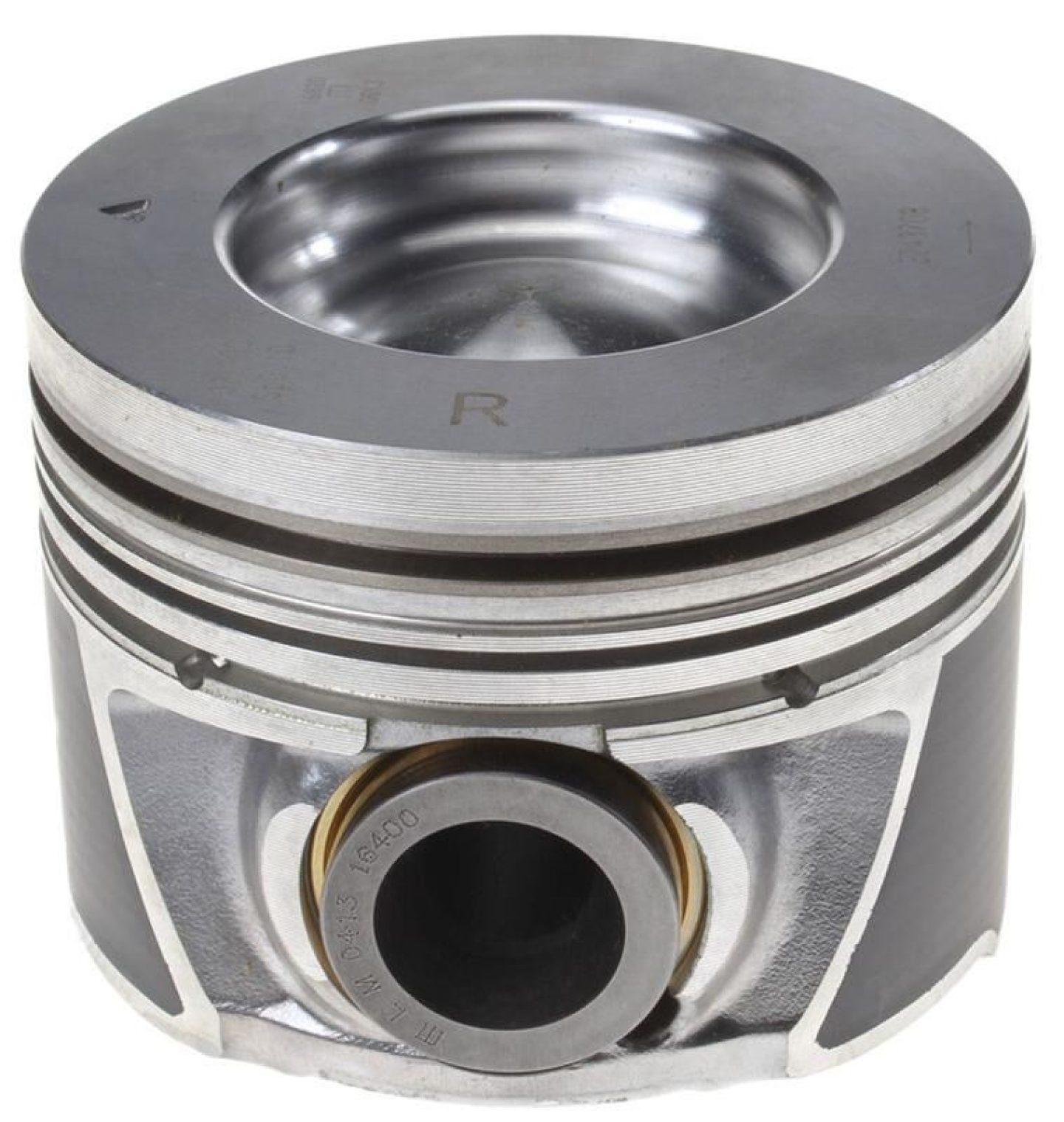

Engine Piston Set
Mahle Original replacement pistons have the same great OE features to provide the perfect fit and function in your vehicle. They offer things like compensated ring grooves to ensure proper ring loading and oil control; as well as expansion-controlled designs for small fitting clearances—to reduce engine noise, wear, emissions, and improved oil control. Choose the model designed for your vehicle and engine application.
Brand | MAHLE Original |
Manufacturer's Part Number | 224-3708.030 |
Part Type | Pistons |
Product Line | Mahle Original OE Replacement Pistons |
Summit Racing Part Number | MAH-2243708030 |
UPC | 27067927972 |
Piston Rings Included | No |
Bore (in.) | 4.085 in. |
Bore (mm) | 103.759mm |
Stroke | 3.897 in. |
Engine Stroke Type | Stock |
Piston Style | Dish, with no valve reliefs |
Piston Material | Cast aluminum |
Wrist Pin Style | Press-fit or floating |
Wrist Pin Retainers Included | Yes |
Wrist Pin Included | Yes |
Pin Diameter (in.) | 1.358 in. |
Piston Ring Thickness | 3.00mm x 2.00mm x 3.00mm |
File Fit | No |
Gapless | No |
Remanufactured | No |
Quantity | Sold as a set of 4. |
Notes | Fits the right bank only. |
Mahle OE GM 6.6L Duramax 06-09 LMM LBZ Vin 26D .030 Right Bank Only Piston Set (Set of 4) | ||||
---|---|---|---|---|
Year | Make | Model | Submodel | Region |
2006 | Chevrolet | Express 2500 | Base | US |
2006 | Chevrolet | Express 2500 | LS | US |
2006 | Chevrolet | Express 2500 | LT | US |
2006 | GMC | Sierra 3500 | SLE | US |
2006 | GMC | Sierra 3500 | SLT | US |
2006 | Chevrolet | Silverado 2500 HD | WT | US |
2006 | GMC | Sierra 2500 HD | SL | US |
2006 | GMC | Sierra 2500 HD | SLE | US |
2006 | GMC | Sierra 3500 | SL | US |
2006 | Chevrolet | Silverado 2500 HD | LT | US |
2006 | GMC | Sierra 3500 | WT | US |
2006 | Chevrolet | Silverado 3500 | LT | US |
2006 | GMC | Sierra 2500 HD | WT | US |
2006 | GMC | Sierra 2500 HD | SLT | US |
2006 | GMC | Savana 2500 | Base | US |
2006 | Chevrolet | Express 3500 | Base | US |
2006 | Chevrolet | Silverado 3500 | WT | US |
2006 | Chevrolet | Silverado 2500 HD | LS | US |
2006 | GMC | Savana 3500 | Base | US |
2006 | Chevrolet | Silverado 3500 | LS | US |
2007 | GMC | Sierra 3500 HD | WT | US |
2007 | GMC | Sierra 3500 HD | SLE | US |
2007 | GMC | Sierra 3500 Classic | SLE | US |
2007 | Chevrolet | Silverado 3500 HD | WT | US |
2007 | GMC | Sierra 2500 HD Classic | SLT | US |
2007 | GMC | Sierra 2500 HD Classic | SL | US |
2007 | Chevrolet | Silverado 2500 HD | WT | US |
2007 | GMC | Sierra 2500 HD | SLT | US |
2007 | Chevrolet | Express 2500 | Base | US |
2007 | GMC | Sierra 2500 HD Classic | WT | US |
2007 | Chevrolet | Express 3500 | Base | US |
2007 | Chevrolet | Silverado 3500 HD | LTZ | US |
2007 | GMC | Savana 2500 | Base | US |
2007 | GMC | Savana 3500 | Base | US |
2007 | Chevrolet | Silverado 2500 HD Classic | LS | US |
2007 | Chevrolet | Silverado 3500 Classic | WT | US |
2007 | Chevrolet | Silverado 3500 Classic | LS | US |
2007 | GMC | Sierra 2500 HD | WT | US |
2007 | GMC | Sierra 3500 Classic | SL | US |
2007 | GMC | Sierra 2500 HD Classic | SLE | US |
2007 | Chevrolet | Silverado 2500 HD Classic | WT | US |
2007 | Chevrolet | Silverado 3500 HD | LT | US |
2007 | GMC | Sierra 3500 Classic | WT | US |
2007 | GMC | Sierra 3500 HD | SLT | US |
2007 | Chevrolet | Silverado 2500 HD Classic | LT | US |
2007 | Chevrolet | Silverado 3500 Classic | LT | US |
2007 | Chevrolet | Silverado 2500 HD | LTZ | US |
2007 | GMC | Sierra 2500 HD | SLE | US |
2007 | Chevrolet | Silverado 2500 HD | LT | US |
2007 | GMC | Sierra 3500 Classic | SLT | US |
Note: Over 50 fitments returned for this product, this table is trimmed to only display the first 50. |
