MAHLE Original pistons are OE quality and have the same great OE features such as compensated ring grooves to assure proper ring loading and oil control, as well as expansion controlled designs for small fitting clearances to reduce engine noise, wear, emissions, and improve oil control.

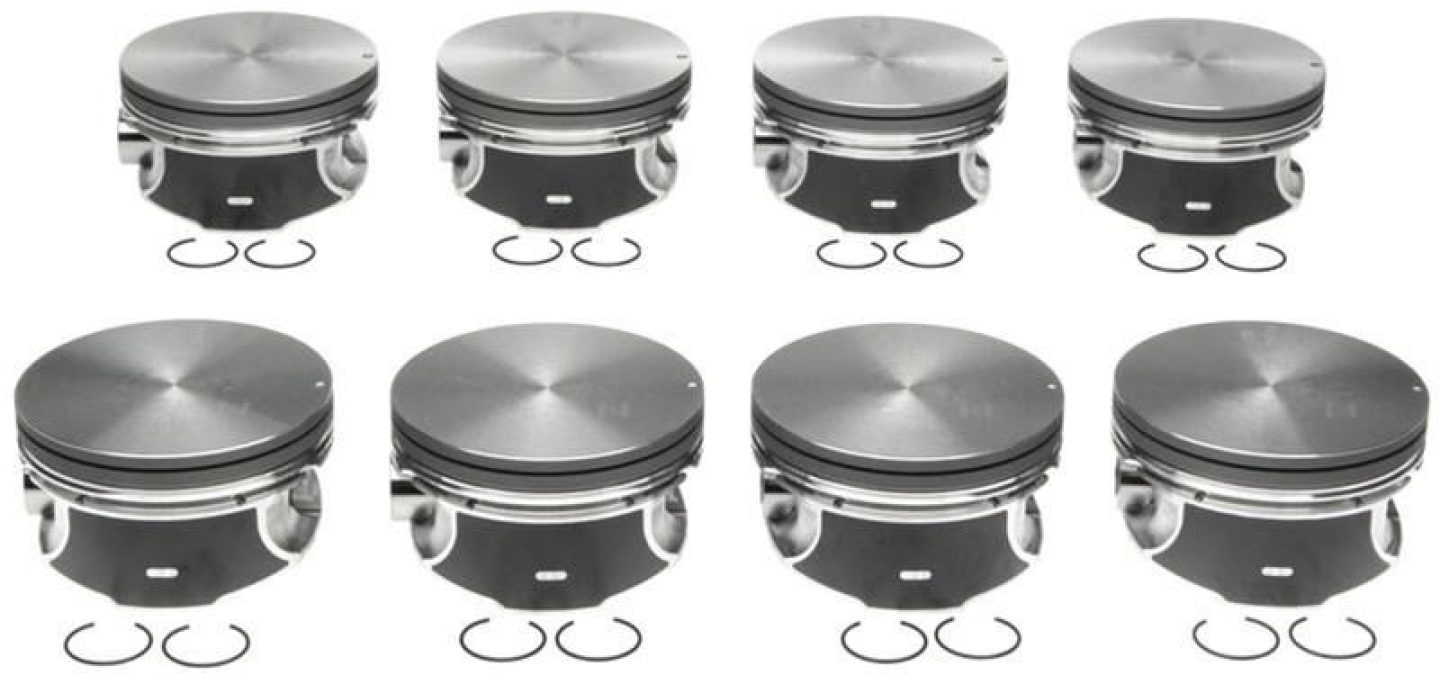

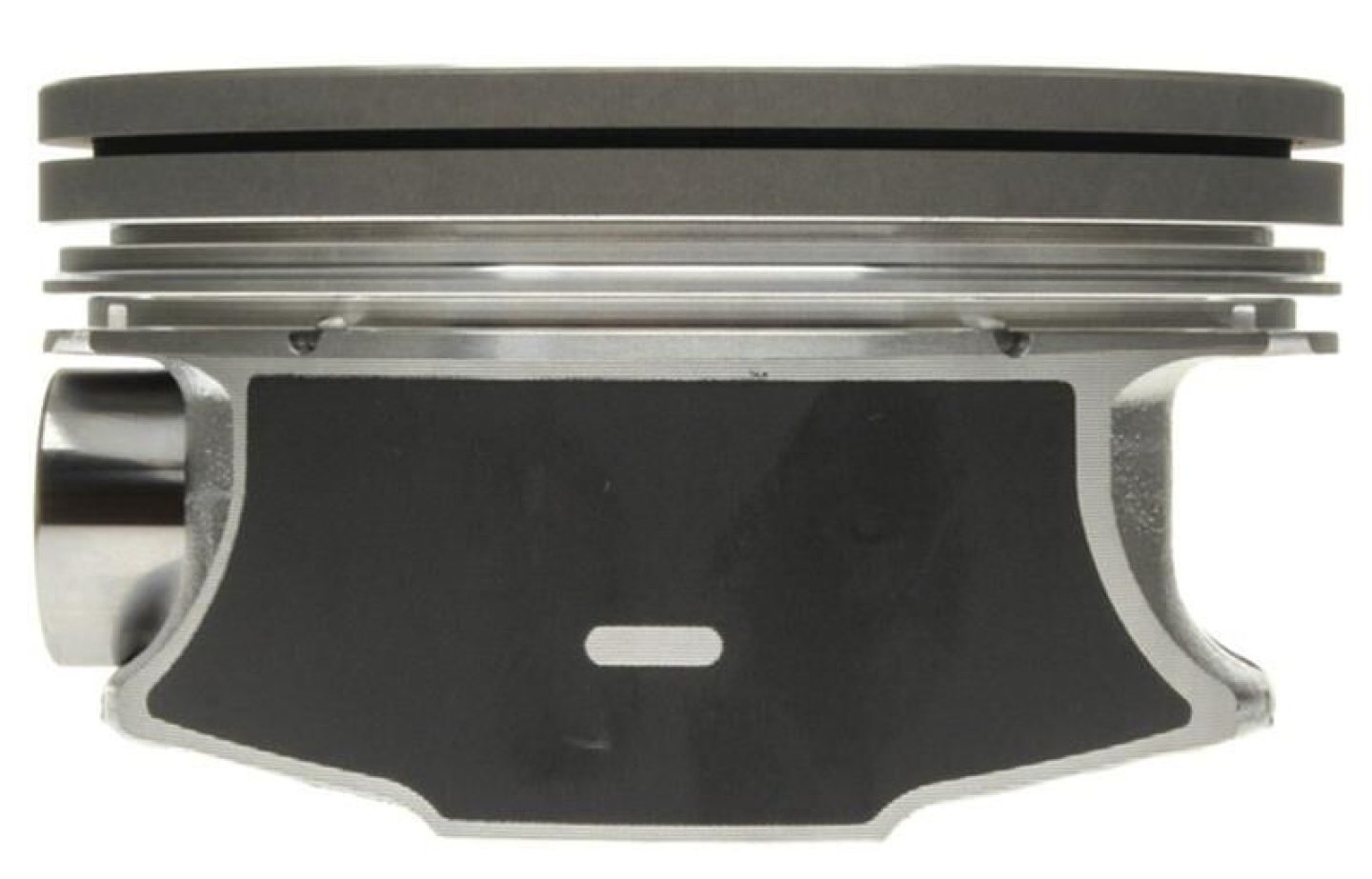

Engine Piston Set
Mahle Original replacement pistons have the same great OE features to provide the perfect fit and function in your vehicle. They offer things like compensated ring grooves to ensure proper ring loading and oil control; as well as expansion-controlled designs for small fitting clearances—to reduce engine noise, wear, emissions, and improved oil control. Choose the model designed for your vehicle and engine application.
Brand | MAHLE Original |
Manufacturer's Part Number | 224-3760-1.00MM |
Part Type | Pistons |
Product Line | Mahle Original OE Replacement Pistons |
Summit Racing Part Number | MAH-2243760100MM |
UPC | 27067968289 |
Piston Rings Included | No |
Bore (in.) | 4.102 in. |
Bore (mm) | 104.200mm |
Stroke | 3.622 in. |
Engine Stroke Type | Stock |
Piston Style | Flat top, with no valve reliefs |
Piston Material | Cast aluminum |
Wrist Pin Style | Press-fit or floating |

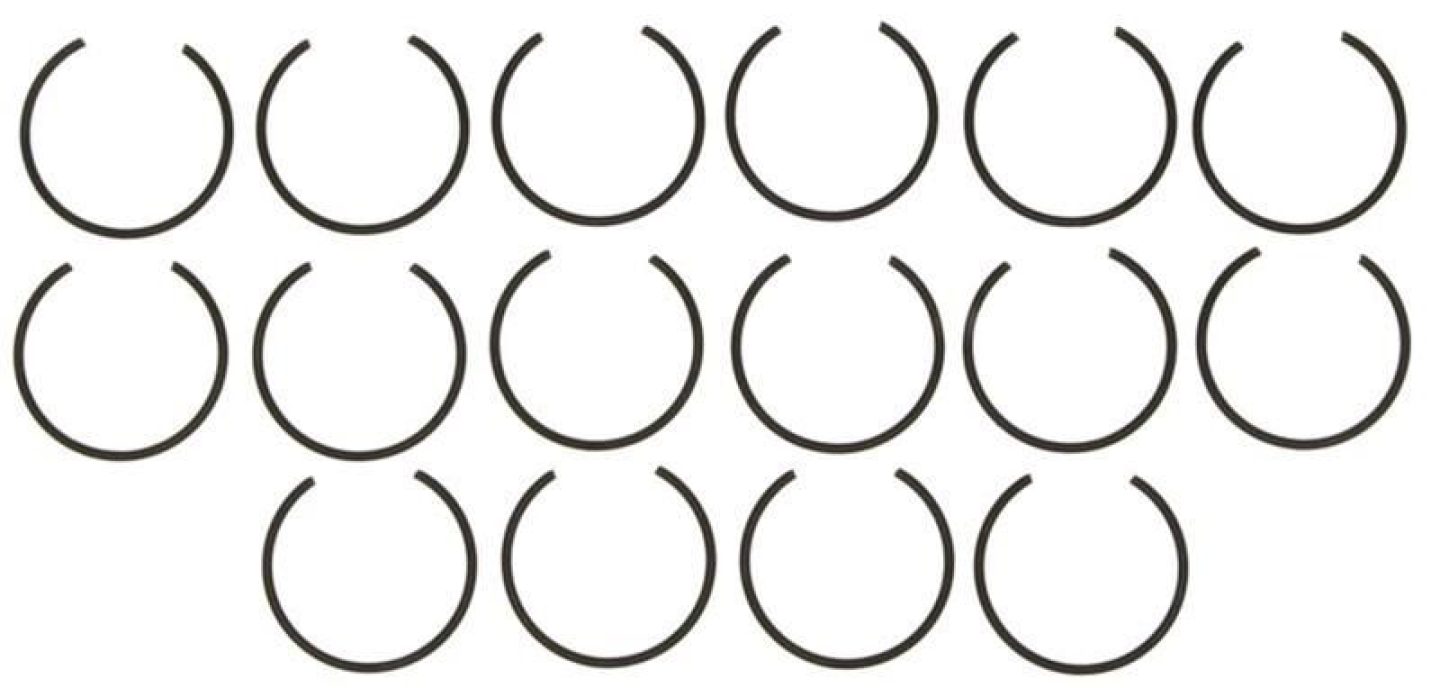

Wrist Pin Retainers Included | Yes |
Wrist Pin Included | Yes |
Pin Diameter (in.) | 0.943 in. |
Piston Ring Thickness | 1.50mm x 1.50mm x 2.50mm |
File Fit | No |
Gapless | No |
Remanufactured | No |
Quantity | Sold as a set of 8. |
Notes | Pistons skirts are coated. |
Mahle OE GM 6.2L LS3 08-15 1.00MM Piston Set (Set of 8) | ||||
---|---|---|---|---|
Year | Make | Model | Submodel | Region |
2008 | Chevrolet | Corvette | Base | US |
2009 | Chevrolet | Corvette | Base | US |
2009 | Pontiac | G8 | GXP | US |
2010 | Chevrolet | Corvette | Grand Sport | US |
2010 | Chevrolet | Corvette | Base | US |
2010 | Chevrolet | Camaro | SS | US |
2011 | Chevrolet | Corvette | Grand Sport | US |
2011 | Chevrolet | Corvette | Base | US |
2011 | Chevrolet | Camaro | SS | US |
2012 | Chevrolet | Corvette | Base | US |
2012 | Chevrolet | Camaro | SS | US |
2012 | Chevrolet | Corvette | Grand Sport | US |
2013 | Chevrolet | Corvette | Base | US |
2013 | Chevrolet | Camaro | SS | US |
2013 | Chevrolet | Corvette | Grand Sport | US |
2014 | Chevrolet | SS | Base | US |
2014 | Chevrolet | Camaro | SS | US |
2015 | Chevrolet | SS | Base | US |
2015 | Chevrolet | Camaro | SS | US |
2016 | Chevrolet | SS | Base | US |
