MAHLE Original pistons are OE quality and have the same great OE features such as compensated ring grooves to assure proper ring loading and oil control, as well as expansion controlled designs for small fitting clearances to reduce engine noise, wear, emissions, and improve oil control.

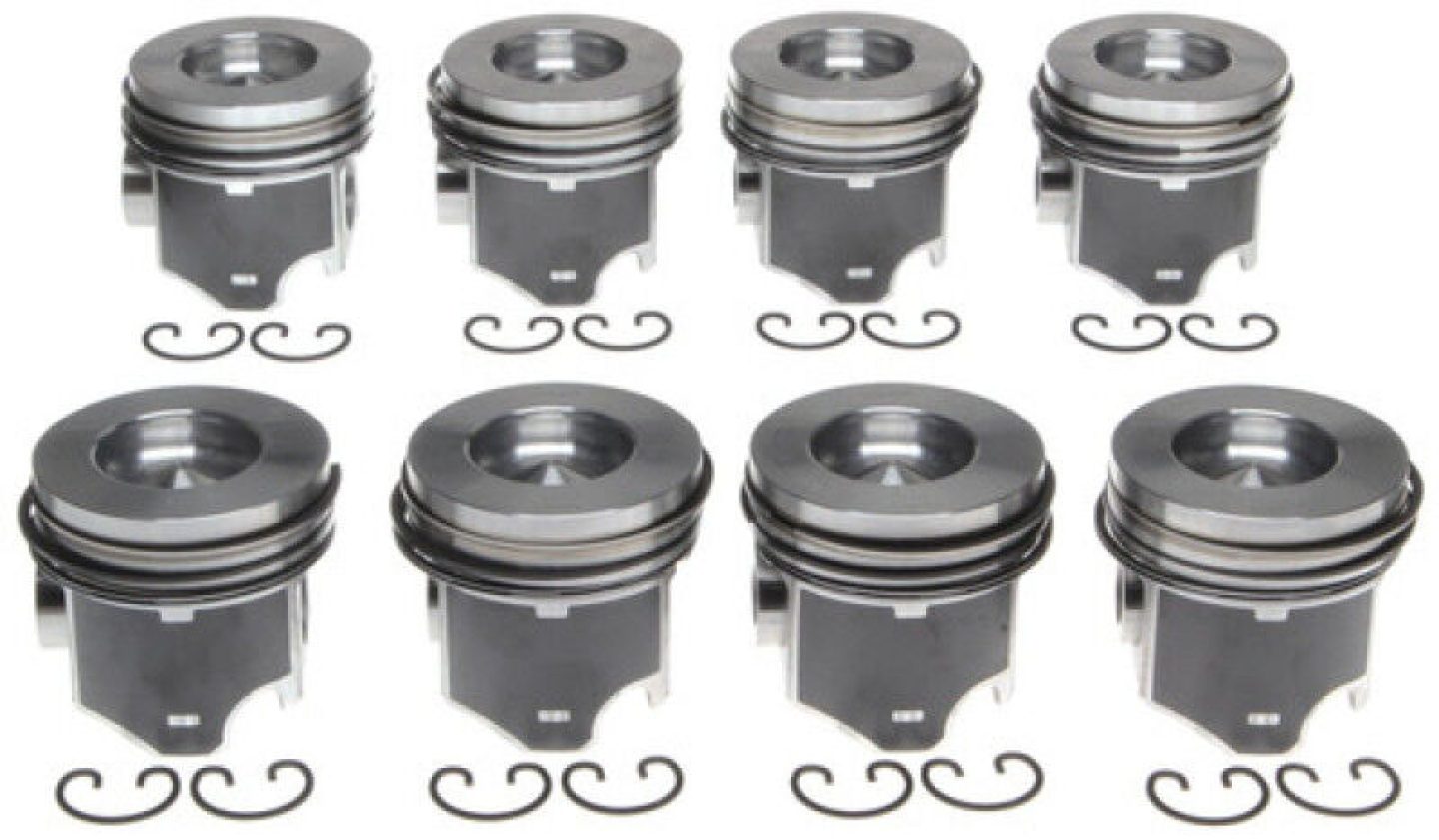

Engine Piston Set
Mahle Original aftermarket replacement pistons have great features to provide the perfect fit and function in your vehicle. They offer things like compensated ring grooves to ensure proper ring loading and oil control; as well as expansion-controlled designs for small fitting clearances—to reduce engine noise, wear, emissions, and improved oil control. Some include hard anodized ring lands, and coatings on the skirts and crowns. Choose the model designed for your vehicle and engine application.
Brand | MAHLE Original |
Manufacturer's Part Number | 224-3888 |
Part Type | Pistons |
Product Line | Mahle Original Aftermarket Replacement Pistons |
Summit Racing Part Number | MAH-2243888 |
UPC | 27067968098 |
Piston Rings Included | No |
Bore (in.) | 4.065 in. |
Bore (mm) | 103.251mm |
Stroke | 3.622 in. |
Engine Stroke Type | Stock |
Piston Style | Flat top, with two valve reliefs |
Piston Material | Cast aluminum |
Wrist Pin Style | Press-fit or floating |

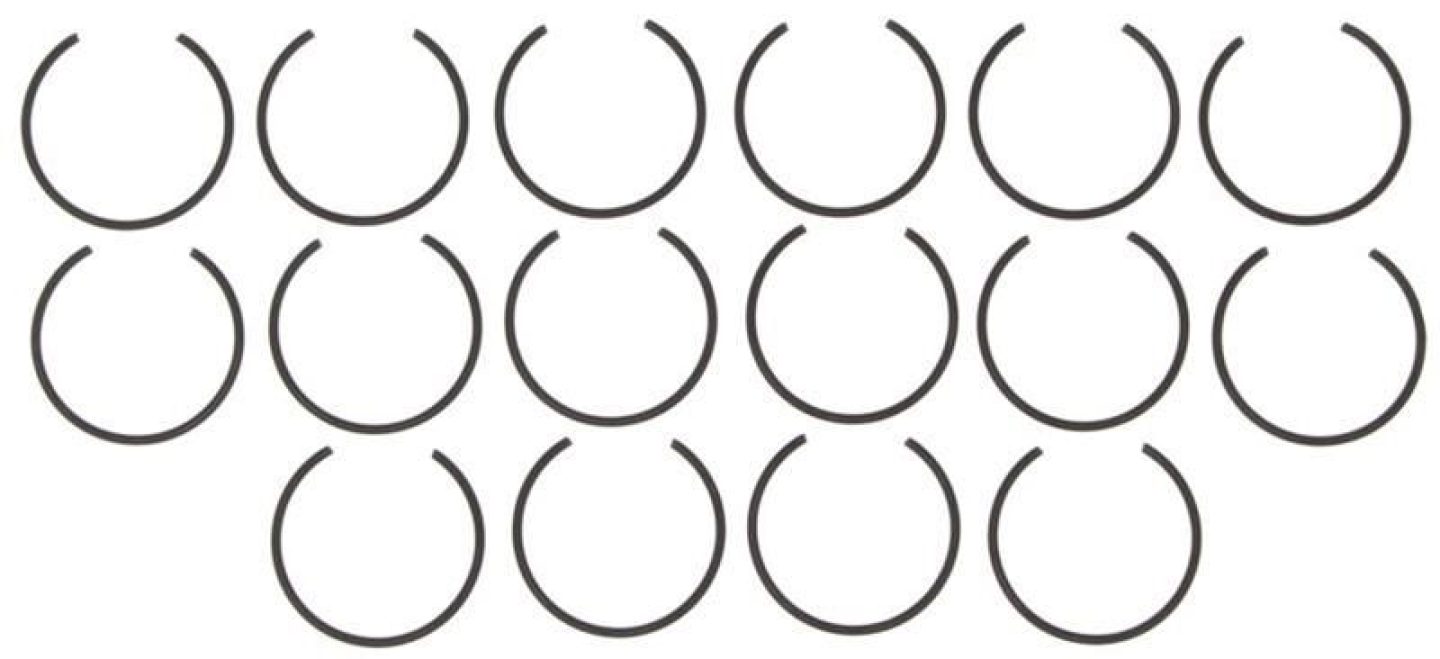

Wrist Pin Retainers Included | Yes |
Wrist Pin Included | Yes |
Pin Diameter (in.) | 0.943 in. |
Piston Ring Thickness | 1.50mm x 1.50mm x 2.50mm |
File Fit | No |
Gapless | No |
Remanufactured | No |
Quantity | Sold as a set of 8. |
Notes | Pistons have coated skirts and crowns. |
Mahle OE GM 6.2L L9H/ L92 07-09 Piston Set (Set of 8) | ||||
---|---|---|---|---|
Year | Make | Model | Submodel | Region |
2007 | GMC | Sierra 1500 | Denali | US |
2007 | Cadillac | Escalade | Base | US |
2007 | GMC | Yukon | Denali | US |
2007 | Cadillac | Escalade EXT | Base | US |
2007 | GMC | Yukon XL 1500 | Denali | US |
2007 | Cadillac | Escalade ESV | Base | US |
2008 | GMC | Sierra 1500 | Denali | US |
2008 | GMC | Yukon | Denali | US |
2008 | Chevrolet | Tahoe | LTZ | US |
2008 | GMC | Yukon XL 1500 | Denali | US |
2008 | Cadillac | Escalade | Platinum | US |
2008 | Cadillac | Escalade ESV | Base | US |
2008 | Cadillac | Escalade ESV | Platinum | US |
2008 | Cadillac | Escalade EXT | Base | US |
2008 | Cadillac | Escalade | Base | US |
2009 | GMC | Sierra 1500 | SLT | US |
2009 | Chevrolet | Silverado 1500 | LTZ | US |
2009 | GMC | Yukon | Denali | US |
2009 | GMC | Yukon XL 1500 | Denali | US |
2009 | GMC | Sierra 1500 | Denali | US |
2009 | Cadillac | Escalade EXT | Base | US |
2009 | Cadillac | Escalade ESV | Platinum | US |
2009 | Cadillac | Escalade | Base | US |
2009 | Cadillac | Escalade | Platinum | US |
2009 | Cadillac | Escalade ESV | Base | US |
2009 | Chevrolet | Tahoe | LTZ | US |
