MAHLE Original piston rings are the most technically advanced piston rings in the industry. Driven by OE requirements; reducing friction and ring mass while minimizing engine oil consumption, and providing longer service life. MAHLE Original piston rings lead the industry for the latest piston ring technology.

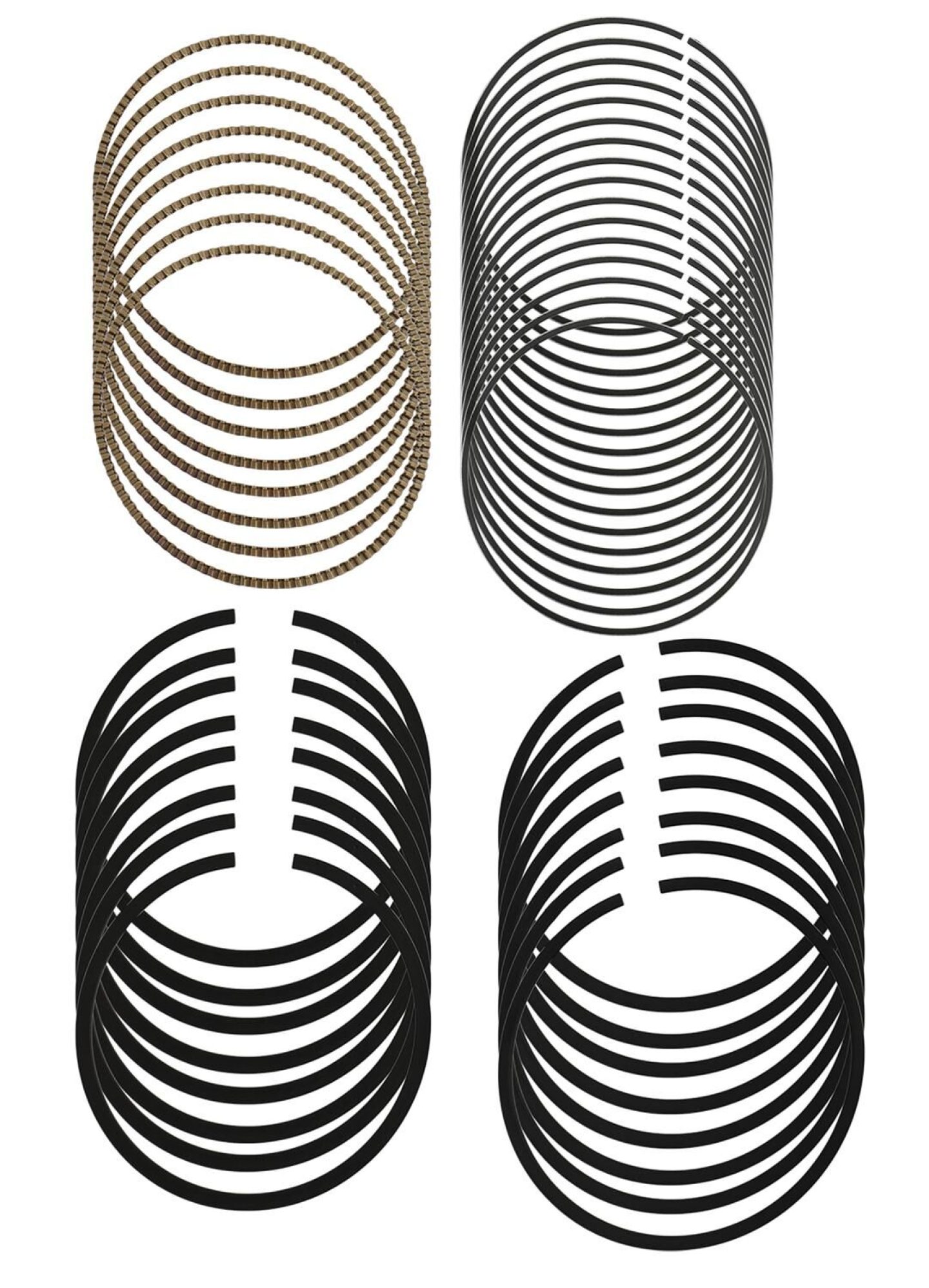

Engine Piston Ring Set
Mahle Original piston ring sets are designed to be installer-friendly. They are pre-lapped to seat immediately, virtually eliminating break-in time. Ring materials and coatings, as well as ring tension, are all optimized for reduced friction and extended life in each application. The compression rings feature a barrel-faced contact area for more efficient compression and CNC-controlled gap chamfer to optimize compression and reduce blow-by. Intermediate rings have a reverse twist design for better groove side sealing, and taper race machining to enhance contact. The CP-20 oil ring assemblies feature a 20 degree ear angle, an exclusive feature that provides the best possible side seal against the cylinder wall, and a special chemical polish on the oil ring expander offers enhanced oil drain back. Mahle Original piston ring sets provide unmatched quality and ease of installation, making them the rings of choice for today's engine builders.
Brand | MAHLE Original |
Manufacturer's Part Number | 41847CP |
Part Type | Piston Rings |
Product Line | Mahle Original Premium Piston Ring Sets |
Summit Racing Part Number | MAH-41847CP |
UPC | 27067091307 |
Bore (in.) | 3.800 in. |
Bore (mm) | 96.520mm |
File Fit | No |
Gapless | No |
Gas Ported | No |
Top Ring Included | Yes |
Top Ring Thickness | 1.2mm |
Top Ring Material | Carbon steel |
Top Ring Facing Material | Plasma-moly |
Second Ring Included | Yes |
Second Ring Thickness | 1.5mm |
Second Ring Material | Cast iron |
Second Ring Facing Material | Iron |
Oil Ring Included | Yes |
Oil Ring Thickness | 3.0mm |
Oil Ring Tension | Standard |
Oil Ring Material | CP-20 |
Quantity | Sold as a set. |
Mahle Rings GM 3800 Vin K 1995-2000 Moly Ring Set | ||||
---|---|---|---|---|
Year | Make | Model | Submodel | Region |
1987 | Oldsmobile | Cutlass Cruiser | LS | US |
1987 | Oldsmobile | Cutlass Cruiser | Brougham | US |
1988 | Oldsmobile | Cutlass Cruiser | SL | US |
1988 | Oldsmobile | Cutlass Cruiser | Brougham LS | US |
1988 | Oldsmobile | Cutlass Cruiser | LS | US |
1995 | Buick | Park Avenue | Ultra | US |
1995 | Pontiac | Firebird | Base | US |
1995 | Chevrolet | Camaro | Base | US |
1995 | Oldsmobile | 88 | Royale | US |
1995 | Oldsmobile | 88 | Royale LSS | US |
1995 | Buick | Park Avenue | Base | US |
1995 | Oldsmobile | 88 | Royale LS | US |
1995 | Oldsmobile | 98 | Regency Elite | US |
1995 | Buick | Riviera | Base | US |
1995 | Pontiac | Bonneville | SE | US |
1995 | Pontiac | Bonneville | SSE | US |
1995 | Pontiac | Bonneville | SSEi | US |
1996 | Pontiac | Bonneville | SSEi | US |
1996 | Buick | Regal | Limited | US |
1996 | Buick | Regal | Gran Sport | US |
1996 | Pontiac | Bonneville | SE | US |
1996 | Buick | Park Avenue | Base | US |
1996 | Buick | LeSabre | Limited | US |
1996 | Buick | Regal | Custom | US |
1996 | Chevrolet | Camaro | RS | US |
1996 | Oldsmobile | 88 | Royale | US |
1996 | Oldsmobile | 88 | Royale LS | US |
1996 | Oldsmobile | 98 | Regency Elite | US |
1996 | Buick | Park Avenue | Ultra | US |
1996 | Buick | Regal | Olympic Gold Edition | US |
1996 | Pontiac | Bonneville | SSE | US |
1996 | Oldsmobile | LSS | Base | US |
1996 | Buick | Riviera | Base | US |
1996 | Pontiac | Firebird | Base | US |
1996 | Chevrolet | Camaro | Base | US |
1996 | Buick | LeSabre | Custom | US |
1997 | Buick | LeSabre | Custom | US |
1997 | Buick | Park Avenue | Base | US |
1997 | Pontiac | Grand Prix | GT | US |
1997 | Chevrolet | Camaro | RS | US |
1997 | Pontiac | Bonneville | SSEi | US |
1997 | Buick | Riviera | Base | US |
1997 | Oldsmobile | 88 | Royale | US |
1997 | Oldsmobile | 88 | Royale LS | US |
1997 | Buick | Regal | GS | US |
1997 | Pontiac | Bonneville | SSE | US |
1997 | Oldsmobile | LSS | Base | US |
1997 | Oldsmobile | Regency | Base | US |
1997 | Pontiac | Grand Prix | SE | US |
1997 | Chevrolet | Camaro | Base | US |
Note: Over 50 fitments returned for this product, this table is trimmed to only display the first 50. |
