MAHLE Original piston rings are the most technically advanced piston rings in the industry. Driven by OE requirements; reducing friction and ring mass while minimizing engine oil consumption, and providing longer service life. MAHLE Original piston rings lead the industry for the latest piston ring technology.

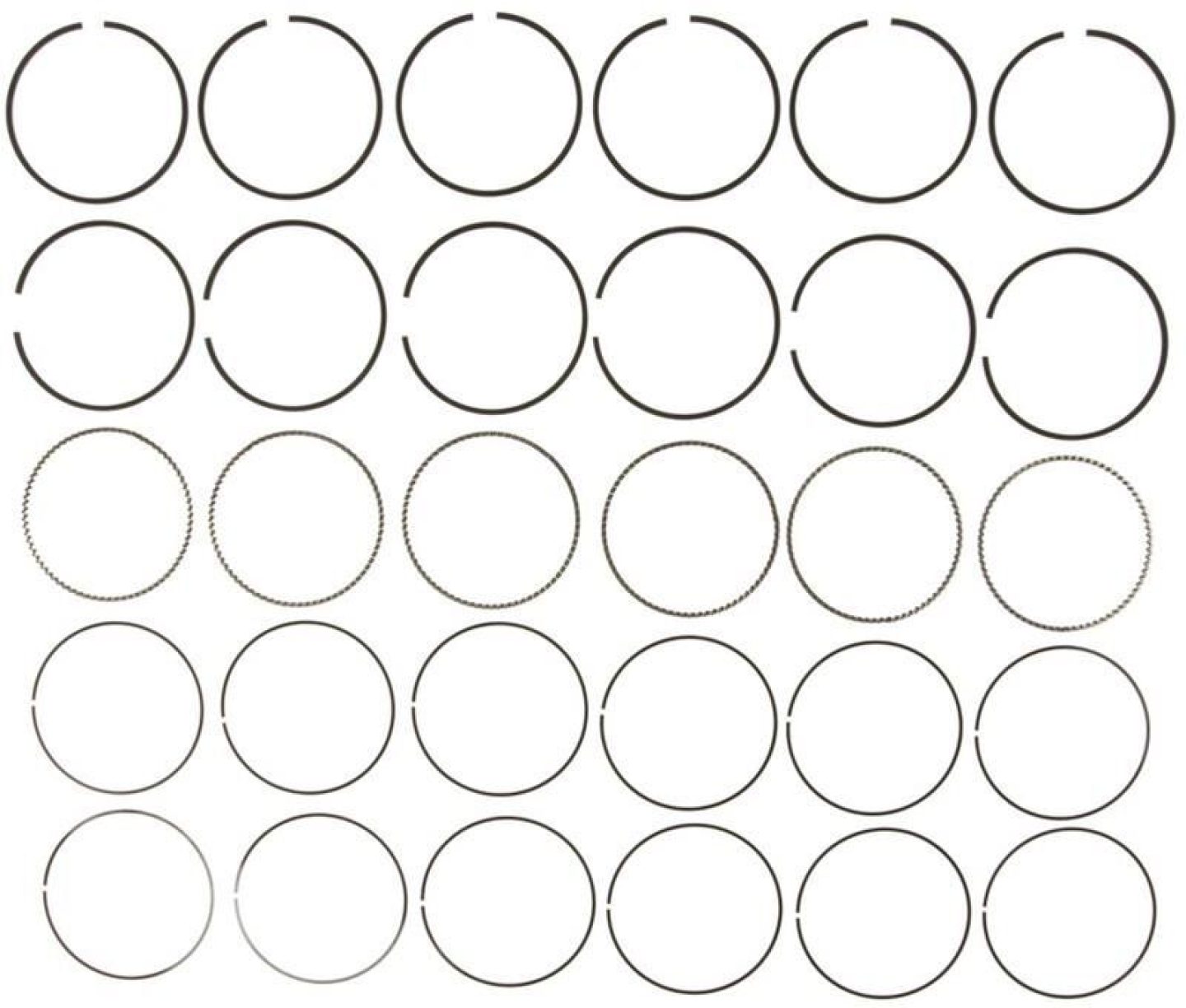

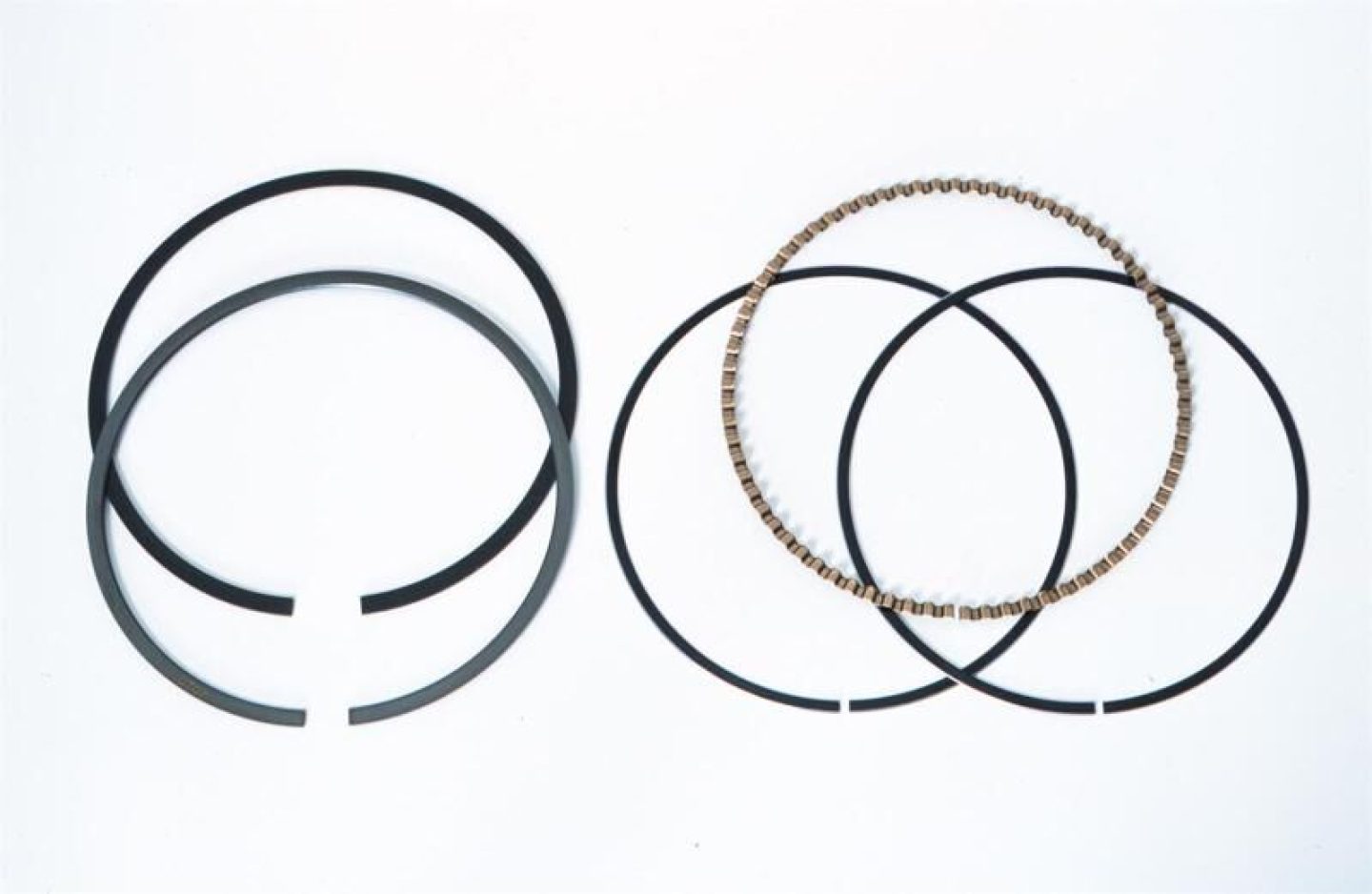

Engine Piston Ring Set
Mahle is the world's largest manufacturer of piston rings. Their tremendous research and development and extensive OE connections mean that Mahle Original standard piston ring sets have the technological edge. Things like narrow compression rings, steel compression rings for gasoline engines, low-tension oil rings, and coated compression rings for diesels all came from OE. Mahle's entire Original line proves time and again that it should be the ring of choice under every hood - regardless of the application.
Mahle Original standard piston rings offer high tensile strength, high yield strength, and excellent hardness with low ring mass. These factors lead to stress resistance, minimal groove pound-out, long service life, cylinder conformability, oil economy, and good blow-by control with low friction. Whether you're repairing a modern computer-controlled engine, or rebuilding an older engine, be sure to specify Mahle Original standard piston ring sets (formerly Perfect Circle) … trusted by professional automotive technicians for over 100 years.
Brand | MAHLE Original |
Manufacturer's Part Number | 51510CP.040 |
Part Type | Piston Rings |
Product Line | Mahle Original Standard Piston Ring Sets |
Summit Racing Part Number | MAH-51510CP040 |
UPC | 27067085276 |
Bore (in.) | 4.040 in. |
Bore (mm) | 102.616mm |
File Fit | No |
Gapless | No |
Gas Ported | No |
Top Ring Included | Yes |
Top Ring Thickness | 5/64 in. |
Top Ring Material | Cast iron |
Top Ring Facing Material | Cast iron |
Second Ring Included | Yes |
Second Ring Thickness | 5/64 in. |
Second Ring Material | Cast iron |
Second Ring Facing Material | Iron |
Oil Ring Included | Yes |
Oil Ring Thickness | 3/16 in. |
Oil Ring Tension | Standard |
Oil Ring Material | CP-20 |
Quantity | Sold as a set. |
Notes | Shallow oil ring groove. |
Mahle Rings AMC GMC Pass Jeep 151 2.5L Eng 80-81 Plain Ring Set | ||||
---|---|---|---|---|
Year | Make | Model | Submodel | Region |
1980 | American Motors | Concord | DL | US |
1980 | Pontiac | Phoenix | LJ | US |
1980 | Oldsmobile | Omega | Base | US |
1980 | Oldsmobile | Omega | SX | US |
1980 | Pontiac | Phoenix | Base | US |
1980 | Chevrolet | Citation | Custom | US |
1980 | Chevrolet | Citation | X-11 | US |
1980 | Jeep | CJ5 | Base | US |
1980 | American Motors | Spirit | Base | US |
1980 | Oldsmobile | Omega | Brougham | US |
1980 | American Motors | Spirit | DL | US |
1980 | Chevrolet | Citation | Base | US |
1980 | American Motors | Concord | Limited | US |
1980 | American Motors | Spirit | Limited | US |
1980 | Buick | Skylark | Sport | US |
1980 | Jeep | CJ5 | Laredo | US |
1980 | Buick | Skylark | Limited | US |
1980 | Jeep | CJ7 | Golden Hawk | US |
1980 | Jeep | CJ7 | Renegade | US |
1980 | American Motors | Concord | Base | US |
1980 | Jeep | CJ7 | Base | US |
1980 | Jeep | CJ5 | Golden Eagle | US |
1980 | Buick | Skylark | Base | US |
1980 | Chevrolet | Citation | Club | US |
1980 | Jeep | CJ7 | Laredo | US |
1980 | Jeep | CJ5 | Renegade | US |
1981 | American Motors | Eagle | Kammback | US |
1981 | Buick | Skylark | Base | US |
1981 | Oldsmobile | Omega | SX | US |
1981 | Jeep | CJ7 | Laredo | US |
1981 | Oldsmobile | Omega | Sport | US |
1981 | Oldsmobile | Omega | ES | US |
1981 | Oldsmobile | Omega | Brougham | US |
1981 | Oldsmobile | Omega | Base | US |
1981 | Chevrolet | Citation | Base | US |
1981 | Jeep | CJ5 | Laredo | US |
1981 | Chevrolet | Citation | X-11 | US |
1981 | Pontiac | Phoenix | LJ | US |
1981 | American Motors | Concord | Limited | US |
1981 | American Motors | Eagle | DL SX4 | US |
1981 | American Motors | Eagle | Limited | US |
1981 | American Motors | Spirit | Base | US |
1981 | Jeep | CJ5 | Base | US |
1981 | Buick | Skylark | Limited | US |
1981 | American Motors | Concord | DL | US |
1981 | American Motors | Eagle | DL Kammback | US |
1981 | American Motors | Concord | Base | US |
1981 | American Motors | Spirit | DL | US |
1981 | Jeep | CJ7 | Base | US |
1981 | Pontiac | Phoenix | Base | US |
Note: Over 50 fitments returned for this product, this table is trimmed to only display the first 50. |
